Summary of Contents for Foldawheel PEGASUS II

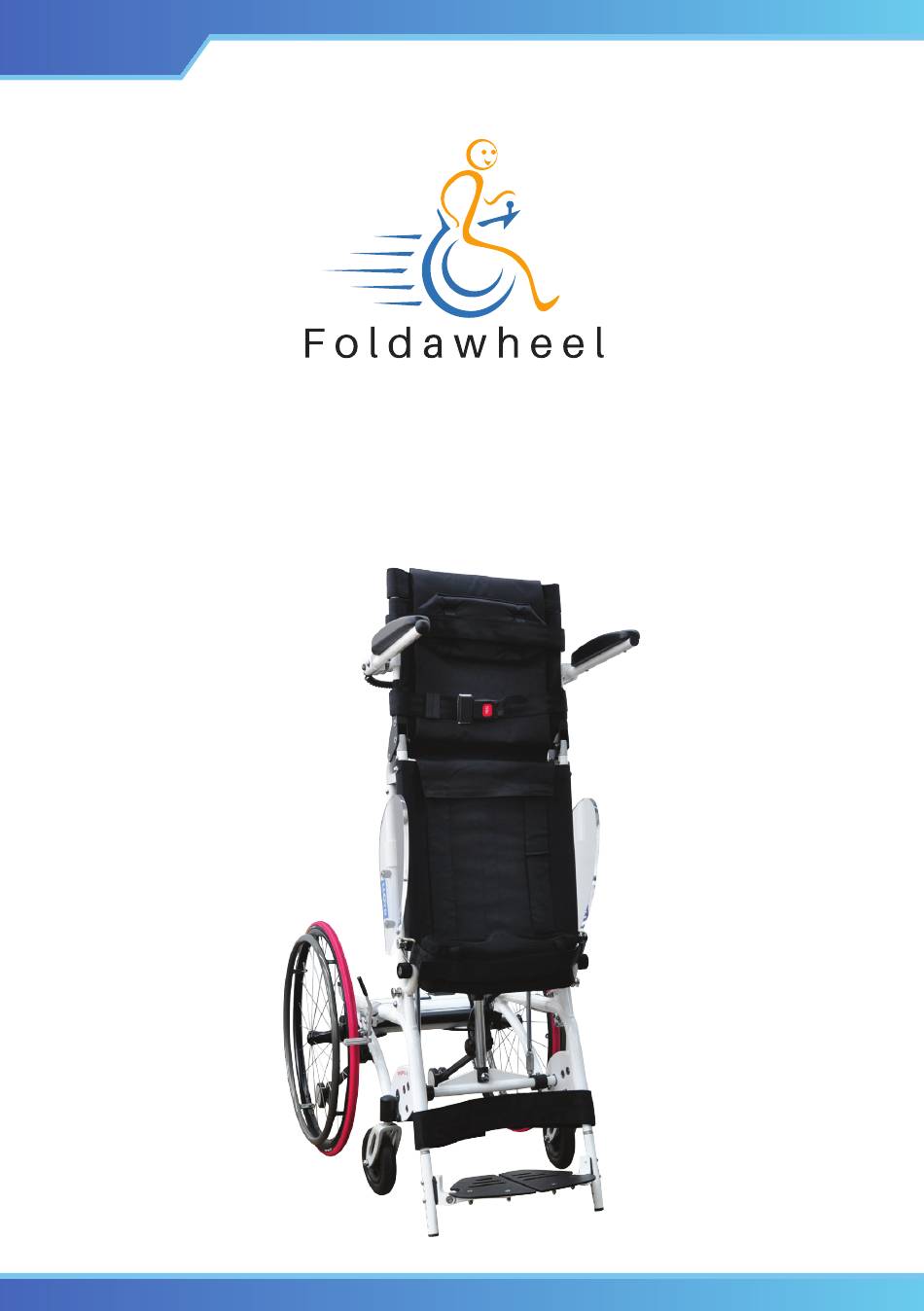

  • Page 1 V2.0 PEGASUS II User Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Title Page Parts Introduction 1.0 Safety Tips 02 - 03 2.0 Set Up Upon Arrival 3.0 Adjustment 04 - 07 4.0 Operation 5.0 Storage 6.0 Control System 7.0 Maintenance Contact Us PARTS INTRODUCTION 01. Backrest 02. Handle Controller 03.
  • Page 3: Safety Tips

    1.0 SAFETY TIPS 1-1. Standing Attention : - Before using the stand up wheelchair, you should be familiar with the operation and the function. - Use only on standard household, hard and even ground. Not to be used on a wet surface.
  • Page 4: Set Up Upon Arrival

    1.0 SAFETY TIPS 1-5. Armrests Armrests Never lift the wheelchair by the armrests. These parts are raisable and lifting the wheelchair by them may cause damage to the chair or injury to the user. 1-6. Power Drive Attachments Stand up wheelchair does not advocate the use of power drive attachments on any manual wheelchair.
  • Page 5: Adjustment

    3.0 ADJUSTMENT Should you require adjustments and alterations to the mechanism of the wheelchair, or any maintenance work, please contact qualified technicians. 3-1. Adjusting The Seat Depth -  Push the gas spring release lever and let the wheelchair frame rise over the rear wheel.
  • Page 6 3.0 ADJUSTMENT 3-2-1. Adjusting The Footrest Angle - After releasing the screws the footplate angle can be adjusted using the different hole at 3 range incline angle.(P12~14) - Retighten the screws. High Medium 3-3. Adjusting The Backrest Height -  Remove the backrest pad and end cap. (P15~16) - ...
  • Page 7 3.0 ADJUSTMENT 3-5. The Knee Support and Belts The most important safety features of the stand-up wheelchairs are the knee support, safety belt and chest belt. It is absolutely essential that these are correctly in place before you attempt to stand up. 3-5-1.
  • Page 8 3.0 ADJUSTMENT 3-5-3. The Safety Belt -  The safety belt holds the waist in place. - Make sure that the safety belt is secured onto the velcro fasten behind the backrest. -  Close the catch on the safety belt and pull it but not too tight.
  • Page 9: Operation

    (risk of tipping over). Note: Before standing up, apply both brakes on the Pegasus II. Please beware of parts of the wheelchair where one might conceivably trap or catch parts of the body when standing up, in the space between the side panel / armrest and the seat as well as in the pivot of the side panel / armrest.
  • Page 10: Storage

    5.0 STORAGE 5-1. Backrest Folding Your Pegasus II is equipped with a folding backrest which allows you to cut down significantly on the space required to store the wheelchair away. Pull the chord and at the same time press the backrest lightly forward. You can...
  • Page 11: Control System

    6.0 CONTROL SYSTEM Battery and Control Box Connection 6-1. The main electrical control system is composed of the motor, Control box battery and controller. Connect the power cord of the control box to the battery. DC Power Socket Battery Capacity Indicator Charging Socket Battery Charge...
  • Page 12: Maintenance

    For stubborn or oily stains, apply a mild detergent to the cloth. Do not hose down your Pegasus II with water. According to frequency of use, check tyre pressure between once a week and once a month.
