- Page 1 KE-265 Keyless Entry Access Control System Installation and Operations Manual...
-
Page 2: Table Of Contents
Installation/Operations Manual for KE-265, April 2006 Revision D This documentation is applicable to the KE-265 with Rev. C on the date code label. (Located on the control module circuit board). This documentation is also applicable to prior revisions except where noted. -
Page 3: Introduction

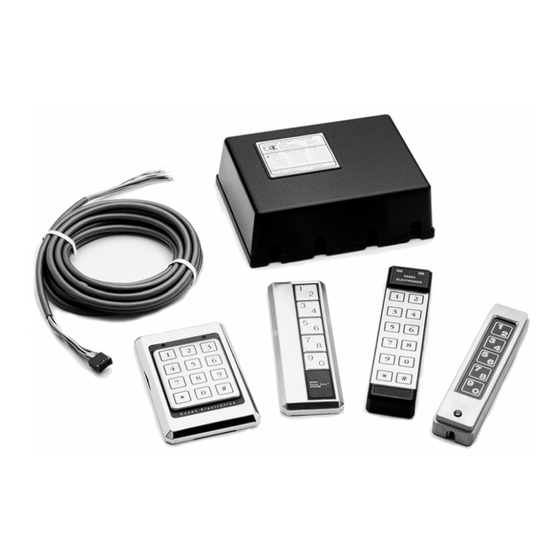

Introduction Overview The KE-265 is an easy to program, easy to use, stand-alone ® Keyless Entry system with features suitable for basic access control requirements. Providing either a voltage output or dry contact closure, the KE-265 is designed to control any fail-safe or fail-secure electric locking device. -
Page 4: Preparing For Installation
Keypad Options All Essex Keypads are designed to perform reliably in even the most extreme environmental conditions. Operating temperatures can range from -40°C to +70°C (-40°F to 160°F). The KE-265 is compatible with any of the following Keypad styles/configurations KP-5S KP-26TS... -
Page 5: The Installation Procedure
The Installation Procedure Required Tools You will need the following tools: • Medium sized, Phillips head • 7/8” or 1” (25mm) drill bit • 1/2” (16mm) drill bit screwdriver • 1/8” standard screwdriver • 5/32” (4mm) drill bit (For 12-Pad 3x4) •... -
Page 6: Installing The Control Module
Essex battery charging module (part no. BC-01) and rechargeable Gel Cells to the KE-265 to provide operation during a power interruption. Note: Although the system will operate on DC input, DC will not charge the batteries for backup. -
Page 7: System Hardware Setup
NOT used, you must jump the “MONITOR” screw terminals with the factory installed wire.) Setting Relay Options The KE-265 provides a variety of options for configuring both relays. These options include User Unlock Authorization, Latching Authorization and CCTV/Doorbell setup. Configuring these options is accomplished by setting jumpers on the Control Module circuit board. -
Page 8: Tamper Alarm Lockout
Tamper Alarm Lockout A person attempting to gain entry by guessing the code and pushing 25 wrong digits will cause the KE-265 to go into tamper alarm mode. The Keypad will beep constantly for 30 seconds during which time the door will remain locked and no keypad functions can be performed. -
Page 9: System Programming
Overview of the Master Code Knowledge of the Master Code is the highest privilege granted to a user of the KE-265 system. There is only one master code, which is used to program each of the 5 User Codes. The factory default Master Code, “1-3-5-7-9”, can be used for initial programming but should be changed to a unique 3 to 8 digit code. -
Page 10: Programming User Codes
Programming User Codes To Program a New User Code or Change an Existing User Code: 1. Choose a new 3 to 8 digit code that will be used for this User Code. ___ ___ ___ ___ ___ ___ ___ ___ 2. -
Page 11: Troubleshooting
If the unit has just been installed, check the CCTV jumper (see Setting Relay Options – Page 10). If you do not have a CCTV connected to the KE-265, make sure the CCTV jumper is NOT installed across the1 and 3 pins. -
Page 12: 1130 Mark Avenue
Keypad beeps all by itself Constant Beeping - If the beep is consistently every 5 seconds, put a .1uf 16v (or higher) ceramic capacitor across wires 3 & 10 (black, violet) on terminal strip “A”. Random Beeping - Check for bad circuit ground going to the keypad. -
Page 13: Appendix A - Circuit Board Layout
Appendix A – Circuit Board Layout Upon receipt of such notification, Essex Electronics, Incorporated will determine whether to repair or replace. We also reserve the right to have our representative make any inspection or repairs, or furnish replacements. DISCLAIMER OF WARRANTIES: LIMITATION OF BUYER’S REMEDIES EXCEPT FOR THE REPAIR OR REPLACEMENT AT SELLER’S OPTION WHICH IS EXPRESSLY SET FORTH ABOVE, ESSEX ELECTRONICS, INCORPORATED EXTENDS NO WARRANTY OF ANY KIND, EXPRESS OR... -
Page 14: Appendix B- Typical Wiring Diagrams
Fail Secure Lock Garage Door/Gate Drive Controlled by KE-265 Controlled by KE-265 Fail Safe or Fail Secure Lock Controlled by KE-265 And Powered by External Power Supply Notes Master Code ___ ___ ___ ___ ___ ___ ___ ___ Username ________________...
