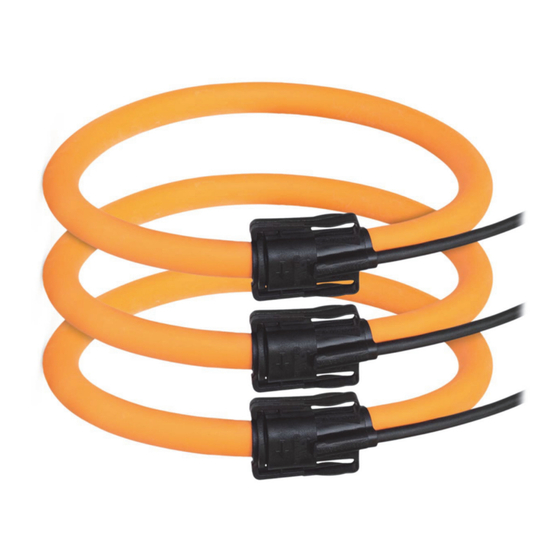

- Page 1 Operating Instructions MAVOWATT 210 R OGOWSKI Flexible AC Current Probe 3-447-115-03 based on the Rogowski Principle 1/4.22...
-
Page 2: Table Of Contents
MAVOWATT 210 Rogowski Gossen Metrawatt GmbH Contents 1 Safety Precautions ............. 1 2 Applications ................ 2 2.1 Intended Use / Use for Intended Purpose..........2 2.2 Use for Other than Intended Purpose ..........2 2.3 Liability and Guarantee ................ 2 2.4 Opening the Instrument / Repairs ............ -
Page 3: Safety Precautions
Gossen Metrawatt GmbH MAVOWATT 210 Rogowski Safety Precautions General • Carefully and completely read and adhere to these operating instructions. The document can be found at http://www.gossenmetrawatt.com. Retain this document for future reference. • Carefully and completely read and adhere to the product documentation of the combined products. -
Page 4: Applications
Please read this important information! Intended Use / Use for Intended Purpose The MAVOWATT 210 Rogowski current probes are based upon the Rogowski principle. They can be used exclusively to measure AC current by being con- nected to MAVOWATT 210 Three-phase Power and Energy Logger. The flexi- ble probes allow current measurements on conductors that are hard to reach. -
Page 5: The Product
Gossen Metrawatt GmbH MAVOWATT 210 Rogowski The Product Scope of Application This documentation applies to the following articles: Product Product no. Description MAVOWATT 210 Z840A Flexible AC current probe based on the Rogowski 500/40 Rogowski principle, suitable for MAVOWATT 210, 50 − 500 A, measuring head length 40 cm. -
Page 6: Relevant Standards
MAVOWATT 210 Rogowski Gossen Metrawatt GmbH 3.2.1 Symbols on the product and the included accessories: Warning concerning a point of danger (attention, observe documentation!) Double insulation (protection category II) Do not apply around or remove from hazardous live conductors without additional protective means. -
Page 7: Technical Data
Gossen Metrawatt GmbH MAVOWATT 210 Rogowski Technical Data MAVOWATT 210 50 A − 500 A Rogowski 500/40 Measure- MAVOWATT 210 150 A − 1500 A ment Rogowski 1500/40 range Rated MAVOWATT 210 300 A − 3000 A Current Rogowski 3000/40 Accuracy 0.5% per IEEE C57.13 class... -
Page 8: Installation
1. Plug the output cable of the current probe to the current input of MAVOWATT 210. 4.2.2 Connecting MAVOWATT 210 Rogowski Current Probes to the Circuit to be Measured Attention! DO NOT attempt to measure current in any circuit in which the circuit to ground voltage exceeds the insulation rating of the current probe. -
Page 9: Operation
Gossen Metrawatt GmbH MAVOWATT 210 Rogowski Note! Do not locate the probe coupling close to other conductors carrying high current. Note! Be sure to connect the current probes with the arrow pointing towards the load or an erroneous power reading will result. -
Page 10: Contact, Support And Service
MAVOWATT 210 Rogowski Gossen Metrawatt GmbH Contact, Support and Service You can reach Gossen Metrawatt GmbH directly and uncomplicated, we have one number for everything! Whether it’s a support question, or individual desire, we answer every request +49-911-8602-0 Monday–Thursday: 8:00 a.m. – 4:00 p.m. -
Page 11: Ce Declaration
Gossen Metrawatt GmbH MAVOWATT 210 Rogowski CE Declaration The product fulfills all requirements of applicable EU directives and national regulations. We confirm this with the CE mark. The CE Declaration of Confor- mity is available upon request. Returns and Environmentally Sound Disposal... - Page 12 MAVOWATT 210 Rogowski Gossen Metrawatt GmbH © Gossen Metrawatt GmbH Prepared in Germany • Subject to change, errors excepted • PDF version available on the Internet All trademarks, registered trademarks, logos, product names, and company names are the property of their respective owners.
