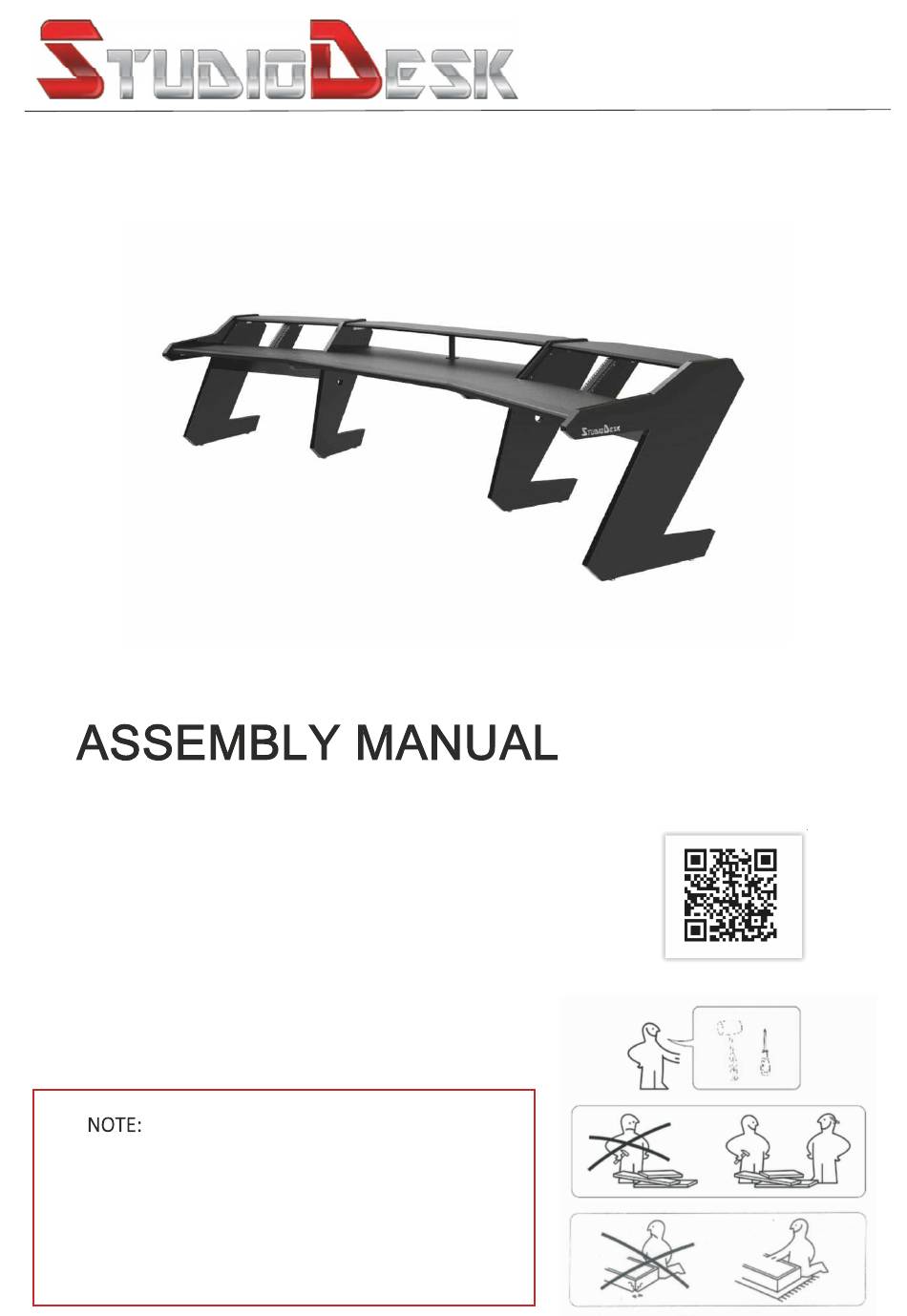

- Page 1 PLXXLBL PRO LINE XXL workstation FOLLOW THE LINK FOR STEP BY STEP VIDEO ASSEMBLY MANUAL Please assemble your product on soft surface to avoid scratches and damages on lacquer.
- Page 2 The Desk You Deserve Thank you for making StudioDesk your desk of choice! Before beginning assembly of your stand, let s get familiar with the parts you have received in your package. Please match the corresponding numbers on this page with the drawings. Parts Central top shelf 3.A Central top shelf support 3.B Top shelf Left Top shelf Right 1. Legs 2. Side carts parts 3. Central desk parts Desk surface Left Desk surface Right Central desk surface 3.D 4. Extension parts 5. Optional desk raisers Central metal reinforcement 3.E Connecting board Connecting board 6. Optional Rack expansion Cable management tray 3.F Metal reinforcement Metal reinforcement Back central extension 3.G Rack dividers Extension holders 3.H Optional Rack expansion Optional desk raisers and glides...
- Page 3 Step One Place Left leg 2A on the floor. Insert dowels to the Left desk surface 2L and top shelf 2A. Note Top shelf are identical. Connect boards and leg as Shown on the illustration right. Fix parts together with Metal brackets and M6 screws as shown on the illustration below. Step TWO Install dowels to rack divider 2E and fix it to the top shelf as shown on the illustration on the right. Fix divider to the top shelf using Metal brackets and M5 Screws as shown below. Step Three Fasten rack divider with metal brackets and M6 screws as shown on the left. ...
- Page 4 Step Four Install metal reinforcement as shown on the illustration right. Use M6 Screws to fix reinforcement to the leg and desk surface. Use Confirmat screw to fix connecting board to rack divider as shown on this illustration. Step Five Add wooden dowels to the vertical boards as shown on the illustration on the right. Take LEG 1B and carefully place it on the corresponding dowels to close construction. NOTE! Should you purchased Rack Expansion, please check Step 8 before continue. ...
- Page 5 Step Six Fix construction together with Metal brackets And M6 screws as shown on the illustration On the right. Step Seven Should you use keyboard stand with your desk, Now is time to add raisers to the legs. This will Raise your desk for 35 mm and allow you More clearance for your keyboard. Use M8 x 50 to fix raisers to the leg as shown On the illustration on the left. Should you not using Keyboard stand with your Desk, skip this step. Step Eight Add desk glides to the Legs before you turn Your side cart in the standing position. INSTALLING OPTIONAL RACK EXTENSION Should you purchase rack extension for your desk This is the good time to install it by fixing it to the legs using M6 Screws as shown on the illustration on the left. Be extra careful to avoid scratches on high glossy lacquer with metal parts. ...
- Page 6 Step Nine Carefully turn your side cart upside and install Rack rails to it as shown on the picture using M6 screws. Assemble right side cart using the same procedure. Step Ten Install Metal brackets as shown on the Illustration on the left using M6 Screws. Do the same on both carts. Step Eleven Insert wooden dowels as shown on The illustration on the right. Do the same on both carts. ...
- Page 7 Step Twelve Install metal reinforcement 3.E to Central main desk surface 3.D using M5 screws. Step Thirteen Two persons are needed in this step. Bring two side carts closer so you are able to place central desk surface to lean on the metal brackets as shown on the Illustration on the left. Push central Desk surface slightly to the wooden dowels. Step Fourteen While one person holding central desk surface the other person will bring other will pull right cart closer to connect both side carts with central desk surface. Make sure that wooden dowels enter the correspondent holes on the legs. Step Fifteen Make sure there are no gap in between leg And desk surface. Use M6 screws to fasten parts together as shown on the illustration on the left. ...
- Page 8 Step Sixteen Insert M6 screws in the inserts on the position You want your central top shelf 3.A is installed. There are two different heights available. Choose the one of your liking. Step Seventeen Install shelf brackets to the central top shelf As shown on the illustration on the left using M6 Screws. Top shelf support is there to prevent Top shelf from bending under the weight. It It is not necessary to be fixed to the top shelf. You can Install it freely without screwing it to the top shelf. Place support in the middle before next Step or add it after shelf is in the place. Do it carefully so you’ll not scratch the lacquered wood. Step Eighteen Top shelf is installed on the both side evenly As shown on the illustration on the right. Once in place, fasten M6 Screws to fix it In the place. ...
- Page 9 Step Nineteen Install Cable Management tray 3.F under the Central desk surface as shown on the illustration using M6 screws and Washers. Step Twenty If you received optional extension surface for your Desk here is how to install it. First install extension holders 3.H by fasten it to metal reinforcement and central desk surface To the predefined holes and desk surface using M6 screws. Step Twenty One Once you have holders installed, you can place Back central extension over holders and fix Extension surface to holders using M6 Screws As shown on the illustration on the right. ...
- Page 10 Step Twenty Two Should you install desk surface extension, you have Choice to install cable management tray to Extension part instead, as shown on the illustration. Congratulations on your new desk!
