- Page 1 BPC-3030 User Manual V1.0 User Manual BPC-3030 Compact Size fanless Box PC solution withIntel® Bay Trail-D J1900 CPU...
- Page 2 Copyright The documentation and the software included with this product are copyrighted 2014 by Arestech Co., Ltd. All rights are reserved. Arestech Co., Ltd. reserves the rightto make improvements in the products described in this manual at any time withoutnotice. No part of this manual may be reproduced, copied, translated or transmittedin any form or by any means without the prior written permission of Arestech Co.,Ltd.
- Page 3 BPC-3030 User Manual V1.0 your returnmore quickly. Carefully pack the defective product, a fully-completed Repair and ReplacementOrder Card and a photocopy proof of purchase date (such as your sales receipt)in a shippable container. A product returned without proof of the purchase dateis not eligible for warranty service.
- Page 4 BPC-3030 User Manual V1.0 Safety Instructions Read these safety instructions carefully. Keep this User Manual for later reference. Disconnect this equipment from any AC outlet before cleaning. Use a dampcloth. Do not use liquid or spray detergents for cleaning. For plug-in equipment, the power outlet socket must be located near the equipmentand must be easily accessible.
- Page 5 BPC-3030 User Manual V1.0 INCORRECTLYREPLACED. REPLACE ONLY WITH SAME EQUIVALENT TYPERECOMMENDED BY THE MANUFACTURER, DISCARD USED BATTERIESACCORDING MANUFACTURER'S INSTRUCTIONS. Safty Precaution - Static Electricity Follow these simple precautions to protect yourself from harm and the products from damage. To avoid electrical shock, always disconnect the power from your PC chassis before you work on it.
-
Page 6: Table Of Contents
BPC-3030 User Manual V1.0 Contents Chapter 1: General Introduction Overview........................1 Key Features......................2 Hardware Specification.....................2 Front & Rear Panel Arrangement................3 Mechanical Dimensions.....................4 Power Requirement....................5 Environment Specification..................5 Chapter 2: Connector(PIN-Definition).................6 Part1. External Interface(Front)................6 Power Input(9~36V DC)..................6 COM Ports......................6 -COM1Port(RS-232)..................7 -COM1Port(RS-422)................7 -COM1 Port(RS-485)................7 -COM2 to COM4 Ports(RS232)................7... - Page 7 BPC-3030 User Manual V1.0 Installing HDD/SSD..................15 Installing USB dongle inside the Box-PC..............17 Set up com5~8(RS-232/422/485)..............19 Chapter 4 : BIOS Setting....................21 Part1.Main......................22 Part2.Advanced......................23 Part3.H/W Monitor....................32 Part4.Security.......................33 Part5.Boot.......................34 Part6.Exit......................36...
-
Page 8: Chapter1.General Introduction Overview
This processor runs at 2GHz and supports DDR3L-1333SDRAM while maintaining low power consumption and attractive price point. The most feature of BPC-3030 is that it supports up to 8 COM ports while maintaining compact mechanical size. BPC-3030 also has a rugged case designed to protect... -
Page 9: Key Features
BPC-3030 User Manual V1.0 Key Features: (1) Intel® Celeron® J1900 (2M Cache, 2.0 GHz) (2) DDR3L 1333 MHz SODIMM up to 8 GB (3) 2 x GigaLAN (4) 8 x COM Ports (Standard: 1x RS-232/422/485 ,7xRS-232 Maxima:5x RS-232/422/485,3x RS-232) (5) 2 x USB3.0, 2 x USB2.0 , 1xInternal USB for Keypro (6) HDMI&... -

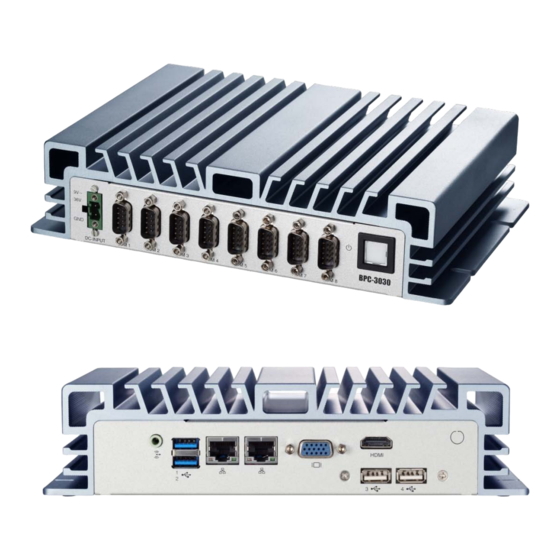

Page 10: Front & Rear Panel Arrangement
BPC-3030 User Manual V1.0 Connectors Line out Storage SATA 1 x SATA II (Max. Data Transfer Rate 300 MB/s) Power Power Input 9~36 V DC-input Power Consumption 0.783A@12V(9.4W) Power Adaptor AC-to-DC, 12 V @ 5 A, 60 W Environment Operational -20~ 60°... -
Page 11: Mechanical Dimensions
BPC-3030 User Manual V1.0 Mechanical Dimensions: Page 4... -
Page 12: Power Requirement
BPC-3030 User Manual V1.0 Power Requirement: Power Input: support 9~36V DC Input Power adaptor:12V@5A,60W Environment Specification: (1) Operating Temperature: 0~50° C (32~140° F)w/ 2.5” HDD (2) Operational humidity: 50° C @ 95% RH Non-condensing Page 5... -
Page 13: Chapter2.Connector(Pin-Definition)
BPC-3030 User Manual V1.0 Chapter2.Connector(Pin-Definition) Part1.ExternalInterface(Front): Power Input(9~36V DC): Definition Vin+ (9~36V DC) COM Ports: Default: RS232 for COM1 to COM8 Option:RS232/422/485 for COM1 (NOTE: The parameter for COM1 can be set by BIOS setup utility) RS232 for COM2 to COM4... -
Page 14: Com1Port(Rs-232)
BPC-3030 User Manual V1.0 - COM1 Port(RS-232): Definition Definition - COM1 Port(RS-422): Definition Definition -COM1 Port(RS-485): Definition Definition RTX- RTX+ NOTE: Please refer to Chapter4 BIOS Setting - 2.5.1 COM1 Configuration (page) set parameters of COM1 -COM2 to COM 4Ports(RS-232):... -
Page 15: Com5 To Com8 Ports(Rs-232)
BPC-3030 User Manual V1.0 - COM 5 to COM 8 Ports(RS-232): Definition Definition - COM 5 to COM 8 Ports (RS-422/485 FULL DUPLEX): Definition Definition - COM5 to COM 8 Ports (RS485 HALF DUPLEX): Definition Definition DATA- DATA+ Page 8... -
Page 16: Part2.External Interface(Rear)
BPC-3030 User Manual V1.0 Part2.External Interface(Rear): Audio Ports: Definition Green Line_Out USB Ports(USB2.0): Definition USB- USB+ Page 9... -
Page 17: Usb Ports(Usb3.0)
BPC-3030 User Manual V1.0 USB Ports(USB3.0): Definition USB- USB+ StdA_SSRX- StdA_SSRX+ GND_DRAIN StdA_SSTX- StdA_SSTX+ HDMI Ports: Definition Definition TMDS Data2+ TMDS Data2 Shield TMDS Data2 - TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0-... -
Page 18: Vga Port
BPC-3030 User Manual V1.0 TMDS Clock Shield TMDS Clock- Reserved Reserved DDCGround +5 V Power Hot Plug Detect VGA Ports: Definition Definition GREEN BLUE HSYNC VSYNC LAN Ports: - Pin Definition: 10/100BASE-T: Definition Pin Definition TX_D0+ TX_D0- RX_D1- Page 11... -
Page 19: Lan Port Led Indications
BPC-3030 User Manual V1.0 RX_D1+ 1000BASE-T: Definition Pin Definition TX_D0+ BI_D2- TX_D0- RX_D1- RX_D1+ BI_D3+ BI_D2+ BI_D3- - LAN Port LED Indications: Activity/Link LED Status Description No Link Blinking Data Activity Link SPEED LED Status Description 10Mbps connection 100Mbps connection... -
Page 20: Part3.Internal Interface
BPC-3030 User Manual V1.0 Part3.Internal Interface: SATA Connector: Definition SATA Power Connector: Definition +12V Page 13... -
Page 21: Chapter 3: System Installation
Chapter 3. System Installation Installation Procedures: 1. Connecting Power Cord The BOX-PC(BPC-3030) can support wide range DC-input (9~36V). Besure to handle the power cord by holding the plug end only. Follow these proceduresto connect the power cord: (1) Connect the male end(Phoenix connector) of the power cord to the DC-Input connector ofBPC-3030 and lock it. -
Page 22: Installing Hdd/Ssd
2.Connecting Keyboard and Mouse Connect the mouse and keyboard to the USB connector of BPC-3030. 3. Switching on Power The power button is located at the right side on the front cover of BPC-3030. Installing HDD/SSD: 1.Unfasten the 8screws on the chassisand open the bottom cover. - Page 23 BPC-3030 User Manual V1.0 3. Unfasten the 4 screws on the HDD/SSD bracket. 4.Installanother HDD/SSD and fasten all screws. Page 16...
-
Page 24: Installing Usb Dongle Inside The Box-Pc
BPC-3030 User Manual V1.0 Installing USB dongle inside the Box-PC: 1.Unfasten the 8 screws on the chassis and open the bottom cover. 2. Users will see the internal USB port for Keypro and the USB lock shown in the following picture. - Page 25 BPC-3030 User Manual V1.0 4. Loosen the 2 screwson the USB lock and slide it to right position . 5. Insert the USB dongle into the lock. 6.Slide the USB lock to lock the USB dongle and fasten the 2 screws on the USB lock.
-
Page 26: Set Up Com5~8(Rs-232/422/485)
BPC-3030 User Manual V1.0 Set up com5~8(RS-232/422/485) 1.Check Jumper Setting,please turn on by RS485 Half 2.Check deviec manager Page 19... - Page 27 BPC-3030 User Manual V1.0 3.comport setting" Half duplex RS-485" Page 20...
-
Page 28: Chapter 4. Bios Setting
BPC-3030 User Manual V1.0 Chapter 4. BIOS Setting The BIOS (Basic Input/Output System) installed in yourcomputer system’s ROM supports Intel processors. The BIOS providescritical low-level support for a standard device such as disk drives, serialports and parallel ports. It also adds virus and password protection aswell as special support for detailed fine-tuning of the chipset controllingthe entire system.The BIOS provides a... -
Page 29: Part1.Main
BPC-3030 User Manual V1.0 Part1. Main This section (Main screen) displays the system overview. Page 22... -
Page 30: Part2.Advanced
BPC-3030 User Manual V1.0 Part2. Advanced This section allowsusers to set the configurations for the following items: - CPU Configuration, - Chipset Configuration, - Storage Configuration, - Intel(R) Smart Connect Technology, - Super IO Configuration, - ACPI Configuration and USB Configuration. - Page 31 BPC-3030 User Manual V1.0 2.1CPU Configuration 2.1.1Intel SpeedStep Technology Intel SpeedStep technology is Intel’s new power saving technology. Processors can switch between multiple frequencies and voltage points to enable power saving. If you install Windows7 / 8 and want to enable this function, please set this item to [Enabled].
- Page 32 BPC-3030 User Manual V1.0 IA-32 Intel Architecture. An IA-32 processor with “No Execute (NX)Memory Protection” can prevent data pages from being used by malicious software to execute code. 2.1.5 Intel Virtualization Technology When this option is set to [Enabled], a VMM (Virtual Machine Architecture)
- Page 33 BPC-3030 User Manual V1.0 This item allows users to enable or disable the Onboard HDMI HD Audio. 2.2.6 Onboard LAN 1 This item allows users to enable or disable the Onboard LAN 1. 2.2.7 Onboard LAN 2 This item allows users to enable or disable the Onboard LAN 2.
- Page 34 BPC-3030 User Manual V1.0 does not have these advantages. 2.3.3 SATA Aggressive Link Power Management This item allows users to enable or disable SATAAggressiveLinkPower Management. 2.3.4 Hard Disk S.M.A.R.T. This item allows users to enable or disable the S.M.A.R.T. (Self-Monitoring,Analysis,andReportingTechnology).
- Page 35 BPC-3030 User Manual V1.0 2.5 Super IO Configuration 2.5.1 COM1 Configuration This item allows users to set parametersof COM1. SelectCOM1 port type: [RS232],[RS422] , [RS485] or [Disabled]. 2.5.2 COM2 Configuration This item allows users toenable or disable COM2. 2.5.3 COM3 Configuration This item allows users toenable or disable COM3.
- Page 36 BPC-3030 User Manual V1.0 2.6 ACPI Configuration 2.6.1 Suspend to RAM This item allows users to select whether to auto-detector disable the Suspend-to-RAM feature. Select [Auto] will enable this feature if the OS supports it. 2.6.2 ACPI HPET Table This item allows users toto enableor disable ACPI HPET Table.
- Page 37 BPC-3030 User Manual V1.0 2.6.5 USB Keyboard/Remote Power On This item allows users to enable or disable USB Keyboard/Remote to power on the system. 2.6.6 USB Mouse Power On This item allows users to enable or disable USB Mouse to power on the system.
- Page 38 BPC-3030 User Manual V1.0 2.8 Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI update tool allows you to update system UEFI without entering operating systems first like MS-DOS or Windows®. Just launch...
-
Page 39: Part3.H/W Monitor
BPC-3030 User Manual V1.0 Part3. H/W Monitor In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. -
Page 40: Part4.Security
BPC-3030 User Manual V1.0 Part4. Security In this section, you may set, change or clear the supervisor/user password for the system. 4.1 Supervisor Password Set orchange the password for the administrator account.Only the administrator has authority to change the settings in the UEFI Setup Utility. -
Page 41: Part5.Boot
BPC-3030 User Manual V1.0 Part5. Boot In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority. 5.1 Boot Option #1 This item allows users to set the system boot order. - Page 42 BPC-3030 User Manual V1.0 If this item is set to [On], it will automatically activate the Numeric Lock function after boot-up. 5.7 Boot Beep This item allows users toselect whether the Boot Beep should be turned on or off when the system boots up.
-
Page 43: Part6.Exit
BPC-3030 User Manual V1.0 Select [Legacy only] to run those that support legacy option ROM only. Part6. Exit 6.1 Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?”... - Page 44 BPC-3030 User Manual V1.0 Page 37...
