Objet Connex500 Operating & Maintenance Manual page 43

11. Loosen the screws on the door of the compartment protecting the
12. Pull the print‐head driver card out of its socket so that the head is free
13. Make sure that along with the head, you remove the two rubber O‐ring
Important: If the seals are not removed with the head, they are probably
stuck to the print block housing. If so, remove them.
DOC-13000 Rev. E
All manuals and user guides at all-guides.com
print‐head driver cards (A), then pull and lift up the door (B).

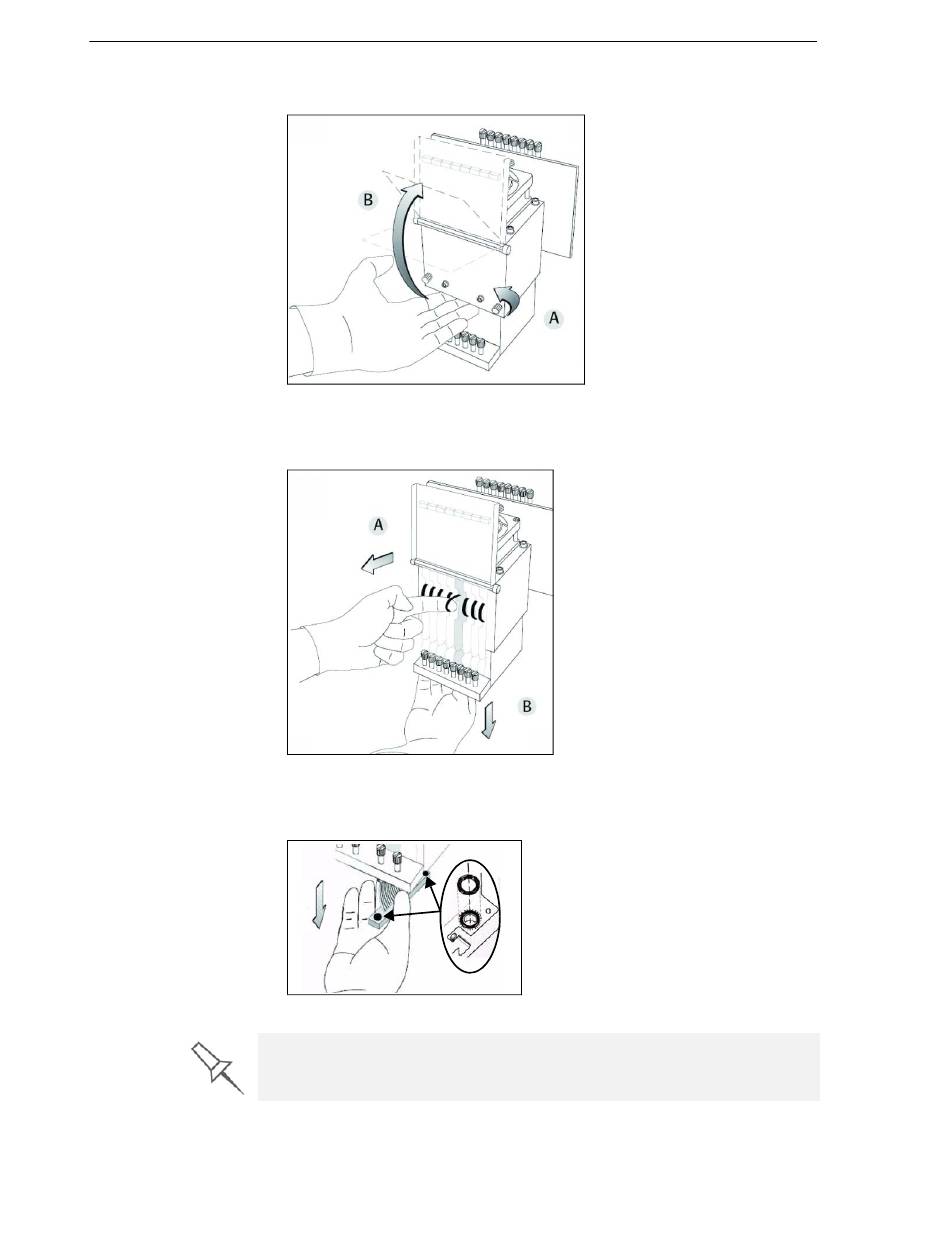

Figure 7-63: Opening the print-head compartment
(A), and remove it from the bottom of the print block (B).
Figure 7-64: Releasing the print-head driver card to remove the head
seals.
Figure 7-65: O-ring seals on the print head
