SHADE SCAPES AMERICAS SPECTRA Installation Manual

for ROTATIONAL SPIGOT
Please thoroughly read this installation manual before installing the Spectra Mount System, and before assembling and operating the Spectra
Round Umbrella. The Spectra Warranty does not cover damage caused by incorrect installation, wind, or wrongful use of the product. All users
must be properly trained in operation and wind guidelines.
Once installed, always use COMMON SENSE WIND GUIDELINES: If it is too windy to be outside enjoying the day, it is best to lower/collapse
the Umbrella Frame w/ Fabric Canopy. It is also important to keep it lowered/collapsed when unattended. See manufacturer's limited warranty
on page 2.
A

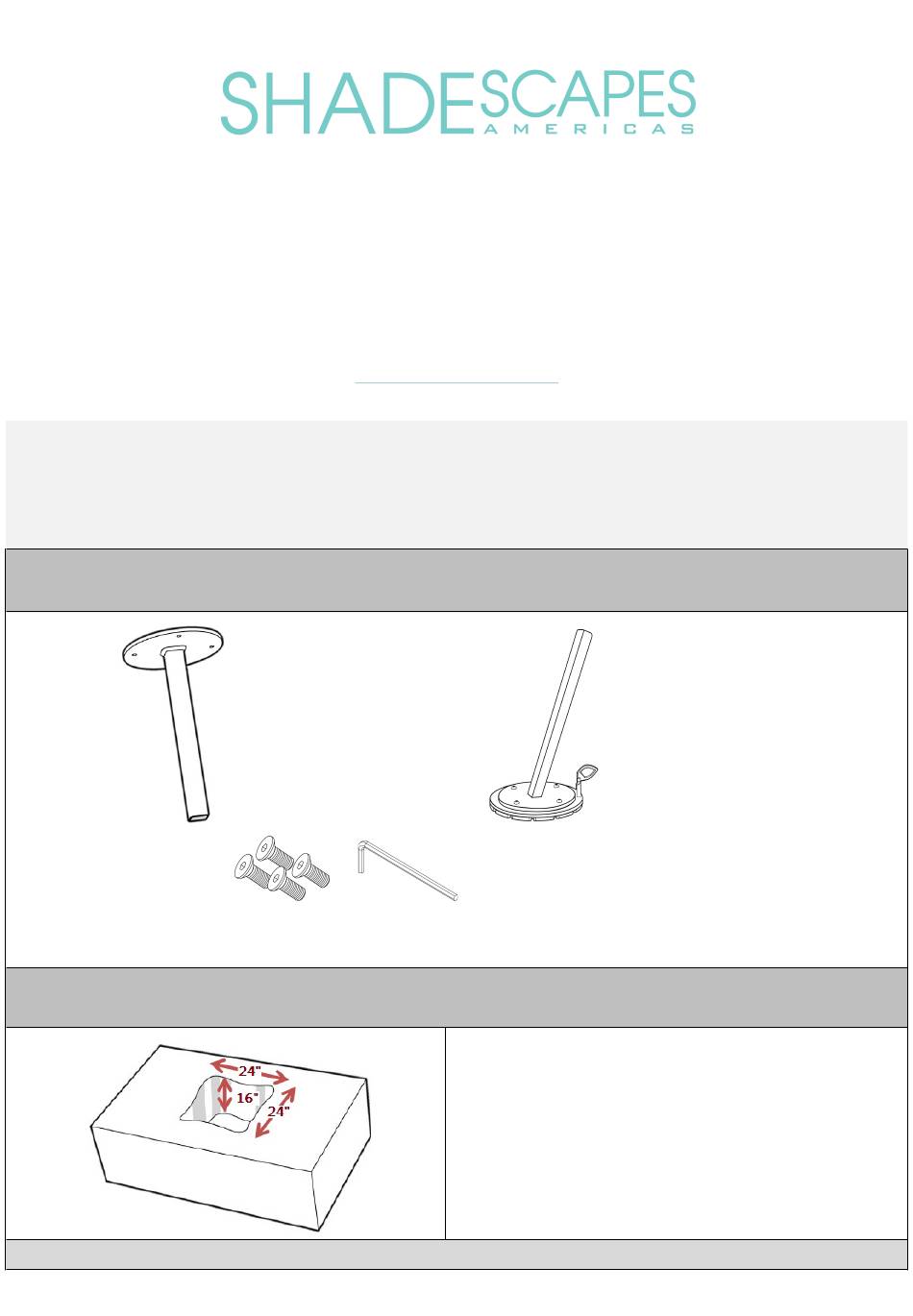

COMPONENTS LIST & REQUIRED TOOLS
*PLEASE NOTE THE SPIGOT BOLTS AND 6mm ALLEN WRENCH ARE LOCATED IN THE IN-GROUND FITTING MOUNT BOX,
BUT WILL NOT BE USED UNTIL YOU BEGIN TO INSTALL THE UMBRELLA. SEE YOUR UMBRELLA OWNERS MANUAL FOR DETAILS.
B
MOUNTING INSTRUCTIONS
IN-GROUND FITTING
INSTALLATION MANUAL
IN-GROUND FITTING:
SPECTRA, ECLIPSE, ICARUS, Infina
1X IN-GROUND FITTING (IR)
Box A
4X 1 0x20mm S PIGOT B OLTS ( A2)*
1X 6 mm A LLEN W RENCH ( T2)*
1:
(a) Determine the location where you want to install the
Rotational In-Ground Fitting (IS). Dig a 24" x 24" square hole with
a depth of 16". The edges of the hole should vertical. Sloping,
rounded sides will allow the concrete to loosen over time.
NOTE: The dimensions given above are a general guideline for
the size of the hole. A general rule of thumb: the easier the
ground is to dig, the bigger the hole should be, or alternately,
if the ground is hard the hole can be smaller.
1
(and Infina)
1X - ROTATIONAL
SPIGOT ASSEMBLY (SR)
(Packed with Umbrella Structure)
REQUIRED TOOLS LIST (not included):
Standard Spade/Shovel
Carpenter's Level
Pre-Mixed "High Early Strength" Concrete
Small Sledge Hammer
Iron Rebar
Duct Tape
Wheelbarrow
Hoe
