SHADE SCAPES AMERICAS PARAFLEX PAVER BASE W/OPTIONAL COVER Installation Manual

PAVER BASE W/OPTIONAL COVER

INSTALLATION MANUAL

Please thoroughly read this installation manual before installing the Paraflex Mount System, and before assembling and operating the

Paraflex Umbrella. The Paraflex Warranty does not cover damage caused by incorrect installation, wind, or wrongful use of the

product. All users must be properly trained in operation and wind guidelines.

Once installed, always use COMMON SENSE WIND GUIDELINES: If it is too windy to be outside enjoying the day, it is best to

lower/collapse the Umbrella Frame w/ Fabric Canopy. It is also important to keep it lowered/collapsed when unattended. See

manufacturer's limited warranty on page 2.

COMPONENTS LIST & REQUIRED TOOLS

1X PAVER BASE (P1)

1X - PARAFLEX SPIGOT (S1)

Box A

Box B

4X - 10x20mm SPIGOT BOLTS (A2)

1X - 6mm ALLEN WRENCH (T2)

Box A

REQUIRED TOOLS LIST (not included):

8X 16"x16"x2" CONCRETE PAVERS

NOTE: Paver sizes vary from location to location.

15-3/4" to 15-7/8" square are acceptable .

1X PAVER BASE COVER (P2) optional

Box C

Table of Contents

Need help?

Do you have a question about the PARAFLEX PAVER BASE W/OPTIONAL COVER and is the answer not in the manual?

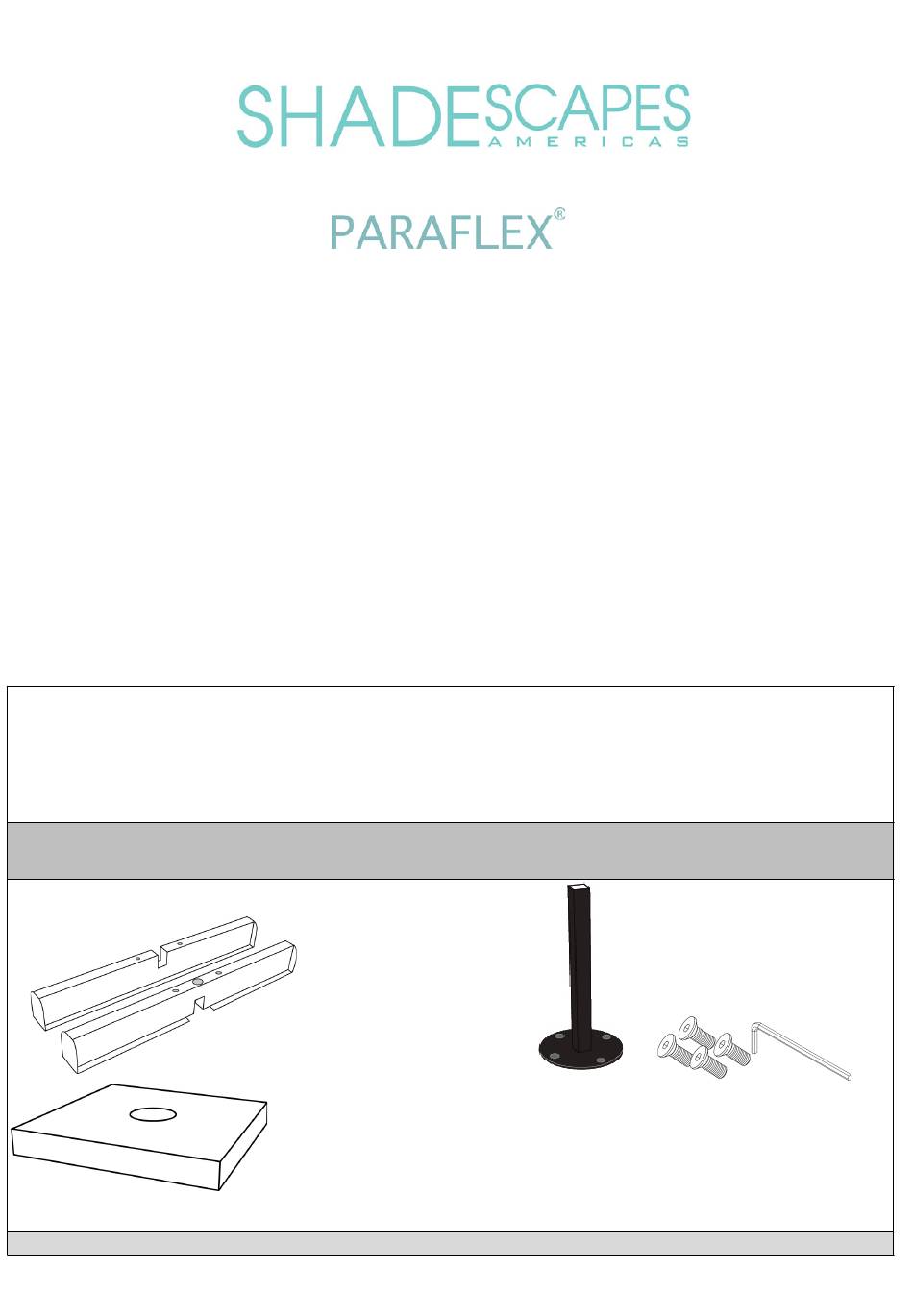

Page 1 PAVER BASE W/OPTIONAL COVER INSTALLATION MANUAL Please thoroughly read this installation manual before installing the Paraflex Mount System, and before assembling and operating the Paraflex Umbrella. The Paraflex Warranty does not cover damage caused by incorrect installation, wind, or wrongful use of the product.
Page 2 MOUNTING INSTRUCTIONS (a) Remove the two Paver Base (P1) pieces from Box A. (b) Join the two sections by fitting them together at the notched section in the middle of each piece as shown at right. (a) Place the 8X 16"x16"x2" Concrete Pavers (not included) in the four quadrants of the Paver Base (P1), by stacking two (2) in each quadrant.
