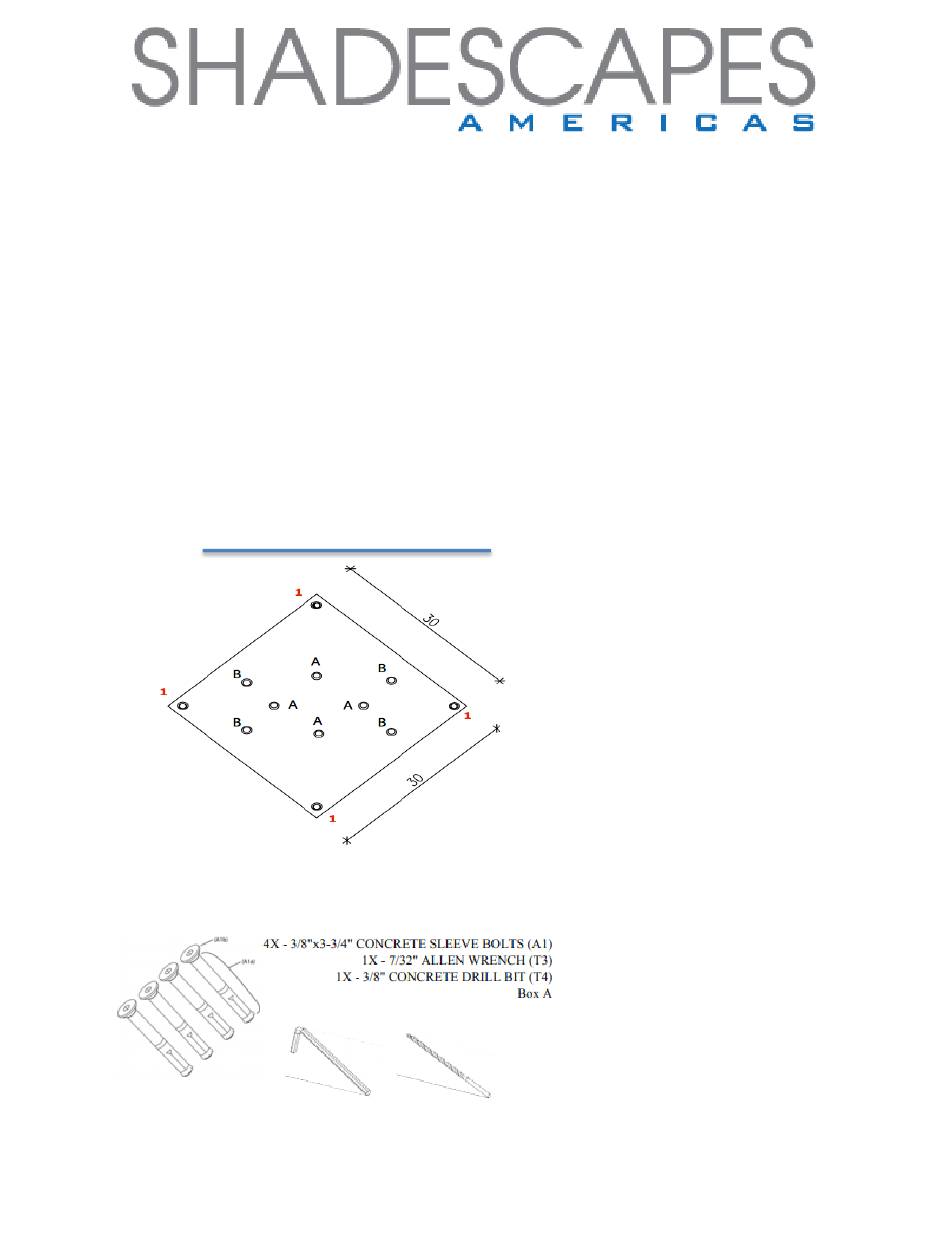

Concrete Mount Kit for Scolaro Astro and Galileo
Please thoroughly read this installation manual before installing the
concrete mount kit system and before operating the Scolaro Astro or Galileo
umbrella. The warranty does not cover damage caused by incorrect
installation, wind, or wrongful use of the product.
1. Scolaro Base Plate (Packed in the umbrella box from Italy)
Wall
2. Concrete Bolts, Allen Wrench, Drill Bit (Shipped separately from ShadeScapes US
warehouse)
3. Spigot Bolts (Shipped with the Scolaro umbrella and found at the bottom of the
box in a bag with the Owner's Manual)
4. TOOLS REQUIRED: Standard Electric Drill, Aerosol Compressed Air or Shop
Vacuum, Carpenter's Level, Hammer, Pencil
COMPONENTS LIST
Advertisement
Table of Contents
Related Manuals for SHADE SCAPES AMERICAS Concrete Mount Kit
Summary of Contents for SHADE SCAPES AMERICAS Concrete Mount Kit
- Page 1 Concrete Mount Kit for Scolaro Astro and Galileo Please thoroughly read this installation manual before installing the concrete mount kit system and before operating the Scolaro Astro or Galileo umbrella. The warranty does not cover damage caused by incorrect installation, wind, or wrongful use of the product.
- Page 2 For the Galileo, the Spigot will be bolted to the B holes in the above plate diagram. When using the Concrete Mount Kit for the Galaxia Astro, an additional (4) bolts will be provided to be inserted into the (4) B holes.
