SHADE SCAPES AMERICAS CONCRETE MOUNT KIT Installation Manual

Please thoroughly read this installation manual before installing the Concrete Mount System, and before assembling and operating the Umbrosa
Umbrella. The Umbrosa Warranty does not cover damage caused by incorrect installation, wind, or wrongful use of the product. All users must be
properly trained in operation and wind guidelines.
Once installed, always use COMMON SENSE WIND GUIDELINES: If it is too windy to be outside enjoying the day, it is best to lower/collapse the
Umbrella Frame w/ Fabric Canopy. It is also important to keep it lowered/collapsed when unattended. See manufacturer's limited warranty on
page 2.
A

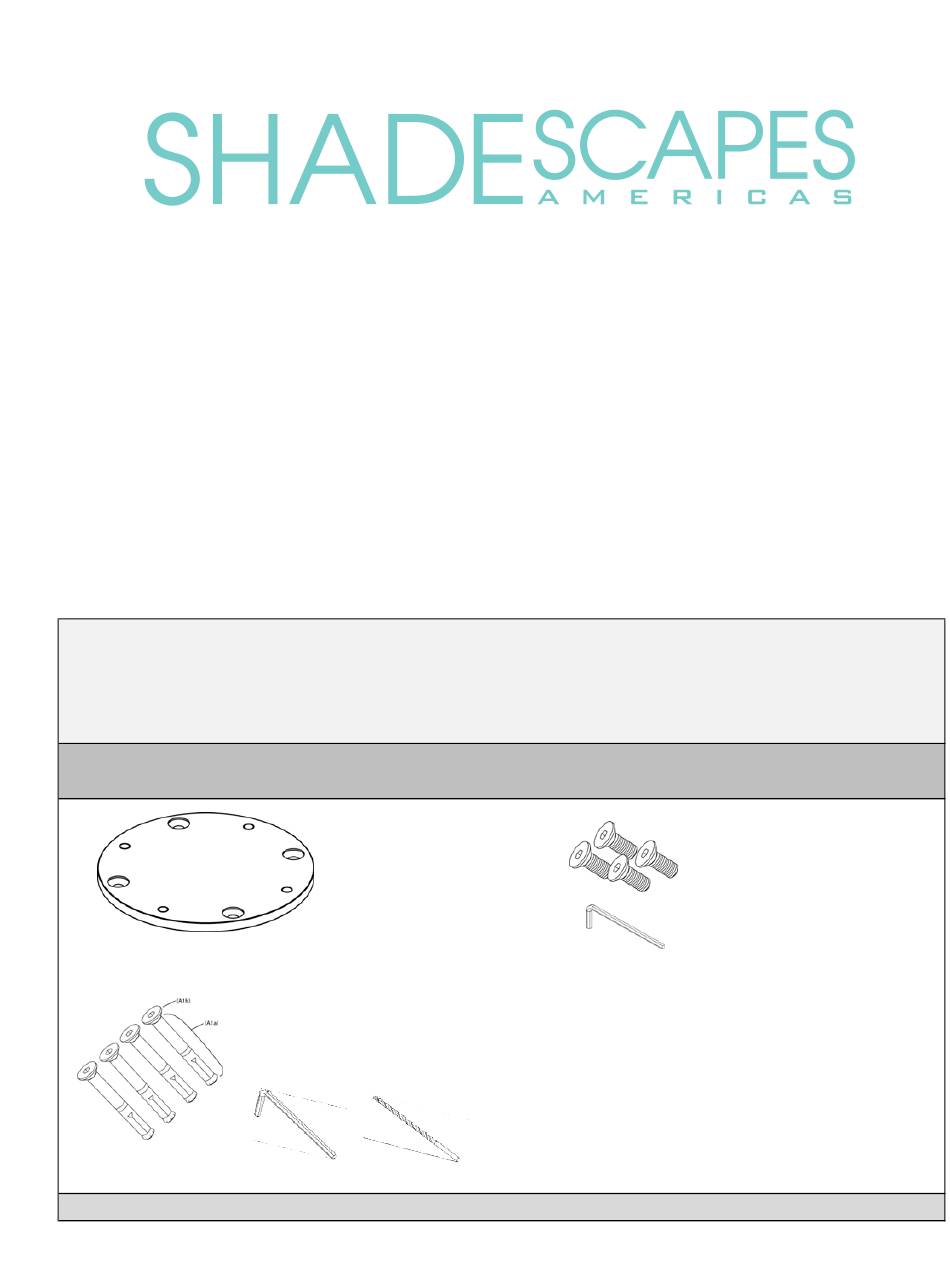

COMPONENTS LIST & REQUIRED TOOLS
4X - 3/8"x3-3/4" CONCRETE SLEEVE BOLTS (A1)
Sleeve (A1a)
(A1b)
CONCRETE MOUNT KIT
INSTALLATION MANUAL
1X - BASE PLATE (BP)
1X - 7/32" ALLEN WRENCH (T3)
1X - 3/8" CONCRETE DRILL BIT (T4)
Box A
Box A
*PLEASE NOTE THE SPIGOT BOLTS AND 6mm ALLEN WRENCH
ARE LOCATED IN THE CONCRETE MOUNT BOX, BUT WILL
NOT BE USED UNTIL YOU BEGIN TO INSTALL THE UMBRELLA
SEE YOUR OWNERS MANUAL FOR DETAILS.
1
4X - 10x16mm SPIGOT BOLTS (A2)*
1X - 6mm ALLEN WRENCH (T2)*
REQUIRED TOOLS LIST (not included):
Standard Electric Drill
Aerosol Compressed Air or Shop Vacuum
Carpenter's Level
Hammer, Pencil
Box A
