Saber Compact ATD-80444 Owner's Manual page 3

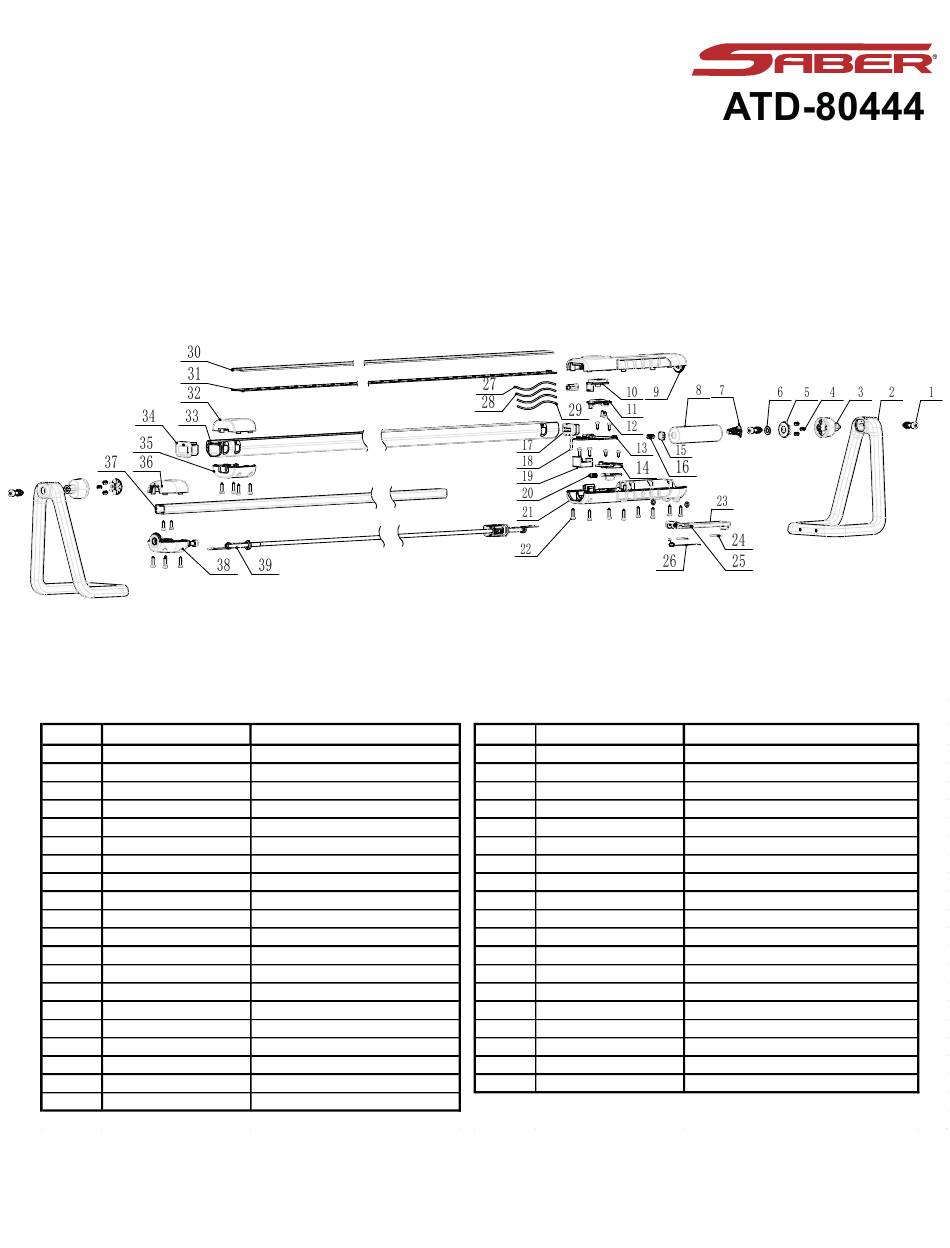

Not all components of this product are replacement items, but are illustrated as a convenient reference for position in
the assembly sequence. When ordering parts, give model number, part number and description. Call your distributor
for current pricing:
ITEM# ORDERING PART#
1 PRT80444-01
2 PRT80444-02
3 PRT80444-03
4 PRT80444-04
5 PRT80444-05
6 PRT80444-06
7 PRT80444-07
8 ATD80445
9 PRT80444-09
10 PRT80444-10
11 PRT80444-11
12 PRT80444-12
13 PRT80444-13
14 PRT80444-14
15 PRT80444-15
16 PRT80444-16
17 PRT80444-17
18 PRT80444-18
19 PRT80444-19
20 PRT80444-20
REPLACEMENT PARTS
PART DESCRIPTION
SCREW
PJ1040 HOLDER
HOLDER CLAMPS
SWITCH SPRING
TURRET
SHIM
SPRING PLATE PARTS
BATTERY
FRONT HANDLE COVER
SWITCH CAP
SWITCH CAP PLATE
SCREW
PCBA
PUSH PRESSING PLATE
BATTERY POSITIVE PLATE
SPRING
LARGE PIPE SEALING RING
BUNGEE PIN
ALUMINIUM TUBE PLATE
SPRING
ITEM# ORDERING PART#
21 PRT80444-21
22 PRT80444-22
23 PRT80444-23
24 PRT80444-24
25 PRT80444-25
26 PRT80444-26
27 PRT80444-27
28 PRT80444-28
29 PRT80444-29
30 PRT80444-30
31 PRT80444-31
32 PRT80444-32
33 PRT80444-33
34 PRT80444-34
35 PRT80444-35
36 PRT80444-36
37 PRT80444-37
38 PRT80444-38
39 PRT80444-39
PART DESCRIPTION
BACK HANDLE COVER
SCREW
BATTERY COVER PLATE
SILICONE BATTERY PAD
BATTERY COVER FIXING PIN
BATTERY COVER TORSION SPRING
WIRE
WIRE
WIRE
LENS
PCBA
ALUMINUM TUBE FIXED FRONT COVER
LARGE ALUMINIUM TUBE
LARGE PIPE HOLDER
ALUMINUM TUBE FIXED BACK COVER
SMALL HANDLE FRONT COVER
SMALL ALUMINUM TUBE
SMALL HANDLE BACK COVER
ELASTIC ROPE
