INSTRUCTION MANUAL
Integrated Camera/Lens/Environmental Housing Line
About this manual
Before installing and using this unit, please read
this manual carefully. Be sure to keep it available for
later reference.
Sanyo OnePak™
Environmental
Housing Series

Advertisement

Table of Contents
loading

Summary of Contents for Sanyo Camera Lens

  • Page 1 INSTRUCTION MANUAL Integrated Camera/Lens/Environmental Housing Line About this manual Before installing and using this unit, please read this manual carefully. Be sure to keep it available for later reference. Sanyo OnePak™ Environmental Housing Series...
  • Page 2: Safety Precautions

    I M P O R T A N T S A F E G U A R D S Read Instructions - All the safety and operating instructions should be read before the unit is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference.
  • Page 3: Table Of Contents

    If an item appears to have been damaged in shipment, replace it properly in its carton and notify the shipper. If any items are missing, contact Sanyo. The shipping carton is the safest container in which the unit may be transported. Save it for possible future use.
  • Page 4: Description

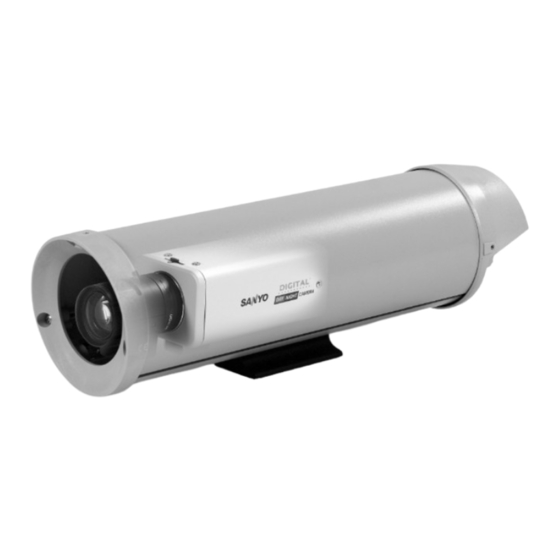

    Sanyo OnePak™ Environmental Housing Series DESCRIPTION Integrated Camera/Lens/Environmental Housing Line IGHLIGHTS • Integrated Camera, Varifocal Lens, and Cylindrical Environmental Housing Package • Packages Include Feed-through Wall Mount and 5 ft of Cabling • Black & White, Color, or Day/Night Models •...
  • Page 5: Mechanical Specifications

    MECHANICAL SPECIFICATIONS: Window: 0.12 in (3 mm) thick UV-stabilized polycarbonate Housing Mounting: Four (4) available 1/4-20 tapped holes. Only one set of two is required for mounting. Construction: Aluminum cover, aluminum base, aluminum mounting foot, polycarbonate faceplate, glass reinforced polycarbonate end caps, neoprene gasket, ethylene propylene seal, and all stainless steel hardware.
  • Page 6: Installation

    UTDOOR OLOR ODELS Model Description 330TVL Color Camera (VCC-3954), 2.8-12mm AI Vari-focal Lens, 3 1/2" x 16" Cylindrical Housing, Feed-thru Wall Mount, Heater, VSE-P2351HBSA Blower, Sunshield, Pre-cabled, 24VAC, outdoor 330TVL Color Camera (VCC-3954), 5.0-50mm AI Vari-focal Lens, VSE-P2352HBSA 3 1/2" x 16" Cylindrical Housing, Feed-thru Wall Mount, Heater, Blower, Sunshield, Pre-cabled, 24VAC, outdoor 520TVL Color Camera (VCC-6584), 2.8-12mm AI Vari-focal Lens, 3 1/2"...
  • Page 7: Warranty

    HOUSINGS OR INTEGRATED CAMERA/LENS/HOUSING PACKAGES In order to obtain warranty service, the product must be delivered to and picked up from an Authorized Sanyo Service Center at the user’s expense, unless specifically stated otherwise in this warranty. The names and addresses of Authorized Sanyo Service Centers may be obtained by calling the toll-free number listed below.
  • Page 8 Sanyo Fisher Company Security Video Division 21605 Plummer Street Chatsworth, CA 91311 Tel: (818) 998-7322 Fax: (818) 717-2716 Technical Support: (888) 66SANYO 100 0007 002 SAN 12/04 Printed in USA...
