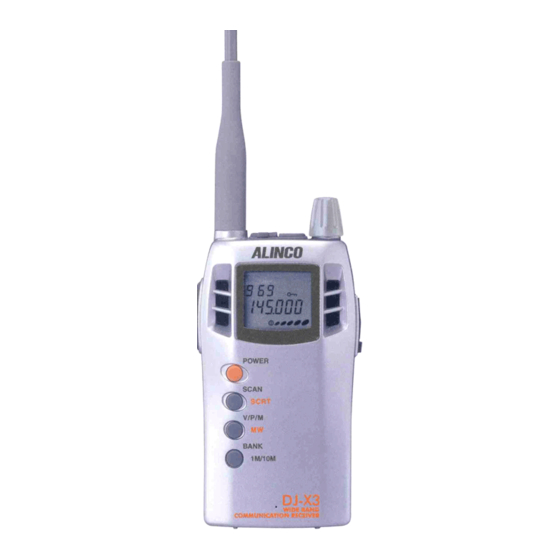

DJ-X3
Service Manual
CONTENTS
1) GENERAL ................................................................ 2
2) RECEIVER ............................................................... 2
1) Receiver ............................................................... 3~6
2) M38224M6M(E:XA0862, T:XA0836) ......................... 7
3) Terminal function of CPU .......................................... 8
1) uPD3140GS-E1 (XA0312) ........................................ 9
2) TC4W53FU (XA0348) ............................................. 10
3) NJM2904V (XA0573) .............................................. 10
4) CXA1622M/P (XA0787) .......................................... 10
5) MB88347LPFV-G-BND-EF (XA0599) ..................... 11
6) TK11816M (XA0665) .............................................. 12
7) TK10931V (XA0666) ............................................... 12
8) TA4101FTE12L (XA0667) ....................................... 13
9) S-80828ALNP-EAR-T2 (XA0834) ........................... 13
10) BR24C64F-E2 (XA0669) ........................................ 14
11) S-81230SG-QB-X (XA0833) ................................... 14
12) uPC2757T-E3 (XA0743) ......................................... 15
All manuals and user guides at all-guides.com
13) TC7SET08FU (XA0586) ......................................... 15
14) LA3335M (XA0786) ................................................ 16
15) NJM2107 (XA0850) ................................................ 17
16) Transistor, Diode and LED Outline Drawings ........... 17
17) LCD Connection ..................................................... 18
1) Front View ............................................................... 19
2) Bottom View ............................................................ 20
MAIN Unit ......................................................... 21~26
SW Unit .................................................................. 26
Mechanical Parts .................................................... 26
Packing ................................................................... 26
1) How to enter the adjustment mode ......................... 27
2) Adjustment ....................................................... 27~29
.................................................. 30~31
............................................. 32
...................................................... 33
ALINCO,INC.
Advertisement
Table of Contents
Related Manuals for Alinco DJ-X3
Summary of Contents for Alinco DJ-X3
-
Page 1: Table Of Contents
All manuals and user guides at all-guides.com DJ-X3 Service Manual CONTENTS SPECIFICATIONS 13) TC7SET08FU (XA0586) ......... 15 14) LA3335M (XA0786) ..........16 1) GENERAL ..............2 15) NJM2107 (XA0850) ..........17 2) RECEIVER ............... 2 16) Transistor, Diode and LED Outline Drawings ... 17 CIRCUIT DESCRIPTION 17) LCD Connection ............. -
Page 2: Specifications
All manuals and user guides at all-guides.com SPECIFICATIONS 1) GENERAL Receiving range : 0.1 ~ 1299.995 MHz : 0.1 ~ 823.995 MHz 850.000 ~ 868.995 MHz 895.000 ~ 1299.995 MHz Modulation mode FM, WFM, AM Ant. impedance 50Ω Ant. terminal Supply voltage DC 3.6V ~ 6V (Internal battery) DC 4.5V ~ 16V (external regulated source) -
Page 3: Circuit Description
All manuals and user guides at all-guides.com CIRCUIT DESCRIPTION 1) Receiver 1. RX Method: Triple Super Heterodyne Method 1st IF. 248.45MHz 2nd IF. 38.85MHz 3rd IF. 450KHz 2. Front End 0.1 ~ 29.995MHz The signal input from antenna is switched at band switch D19, passing through the low pass filter, it is amplified at RF amplifier Q15. - Page 4 All manuals and user guides at all-guides.com The 2nd Mixer The input signal and the 2nd local signal is added or subtracted at mixer IC4, and switched to FM/AM receiving side or WFM receiving side at D24 or D25 . FM/AM At FM/AM receiving side, the crystal filter XF1 selects the signal of 38.85 MHz.
- Page 5 All manuals and user guides at all-guides.com 6. Audio FM/AM/WFM The audio output signal for receiving FM/WFM and AM is switched at IC9. The output audio signal is input to pin 1 of IC13 of stereo multiplex demodulator through AF amplifier IC17. When the input audio signal doesn't have a pilot signal, each audio signal is output from pin 9 and pin 10 to pin 1 and pin 16 of the audio amplifier IC14 equipped with the electronic volume.
- Page 6 All manuals and user guides at all-guides.com vari-cap D15 and D16 to make the phases equal. In result the stabilized oscillation can be done at the desired frequency. The 2nd Local IC1 compares the frequency gained by dividing the signal added to pin 19 of IC1 by the control signal from IC7 with the frequency gained by dividing the reference frequency of 12.8 MHz inside IC1.
-
Page 7: M38224M6M(E:xa0862, T:xa0836)
All manuals and user guides at all-guides.com 2) M38224M6M (E:XA0862, T:XA0836) Terminal Connection (TOP VIEW) -
Page 8: Terminal Function Of Cpu
All manuals and user guides at all-guides.com 3) Terminal function of CPU No Terminal Signal Description No. Terminal Signal Description Battery input SEG20 SEG20 Stereo / Monophonic SEG19 SEG19 RESW R/E push key SEG18 SEG18 Doubler SW Squelch input Common power SW S-meter input AFPC AF power supply... -
Page 9: Semiconductor Data
All manuals and user guides at all-guides.com SEMICONDUCTOR DATA 1) uPD3140GS-E1 (XA0312) 80 ~ 550MHz Dual PLL Synthesizer Specifications Operating frequency: 200 ~ 400MHz (Vin=-12 ~ -0dBm, pin 2 and 19 input) 80 ~ 550MHz (Vin=-8 ~ -0dBm, pin 2 and 19 input) Consumption current: 2.7 ~ 4.1mA (Vcc=1.8V while 1 channel is used) 4.3 ~ 6.6mA (Vcc=1.8V while both channels are used) -
Page 10: Tc4W53Fu (Xa0348)
All manuals and user guides at all-guides.com 2) TC4W53FU (XA0348) 3) NJM2904V (XA0573) Dual Single Supply Operational Amplifer 4) CXA1622M/P (XA0787) Pin Assignment Block Diagram SW 2 PRE+POWER1 PRE+POWER2 P GND2 6 P GND1 OUT2 OUT1 RIPPLE 8... -
Page 11: Mb88347Lpfv-G-Bnd-Ef (Xa0599)
All manuals and user guides at all-guides.com 5) MB88347LPFV-G-BND-EF (XA0599) D/A converter for digital tuning... -
Page 12: Tk11816M (Xa0665)
All manuals and user guides at all-guides.com 6) TK11816M (XA0665) Pin Assignment Block Diagram Start-up Circuit Oscillator Feed back Ref. control Voltage 7) TK10931V (XA0666) Pin Assignment / BLOCK Diagram (Top View) RECT FM DET RSSI MIXER... -
Page 13: Ta4101Fte12L (Xa0667)
All manuals and user guides at all-guides.com 8) TA4101F TE12L (XA0667) Pin Assignment Block Diagram 1. IF OUT 5. BASE 2. Vcc 6. BASE 3. OSC IN 7. GND 4. BASE 8. COLLECTOR 9) S-80828ALNP-EAR-T2 (XA0834) Pin Assignment Top view 1 OUT 3 NC Block Diagram... -
Page 14: Br24C64F-E2 (Xa0669)
All manuals and user guides at all-guides.com 10) BR24C64F-E2 (XA0669) Block Diagram 64Kbit EEPROM ARRAY 8bit 13bit ADDRESS DATA SLAVE•WORD 13bit ADDRESS REGISTER DECODER REGISTER START STOP CONTROL CIRCUIT HIGH VOLTAGE VOLTAGE GENERATOR DETECTOR Pin Assignment BR24C64/F 11) S-81230SG-QB-X (XA0833) Block Diagram Pin Assignment... -
Page 15: Upc2757T-E3 (Xa0743)
All manuals and user guides at all-guides.com 12) uPC2757T-E3 (XA0743) Terminal Connection (Top View) (Bottom View) 1: RF input 4: PS (Power Save) 2: GND 5: Vcc 3: Lo input 6: IF output Block Diagram input output POWER SAVE input 13) TC7SET08FU (XA0586) Pin Assignment Block Diagram... -
Page 16: La3335M (Xa0786)
All manuals and user guides at all-guides.com 14)LA3335M (XA0786) Pin Assignment 6 : GND 1: Input 2: PLL loop filter 7 : Stereo indicator fillter 3: Power supply 8 : Pilot sync detection 9 : Decoder output (low) 4: VCO 5: NC 10 : Decoder output (high) Block Diagram... -
Page 17: Njm2107 (Xa0850)
All manuals and user guides at all-guides.com 15) NJM2107 (XA0850) Pin Assignment Block Diagram 16) Transistor, Diode and LED Outline Drawings 1SV308(TPH3) DAN235E-TL MA2S357-TX ISS390 TE61 MA2S30400L MA2S728-TX ISS362 TE85L XD0339 XD0320 XD0337 XD0342 XD0312 XD0315 XD0338 SML-310MTT86 2SD2216R-TX MA2Z720 2SB1132T 2SC4738BL(TE85R) 2SC5066FT-Y(TE85L) -
Page 18: Lcd Connection
All manuals and user guides at all-guides.com 17) LCD connection Pin No COM0 COM1 COM2 COM3 COM0 COM1 COM2 COM3... -
Page 19: Exploded View
All manuals and user guides at all-guides.com EXPLODED VIEW 1) Front View UR0023 UP0426 TL0027 DG0040 TL0026 EL0053 ST0069 FG0330 KZ0134... -
Page 20: Bottom View
All manuals and user guides at all-guides.com 2) Bottom View AF0025 FM0201 UE0338 UP0426 ES0021 FP0182 TS0166 FG0338 FG0331 AN0027 EA0096 SD0092 NK0077 SD0093 SP0013 FG0346 AN0012 FG0347 FG0337 FG0335 AX0008 FG0334 AX0005... -
Page 21: Parts List
All manuals and user guides at all-guides.com PARTS LIST MAIN Unit Parts No. Descriptin Parts Name Parts No. Descriptin Parts Name Ref.No. Ref.No. CU3503 Chip C. GRM36CK020C50PT CU3111 Chip C. C1608JB1C104KT-N CS0397 TMCP1C105MTR CU3111 Chip C. C1608JB1C104KT-N Chip Tantal CU3515 Chip C. GRM36CH220J50PT CU3111 Chip C. - Page 22 All manuals and user guides at all-guides.com Parts No. Descriptin Parts Name Parts No. Descriptin Parts Name Ref.No. Ref.No. C107 CU3502 Chip C. GRM36CK010C50PT C169 CU3111 Chip C. C1608JB1C104KT-N C108 CU3509 Chip C. GRM36CH080D50PT C170 CU3111 Chip C. C1608JB1C104KT-N C109 CU3509 Chip C. GRM36CH080D50PT C171 CU3517 Chip C.
- Page 23 All manuals and user guides at all-guides.com Parts No. Descriptin Parts Name Parts No. Descriptin Parts Name Ref.No. Ref.No. QC0586 Coil LQW1608A15NJ00 XD0342 Diode 1SS390 TE61 XD0320 Diode DAN235E-TL QC0507 Coil LK16081R0K-T XD0338 Diode 1SS362(TE85L) QC0507 Coil LK16081R0K-T XD0320 Diode DAN235E-TL QC0510 Coil LK1608330M-T...
- Page 24 All manuals and user guides at all-guides.com Parts No. Descriptin Parts Name Parts No. Descriptin Parts Name Ref.No. Ref.No. RK3522 Chip R. ERJ2GEJ470X XT0180 2SC5066FT-Y (TE85L) Transistor RK3530 Chip R. ERJ2GEJ221X XU0092 UN911H-TX Transistor RK3558 Chip R. ERJ2GEJ473X XT0180 2SC5066FT-Y (TE85L) Transistor XU0196 DTC143TE TL...
- Page 25 All manuals and user guides at all-guides.com Parts No. Descriptin Parts Name Parts No. Descriptin Parts Name Ref.No. Ref.No. R145 RK3550 Chip R. ERJ2GEJ103X RK3542 Chip R. ERJ2GEJ222X R146 RK3574 Chip R. ERJ2GEJ105X RK3554 Chip R. ERJ2GEJ223X R147 RK3554 Chip R. ERJ2GEJ223X RK3546 Chip R.
-
Page 26: Sw Unit
All manuals and user guides at all-guides.com Parts No. Descriptin Parts Name Parts No. Descriptin Parts Name Ref.No. Ref.No. TS0167 VCO CASE A Warranty PH0009A UP0426 PCB DJX3 INTEGRATED DS0446 Spec.sheet TL0027 REFLECTIVE SHEET PR0478 Serial seal TL0026 DIFFUSION SHEET PR0452 FCC homeuse label ST0069... -
Page 27: Adjustment
All manuals and user guides at all-guides.com ADJUSTMENT 1) How to enter the adjustment mode Press the key like the below after Key Lock. BANK > SCAN > V/P/M > BANK > V/P/M > SCAN 2) Adjustment Display Memory Content Adjust point FrEq Frequency Adjustment... - Page 28 All manuals and user guides at all-guides.com Item Adjustment Content Specification Reference Adjust the TC1 to 391.05MHz. Frequency 391.05MHz Adjustment Display : FrE9 Adjust Point : TC1 + -100Hz Check Point : TP2 AF output AF maximum output Display : FrEq More than Adjustment Input the 142.6MHz of 30dBu to the test unit which...
- Page 29 All manuals and user guides at all-guides.com Item Adjustment Content Specification SQL level 1 Adjustment Display : 5n1 Adjustment Input the 435.13MHz of –6dBu (standard modulation), and ( BP5 ) press the SCAN key. Check if can hear the BEEP sound. SQL level 5 Adjustment Display : 5nF Input the 435.13MHz of 0dBu (standard modulation), and...
- Page 30 All manuals and user guides at all-guides.com...
-
Page 31: Pc Board View
All manuals and user guides at all-guides.com PC BOARD VIEW 1) DJ-X3T /X3E Side A W2 #30BH1-045-H1 BLACK WIRE SPEAKER RED WIRE W1 #30R02-030-02 NATURAL WIRE BAR ANTENNA RED WIRE BLACK WIRE RED WIRE PTT BOARD GREEN WIRE... - Page 32 All manuals and user guides at all-guides.com 2) DJ-X3T /X3E Side B...
-
Page 33: Schematic Diagram
All manuals and user guides at all-guides.com SCHEMATIC DIAGRAM Ear ANT:1.52V Whip ANT:1.7V DBL ON: ATT OFF:0.94V 0.9V 1.87V 0.97V 1.87V 2.84V 2.06V 2.94V ABAR:3V 2.4V ATT ON:0.93V 2.75V 2.96V SBAR:3V 0.3V 2.7V ABAR,SBAR ABAR,SBAR 1.17V 1.03V 0.3V 0.7V 0.7V BP1:1.84V 0.7V 1.86V... -
Page 34: Block Diagram
All manuals and user guides at all-guides.com BLOCK DIAGRAM... - Page 35 All manuals and user guides at all-guides.com DJ-195 Service Manual ALINCO, INC. Head Office : Shin-Dai Building 9th Floor 2-6, 1-Chome, Dojimahama, Kita-ku, Osaka 530-0004, Japan Phone: +81-6-4797-2136 Fax: +81-6-4797-2157 E-mail:export@alinco.co.jp Dealer/Distributor Copyright 2000 Alinco, lnc. Osaka Japan Printed in Japan PM0064...
