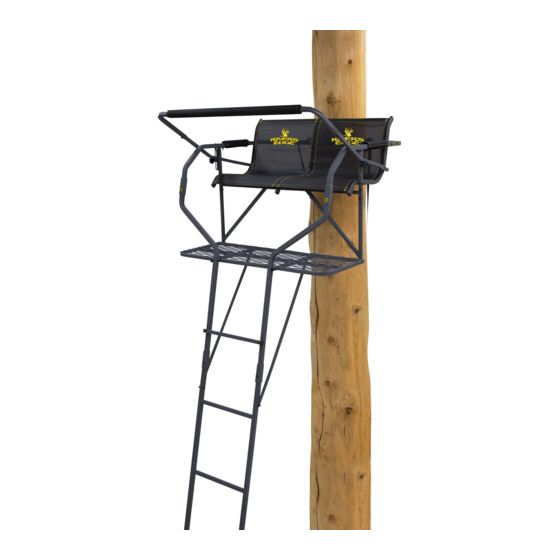

Relax 2-man ladder stand
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WE ARE HUNTERS
PRODUCT MEETS
INDUSTRY STANDARDS
RECOGNIZED BY
PARTICIPATING MEMBER
Get parts online at
www.HuntRiversEdge.com
Operator's Manual
RELAX
2-MAN
Ladder Stand
MODEL RE668
Maximum Height
16' 10" to shooting rail
Maximum Field Rating
500 lbs
Tree Diameter Range
12" to 20"
Wear Your
Harness!
P/N: 37839
© 2022 RETI
C/N: 37791
All Rights Reserved
REV2: 02/03/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RE668 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rivers Edge Treestands RE668

Summary of Contents for Rivers Edge Treestands RE668

  • Page 1 Operator's Manual RELAX WE ARE HUNTERS 2-MAN Ladder Stand MODEL RE668 Maximum Height 16’ 10” to shooting rail Maximum Field Rating 500 lbs Tree Diameter Range 12” to 20” Wear Your Harness! PRODUCT MEETS INDUSTRY STANDARDS RECOGNIZED BY Get parts online at P/N: 37839 ©...

  • Page 2: Table Of Contents

    Operator's Manual RELAX 2-MAN Ladder Stand INTRODUCTION Rivers Edge® Treestands are engineered with you the hunter in mind. We appreciate your purchase of one of our world class treestands. Follow these few simple instructions and your stand will provide you many years of trouble-free pleasure. Instructions should be kept in a safe place and reviewed at least annually.

  • Page 3: Warnings

    Operator's Manual RELAX 2-MAN Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP MODEL RE668 WARNING MAXIMUM USE HEIGHT - 16’10” TO SHOOTING RAIL Never jump or bounce on a treestand to seat it to the tree. MAXIMUM OCCUPANCY - TWO (2) PEOPLE...

  • Page 4: Inspection And Maintenance

    Operator's Manual RELAX 2-MAN Ladder Stand WARNING INSPECTION AND MAINTENANCE Always lean forward as you climb and attach your harness to the tree before securing the platform to the tree and BEFORE EACH USE PERFORM THE FOLLOWING: stepping onto the platform. •...

  • Page 5: Hardware Identification Chart

    Operator's Manual RELAX 2-MAN Ladder Stand TOOLS REQUIRED 7/16” WRENCHES 4MM ALLEN # 27477 WRENCH (INCLUDED) HARDWARE LIST Item Part No. Image Description BOLT # 8909B 1/4 X 1-1/4 IN BOLT # 48240B 1/4 X 1-1/2 IN BOLT # 48250B 1/4 X 1-3/4 IN BOLT # 48153B...
  • Page 6 Operator's Manual RELAX 2-MAN Ladder Stand HARDWARE LIST (CONTINUED) Item Part No. Image Description KNOB # 28839 M6 X 29MM BOLT #26813 M6 X 20 MM # 19847 LOCKPIN Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...

  • Page 7: Assembly Instructions

    Operator's Manual RELAX 2-MAN Ladder Stand ASSEMBLY INSTRUCTIONS IMPORTANT ASSEMBLY TIP: All assembly must be done in this order at ground Do not tighten any nut and bolt combinations completely level before uprighting. until all parts are assembled together! Finger tighten plus one turn of a wrench only! This will temporarily hold the Do not remove labels/warnings from product, they are lock- nut on the bolt while helping alignment of all parts!
  • Page 8 Operator's Manual RELAX 2-MAN Ladder Stand Attach the previously assembled seat side rails (7) and tree blade (8) from Step 1 to the previously assembled vertical supports (12 and 13) and seat support (11) from Step 2 by attaching the seat side rails (7) to the vertical supports (12 and 13) using four 1/4-20 x 1-3/4 IN bolts (22) and nuts (28).
  • Page 9 Operator's Manual RELAX 2-MAN Ladder Stand Begin attaching the seat (17) to the assembled frame by attaching the center seat rail to the tree blade (8) using a 1/4-20 x 1-1/2 IN bolt (21) and nut (28). Then attach the lower end of the center seat rail to the u bracket (18) using a 1/4-20 x 1-1/2 IN bolt (21) and nut (28).
  • Page 10 Operator's Manual RELAX 2-MAN Ladder Stand Attach the shooting rail assembly to the seat (17) using two 1/4-20 x 2-1/4 IN bolts (24), six yellow washers (27) and nuts (28). SEE DETAIL 7A. Attach the two shooting rail adjustment knobs (29) to the adjustment plates on right and left vertical supports (12 and 13) using two M6 x 20 MM bolts (30).
  • Page 11 Operator's Manual RELAX 2-MAN Ladder Stand Ladder sections are assembled on the ground in the following order: bottom ladder section (4), middle ladder section (3) and the top ladder section (10) with the treestand top assembly. Connect all sections together using four lockpins (31). ground 10.
  • Page 12 Operator's Manual RELAX 2-MAN Ladder Stand 11. Attach the two long ends of the 16’ criss-cross straps (38) to the tree blade (8) in the position shown. These long stabilizer straps should be attached by pulling the free end of the strap through the loop end of the strap to create a cinch knot around the frame tube.

  • Page 13: Warnings

    Operator's Manual RELAX 2-MAN Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE SETUP AND USE STOP WARNING WARNING Double check assembly steps to be certain you have Always maintain three (3) points of contact when correctly assembled this product. climbing a ladder treestand.

  • Page 14: Setup And Use Instructions

    Operator's Manual RELAX 2-MAN Ladder Stand SETUP AND USE INSTRUCTIONS WARNING During installation and removal of ladder treestands, you must always and properly use the included Full Body Harness (Fall Arrest System). Refer to the Full Body Harness instructions Never use a treestand on a dead, leaning, diseased included with this product for proper use.
  • Page 15 Operator's Manual RELAX 2-MAN Ladder Stand 10. Make sure the criss cross straps and stabilizer bar strap are snug and the tree blade is still both contacting the tree. NOTE: This ground level ladder-to-tree attachment will prevent the ladder from pulling away from the tree while ascending to the top for final 6’...

  • Page 16: Finished Ladder

    Operator's Manual RELAX 2-MAN Ladder Stand FINISHED LADDER ASSEMBLED PLATFORM RATCHET STRAP SECTION TOP LADDER SECTION CRISS CROSS STRAPS STABILIZER BAR CAM STRAP MIDDLE LADDER SECTION STABILIZER BAR BOTTOM LADDER SECTION LOCKPINS Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...

  • Page 17: Notes

    Operator's Manual RELAX 2-MAN Ladder Stand NOTES Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...

  • Page 18: Illustrated Parts Breakdown

    Operator's Manual RELAX 2-MAN Ladder Stand ILLUSTRATED PARTS BREAKDOWN mesh hidden for clarity 21 20 25 26 Check for parts online at www.HuntRiversEdge.com or call 800-345-6007...
  • Page 19 Operator's Manual RELAX 2-MAN Ladder Stand PARTS LIST ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. 1ML23 STABILIZER BAR EXTENSION 48752B 1/4-20 NUT 27397 STABILIZER BAR 39 IN 28839 KNOB M6 X 29 MM 31739 MIDDLE LADDER SECTION 26813 BOLT M6 X 20 MM 31740...
  • Page 20 WE ARE HUNTERS Rivers Edge® Treestands, Inc. Phone: 800-345-6007 1730 Industrial Avenue, PO Box 755 Fax: 715-822-2124 Cumberland, WI 54829 www.HuntRiversEdge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product images may have been removed for photography purposes only.
