Rivers Edge Treestands RE619 Operator's Manual

Lumberjack extrme, spin shot, one-man ladder stands
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operator's Manual
One-Man
Ladder Stands
luMbERJack ExtRME
Spin Shot
Model RE619
Model RE623
includES ModEl #'s:

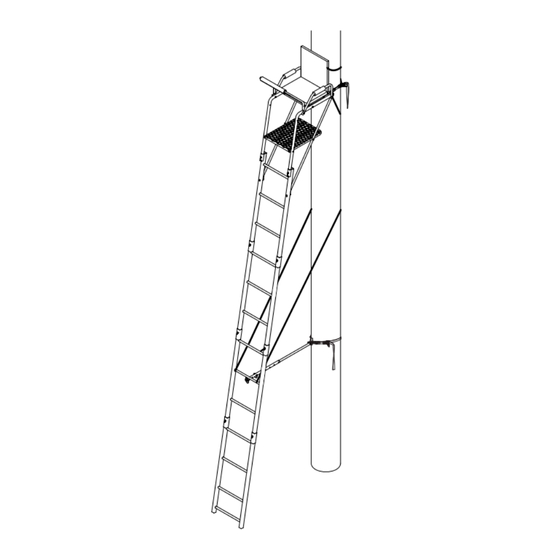

RE619, 20' Lumberjack Extreme Ladder
RE607, 22' Timbershot Extreme Ladder
RE623, 17' Spin Shot Ladder
RE624, 15' Opening Day Ladder
OMRELD004
Revised 02/25/11
Get parts online at
© 2011 RETI
www.HuntRiversEdge.com
All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RE619 and is the answer not in the manual?

Questions and answers

Related Manuals for Rivers Edge Treestands RE619

Summary of Contents for Rivers Edge Treestands RE619

  • Page 1 Ladder Stands luMbERJack ExtRME Spin Shot Model RE619 Model RE623 includES ModEl #'s: RE619, 20' Lumberjack Extreme Ladder RE607, 22' Timbershot Extreme Ladder RE623, 17' Spin Shot Ladder RE624, 15' Opening Day Ladder OMRELD004 Revised 02/25/11 Get parts online at ©...

  • Page 2: Table Of Contents

    This equipment has been manufactured under strict quality guidelines. As with any equipment of this type, full understanding of the instructions and its use is mandatory for the safety of its user. Rivers Edge Treestands, Inc., is not responsible for any damages or injuries sustained due to improper use or modification of any of its products, or due to any use which deviates from the products intended usage.

  • Page 3: Warnings

    Operator's Manual Rivers Edge One-Man Ladder Stands WARNINGS WARNING WARNING DO NOT uSE ThIS PRODuCT uNTIl YOu hAvE WATChED REPlACE ANY AND All TREESTAND STRAPS EvERY TWO ThE INCluDED TREESTAND SAfETY DvD, uNDERSTAND IT YEARS OR WhEN ANY SIGNS Of DAMAGE OR WEAR EXIST AND PRACTICED ThE TEChNIQuES fOR SAfE huNTING DIS- BEfORE.

  • Page 4: Full Body Harness (Fall Arrest System)

    SERIOuS PERSONAl INJuRY OR DEATh. If YOu DO NOT uN- PROPERlY AND SAfElY. DERSTAND ANY INSTRuCTIONS OR WARNINGS PROvIDED IN ThIS BOOk, YOu MuST CAll RIvERS EDGE TREESTANDS, DO NOT uSE IN SlIPPERY OR STORMY CONDITIONS. SNOW, INC., AT 800-450-EDGE (3343) BEfORE uSING.
  • Page 5 Operator's Manual Rivers Edge One-Man Ladder Stands uSING YOuR full BODY hARNESS (fAll ARREST SYSTEM) PuTTING ON YOuR full BODY hARNESS 1. With the Full Body Harness (FAS) lying on the ground, familiarize yourself with all of its design and features. SEE fIGuRE 1. right shoulder 2.
  • Page 6 Operator's Manual Rivers Edge One-Man Ladder Stands 6. Tighten and adjust each leg strap so they are tight to your legs, but not WARNING uncomfortably tight. SEE fIGuRE 5. 7. Feed waist strap through waist strap adjustment slide. Tighten and adjust BE SuRE ThAT YOu ARE WEARING YOuR full BODY hARNESS the waist strap so it is tight fit to your body, but not uncomfortably tight.
  • Page 7 Operator's Manual Rivers Edge One-Man Ladder Stands full BODY hARNESS (fAS) uSED WITh TREE BElT SuPPlIED WITh All lADDER STYlE TREESTANDS This is the primary attachment method when using a Full Body Harness WARNING (FAS). This method must be used while in your final hunting position with any type of treestand.
  • Page 8 Operator's Manual Rivers Edge One-Man Ladder Stands WARNING WARNING IN CASE OF A FALL… ThE SuSPENSION RElIEf DEvICE (SRD) STRAP MuST BE ON YOuR PERSON AND AlWAYS BE READIlY ACCESSI- DO NOT PANIC! This Full Body Harness (Fall Arrest System) is designed BlE TO YOu WhIlE WEARING ThE full BODY hARNESS to prevent a fall to the ground.
  • Page 9 Operator's Manual Rivers Edge One-Man Ladder Stands AlWAYS… WARNING • Be physically fit, mentally alert, and well rested before using this product. EXTREME WARNING! If fAll OCCuRS WhIlE uSING ThIS • Read and understand all instructions provided and warnings listed full BODY hARNESS (fAll ARREST SYSTEM) YOu MuST before each use and save for future reference. AlWAYS REMEMBER TO REMAIN CAlM. REGAIN YOuR ThOuGhTS AND COMPOSuRE AND TRY TO RECOvER AS • Practice using at ground level first before using above ground.

  • Page 10: Inspection And Maintenance

    Operator's Manual Rivers Edge One-Man Ladder Stands AlWAYS… INSPECTION AND MAINTENANCE SChEDulE • Be physically fit, mentally alert, and well rested before using this product. fOR All RIvERS EDGE PRODuCTS • Read, understand and follow all warnings and instructions before use and • Inspect all webbing, rope, cord, and strap assemblies for wear or damage. save for future reference. • Inspect cables and cable ends for damage or kinking. • Use the provided Full Body Harness (Fall Arrest System) that meets TMA • Inspect all hardware and chain components for damage. standards immediately upon reaching foot platform. • Inspect for any structural damage to product. (Return to factory for repair or discard product if any damage is found.) • Be fully aware of foot placement.

  • Page 11: Assembly/Parts Explosion/Parts List (Re619)

    Operator's Manual Rivers Edge One-Man Ladder Stands ASSEMBlY INSTRuCTIONS (RE619) steel washers Tools needed – two 7/16" wrenches, rubber mallet tree blade frame 1/4-20 x 3-1/4” bolts iMpoRtant aSSEMblY tip: do not tighten any nut and bolt combinations armrest completely until all parts are assembled together! Finger tighten plus one 1/4-20 x 2-1/4”...
  • Page 12 Operator's Manual Rivers Edge One-Man Ladder Stands 5. Attach the (2) brace supports (48055) to the rear holes of tree blade frame seat cushion 18" camo sleeve and foot platform using (4) provided 1/4-20 x 2” bolts, locknuts and steel washers.
  • Page 13 Operator's Manual Rivers Edge One-Man Ladder Stands 10. With all sections assembled together on ground, secure all sections together spring lock pins using (6) provided 1/4-20 x 2-1/4” wing bolts with wing nuts and (2) provided 1/4-20 x 3-1/4” hex bolts with locknuts. The longer 3-1/4” hex bolts must be used to connect the top ladder section and the assembled top platform section.
  • Page 14 Operator's Manual Rivers Edge One-Man Ladder Stands NO EXTENSIONS AvAIlABlE fOR ThIS MODEl, TESTED fOR 20' MAXIMuM hEIGhT! lADDER PARTS - uPPER SECTION lADDER PARTS - lOWER SECTION Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5...
  • Page 15 Operator's Manual Rivers Edge One-Man Ladder Stands kEY # PART # DESCRIPTION QTY. fINIShED 20’ luMBERJACk EXTREME lADDER 1ML15 SEAT FRAME 1ML23 STABILIZER SUPPORT TUBE 1ML34 SEAT FRAME 1ML37 FOOT PLATFORM, LADDER 48042B NUT, WING 1/4-20 48055 BRACE SUPPORT, 55" ratchet strap 48057B SCREW, WING 1/4-20 X 2-1/4...

  • Page 16: Assembly/Parts Explosion/Parts List (Re607)

    Operator's Manual Rivers Edge One-Man Ladder Stands ASSEMBlY INSTRuCTIONS (RE607) armrests shooting rail mounts Tools needed – two 7/16" wrenches side rails iMpoRtant aSSEMblY tip: do not tighten any nut and bolt combinations completely until all parts are assembled together! Finger tighten plus one tree blade frame turn of a wrench only! this will temporarily hold the lock nut on the bolt while helping alignment of all parts! after all parts are assembled together, all nut...
  • Page 17 Operator's Manual Rivers Edge One-Man Ladder Stands 4. Insert the assembled top platform section into the top ladder section with seat cushion mounting holes (SL54). Attach the (2) support braces (48064) to the outside of 9" camo shelves side rails, foot platform and 4-step ladder section with mounting holes using (2) provided 1/4-20 x 3-1/4"...
  • Page 18 Operator's Manual Rivers Edge One-Man Ladder Stands 8. Attach the truss support (48023) to where the second and third ladder 10. Insert the (4) truss male braces (48041) into the (4) truss female braces sections have been slid together, using (2) provided 1/4-20 x 1-3/4” wing (48040). Have the flattened end of the braces oriented in opposite directions bolts and wing nuts.
  • Page 19 Operator's Manual Rivers Edge One-Man Ladder Stands b. Attach the remaining (2) assembled braces and the opposite end of 1-3/4" wing previously assembled braces to the truss support using (2) provided 1/4-20 bolts x 1-3/4” wing bolts and wing nuts. You must attach the flattened end of braces so that it will cause the lower braces to angle towards the bottom end of ladder.
  • Page 20 Operator's Manual Rivers Edge One-Man Ladder Stands lADDER PARTS (RE607) NO EXTENSIONS AvAIlABlE fOR ThIS MODEl, TESTED fOR 22' MAXIMuM hEIGhT! Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5...
  • Page 21 Operator's Manual Rivers Edge One-Man Ladder Stands lADDER PARTS lIST (RE607) fINIShED 22’ TIMBERShOT EXTREME lADDER kEY # PART # DESCRIPTION QTY. 8909B BOLT, HHCS GR5 BLK 1/4-20 X 1-1/4" 48023 TRUSS SUPPORT 48025 COUNTER LOCK SUPPORT BAR 48040 BRACE, FEMALE TRUSS ratchet strap 48041 BRACE, MALE TRUSS...

  • Page 22: Assembly/Parts Explosion/Parts List (Re623)

    Operator's Manual Rivers Edge One-Man Ladder Stands ASSEMBlY INSTRuCTIONS (RE623) 1/4-20 x 3-1/4" bolts Tools needed – two 7/16" wrenches, rubber mallet steel washers iMpoRtant aSSEMblY tip: do not tiGhtEn nut & bolt coMbinationS coMplEtElY until all paRtS aRE aSSEMblEd toGEthER! FinGER tiGht- 1/4-20 x 2-1/2"...
  • Page 23 Operator's Manual Rivers Edge One-Man Ladder Stands 5. Insert the two ladder receiver J-pipes (already assembled onto the platform) 1/4-20 x 1-1/2" tree blade weldment into the pockets of the top ladder section with side holes (SL78). Attach the bolts (2) support tubes (112ML75) to the outside of top ladder section using (2) 1/4-20 x 1-1/2"...
  • Page 24 Operator's Manual Rivers Edge One-Man Ladder Stands SWIvEl SEAT ASSEMBlY INSTRuCTIONS backrest rim armrests notE: Swivel seat assembly must be assembled on the ground. do not steel washers attach to platform until ladder is uprighted, attached to the tree per Set-up and use instructions, and you are attached to the tree with the provided Full body harness.
  • Page 25 Operator's Manual Rivers Edge One-Man Ladder Stands fINIShED 17’ SPIN ShOT lADDER 16. The remaining (2) ladder sections are assembled to the top ladder assembly on the ground in the following order: bottom section (SL51 ladder); second section (SL52 ladder); third section (SL78 ladder); top section (assembled top, platform section). SEE fINIShED 17’ SPIN ShOT lADDER. 17. With all sections assembled together on ground, secure all sections together using (4) provided spring lock pins.
  • Page 26 Operator's Manual Rivers Edge One-Man Ladder Stands lADDER PARTS - uPPER SECTION lADDER PARTS - lOWER SECTION Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5...
  • Page 27 Operator's Manual Rivers Edge One-Man Ladder Stands lADDER PARTS lIST kEY # PART # DESCRIPTION QTY. 8909B BOLT 1/4-20 X 1-1/4" HHCS GR5 BLK ZN NO EXTENSIONS AvAIlABlE 8930B BOLT 1/4-20 X 3/4" HH GR5 BLK ZN fOR ThIS MODEl, 48044B SCREW, WING 1/4-20 X 1-3/4"...

  • Page 28: Assembly/Parts Explosion/Parts List (Re624)

    Operator's Manual Rivers Edge One-Man Ladder Stands tree blade ASSEMBlY INSTRuCTIONS (RE624) 1/4-20 x 2-1/2" bolts weldment Tools needed – two 7/16” wrenches, rubber mallet 1/4-20 x 2-1/4" bolts iMpoRtant aSSEMblY tip: do not tiGhtEn nut & bolt coMbinationS coMplEtElY until all paRtS aRE aSSEMblEd toGEthER! FinGER tiGht- En onlY pluS onE tuRn oF a WREnch onlY! thiS Will tEMpoRaRilY hold thE lock nut on thE bolt WhilE hElpinG aliGnMEnt oF all paRtS! aFtER all paRtS aRE aSSEMblEd toGEthER, all nut &...
  • Page 29 Operator's Manual Rivers Edge One-Man Ladder Stands 6. Attach the upper tree blade weldment (410004) and the (2) seat seat cables pivot brackets (410008) to the seat upright weldments using (4) fabric rail mounts provided 1/4-20 x 2-1/4” bolts and locknuts. SEE fIGuRE 4. 1/4-20 x 2-1/4"...
  • Page 30 Operator's Manual Rivers Edge One-Man Ladder Stands 10. a. Using a rubber mallet, gently tap in (2) plastic pipe plugs 1/4-20 x steel washers (48869) into the short side of the armrest tubes. 1-1/4" bolts curtain rail b. Attach the armrests (410009) to the seat upright weldments us- J-pipes ing (2) provided 1/4-20 x 2-1/4”...
  • Page 31 Operator's Manual Rivers Edge One-Man Ladder Stands b. With the seat pivoted up in the flip-up position (to allow for slack), attach the top of mesh backrest and the backrest retainer bar (410079) 1/4-20 x 1-1/2" bolts to the seat upright loop using (3) provided 1/4-20 x 1-1/2” bolts and locknuts. SEE fIGuRE 9a and 9b. The mesh backrest must wrap backrest retainer bar around the top side of the seat upright loop and the plastic stiffening Side Profile view...
  • Page 32 Operator's Manual Rivers Edge One-Man Ladder Stands 17. Attach (2) door weldments (410017) to the door mount weld- door weldments ments by inserting welded rod and square tube of door frame into the locking position on the upper door mount frame plates. Attach the lower portion of each door to the lower door mount welded rod and plate using (2) provided 1/4-20 x 1-3/4”...
  • Page 33 Operator's Manual Rivers Edge One-Man Ladder Stands 21. Attach the (2) support braces (410024) to the outside of platform 24. a. Attach the removable seat pad (360005) to top of mesh fabric J-pipes and outside of top ladder section w/ mounting holes using on assembled seat frame. Wrap the Velcro straps or buckle straps (4) provided 1/4-20 x 1-1/2”...
  • Page 34 Operator's Manual Rivers Edge One-Man Ladder Stands fINIShED 15’ OPENING DAY lADDER top section ratchet straps third section 15' tie-off ropes second section ratchet strap stabilizer bar extension tube spring lock pins bottom section Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5...
  • Page 35 Operator's Manual Rivers Edge One-Man Ladder Stands lADDER PARTS - uPPER SECTION lADDER PARTS - lOWER SECTION Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5...
  • Page 36 Operator's Manual Rivers Edge One-Man Ladder Stands kEY # PART # DESCRIPTION QTY. 1ML23 TUBE, STABILZIER, SUPPORT NO EXTENSIONS AvAIlABlE 1ML40 BRACE, SUPPORT FLAT fOR ThIS MODEl, 2ML130 WELDMENT, TREE BLADE TESTED fOR 15' MAXIMuM hEIGhT! 410079 STRIP FABRIC MOUNT 48250B BOLT 1/4-20 X 1-3/4"...

  • Page 37: Setup And Use Instructions

    Operator's Manual Rivers Edge One-Man Ladder Stands SETuP AND uSE INSTRuCTIONS WARNING (fOR All lADDER STANDS IN ThIS MANuAl) DOuBlE ChECk ASSEMBlY STEPS TO BE CERTAIN YOu hAvE 1. With assembled product lying on the ground in assembled position, CORRECTlY ASSEMBlED ThIS PRODuCT. position one person at bottom end of ladder lying on the ground.
  • Page 38 15' tie-off 22' tie-off ropes ropes Figure 4b: Applies to RE623 and RE624 Figure 4a: Applies to RE607 and RE619 upper tree blade platform tree blade tie-off rope Figure 5a: Applies to RE607 and RE619 Figure 5b: Applies to RE623 and RE624 Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5...
  • Page 39 7. If applicable, once seated, shooting rail can now be seated down over studs. SEE fINIShED lADDER IlluSTRATIONS. 8. fOR RE607, RE619, and RE624: Reverse setup and use instructions to take ladder down. This now completes the set-up instructions for RE607, RE619 and RE624.
  • Page 40 Operator's Manual Rivers Edge One-Man Ladder Stands fOR RE623 ONlY: hOISTING YOuR SWIvEl SEAT seat post 9. Using the three point contact climbing method, slowly descend the ladder 1/4-20 x 1-3/4" wing bolts and carefully keep a constant hand grip on the ladder at all times until you reach the ground.

  • Page 41: Bolt Guide

    Operator's Manual Rivers Edge One-Man Ladder Stands BOlT IDENTIfICATION ChART Not all bolt sizes shown are included with all treestands. Bolts shown are for size reference only. Extra hardware may be included in the parts bag. 5/16-18 x 1-3/4" grade 5 hex head bolt 1/4-20 x 1-1/4"...
  • Page 42 Operator's Manual Rivers Edge One-Man Ladder Stands NOTES _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5...
  • Page 43 Operator's Manual Rivers Edge One-Man Ladder Stands NOTES _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5...
  • Page 44 Rivers Edge Treestands, Inc. 1690 Elm Street, PO Box 755 Cumberland, WI 54829 800-450-EDGE (3343) | Fax 715-822-2124 Email: info@huntriversedge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product...
