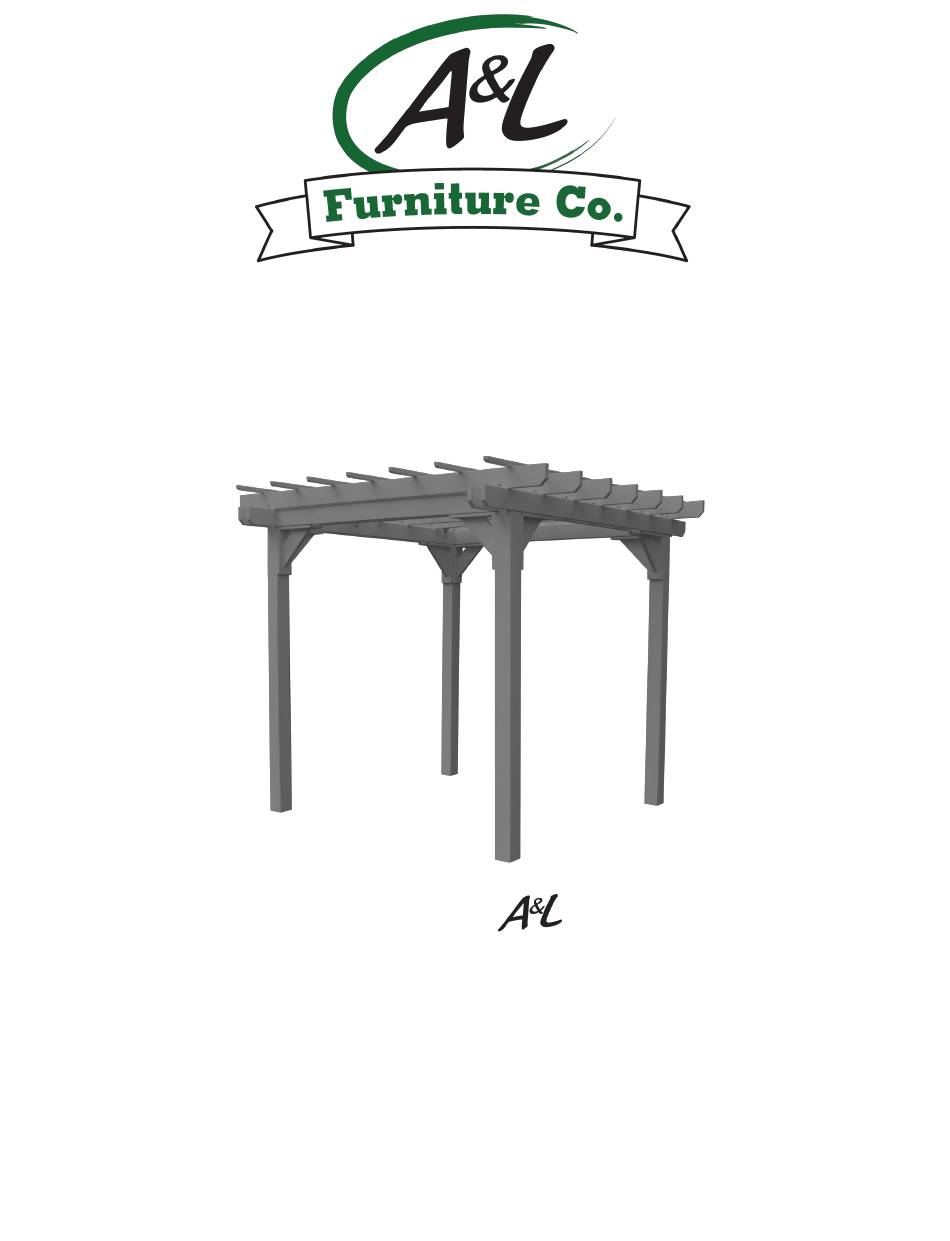

Assembly Instructions

Bradford Pergola

Furniture Co.

Thank you for choosing

We hope that this piece brings you many years of enjoyment!

For help with assembling your furniture,

or if you have missing hardware, please email us at

help@aandlfurniture.com or call us at 866-896-5747

Page 1 Assembly Instructions Bradford Pergola Furniture Co. Thank you for choosing We hope that this piece brings you many years of enjoyment! For help with assembling your furniture, or if you have missing hardware, please email us at help@aandlfurniture.com or call us at 866-896-5747...
Page 2 PARTS (included) HARDWARE (included) Post (4) ” x 3¼” Bolt (10 or 14) 3” Screws (150) Brace (8) 2” Lags (8) Beam Assembly (2) Flange Nut (10 or 14) Swing Hanger (4) Crossbeam (4) Square Drive Bit (1) Rafter (5 or 7) TOOLS NEEDED Top Strip (7) 8’...
Page 3 STEP 3 Take 2 crossbeam boards and attach to one of the beam assembly. (See photos 5 & 6.) Repeat with the other end of the same beam assembly. photo 5 photo 6 STEP 4 Get your helpers to set up the post and beam frames while you climb up on the step ladder and attach the loose end of the crossbeams to the second post &...
Page 4 STEP 6 Attach the top strips to the rafters. (See top view of pergola with the rafters attached - photo 12.) Each rafter should have an X marked at regular intervals. Place the strip on top of the X. (See photo 13.) Fasten the screws all along the length of the strip to each rafter.
