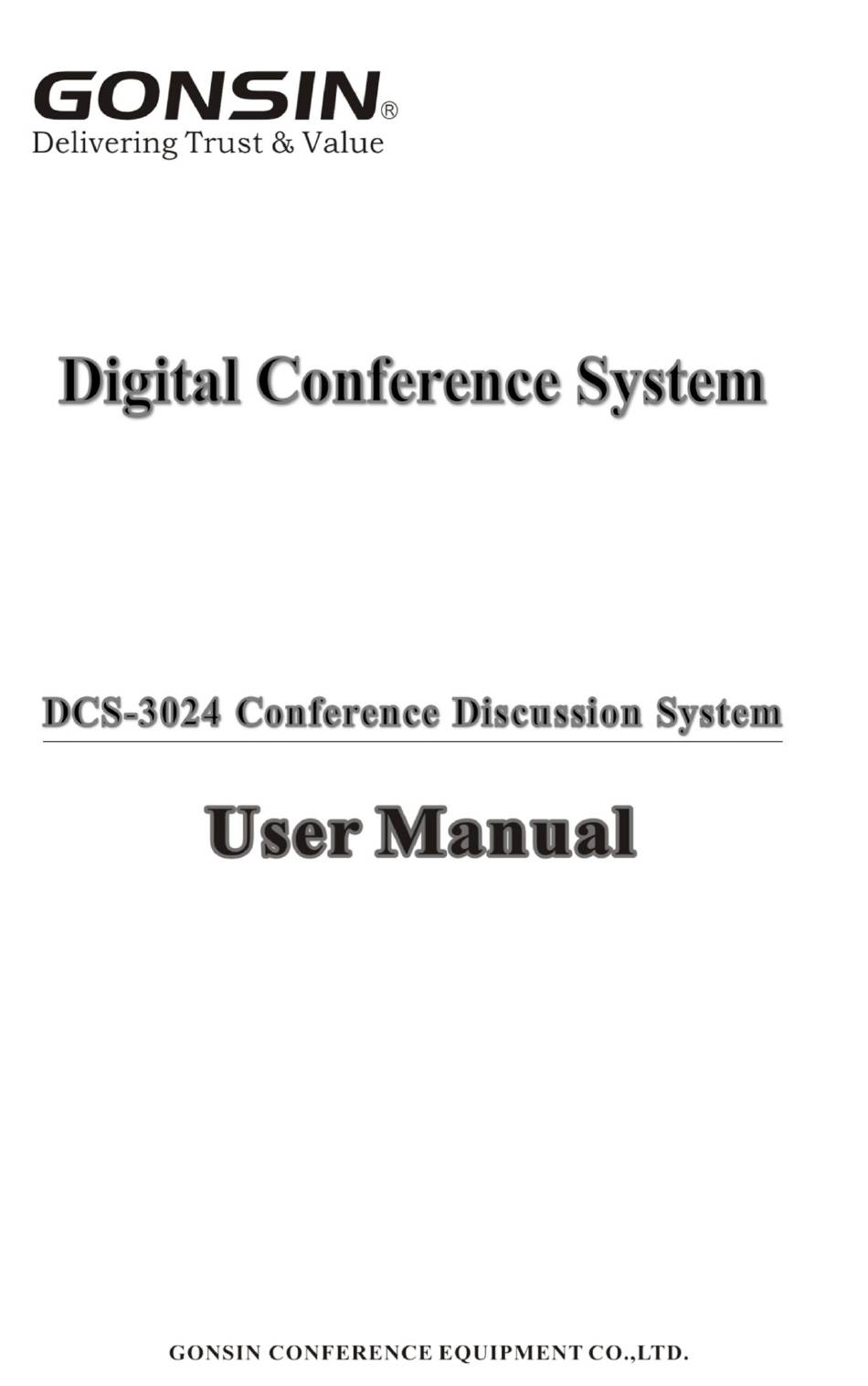

GONSIN DCS-3024 User Manual

Digital conference system

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCS-3024 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GONSIN DCS-3024

  • Page 2: Safety Notes

    Contact the customer service places so as not to cause equipment center of GONSIN: 400-883-1138. damage or danger. 16. All GONSIN products shall be against Do not place the equipment on an the warranty card based on system unstable table;...
  • Page 3 17. Use specific cables connect equipment. The lightning sign reminds users that 18. Turn off the power switch and remove hazardous voltage that is not insulated is the plug in case that the equipment is likely to trigger. not used for a long time. 19.
  • Page 4: Precautions For Lithium Battery Use

    Remove the batteries and make sure they are fully charged every three months. Notes: GONSIN reserves the right to change this document without prior notice. To obtain more documentary materials, contact the local after-sale service center. GONSIN welcome your feedback.
  • Page 5: Table Of Contents

    Content Safety Notes........................1 Precautions for Lithium Battery Use................3 Chapter 1 Introduction....................6 1.1 System connection diagram................6 Chapter 2 Congress Server..................8 2.1 Overview......................8 2.2 GONSIN30000S Functions and Indicators........... 9 2.2.1 Basic Functions....................... 9 2.2.2 Server Indicators......................10 2.3 Server Installation...................
  • Page 6 3 . 4 Connection of Congress Terminal............. 23 Chapter 4 Wireless Network Design................. 24 4.1 Introduction.......................24 4.2 Selective frequency hopping technology.............24 4.3 Frequency Range....................24 4.4 Others....................... 24 4.5 Installation Rules..................... 25 Chapter 5 WEB access....................26 5.1 The Way of WEB Access................26 5.2 The WEB Page....................26 5.2.1 System state........................
  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction GONSIN DCS congress system boasts superior performance, and it is applicable to conferences of different sizes. The congress terminal is easy to operate: press the speaking key to speak and rotate the volume knob in two directions (“+” and “-”) to adjust the volume of the built-in loudspeaker;...
  • Page 8 This document is applicable to the following product models: Congress server GONSIN30000S (With discussion, automatic camera tracking function, USB recording and storage function) Wireless AP WAP-30C Wireless Conference Terminal DCS-3024C-W Wireless conference chairman terminal DCS-3024D-W Wireless conference delegate terminal Pluggable Microphone Stem MIC-410*¢14.
  • Page 9: Chapter 2 Congress Server

    Chapter 2 Congress Server 2.1 Overview The DCS congress server GONSIN30000S is the core of a congress system. It can be connected to WAP-30C or WAP-30I (for increasing the number of listening units and simultaneous interpretation units) as well as HD matrix, mixer, power amplifier, and PC over corresponding interface.
  • Page 10: Gonsin30000S Functions And Indicators

     FIFO mode (FIFO)  Voice control mode (VOX) High and bass compensation to achieve perfect sound quality;  Has the function of suppressing scream.  2.2 GONSIN30000S Functions and Indicators 2.2.1 Basic Functions 1. Based on Linux operating system platform development, built-in DSP digital audio processor, with noise suppression function;...
  • Page 11: Server Indicators

    14. With intelligent speech recognition system, can achieve speech transcription function; 15. Between the server and the control computer using TCP/IP connection control mode, support Web management function: 1) The server state can be monitored in real time, including the number of speakers, speech mode, connection state, internal core voltage and fault warning information of the server;...
  • Page 12 Back side: It can be used to connect control PC, 8.RS-485 interface (RS-485 TO CAMERA). switches or connect WAP, and also connect This interface has two pairs of connection voice recognition systems. terminals and it is used for connecting to 11.USB recording and storage function.
  • Page 13: Server Installation

    2.3 Server Installation The congress server is 1U high, and therefore it can be installed in a 19-inch rack. It has two accompanied brackets. Screw up the bracket fixed in two sides of the congress server, put the congress server into the rack, then screw up it with the rack screws, as shown in the following figure: 2.4 Connection 2.4.1 Connection with Congress Terminal...
  • Page 14: Connection With Wireless Ap And Control Pc

    is too large or the maximum number of speakers needs to be increased, extensible cascaded WAP can be used.The following figure shows the wiring diagram: 2.4.3 Connection with Wireless AP and Control PC The successful communication between the congress server and a wireless terminal must be supported by a wireless AP WAP-30C to perform signal conversion.
  • Page 15: Connection With Camera

    2.4.5 Connection with Camera Among the three groups of wiring from the camera (for details on camera operation, refer to the camera operation guide), two groups of wiring are used for connecting to the congress server (power of the camera is supplied directly from the control room). One group is the HD video wiring, which is implemented by connecting the video output of the dome camera to the SDIINPUT of the HD matrix over an BNC connector;...
  • Page 16: Connection With The Dome Controller

    Note: Please refer to the software instructions for setting the camera tracking Settings. 2.4.6 Connection with the Dome Controller Make sure that the GX-KB01 dome controller ’s protocol and baud rate are already preset (please see dome controller user manual for the settings). Use a 2-pin twisted pair cable to connect 485+ and 485- of dome controller to 485+ and 485- of central control unit.
  • Page 17: Congress Server Setting And Operation

    2.4.7 Congress Server Setting and Operation screen five keys: “▲”,“▼”,“▶”,“◀”, and “OK”. After entering the setting interface, the current option is displayed on a contrast background. The leftward and rightward arrow buttons are used to enter or exit a menu. (1) Status: when the system works normally, the OLED shows the number of active ①...
  • Page 18 all congress terminals; if you select "No", the to enter IP address information interface, system goes back to the preceding menu. such as server IP is 192.168.30.8. Press "OK" to return to the previous menu. (5)Unit ID No.: select the "Unit ID No." setting and press the "▶"...
  • Page 19 (10)Senior: In the setting interface, select "Senior" through the buttons to enter the senior settings. The senior settings include one of the following two states: (8)DSP: after entering "DSP", the "▲" or "▼" key can be pressed to select on or off. After selection, press "OK"...
  • Page 20: Chapter 3 Compositions Of The Wireless Conference System

    Chapter 3 Compositions of the Wireless Conference System 3.1 Functions and Indicators of the Wireless Congress Terminal 3.1.1 Overview The congress terminal is essential for a conference participant and it connects with a congress server via the wireless AP. Functions available to participants vary with the type of a conference unit, including listening, speaking, and requesting to speak.
  • Page 21: Functions And Indicators Of Wireless Ap

    Front side 1、 Microphone gooseneck 2、 Priority key (red) Press this key to close all active delegate terminals. This key is available for the chairman terminal only. 3、 MIC ON/OFF key 8、Indicator Light; it blinks when the congress terminal is matching with the congress server, it keeps lights on when the congress terminal matches with the congress server successfully.
  • Page 22: Basic Functions

    Notice: one congress server can be connected with one wireless AP. The system is recommended to use in the medium or small conference room. Product model: WAP-30C 3.2.1 Basic Functions 1、RUN indicator 2、Powered by the congress server 3、Wall mounting, bracket supporting, and ceiling mounting 3.2.2 Indicators (Lateral )...
  • Page 23: Functions And Indicators Of Charging Case

    3.3 Functions and Indicators of Charging Case The charging case can charge 16 batteries at the same time. It is powered by the universal power supply and automatically matched by the voltage of the city power. Each charging grid has a charging indicator light. The charging circuit can automatically detect the battery and control the charging process.
  • Page 24: Connection Of Congress Terminal

    1.Battery grid 2.LED indicator (red indicates "being charging"; green indicates "charging completed") 3.Power interface(AC 110-220v 50Hz) 4.Power switch(power) 3 . 4 Connection of Congress Terminal To connect the congress server with wireless terminals, use an 8PS-03/05/10/20/40 extension cable to connect the 8P interface (female connector) of the server to a WAP- 30C AP.
  • Page 25: Chapter 4 Wireless Network Design

    908-928MHz(for US standards). Interference DCS3024 system will cause interference to the wireless network of PC. Make sure the wireless carrier of the DCS-3024 system does not overlap with the WLAN channel. On-site wireless environment can be accurately measured with professional measuring instruments or estimated with APP third-party measuring tools.
  • Page 26: Installation Rules

    Maximum transmitting power 14dBm(V-Band),10dBm(U-Band) Modulation FS-FHSS selected frequency modulation, pi/4 DQPSK+GFSK digital modulation modulation. Frequency response range Unit- server unbalanced output frequency response curve frequency response range: 60Hz- 20kHz(±3dB) Unit-unit monitoring output frequency response curve frequency response range: 65Hz-16KHz (±3dB) Audio coding ADPCM 4.5 Installation Rules...
  • Page 27: Chapter 5 Web Access

    Chapter 5 WEB access 5.1 The Way of WEB Access The operating computer is connected to the GONSIN30000S host via the network cable. You can check the IP address of gonsin3000S host first (see 2.4.7 server setup and operation for how to check the IP address). After knowing the IP address of the host, input the IP address into the browser to enter the host Web page (password: 123456).
  • Page 28: System Setting

    In the page of system state, can clearly see the current access all information including the type of system, version of the web, the number of speech, speech, voice, recording system state, and so on, also can see the current usage of U disk, in"...
  • Page 29: Frequency Point Setting

    5.2.3 Frequency Point Setting In the page of "frequency point setting", the communication frequency band and working frequency band of the host can be clearly seen, and the frequency modulation process of the microphone turning on the microphone every time is also clearly visible.
  • Page 30: Mic Unit Information

    In the "IP device setting" page, it can display the voltage situation to the host in real time, so that when the problem occurs, it can quickly determine the problem point and solve it. It can also be connected to the visual data system to realize the real real-time monitoring of the host state.
  • Page 31: Web Password Management

    5.2.6 Web Password Management In the "Web password management" page, you can change the current Web password. 5.2.7 Camera Setting If the camera ball machine or matrix is configured and the connection between the camera ball machine or matrix and the host machine is correct, you can set the camera tracking in the "Camera Setting"...
  • Page 32: Media Broadcast Management

    5.2.8 Media Broadcast Management If you insert the USB flash drive (specific operation details see 2.4.7 server setup and operation), can see the inside of the U Disk in this page audio file, click on the "+", can add the audio files in the USB to playlists, you can also to pause, play, play lists, the poem on the list, single cycle, cycle, random cycle, audio volume control, the progress bar tensile control and so on.
  • Page 33: Chapter 6 Environment And Maintenance

    6.2.2 System Operation Requirements GONSIN conference management software must be supported by a PC in order to run. Generally, the system operator is located in an independent room which should reach the standards of an interpreter booth. The room should be configured with simultaneous interpretation devices (microphones) to connect to a PA system so that the operator can remind participants of related operation, for example, voting starts or registration starts.
  • Page 34 An audio device should be installed in the room as well to allow the operator to clearly hear the site and understand site situation. Notes: Keep good ventilation conditions. Reserve holes on the upper part of the devices and place the devices on a flat and stable floor. If the operation room will be left unused for a long period of time, shut down the power supply or remove and store the devices in an airy dry place.
  • Page 35: Appendix

    ① Without the authorization of GONSIN Conference Equipment Co., Ltd., reproduction and transmission of this document is forbidden. ② GONSIN makes every effort to ensure accuracy and conciseness of the contents in this document. For any inaccuracy due to print error, please contact us, and we will correct it in a timely manner.
