Summary of Contents for GONSIN 3300 Series

  • Page 2 400-883-1138 for service avoid damage caused by strong impacts and support. during transportation. 16. All GONSIN products are guaranteed for 3 9. Maintain indoor air flow to prolong the service years excluding the following cases: life of equipment A.
  • Page 3 unit whenever the power cord is inserted into the power source; however, the unit is exclamation mark within operational only when the ON – OFF switch is in equilateral triangle is intended to alert the user to the presence of important operating and the ON position.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS Chapter 1. System Overview ......................4 Chapter 2. Digital conference systems unit ..................6 2.1 Central unit ........................... 6 2.1.1 Functions and indicators for central unit ................. 6 2.1.2 Mounting Units on rack ......................... 7 2.1.3 Connection of central unit ......................8 2.2 ZJ-KR Extension Unit ......................
  • Page 5: Chapter 1. System Overview

    Chapter 1. System Overview GONSIN conference system offers high performance solution for conferences of large, medium or small size. Conference units are easy to operate. Delegate can simply push MIC key to speak, REG key to attend and voting keys to vote, and select a channel to hear the interpreted language, and use volume keys to adjust volume level for built-in loudspeaker.
  • Page 6 This user manual is used for the following components parts: Units TL-Z4 Central unit for discussion, camera tracking ZJ-KR Extension Unit to expand the system to support more conference units Conference Units 3300 series: tabletop conference units TL-VX3300/ TL-VD3300 Chairman/delegate unit for discussion and camera tracking.
  • Page 7: Chapter 2. Digital Conference Systems Unit

    Chapter 2. Digital conference systems unit 2.1 Central unit The central unit features AUTO/FIFO/VOX microphone mode, automatic video tracking. Model Numbers: TL-Z4 Central unit for discussion, video tracking TL-ZB4 Central unit for discussion, voting, video tracking TC-Z4 Central unit for discussion, interpretation, video tracking TC-ZB4 Central unit for discussion, voting, interpretation, video tracking 2.1.1 Functions and indicators for central unit...
  • Page 8: Mounting Units On Rack

    (TL-Z4 rear view) Front view 1. Power ON/OFF switch with red LED indicator 2. USB recording interface 3. OLED display 4. Rotary code switch 5. Bass level control 6. Treble level control 7. Volumn level control Rear view 1. RS-485 communication interface (RS-485 TO CAMERA), used to control HD CAMERA tracking matrix;...
  • Page 9: Connection Of Central Unit

    2.1.3 Connection of central unit 2.1.3.1 Connecting with conference units Central unit has four 8P DIN sockets and four 13P DIN sockets. Conference unit has a 8P or 13P-DIN female socket. You can first connect the male connector of 8P/13P T-type cable to female socket of the first conference unit, and then connect 8P/13P-DIN female socket of unit.
  • Page 10 2.1.3.2 Connecting with computer Using ETHERNET communication mode between computer and controller, the function of the system can be extended the external system software by using the network line from the RJ-45 of controller TO PC network. 2.1.3.3 Connecting with power amplifier The controller has a caron balance audio output connector (LINE OUT1) and One set of RCA unbalance audio output connectors (LINE OUT2).Connect to the power amplification system to amplify the speaker's voice.The connection only needs to output the "LINE OUT1"...
  • Page 11 2.1.3.4Connecting with RS-485 repeater RS-485 repeater is required when system communications are not stable due to long cable length or large quantity of conference units in the cable line. It is normally connected between extension cable of cen 00000000tral unit and the first conference unit of the cable line. How to connect repeater: male connector of extension cable is connected to female socket of unit.
  • Page 12 2.1.3.6 Connecting with transmitter Connect the 25-pin male socket(TO LANGOAGE DISTRIBBUTION SYSTEM)of central unit to the 25-pin INTERPRETER UNIT socket of transmitter for seamless interface between wired and wireless interpretation system. For more detailed instructions, please check the user manual for IR interpretation system and DSSS interpretation system.
  • Page 13 2.1.3.7 Connecting with wireless microphone system The receiver unit of wireless microphone system can be connected to MIC socket on the central unit using audio cable to offer seamless interface with the interpreter consoles as an audio source. 2.1.4 Settings and Operation of Central Unit 1.
  • Page 14 3. Setting Menus There are 3 interfaces which can be used to set active mic, mic mode, FSC/DSP, unit vol, ID No. writing, language selection and contrast. ▲ ▼ ◄ ►◆symbols are used to indicate upward, downward, leftware, rightward, page up, page down.
  • Page 15 ② Mode menu is used to select microphone mode VOX, FIFO, AUTO, OPERATOR. AUTO – Any microphone can be active within the preset number limit. FIFO – First active microphone will be switched off automatically when active microphone is more than the preset number limit.
  • Page 16 ▲/▼) button Use up/down ( to select the unit number and press SET to confirm. Any unwritable ◄ ) button to exit “confirmation waiting” number will skip to the next writable number. Use leftward ( screen when the unit number is not confirmed. “ID No. writing successful” screen can be seen when it is confirmed.
  • Page 17: Zj-Kr Extension Unit

    CCU contrast setting range is 00-32. Choose Reset and press Set to adjust the CCU contrast as the default setting. Unit menu is to adjust the contrast for any single unit. Choose un unit number 0002-9999 and + or -, press Set to adjust the contrast setting.
  • Page 18: Mounting Extension Unit On Rack

    Front view 1. Power ON/OFF switch, with red LED indicator Rear view 2. Route B IN: expansion input socket 8PS/13PS to connect central unit or previous extension unit. 3. Route B OUT: expansion output socket 8PS/13PS to connect conference unit or next extension unit.
  • Page 19 (8-pin cable connection)
  • Page 20: Chapter 3. Conference Unit Tl-3300

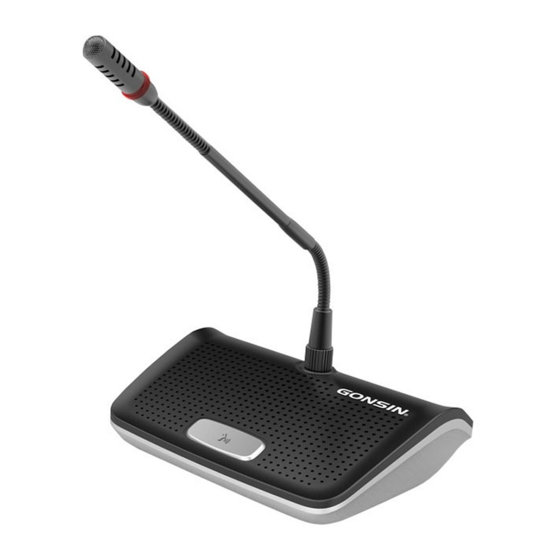

    Chapter 3. Conference Unit TL-3300 3.1 Overview The TL-3300 conference unit provides basic functions: including speaking, listening, attendance registration and automatic camera tracking. The conference units include chairman unit and delegate unit. The only difference between them is that the chairman unit has an extra priority (PRIO) key. By using software, the delegate unit can be set as vice chairman unit, which will not be limited by the preset number of active microphones and speaking mode.
  • Page 21: Tl-3300 System Installation And Connection

    Rear panel: the trunking but just leave it in the hole in the 7. 0.5m cable with an 8S-0.5 female connector; table to hide the cable. a basic unit is equipped with a 0.5m 8-pin cable Left-side panel: with female connector which should be inserted 4.Volume control (VOL) into a T-shaped cable.
  • Page 22: Tl-3300 Microphone Operation

    After all wires are connected, power on all devices. When the central unit makes a ”tick” sound, the conference unit can be operated. 1.For 3300 series conference units, press “MIC ON/OFF” to enable them, that is, press .The indicators of the key and MIC ring are lit on, indicating that participants can speak.
  • Page 23: Chapter 4. Accessories And Cables

    Chapter 4. Accessories and cables 4.1 Cables 4.1.1 T-type Connection Cable 8P-T3 Specifications: Colour: black Type: 8PS Connector: 2 x male, 1 x female Length: 1.5+1.2 metres Remark: one cable for each conference unit 4.1.2 Extension Cable 8PS-03/05/10/15/20/40 Specifications: Colour: black Type: 8PS Connector: 1 x male, 1 x female Length: 3 / 5 / 10 / 15 / 20 / 40 metres...
  • Page 24: Chapter 5. System Connection And Basic Setting

    Chapter 5. System connection and basic setting 5.1 System connection GONSIN’s wired digital conference system can be set up easily and quickly. The conference units can be daisy-chained via a T-type cable, and can be connected to the central unit through 8-pin or 13-pin extension cable.
  • Page 25: Use Of Extension Cable

    5.1.2 Connecting central unit and conference units All the conference units of GONSIN digital conference system are interconnected by 8-pin or 13-pin T-type cables. Each unit comes with a 8P-T3 or 3P-T3 standard cable. 1.5 metres male connector is connected to central unit or extension cable. 1.2 metres male connector is connected with conference unit.
  • Page 26 cables can be put into the drawers under the table or in the flowers between the round table. Lined table conference: there may be multiple lines of cabling in such a conference room. 3m or 5m extension cables can be used for cable transition between different table.
  • Page 27 If necessary, the grounding socket with Ø2.0cm hole can be installed under the table of the first conference unit and the last conference unit. When there are more than 25 conference units, multiple lines of cable can be connected from central unit to the first conference unit of each line.
  • Page 28: Chapter 6. Technical Specifications

    Chapter 6. Technical Specifications 6.1 Technical Specifications of Central Unit TL-Z4 TL-ZB4 Model Item Specifications Frequency 30HZ-20KHZ response < 0.05% S/N ratio -95dB VOX Sensitivity High(77dB)/ Medium(80dB / Low(82dB) Power supply AC110/220V± 10%, 50/60Hz REC audio output 0~2.8V Vpp Working -20~50℃...
  • Page 29: Technical Specifications Of Conference Units

    128*64 white in blue,back-lit LCD 4 x RCA input,1Vp-p 75Ω Video input 2 x RCA output,1Vp-p 75Ω Video output 6.3 Technical Specifications of Conference Units 6.3.1 TL-3300 Conference Unit TL-VX3300 / TL-VD3300 Discussion Unit Product Item Specifications Frequency response 30HZ~20KHZ S/N ratio -95dB Sensitivity...
  • Page 30: Chapter 7. Environment And Maintenance

    6. Do not disassemble the chassis of the conference unit, otherwise it will result in electric shock. If you are in need of repair, contact Gonsin aftersales service center. 7. The product is suitable for indoor use only and no exposure...
  • Page 31: System Operation Requirements

    5. Suitable air environment , appropriate indoor temperature and light intensity. 7.2.3 System operation requirements Gonsin digital conference management system requires a computer for running software operations. Under normal circumstances, the system operator should also be equipped with special rooms which have the same requirements with the interpreter booth.
  • Page 32: Chapter 8. Frequently Asked Questions

    Chapter 8. Frequently Asked Questions Q: The power indicator does not light up? A: check the power is connected or not, or whether the fuse on the power supply interface of the unit has blown or not. Q: The recording function of unit can’t work or display weith in correct time? A: 1)make sure that the recording function is on;...
  • Page 33 simultaneous interpretation and install the equipment in it, one of the basic factors is to ensure there is adequate space to facilitate proper placement. Users can consult our technical engineers on the related issues. For specific requirements, please refer to <<General characteristics of simultaneous interpretation room and equipment standards >.
  • Page 34: Appendix

    Appendix: Copyright Notice ◼ Without the authorization of Gonsin Conference Equipment Co.,Ltd, printing and distribution of the user manul are prohibited. ◼ We are making unremitting efforts to ensure the accuracy and simplicity of the user manual. If the printing results in the inaccurateness, please kindly let us know and we will correct it promptly.
