Ogawa iModa PLUS User Manual
Ogawa iModa PLUS User Manual

Ogawa iModa PLUS User Manual

Modem massage sofa

Advertisement

Quick Links

User Manual
OS 3128 使用手册
OS 3128.indd 1
5/26/2016 11:28:30 AM

Advertisement

loading
Need help?

Need help?

Do you have a question about the iModa PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ogawa iModa PLUS

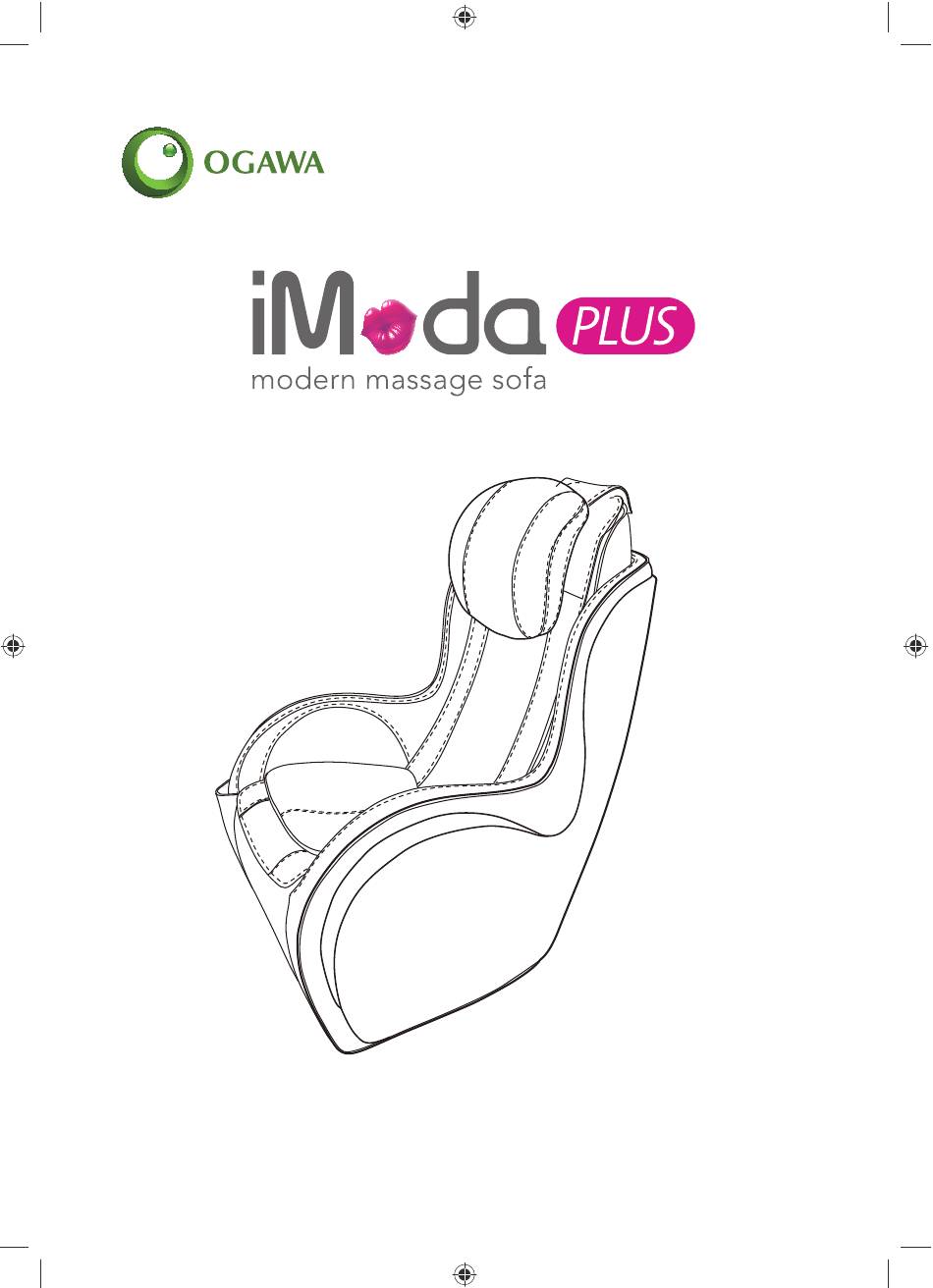

  • Page 1 User Manual OS 3128 使用手册 OS 3128.indd 1 5/26/2016 11:28:30 AM...
  • Page 2 OS 3108.indd 1 5/26/2016 11:28:31 AM...
  • Page 3 CONTENTS i a l l l o Product Specifications OS 3108.indd 2 5/26/2016 11:28:31 AM...
  • Page 4: Safety Instructions

    Safety Instructions Usage environment ● Do not use the appliance in a wet condition or dusty environment as this may result in malfunction or electric shock. ● Do not use the appliance in the bathroom. ● Do not place or store the appliance where it can fall or be pulled into a tub or sink.
  • Page 5 Caution and warning ● Unplug the appliance from the outlet when not in use. ● Do not use any attachments that are not recommended by OGAWA. ● Do not operate this appliance if it has a damaged cord or plug. Please return the unit to OGAWA Service Center for examination and repairs.
  • Page 6 Safety Instructions Note ● Please read these safety notes thoroughly beforehand to ensure the safety and correct use of the appliance. ● The appliance is not intended for use by persons suffering from physical, sensory or mental disabilities, or persons who lack experience and knowledge about the product.
  • Page 7 7. Warranty is not effective to rental, business, commercial, institutional or other non- residential users. 8. All services covered by this warranty must be approved by OGAWA and repaired by authorized technicians only. 9. If replacement parts for defective materials are not available, OGAWA reserves the right to make substitution in lieu of repair or replacement.
  • Page 8 Moving the Chair Caution: Avoid moving the massage chair when there is someone seated on it. Placing a mat underneath the massage chair is advisable, as the moving process might scratch the floor surface. OS 3108.indd 7 OS 3108.indd 7 5/26/2016 11:28:31 AM 5/26/2016 11:28:31 AM...
  • Page 9 Product Parts and Accessories l l o OS 3108.indd 8 5/26/2016 11:28:32 AM...
  • Page 10: Controller Diagram

    Controller Diagram OS 3108.indd 9 5/26/2016 11:28:32 AM...
  • Page 11 Control Buttons for the Massage Chair 1. ON / OFF Insert the plug of the massage chair into an appropriate outlet to power the chair. If massage rollers are not at the waist, then they will return to their original position (during this process, the ON / OFF indicator is lit, but no buttons work),and the indicator will be unlit later.
  • Page 12 5. STRENGTH The Strength Adjustment Button for Kneading - high and low level to be adjusted. Afterr activating the Kneading function,every time the button is pressed,the strength can be adjusted to "high>low" in one cycle.In high level,the light is lit,in low level the light will flash and Rolling.
  • Page 13 10. ARCH NECK When the chair is operating,short press this button to start the Arch Neck AUTO mode, and the indicator will be lit. Press it again to close the mode. 11. SHAPE N' TONE When the chair is operating,short press this button to start the Shape n' Tone AUTO mode,and the indicator will be lit.
  • Page 14: Product Features

    Product Features ● With a compact size and fashionable appearance, the massage chair is an excellent partner for a healthy life. ● Its “L” shape rail is designed to make your neck, back, waist and hip more comfortable, giving you a better massage experience. ●...
  • Page 15: Product Specifications

    Product Specifications a Plus Product Maintenance ● Do not use water or other cleaning detergents to wash the massage chair. ● Do not stack, knock with hard objects, pull harshly or scratch the surface of the massage chair. ● Press the buttons gently during operation; avoid pressing with sharp objects. ●...
  • Page 16: Troubleshooting

    Troubleshooting If you are caught in any problems when using this product, please refer to the following tips or possible solutions. If the solutions are not applicable, please send the product to our service centre or contact our authorized technical staff for inspection and repair. Possible situations Possible reason Solutions...
  • Page 17 Contact us MALAYSIA HONG KONG, CHINA Healthy World Lifestyle Sdn Bhd OGAWA Health Care International (HK) Ltd No. 22 Jalan Anggerik Mokara 31/47 31/F,YHC tower,1Sheung Yuet Road Kota Kemuning, 40460 Shah Alam Kowloon Bay Selangor Darul Ehsan, Malaysia Kowloon Tel: +603-5121 4286...
  • Page 18 目录 安 全 说 明 保 修 权 限 产 品 移 动 说 明 产 品 零 件 及 配 件 遥 控 器 说 明 产 品 特 点 产 品 规 格 产 品 保 养 故 障...
  • Page 19 安全说明 使用环境 ● 请勿在潮湿或灰尘密集的环境下使用本产品,以免导致触电或机器故障。 ● 请勿在浴室中使用本产品。 ● 请勿将此产品放在浴缸或水槽旁,以免脱落。 ● 请将本产品存放在安全的地方。 ● 请勿将此产品暴露于热源或阳光直射下。 不适宜人群 以下人士,请在使用前先咨询医生的意见: - 心脏病患者 - 孕妇 - 身体不适者 iii. 以下情况请勿使用本产品 ● 当一次使用本产品超过15分钟时。 ● 小孩或残病人士在无人监督的情况下。 ● 睡前。 ● 产品外层破损。 ● 液体泼溅到产品上。 ● 使用过程中感到不寻常或剧烈疼痛。 ● 使用中过程中发觉任何机件故障或不寻常状况。 ● 打雷时。 OS 3108.indd 20 5/26/2016 11:28:33 AM...
  • Page 20 安全说明 警告 ● 没有使用时,请拔下电源插头。 ● 请勿使用非 OGAWA 提供的配件。 ● 当电源线或插头损坏时,请勿使用并及时联系 OGAWA 服务中心进行维修检查。 ● 请勿将手或任何异物塞入按摩器间隙中。 ● 请务必谨慎使用按摩器的导热功能,勿用于对热能反应较为迟钝的皮肤上及血液循环 不良的部位。请勿让儿童或身心功能障碍者自行使用导热功能。 ● 请勿扯动电源线来移动本产品。 ● 本产品仅为个人使用,禁止用于商业用途。 ● 请勿在使用中覆盖本产品,以免引起故障或火灾。 ● 请勿挤压或用尖锐物刮破本产品。 OS 3108.indd 21 5/26/2016 11:28:33 AM...
  • Page 21 安全说明 注意 ● 为确保安全及正确使用,使用前请务必详细参阅本说明书。 ● 若儿童、身心功能或智能障碍者使用本产品,必须有人在旁指导且能确保其安全。 ● 过度使用可能会导致产品过热或缩短产品寿命,重复使用时,须让产品冷却一段时间 后再使用。 ● 使用时发出的声响属正常,这是由产品振动而产生的。 ● 正在接受药物或医疗治疗者,请在使用前咨询医师。若您感觉不适,请勿使用本产 品。 ● 如果在低温室中使用,请勿骤然升高温度。建议将温度逐渐升高调整到正常温度后。 ● 若将产品存放于低温或高温的环境中,建议您在一小时后才进行使用本产品以达到最 佳的按摩体验。 ● 请勿拆卸本产品。触碰内部机件可能导致故障或触电意外。 ● 请勿用潮湿的手安插或拔出电源插头。 ● 当电源插座有松动时,请勿使用。 该设备具有加热表面。对热不敏感的人一定要小心使用设备。 ● OS 3108.indd 22 5/26/2016 11:28:33 AM...
  • Page 22 保修权限 1. 本保修权限不可转让。 2. 本保修服务仅对在 OGAWA 购买的产品有效。 3. 当要求保修服务时,请出示购买证明(正本收据)。 4. 所有保修项目,包括但不限于这些健身及适销性的保修项目有效期限需视保修政策 而定。 5. 因错误使用、处理不当以及未经授权私自改装和维修产品而导致的损坏,不属于保 修范围。 6. 此保修范围不包括不属于产品本身的附件。 7. 此保修范围不适用于租凭、交易、商业、机构或其他非住宅用户。 8. 此保修范围内所涉及的维修服务需经过 OGAWA 授权,且必须由授权的技术人员维 修。 9. 若需更换的维修附件缺货,OGAWA 有权采用替代配件进行维修。 OS 3108.indd 23 5/26/2016 11:28:33 AM...
  • Page 23 产品移动说明 注意: 当有人坐在按摩沙发上时,请不要移动椅子。 移动按摩沙发时可能损坏地板,建议在本产品下铺上垫子等。 OS 3108.indd 24 5/26/2016 11:28:33 AM...
  • Page 24 产品零件及配件 手控器 按 摩 沙 发 主 体 OS 3108.indd 25 5/26/2016 11:28:33 AM...
  • Page 25 遥控器说明 OS 3108.indd 26 5/26/2016 11:28:33 AM...
  • Page 26 按摩沙发控制键 1. 开关键 沙发主体的电源插头插入市电后,按摩沙发主体获得电源,此时如果按摩机芯不在腰部, 机芯将自行复位(复位过程开关键指示灯闪亮,所有按键不响应),机芯复位完成,开关 键指示灯灭。长按(大于2秒)开关键开机,指示灯亮, 此时可选择所需的功能,开机后默认 工作时间为15分钟,开机后长按开关键或程序默认工作时间到则关机,所有功能停止工作, 按摩机芯复位。 2. 揉捏键 在开机状态下,短按揉捏键,则该指示灯亮,揉捏功能开启并全程行走,强度默认为强 档,揉捏强度键指示亮灯。若再次按该键则关闭此模式。若开启揉捏功能之前有捶击模 式,则揉捏,捶击两种模式一起工作。 3. 捶击键 + 推拿 开机状态下,短按该键,则开启捶击+推拿功能, 并全程行走。强度默认为强档,锤击强 度键指示亮灯,若再次按该键则关闭此模式。若开启捶击功能之前有揉捏模式,则揉捏, 捶击两种模式一起工作。若当前为定点揉捏模式,按此键则恢复全程行走模式,对应功 能模式灯常亮。 4. 气压按摩 在开机状态下,短按该键,则开启气压按摩功能。若再次按该按键则关闭此模式。 5. 揉捏强度 揉捏功能力度调节控制键 - 高低档可调 开机后揉捏功能开启状态下,此键才有效;按一下揉捏强度键,揉捏强度在强档和弱档 间循环切换,开启强档时,强度指示灯常亮,开启弱档时,强度指示灯闪烁提示。开启 揉捏时,强度默认为强档。 OS 3108.indd 27 5/26/2016 11:28:34 AM...
  • Page 27 6. 锤击强度 锤击,推拿按摩功能的速度调节控制键 - 高低档可调 开机后行走锤击功能开启状态下,此键才有效;按一下锤击强度键,锤击强度在强档和 弱档间循环切换,开启强档时,强度指示灯常亮,开启弱档时,强度指示灯闪烁指示。 开启行走锤击时,强度默认强档。 7. 气压强度 开机后气压按摩功能强度开启状态下,此键才有效;按一下气压强度键,气压强度在强 档和弱档间循环切换,开启强度时,强度指示灯常亮,开启弱档时,强度指示灯闪烁指 示。开启气压按摩时,强度默认强档。 8. 位置调节键 开机后,开启揉捏状态下,按位置调节键(上下箭头位置),则进入对应模式定点按摩 功能,同时对应模式指示灯闪烁。按住上下箭头位置时,按摩机芯向上或向下行走进行 按摩位置调节。按键松开后,按摩机芯停止行走进行定点按摩,对应向上、向下指示灯 灭。 9. 加热/宽度调节键 开机状态下,有开启机芯按摩功能时,按一下加热/宽度调节键,开启加热功能,对应指 示灯亮,再按一下关闭加热功能,对应指示灯灭掉。当关闭所有机芯按摩功能时,加热 关闭。 开机状态下,单独开启行走锤击功能时,长按2s加热/宽度调节键,开启锤击宽度调节功 能,宽度调节完成后,自动退出该调节功能。 OS 3108.indd 28 5/26/2016 11:28:34 AM...
  • Page 28 10. 低头族 在开机状态下,短按该键开启低头族自动模式,并且相应的指示灯亮,再按一下该键则 关闭此自动模式。 11. 美臀族 在开机状态下,短按该键开启美臀族自动模式,并且相应的指示灯亮,再按一下该键则 关闭此自动模式。 12. 追剧族 在开机状态下,短按该键开启追剧族自动模式,并且相应的指示灯亮,再按一下该键则 关闭此自动模式。 13. 上班族 在开机状态下,短按该键开启上班族自动模式,并且相应的指示灯亮,再按一下该键则 关闭此自动模式。 14. 驾车族 在开机状态下,短按该键开启驾车族自动模式,并且相应的指示灯亮,再按一下该键则 关闭此自动模式。 OS 3108.indd 29 5/26/2016 11:28:34 AM...
  • Page 29 产品特点 ● 产品占地面积小,外观精巧时尚,是健康生活的家居伙伴。 ● 采用 L 型导轨更贴合颈,背,腰,臀曲线,按摩更到位。 ● 在传统揉捏按摩功能下增加敲击,仿如人手般按摩,手法更丰富全面到位。 ● 提供5 种自动模式,专门针对不同需求设计程序改善身体状态。 ● 精准程序重点腰臀部按摩,强化臀部肌肉,塑造臀部优美曲线。 ● 产品细节考虑完善,是打造时尚精致生活,提升家居生活品质的不二之选。 产品规格 产 品 名 称 a Plus 产 品 型 号 额 定 电 压 额 定 功 率 尺 寸 定 时 时 间...
  • Page 30 故障排除 若在使用此产品时遇到问题,请参考下列几点提示及可能解决方式。若此产品仍处于故 障状态请将产品送至服务中心或经授权技术人员进行检查及维修。 异 常 情 况 可 能 原 因 处 理 方 法 主机无法开机 1. 未通电 1. 接入电源或检查电源是否连接良好 2. 开/关按钮未 2. 开启按摩沙发后下方的电源开关是否处 开启 于“I”的位置 突然停止操作或无 1. 断电 1. 检查电源接口是否接好 法正常运行 2. 机器故障 2. 向服务中心提供帮助 遥控器开关键指示 主机复位 机器正常设置 灯闪烁 机器卡住异响...
  • Page 31 联络我们 MALAYSIA HONG KONG, CHINA Healthy World Lifestyle Sdn Bhd OGAWA Health Care International (HK) Ltd No. 22 Jalan Anggerik Mokara 31/47 31/F,YHC tower,1Sheung Yuet Road Kota Kemuning, 40460 Shah Alam Kowloon Bay Selangor Darul Ehsan, Malaysia Kowloon Tel: +603-5121 4286...
  • Page 32 Malaysia . Singapore . Vietnam . Philippines . Indonesia . Myanmar . India . China Hong Kong . Taiwan . Turkey . Pakistan . Mauritius . Russia . France . Canada Thailand . Korea . Australia . Dubai . K.S.A . Nigeria . Egypt . Lebanon . Denmark Sweden .

This manual is also suitable for:

Os 3128
