M-system 17BXE-U1 Instruction Manual

INSTRUCTION MANUAL
STANDARD RACK
(with Fujitsu FCN type I/O connector)

BEFORE USE ....

Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Standard rack ......................................................................(1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.

POINTS OF CAUTION

■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
85 – 132V AC rating: 85 – 132V, 47 – 63 Hz, approx. 100VA
170 – 264V AC rating: 170 – 264V, 47 – 63 Hz, approx. 100VA
24V DC rating: 24V ±10%, approx. 70W
110V DC rating: 85 – 150V, approx. 70W
■ GENERAL PRECAUTIONS
• Before you remove the unit from the rack or mount it,
turn off the power supply and input signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the rack inside proper housing and ventilate it.
• Do not install the rack where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -5 to +55°C
or 23 to 131°F (0 to 50°C or 32 to 122°F for AC power)
with relative humidity within 40 to 85% RH in order to
ensure adequate life span and operation.
• Be sure that the ventilation slits are not covered with ca-
bles, etc.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL

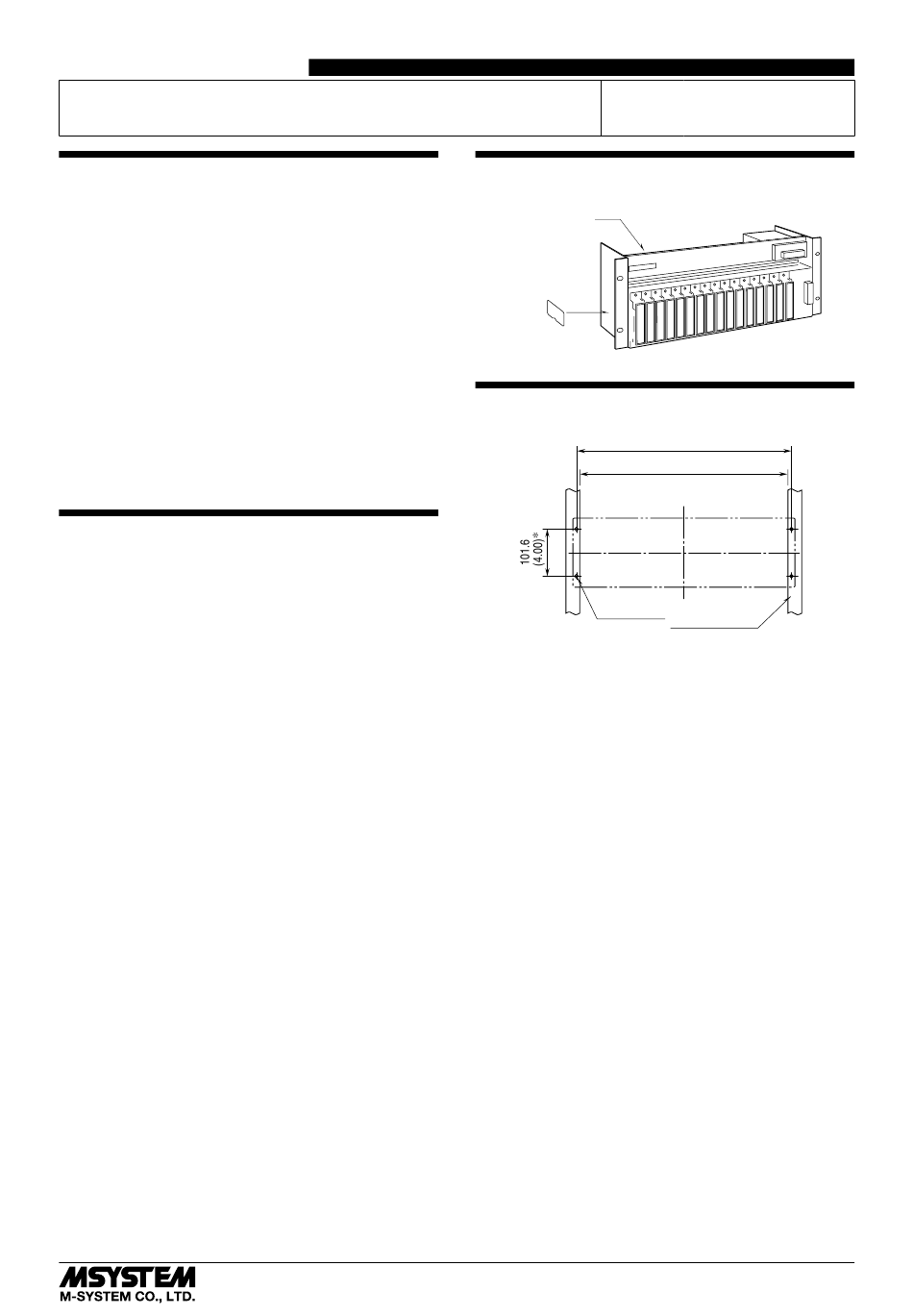

COMPONENT IDENTIFICATION

Body
Specifications
(side)

MOUNTING REQUIREMENTS

4–M5 SCREW
Observe an appropriate wiring space below.
*100 (3.94) for JIS standard
17BXE-U1
unit: mm (inch)
465 (18.31)
450 (17.72)
ANGLE BRACKET
EM-2906-A Rev.2 P. 1 / 3
