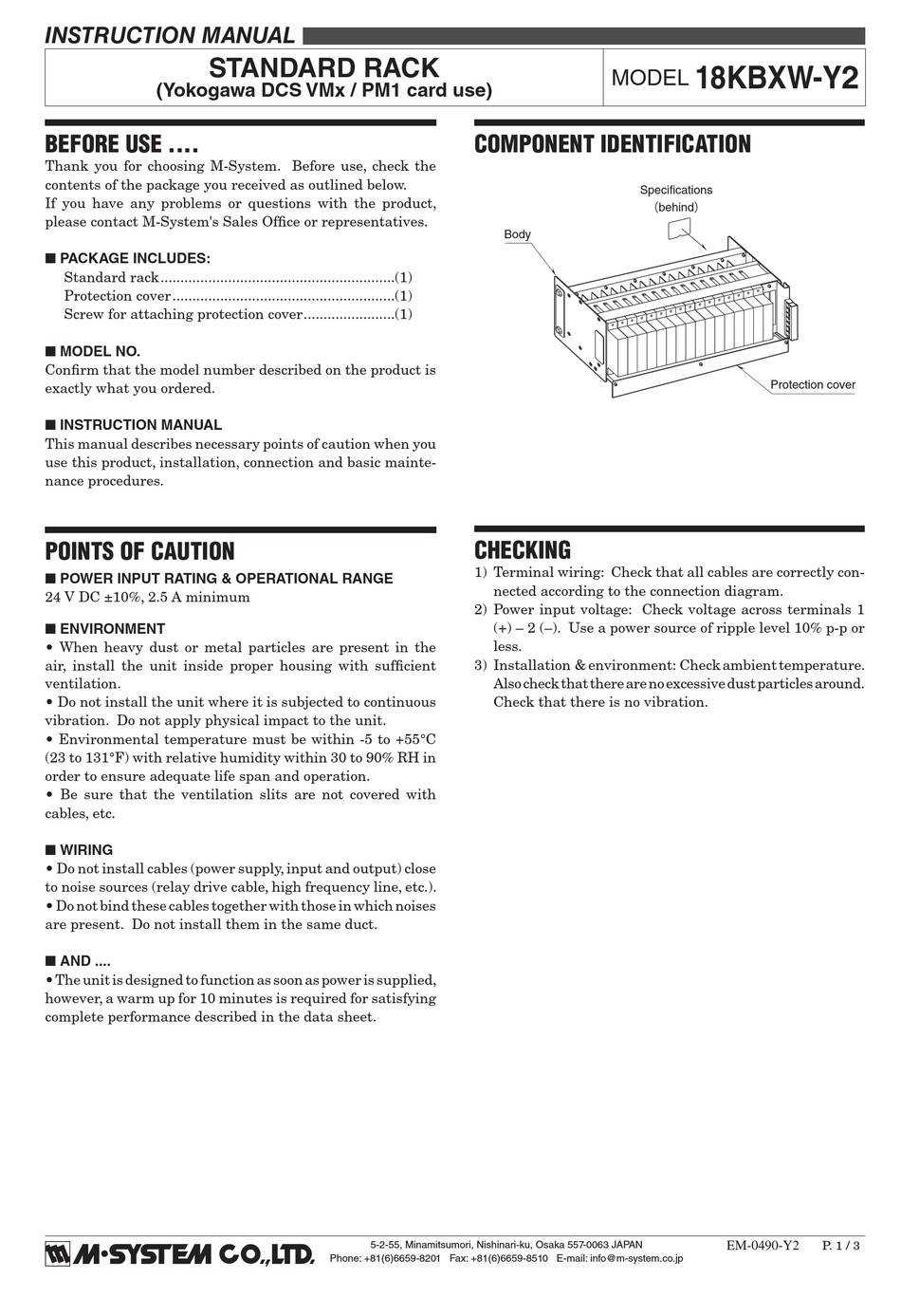

INSTRUCTION MANUAL
STANDARD RACK
(Yokogawa DCS VMx / PM1 card use)

BEFORE USE ....

Thank you for choosing M-System. Before use, check the
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
n PACKAGE INCLUDES:
Standard rack ...........................................................(1)
Protection cover ........................................................(1)
Screw for attaching protection cover .......................(1)
n MODEL NO.
Confirm that the model number described on the product is
exactly what you ordered.
n INSTRUCTION MANUAL
This manual describes necessary points of caution when you
use this product, installation, connection and basic mainte-
nance procedures.

POINTS OF CAUTION

n POWER INPUT RATING & OPERATIONAL RANGE
24 V DC ±10%, 2.5 A minimum
n ENVIRONMENT
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not apply physical impact to the unit.
• Environmental temperature must be within -5 to +55°C
(23 to 131°F) with relative humidity within 30 to 90% RH in
order to ensure adequate life span and operation.
• Be sure that the ventilation slits are not covered with
cables, etc.
n WIRING
• Do not install cables (power supply, input and output) close
to noise sources (relay drive cable, high frequency line, etc.).
• Do not bind these cables together with those in which noises
are present. Do not install them in the same duct.
n AND ....
• The unit is designed to function as soon as power is supplied,
however, a warm up for 10 minutes is required for satisfying
complete performance described in the data sheet.

COMPONENT IDENTIFICATION

CHECKING

1) Terminal wiring: Check that all cables are correctly con-
nected according to the connection diagram.
2) Power input voltage: Check voltage across terminals 1
(+) – 2 (–). Use a power source of ripple level 10% p-p or
less.
3) Installation & environment: Check ambient temperature.
Also check that there are no excessive dust particles around.
Check that there is no vibration.
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL
Specifications
(behind)
Body
18KBXW-Y2
18KBXW-Y2
Protection cover
EM-0490-Y2
P. 1 / 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 18KBXW-Y2 and is the answer not in the manual?

Questions and answers

Summary of Contents for M-system 18KBXW-Y2

  • Page 1 (Yokogawa DCS VMx / PM1 card use) BEFORE USE ..COMPONENT IDENTIFICATION Thank you for choosing M-System. Before use, check the contents of the package you received as outlined below. Specifications If you have any problems or questions with the product, (behind)...
  • Page 2 Field Connectors. VM4: analog output 16 points Note 2: Field Connector numbers correspond to Terminal numbers of the converters. PM1: pulse input 16 points EM-0490-Y2 P. 2 / 3 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp...
  • Page 3 MACHINING METHOD FOR YOKOGAWA RACK n RACK MOUNTING METHOD 1) Remove the top panel. 1) Mount 18KBXW-Y2 on the machined YOKOGAWA RACK so that the PWB face of 18KBXW-Y2 fits together with the connector face of YOKOGAWA RACK. Top panel 18KBXW-Y2 Screw holes 4−M5 Screw...
