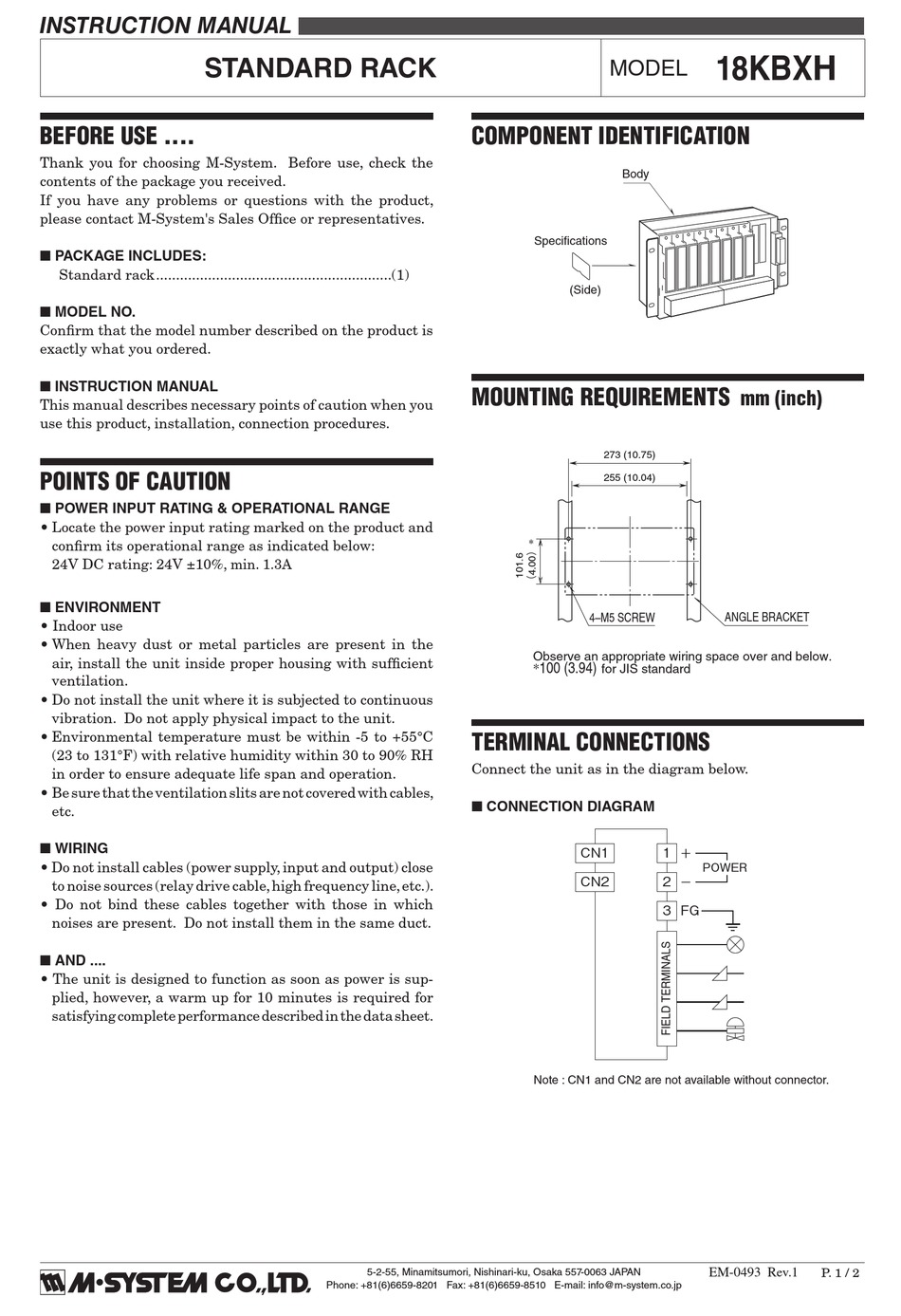

INSTRUCTION MANUAL
STANDARD RACK
BEFORE USE ....
Thank you for choosing M-System. Before use, check the
contents of the package you received.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
n PACKAGE INCLUDES:
Standard rack ...........................................................(1)
n MODEL NO.
Confirm that the model number described on the product is
exactly what you ordered.
n INSTRUCTION MANUAL
This manual describes necessary points of caution when you
use this product, installation, connection procedures.

POINTS OF CAUTION

n POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
24V DC rating: 24V ±10%, min. 1.3A
n ENVIRONMENT
• Indoor use
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not apply physical impact to the unit.
• Environmental temperature must be within -5 to +55°C
(23 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
• Be sure that the ventilation slits are not covered with cables,
etc.
n WIRING
• Do not install cables (power supply, input and output) close
to noise sources (relay drive cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
n AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data sheet.

COMPONENT IDENTIFICATION

MOUNTING REQUIREMENTS

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.
n CONNECTION DIAGRAM
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL
Body
Specifications
(Side)
273 (10.75)
255 (10.04)
*
4–M5 SCREW
Observe an appropriate wiring space over and below.
100 (3.94)
* for JIS standard
CN1 1
＋
CN2 2
−
3 FG
Note : CN1 and CN2 are not available without connector.
18KBXH
18KBXH
mm (inch)
ANGLE BRACKET
POWER
