PLEASE NOTE:
RIGHT (R) Indicates right side while using the
inversion table, not facing it.
LEFT (L) Indicates left side while using the
inversion table, not facing it.
NUTS (21) are Nylon Lock Nuts. To tighten,
you need two wrenches.
Lay the Right Base Frame (8R&9R) and
the Left Base Frame (8L&9L) on the floor
with the Connecting Brackets (11R&11L)
facing each other. Make sure the
indented holes on the Bottom Tubes (1)
are facing downward and attach one
Bottom Tube (1) to the Front Base Frame
(9R&9L) using 2 Bolts (32). Attach the
other Bottom Tube (1) to the Rear Base
Frame (8R&8L) using 2 Bolts (32).
DO NOT tighten Bolts (32) until the
Cross Bar (12) is attached.
Make sure the Stopper (34) on the
Cross Bar (12) is facing out and attach
the Cross Bar (12) to the Front Base
Frame (9R&9L) using 4 Bolts (20), 2
Metal Support Plates (54), 4 Flat
Washers (19) and 4 Lock Nuts (21).
NOW Tighten all Bolts (32&20).
Insert 4 Base Frame End Caps (31)
into both Bottom Tubes (1).
Unfold the Front Base Frame (9R&9L)
from the Rear Base Frame (8R&8L)
and let it stand on the floor.
Installation Guidance Video DOES NOT replace Owner's Manual.
Please be sure to read the Owner's Manual in its entirety.
http://innovaproductsinc.com/innova9688/
or search "Innova ITX9688 Installation Guide" on YouTube.com

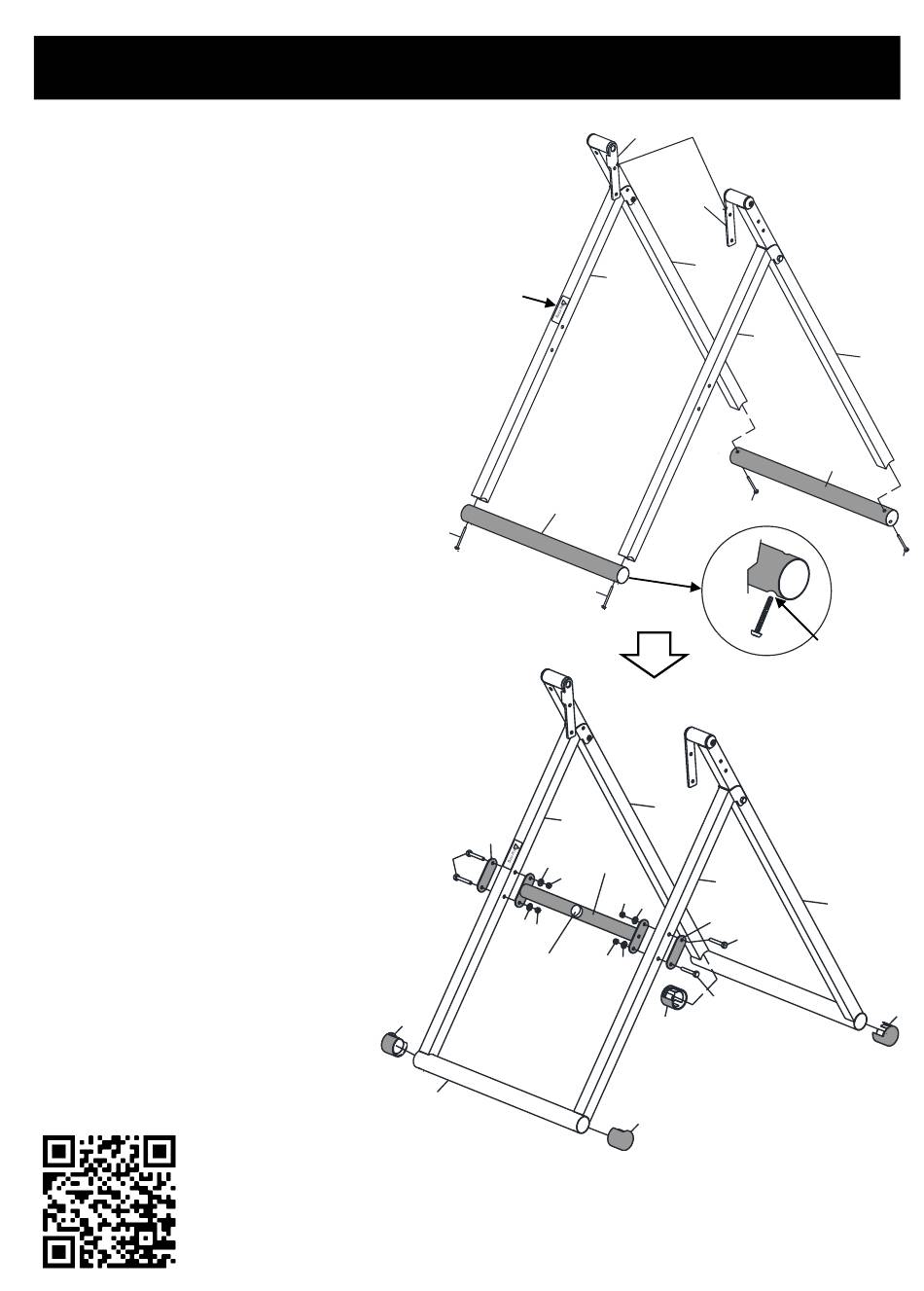

Step 1 – Base Frame Assembly
31
Right
Warning
Label
1
32
Front
32
Right
9R
54
20
12
19
21
19
21
34
21
Stopper
is facing out
Front
1
11R&11L
11R
facing each other
11L
8R
9R
9L
Rear
32
Left
8R
9L
21 19
54
20
Rear
19
20
31
31
Left
8L
1
32
Indented
hole
8L
31
5
