Heavy Duty Deluxe Inversion Therapy Table
WARNING:
DO NOT USE this equipment without a
licensed physician's approval.
READ ALL INSTRUCTIONS carefully
before using.
Misuse of this equipment may result in
serious injury.
DO NOT let children use this equipment.
DO NOT allow children, bystanders, or
pets around while using this equipment.
Keep body, clothing, and hair free of all
moving parts.
TIGHTEN ALL nuts, bolts, and screws
BEFORE using equipment.
LEAVE ADEQUATE SPACE to invert.
This equipment is for indoor and
household use only.
Questions/Comments
Innova Products Inc. is committed to
providing the very best of quality and
customer satisfaction for all of the products
we distribute. If for any reason, you are
dissatisfied with the product you have
purchased or need assistance in any way,
please do not hesitate to contact us.
Email: support@innovaproductsinc.com
Phone: (408) 541-1866
Monday through Friday
8:00 am – 4:00 pm Pacific Time

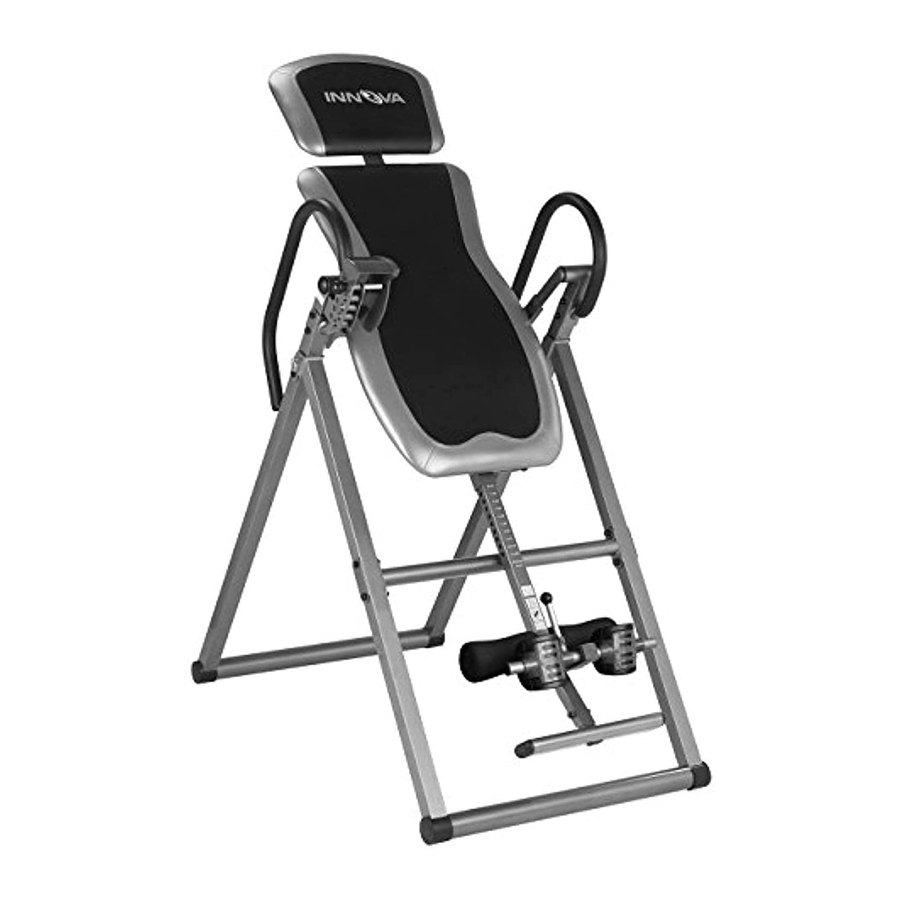

Model ITX9600/IT9600
Owner's Manual
Note:
This product is designed to
adjust from 4'10" to 6'6" with a
Maximum User Weight of 300 LBS
Photo may differ from actual product
Version:150902JJ
Advertisement
Table of Contents
Related Manuals for Innova ITX9600
Summary of Contents for Innova ITX9600
- Page 1 LEAVE ADEQUATE SPACE to invert. This equipment is for indoor and household use only. Questions/Comments Innova Products Inc. is committed to providing the very best of quality and customer satisfaction for all of the products Note: This product is designed to we distribute.
- Page 2 Product Warranty One-Year Limited Liability Innova Products Inc. warrants that this product will be free from defects in materials and workmanship for a period of one year from date of purchase. This warranty applies only to the original purchaser when purchase of the product is from an authorized retailer and is for personal or household use.
- Page 3 Components For Assembly 1 without Warning Label 1 with Warning Label...
-
Page 4: Step 1 - Base Frame Assembly
Step 1 – Base Frame Assembly 11R&11L PLEASE NOTE: facing each other RIGHT (R) Indicates right side while using the inversion table, not facing it. LEFT (L) Indicates left side while using the Right inversion table, not facing it. Left NUTS (21) are Lock Nuts. -
Page 5: Step 2 - Handlebar Assembly
Step 2 – Handlebar Assembly Insert Secure Safety Safety Pin here Pin here Attach the Handlebar Right (6) to the Rear Base Frame Right (8R) using 2 Bolts (20), 2 Washers (19), and 2 Lock Nuts (21). Do not tighten Bolts 20 until Bolt 22 is installed. Use Bolt (22) and a Flat Washer (19) to secure the Handlebar Right (6) to the Rear Base Frame Right (8R). - Page 6 Step 3 – Backrest Assembly to Base Frame Connecting Brackets Must Face Down Before Installation, Please NOTE: When Attaching Backrest Pad Assembly Connecting Brackets (11R&11L) MUST be pointing downward and the completed Backrest Assembly MUST be attached from below and up into the connecting brackets or the table will not invert properly.
- Page 7 Step 4 – Height Adjustment Tube and Ankle Holder Pull out the Adjustable Ankle Holding Tube Turn 90 degrees (5) and turn it 90 degrees and re-insert it horizontally. Make sure the holes on the square tube is facing up. Tighten the Base Holes face UP of the Ankle Holding Adjustment Knob (37).
- Page 8 Step 5 – Height Adjustment Tube Assembly Safety Pin (41) is secured on the Backrest Support Tube (2) Insert Safety Pin here Base On the Height Adjustment Knob (38), grab the Base and unscrew it slightly. Pull the ball knob and at the same time, slide the Height Adjustment Tube (3) into the Backrest Support Tube (2) to your desired height number.
-
Page 9: Warning Labels
STORAGE, MAINTENANCE & WARNING LABELS To STORE, remove the Safety Pin (26) at the tip of the right Base Frame (9R). Fold the Base Frame (8/9R&8/9L) and re-insert the Safety Pin (26) back into hole on the Base Frame (9R). See Figure 2. -
Page 10: Warnings And Precautions
- Users can also read the condensed version of the Warnings and User’s Guidelines on the back of the Backrest Pad. Innova Products Inc. assumes no responsibility for personal injury or property damage sustained by or through the use of the Inversion Table. - Page 11 PREPARING TO INVERT 1: INVERSION ANGLE AND HEIGHT SETTING SELECT INVERSION ANGLE Familiarize yourself with the Angle Selector Pin located on the Right Side of the Inversion Table. The positioning of the pin will determine the degree of the inversion. The 4 selections are: 20 - Slight Inversion 40 - Moderate Inversion...
- Page 12 PREPARING TO INVERT 2: SECURING YOUR ANKLES WARNING: ALWAYS WEAR ATHLETIC SHOES WITH TOP LACES TO HELP SECURE YOUR ANKLES IN THE INVERSION TABLE AND FOR FOOT PROTECTION WHILE EXERCISING. ALWAYS MAKE SURE THAT THE FOAM ROLLERS ARE SECURED SNUGLY AGAINST YOUR ANKLES AND THAT THE ANKLE HOLDING ADJUSTMENT KNOB IS FULLY TIGHTENED AND LOCKED INTO PLACE BEFORE YOU USE THE INVERSION TABLE.
-
Page 13: How To Invert
HOW TO INVERT Before inversion, you should tighten the Angle Selector Pin and make sure your feet are secured snugly. Lie flat on the backrest pad and relax. TO INVERT the inversion table, slowly raise one arm and move it up and over your head. -
Page 14: Parts Listing
Parts Listing Part# Description QTY Part# Description Bottom Tube Bolt-M8x60mm Backrest Support Tube Hexagonal Bolt-M8x20mm Height Adjustment Tube Bolt-M8x20mm Footrest Plate Oval End Caps-Footrest Plate Adjustable Ankle Holding Tube Base Frame End Caps Handlebar-Right Hexagonal Bolt-M8x65mm Handlebar-Left Square End Cap-Height Adjustment Base Frame - Rear-Left Rubber Stopper Base Frame - Rear-Right... -
Page 15: Exploded View
Exploded View... - Page 16 Innova Products Inc. 1289 Hammerwood Avenue, Sunnyvale, CA 94089 Email: support@innovaproductsinc.com Phone: (408) 541-1866 www.innovaproductsinc.com...
