QUESTER SWITCHBOX
Pack Contents
Carefully check the contents
of the box, which are:
Quester Switchbox unit
Instruction booklet

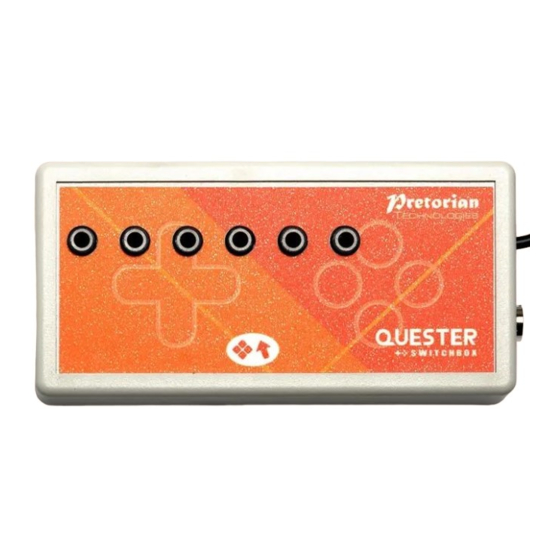

Quester Switchbox is a simple USB switch interface
specifically designed for PC game play using
assistive switches. Gaming is an uplifting experience
for many disabled users - it is instantly engaging for
many and also offers the benefit of being able to be
part of a community shared by disabled and able-
bodied gamers alike. Quester Switchbox has been
developed by Pretorian to address access needs
in PC gaming and, along with Quester Joystick,
forms an essential part of the assistive PC gaming
ecosystem.
Six 3.5mm sockets are provided, the functions of
which are set by selecting one of four Levels. Levels
1-3 are fixed function, whereas each socket in Level
4 can be programmed to be any key on a standard
keyboard or a mouse click, plus some gaming specific
functions such as Latching W, A, S or D.
A seventh socket is dedicated to changing
Level so the player can navigate between Levels
without requiring assistance. Alternatively, this
may be achieved using a button on the fascia of
Quester Switchbox.
INSTRUCTIONS
Product Description
Levels 1 and 2 are configured for navigation within
a range of games, whereas Level 3 allows weapons to
be selected (or similar functions, dependent on the
game). And due to its programmable nature, Level 4
can be configured to be whatever you need it to be.
Level 4 is programmed using a simple and unique
method which requires no software to be loaded
onto the PC. Once each socket on Level 4 has been
configured, the settings are saved in the Quester
Switchbox internal memory and are automatically
recalled even if the computer is turned off or the
switchbox moved to a different computer.
The provision of Latching W, A, S and D functions
allows the player to walk or run in any direction
indefinitely, leaving hands free for other functions.
Sticky and Latching Modifiers further add to the
programmability to allow unique combinations of
functions to be created.
As with all Pretorian products, Quester Switchbox
requires no drivers- simply plug and play!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUESTER SWITCHBOX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pretorian QUESTER SWITCHBOX

Summary of Contents for Pretorian QUESTER SWITCHBOX

  • Page 1 Quester Switchbox unit Instruction booklet Product Description Quester Switchbox is a simple USB switch interface Levels 1 and 2 are configured for navigation within specifically designed for PC game play using a range of games, whereas Level 3 allows weapons to assistive switches.
  • Page 2 Features • Specifically to provide accessibility and ease of function for PC game play- gives access to W, A, S and D and Arrow Key functions as separate switches. • Three Levels with fixed functions, one programmable Level. • Programmable Level 4 allows the function of each socket to be set to ANY keystroke including Modifier keys (Shift, Ctrl, Alt and Gui), or any mouse click.
  • Page 3 Level Socket Level/ Learn Mode button...

  • Page 4: Installation

    Getting Started Quester Switchbox is supplied set to Level 1 by default, giving access to W, A, S, D and Left Click/ Right Click- see Table 1. To change Level, you can either press a switch plugged into the Level socket [7] or the Level button [8].

  • Page 5: Learn Mode

    Learn Mode Learn Mode is used to set the functions of each socket in Level 4. They are stored in the device’s memory and are automatically recalled each time the unit is powered on, even when it is moved to a different computer. You do not need to be in Level 4 to enter Learn Mode. Before entering Learn Mode, ensure that there is a switch plugged into sockets 1 and 2 and then open a text editor on your computer such as Notepad, WordPad or Word and ensure it has ‘focus’...
  • Page 6 When selecting socket functions, please also refer to the section beneath Table 2 to gain an understanding of the special functions provided such as latching keys, modifiers and ‘sticky’ functions. The function of all six sockets may be set this way but not the Level socket [7], the function of which is fixed.

  • Page 7: Power On Settings

    Level 4 are recalled and also the previous Level setting, allowing gaming to continue from where you left off. Maintenance Your Quester Switchbox has no user serviceable parts. If repair is necessary, the unit should be returned to Pretorian Technologies or an authorised distributor. Warranty Your Quester Switchbox is warranted for 24 months from the date of purchase against defects in manufacture or component failure.

  • Page 8: Troubleshooting

    Troubleshooting Symptom Possible Cause Remedy I can’t move in the game • Wrong Level is • Select the correct Level for selected the functions you need I can’t move through the • Walking is selected- • Configure a socket to game quickly enough use run instead be Shift, Sticky Shift or...
