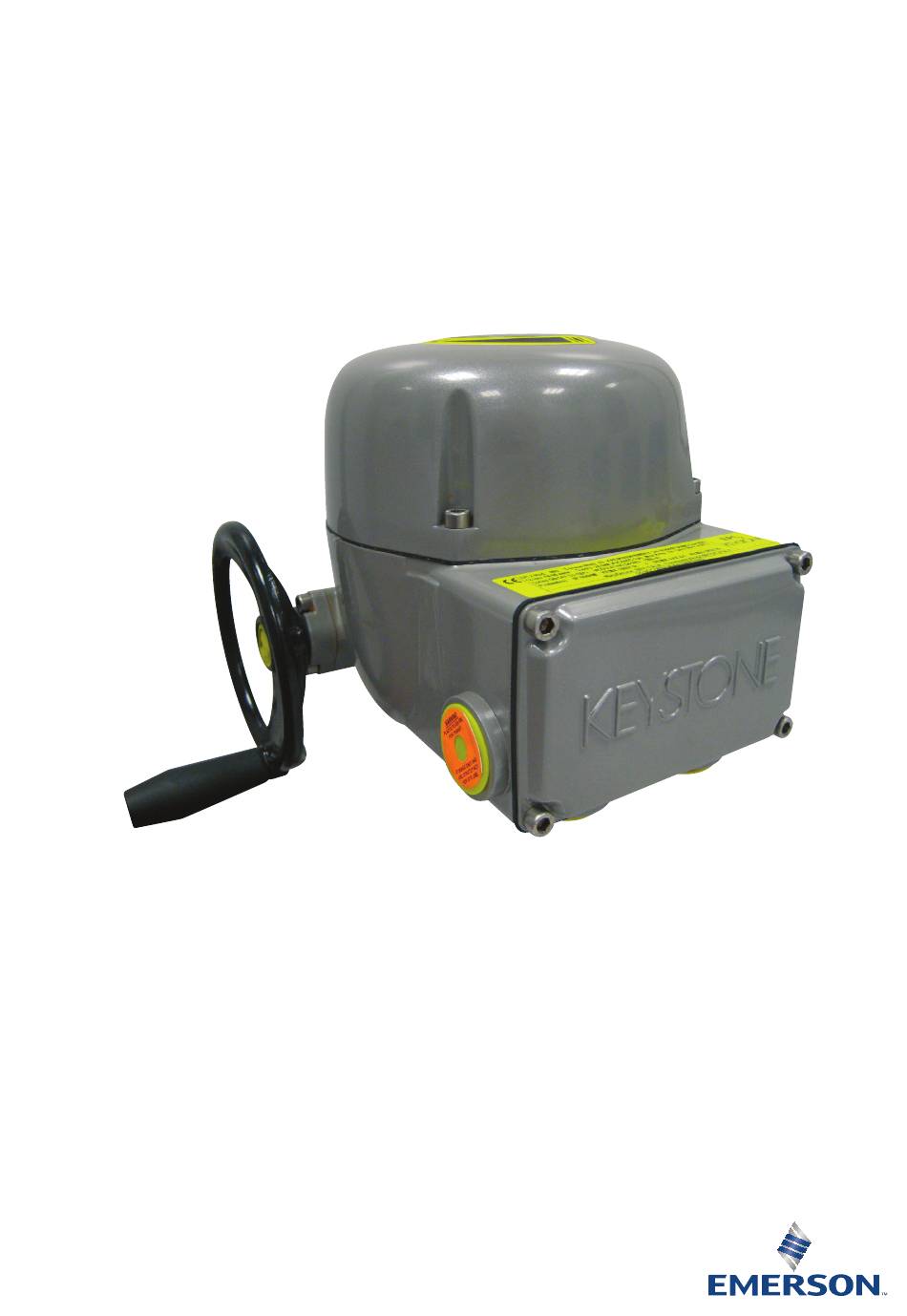

- Page 1 Installation, Operation and Maintenance Manual EBPRM-0096-EN Rev. 0 May 2022 Keystone OM3 - EPI2 Local Interface Module...
- Page 2 Notes Installation, Operation and Maintenance Manual May 2022 VCIOM-01496-EN Rev. 0 This page intentionally left blank...
-
Page 3: Table Of Contents
Installation, Operation and Maintenance Manual Table of Contents VCIOM-01496-EN Rev. 0 May 2022 Table of Contents Section 1: Optional Module 3: Local Interface Module Local Interface Functionality ................. 1 Manufacturer ....................2 Section 2: Assembling Procedure Assembling Procedure .................... 3 Section 3: Description Of OM3 Local Interface Local Operator Interface ................ - Page 4 Notes Installation, Operation and Maintenance Manual May 2022 VCIOM-01496-EN Rev. 0 This page intentionally left blank...
-
Page 5: Section 1: Optional Module 3: Local Interface Module
Installation, Operation and Maintenance Manual Section 1: Optional Module 3: Local Interface Module VCIOM-01496-EN Rev. 0 May 2022 NOTE: The present IOM has to be considered integral part of the IOM for the basic Installation, Operation and Maintenance Manual for Keystone EPI2 electric actuator. Section 1: Optional Module 3: Local Interface Module Local Interface Functionality... -
Page 6: Manufacturer
WARNING Repair work, other than operations outlined in this manual, is strictly reserved to qualified Emerson personnel or to personnel authorized by the company itself. Manufacturer Manufacturer with respect to Machinery Directive 2006/42/EC:... -
Page 7: Section 2: Assembling Procedure
Installation, Operation and Maintenance Manual Section 2: Assembling Procedure VCIOM-01496-EN Rev. 0 May 2022 Section 2: Assembling Procedure To assemble the OM3 Local Interface module onto the EPI2 actuator, proceed as follows: • Ensure that all the parts received with the OM3 are available, see Figure 1: Figure 1 OM3 kit for EPI2 actuator Table 1. - Page 8 Section 2: Assembling Procedure Installation, Operation and Maintenance Manual May 2022 VCIOM-01496-EN Rev. 0 • With the Allen key loosen the 4 cover screws and remove the terminal board enclosure cover, see Figures 3. You will see the terminal board inside the actuator. Remove the ground cable from the cover in the enclosure.
- Page 9 Installation, Operation and Maintenance Manual Section 2: Assembling Procedure VCIOM-01496-EN Rev. 0 May 2022 • Connect the Local Interface module to the ground stud by screwing the ‘ground kit’ (screw + toothed washer). Figure 5 Grounding the Local Interface • Take the 4 screws for connecting the Local Interface black connector to the terminal board, in pos.
- Page 10 Section 2: Assembling Procedure Installation, Operation and Maintenance Manual May 2022 VCIOM-01496-EN Rev. 0 • Now the Local Interface is connected to the actuator, see Figure 8. • Take the 4 screws removed from terminal board cover and use them to fix the Local Interface to the actuator, using the 5 mm Allen key, see Figure 9.
-
Page 11: Section 3: Description Of Om3 Local Interface
Installation, Operation and Maintenance Manual Section 3: Description Of OM3 Local Interface VCIOM-01496-EN Rev. 0 May 2022 Section 3: Description Of OM3 Local Interface Figure 10 Table 2. Pos. Description 2-position lockable selector switch OPEN push-button CLOSE push-button OPEN position and correct with maneuver indicating LED (default green color) CLOSE position and correct with maneuver indicating LED (default red color) Local Operator Interface The following functions are available through the EPI2 Local Interface module (OM3):... -
Page 12: Description Of The Local Interface
Section 3: Description Of OM3 Local Interface Installation, Operation and Maintenance Manual May 2022 VCIOM-01496-EN Rev. 0 Description of the Local Interface 3.2.1 2-Position Selector • Local: to enable the local control only. • Remote: to enable the remote control and local control via Bluetooth with PC and PDA. 3.2.2 LEDs Indicating the Position of the EPI2 Actuator The two LEDs indicate the actuator status according to the following logic:... -
Page 13: Section 4: To Locally Operate The Actuator
Installation, Operation and Maintenance Manual Section 4: To Locally Operate the Actuator VCIOM-01496-EN Rev. 0 May 2022 Section 4: To Locally Operate the Actuator Once you have made sure that the actuator basic configuration is as requested by your application, bring the 2-position selector to LOCAL and control the actuator by OPEN and CLOSE pushbuttons. -
Page 14: Section 5: Om3 Wiring Diagram
Installation, Operation and Maintenance Manual Section 5: OM3 Wiring Diagram May 2022 VCIOM-01496-EN Rev. 0 Section 5: OM3 Wiring Diagram Figure 11 BLINKER LOCAL SELECTOR MONITOR RELAY RELAY Remote commands Note 6 Output contacts Optional module 3 Note 1 (Note 2, 5) (Note 3) Note 4 NOTES:... -
Page 15: Section 6: Identification
Installation, Operation and Maintenance Manual Section 6: Identification VCIOM-01496-EN Rev. 0 May 2022 Section 6: Identification Water-, Dust-Proof Version EPI2 actuators with OM3 are designed and manufactured according to EN 60529 standards. Specific types of protection are printed on the label, as follows: •... -
Page 16: Explosion-Proof Version
Section 6: Identification Installation, Operation and Maintenance Manual May 2022 VCIOM-01496-EN Rev. 0 Explosion-Proof Version The version of EPI2 with OM3 suitable for installation in hazardous areas is designed and manufactured according to EN 50014, 50018, 50019, EN 50281-1-1 standards. The driven valve or associated gear reducer will form part of a separate risk analysis according to Directive ATEX 94/9/EC and following the EN 13463 norms. -
Page 17: Section 7: Safety Instructions
Installation, Operation and Maintenance Manual Section 7: Safety Instructions VCIOM-01496-EN Rev. 0 May 2022 Section 7: Safety Instructions Foreword This section is an integration of the base manual when additional Local Control Panel is added to a base unit; when this combination is used, both manuals must be used. General Safety Instructions The devices to which these safety instructions apply are Electrical Actuators for industrial valves Series EPI2 equipped with optional module Local Control Panel identified by EPI2-OM3. -
Page 18: Applicable Standards And Regulations
Installation, Operation and Maintenance Manual Section 7: Safety Instructions May 2022 VCIOM-01496-EN Rev. 0 WARNING Installation in ambient with the presence of explosive atmospheres not covered by the specified grade of protection specified in the label, or which could reach temperatures outside the range specified in the label, will invalidate the safety and the warranty. -
Page 19: Section 8: Installation
Installation, Operation and Maintenance Manual Section 8: Installation VCIOM-01496-EN Rev. 0 May 2022 Section 8: Installation Working Conditions The Electric Actuators EPI2 with OM3 are suitable for the following ambient temperatures from -40 °C to +65 °C (from -40 °F to +149 °F). NOTE: Check the ‘temperature ambient range’... -
Page 20: Section 9: Special Maintenance
Section 9: Special Maintenance Installation, Operation and Maintenance Manual May 2022 VCIOM-01496-EN Rev. 0 Section 9: Special Maintenance WARNING The maintenance and any repair works must be carried out by personnel specifically qualified and fully trained for works in hazardous areas. Periodic Inspections Frequency of inspection may depend form the installation and working conditions;... - Page 21 Installation, Operation and Maintenance Manual Notes VCIOM-01496-EN Rev. 0 May 2022 This page intentionally left blank...
