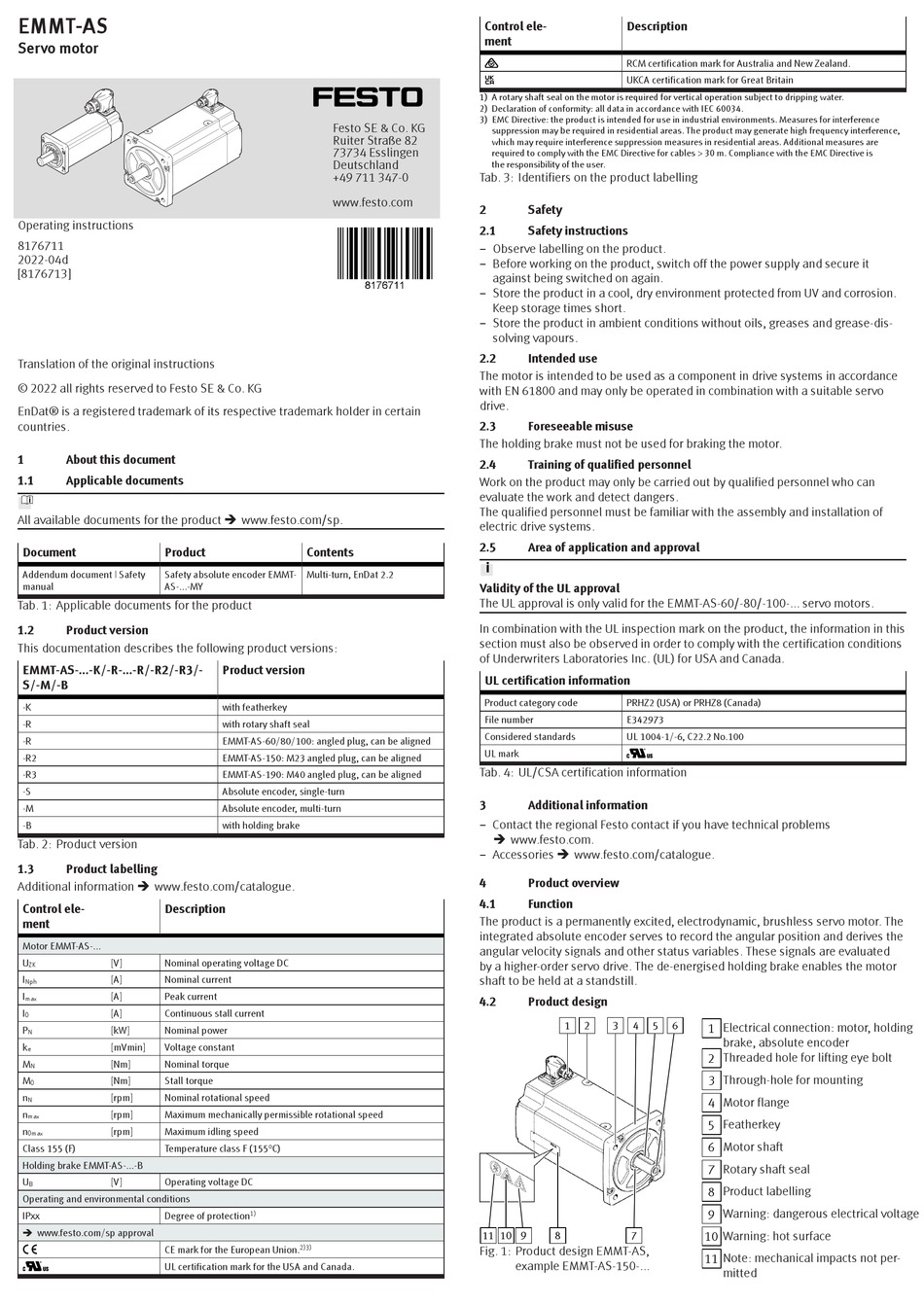

Festo EMMT-AS Series Operating Instructions

EMMT-AS
Servo motor
Operating instructions
8176711
2022-04d
[8176713]
Translation of the original instructions
© 2022 all rights reserved to Festo SE & Co. KG
EnDat® is a registered trademark of its respective trademark holder in certain
countries.
1

About this document

1.1

Applicable documents

All available documents for the product è www.festo.com/sp.
Document Product
Addendum document | Safety Safety absolute encoder EMMT-
manual AS-...-MY
Tab. 1: Applicable documents for the product
1.2 Product version
This documentation describes the following product versions:
EMMT-AS-...-K/-R-...-R/-R2/-R3/-
S/-M/-B
-K
-R
-R
-R2
-R3
-S
-M
-B
Tab. 2: Product version
1.3

Product labelling

Additional information è www.festo.com/catalogue.
Control ele- Description
ment
Motor EMMT-AS-...
U [V] Nominal operating voltage DC
ZK
I [A] Nominal current
Nph
I [A] Peak current
max
I [A] Continuous stall current
0
P [kW] Nominal power
N
k [mVmin] Voltage constant
e
M [Nm] Nominal torque
N
M [Nm] Stall torque
0
n [rpm] Nominal rotational speed
N
n [rpm] Maximum mechanically permissible rotational speed
max
n [rpm] Maximum idling speed
0max
Class 155 (F) Temperature class F (155°C)
Holding brake EMMT-AS-...-B
U [V] Operating voltage DC
B
Operating and environmental conditions
IPxx Degree of protection
è www.festo.com/sp approval
CE mark for the European Union.
UL certification mark for the USA and Canada.
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Contents
Multi-turn, EnDat 2.2
Product version
with featherkey
with rotary shaft seal
EMMT-AS-60/80/100: angled plug, can be aligned
EMMT-AS-150: M23 angled plug, can be aligned
EMMT-AS-190: M40 angled plug, can be aligned
Absolute encoder, single-turn
Absolute encoder, multi-turn
with holding brake
1)
2)3)
Control ele- Description
ment
RCM certification mark for Australia and New Zealand.
UKCA certification mark for Great Britain
1) A rotary shaft seal on the motor is required for vertical operation subject to dripping water.
2) Declaration of conformity: all data in accordance with IEC 60034.
3) EMC Directive: the product is intended for use in industrial environments. Measures for interference
suppression may be required in residential areas. The product may generate high frequency interference,
which may require interference suppression measures in residential areas. Additional measures are
required to comply with the EMC Directive for cables > 30 m. Compliance with the EMC Directive is
the responsibility of the user.
Tab. 3: Identifiers on the product labelling
2

Safety

2.1

Safety instructions

– Observe labelling on the product.
– Before working on the product, switch off the power supply and secure it
against being switched on again.
– Store the product in a cool, dry environment protected from UV and corrosion.
Keep storage times short.
– Store the product in ambient conditions without oils, greases and grease-dis-
solving vapours.
2.2

Intended use

The motor is intended to be used as a component in drive systems in accordance
with EN 61800 and may only be operated in combination with a suitable servo
drive.
2.3

Foreseeable misuse

The holding brake must not be used for braking the motor.
2.4

Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers.
The qualified personnel must be familiar with the assembly and installation of
electric drive systems.
2.5

Area of application and approval

Validity of the UL approval
The UL approval is only valid for the EMMT-AS-60/-80/-100-... servo motors.
In combination with the UL inspection mark on the product, the information in this
section must also be observed in order to comply with the certification conditions
of Underwriters Laboratories Inc. (UL) for USA and Canada.
UL certification information
Product category code PRHZ2 (USA) or PRHZ8 (Canada)
File number E342973
Considered standards UL 1004-1/-6, C22.2 No.100
UL mark
Tab. 4: UL/CSA certification information
3 Additional information
– Contact the regional Festo contact if you have technical problems
è www.festo.com.
– Accessories è www.festo.com/catalogue.
4

Product overview

4.1

Function

The product is a permanently excited, electrodynamic, brushless servo motor. The
integrated absolute encoder serves to record the angular position and derives the
angular velocity signals and other status variables. These signals are evaluated
by a higher-order servo drive. The de-energised holding brake enables the motor
shaft to be held at a standstill.
4.2

Product design

1 2 3 4 5
11 10 9 8 7

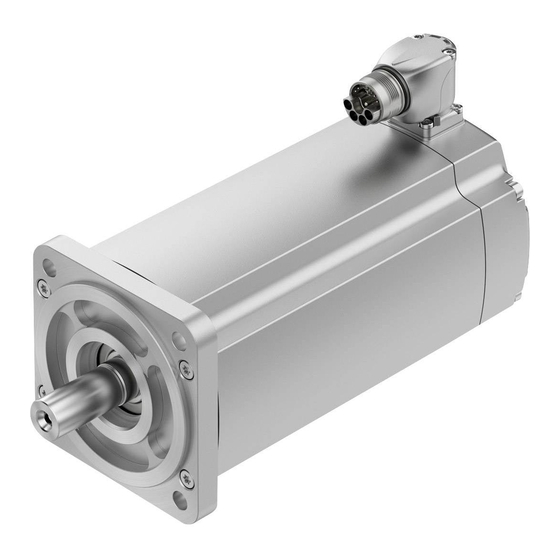

Fig. 1: Product design EMMT-AS,
example EMMT-AS-150-...
6
1 Electrical connection: motor, holding
brake, absolute encoder
Threaded hole for lifting eye bolt
2
Through-hole for mounting
3
4 Motor flange
5 Featherkey
6 Motor shaft
7 Rotary shaft seal
8 Product labelling
9 Warning: dangerous electrical voltage
10 Warning: hot surface
Note: mechanical impacts not per-
11
mitted
