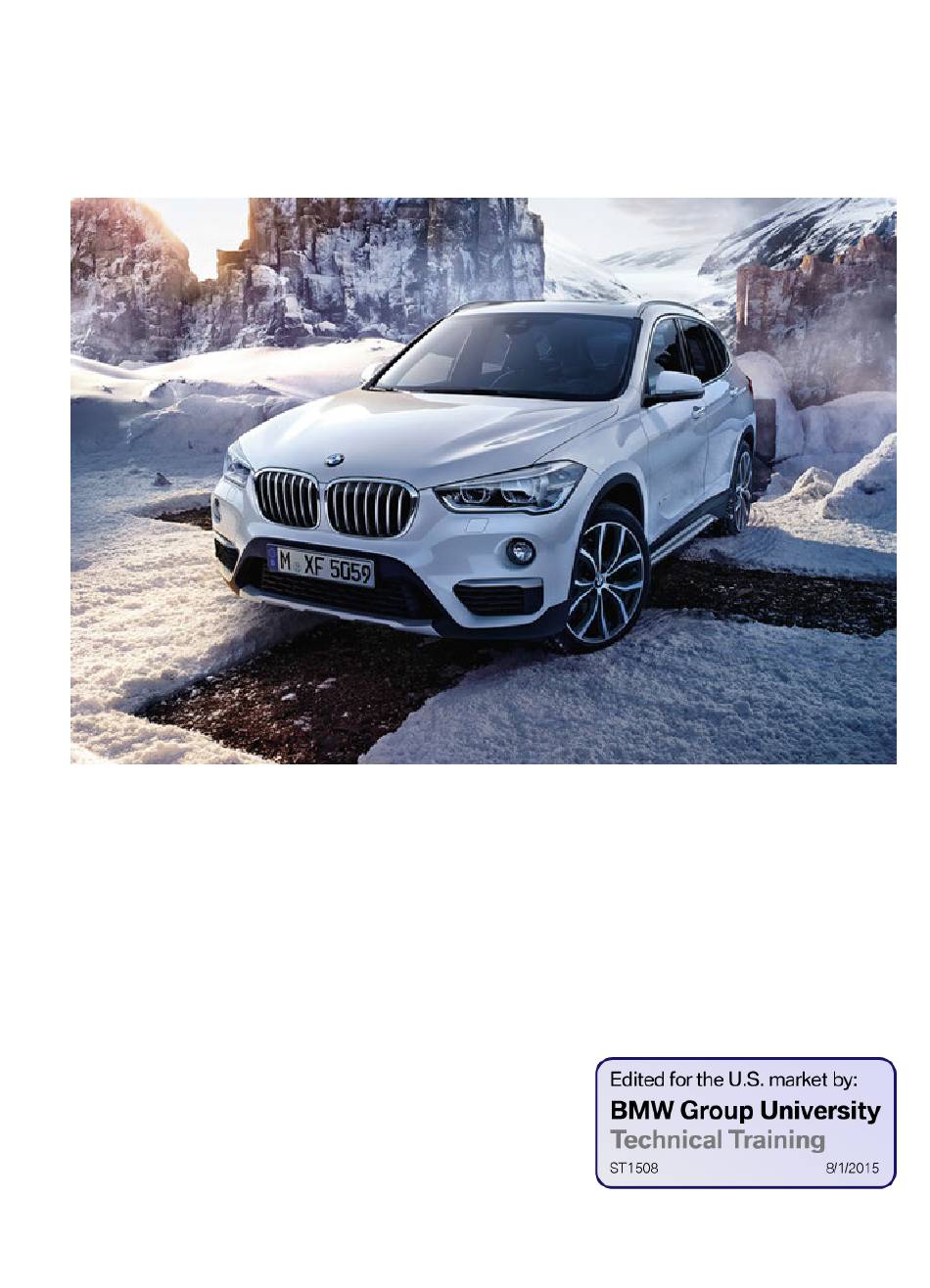

  • Page 1 Technical￿training. Product￿information. F48￿Driver￿Assistance￿Systems BMW￿Service...
  • Page 2 General￿information Symbols￿used The￿following￿symbol￿is￿used￿in￿this￿document￿to￿facilitate￿better￿comprehension￿or￿to￿draw￿attention to￿very￿important￿information: Contains￿important￿safety￿information￿and￿information￿that￿needs￿to￿be￿observed￿strictly￿in￿order￿to guarantee￿the￿smooth￿operation￿of￿the￿system. Information￿status￿and￿national-market￿versions BMW￿Group￿vehicles￿meet￿the￿requirements￿of￿the￿highest￿safety￿and￿quality￿standards.￿Changes in￿requirements￿for￿environmental￿protection,￿customer￿benefits￿and￿design￿render￿necessary continuous￿development￿of￿systems￿and￿components.￿Consequently,￿there￿may￿be￿discrepancies between￿the￿contents￿of￿this￿document￿and￿the￿vehicles￿available￿in￿the￿training￿course. This￿document￿basically￿relates￿to￿the￿European￿version￿of￿left-hand￿drive￿vehicles.￿Some￿operating elements￿or￿components￿are￿arranged￿differently￿in￿right-hand￿drive￿vehicles￿than￿shown￿in￿the graphics￿in￿this￿document.￿Further￿differences￿may￿arise￿as￿a￿result￿of￿the￿equipment￿specification￿in specific￿markets￿or￿countries. Additional￿sources￿of￿information Further￿information￿on￿the￿individual￿topics￿can￿be￿found￿in￿the￿following: • Owner's￿Handbook • Integrated￿Service￿Technical￿Application. Contact:￿conceptinfo@bmw.de ©2015￿BMW￿AG,￿Munich Reprints￿of￿this￿publication￿or￿its￿parts￿require￿the￿written￿approval￿of￿BMW￿AG,￿Munich The￿information￿contained￿in￿this￿document￿forms￿an￿integral￿part￿of￿the￿technical￿training￿of￿the BMW￿Group￿and￿is￿intended￿for￿the￿trainer￿and￿participants￿in￿the￿seminar.￿Refer￿to￿the￿latest￿relevant information￿systems￿of￿the￿BMW￿Group￿for￿any￿changes/additions￿to￿the￿technical￿data. Information￿status:￿June￿2015 BV-72/Technical￿Training...

  • Page 3: Table Of Contents

    F48￿Driver￿Assistance￿Systems Contents Introduction ................................................KAFAS ....................................................2.1. Person￿recognition ....................................... 2.2. Functional￿limitations ....................................... 2.3. System￿wiring￿diagram ....................................Road￿Sign￿Recognition ........................................3.1. Operation ............................................. 3.2. Function ..............................................3.2.1. Road￿sign￿recognition￿with￿navigation￿system ..............3.3. Limits￿of￿the￿system ..................................... Camera-based￿Collision￿Warning ................................4.1. Collision￿warning￿with￿city￿braking￿function ......................4.1.1. Functional￿principle ..............................4.1.2. Early￿warning ..................................
  • Page 4 F48￿Driver￿Assistance￿Systems Contents Cruise￿Control ..............................................8.1. Introduction ..........................................8.2. Cruise￿control￿with￿braking￿function ........................... 8.3. Camera-based￿cruise￿control￿with￿Stop&Go￿function ................8.3.1. KAFAS￿camera ..................................8.3.2. Control￿function .................................. 8.3.3. Display ....................................... 8.3.4. Operation ....................................... 8.3.5. System￿wiring￿diagram ............................

  • Page 5: Introduction

    F48￿Driver￿Assistance￿Systems 1.￿Introduction The￿assistance￿systems￿facilitate￿driving￿of￿the￿vehicle￿by: • providing￿the￿driver￿with￿information • giving￿the￿driver￿suggestions￿or • automatically￿intervening￿in￿the￿driving￿process. This￿product￿information￿bulletin￿provides￿an￿overview￿of￿the￿assistance￿systems￿which￿are￿new￿or whose￿function￿has￿been￿modified: • Collision￿warning￿with￿city￿braking￿function • Pedestrian￿warning￿with￿city￿braking￿function • Road￿sign￿recognition￿including￿no￿overtaking￿display • Park￿Distance￿Control • Parking￿Maneuver￿Assistant • Rear￿view￿camera • Cruise￿control In￿the￿F48,￿a￿lot￿of￿the￿optional￿equipment￿known￿from￿other￿BMW￿models￿is￿still￿only￿available￿in conjunction￿with￿optional￿equipment￿packages￿Driving￿Assistant￿(SA￿5AS)￿or￿Driving￿Assistant￿Plus (SA￿5AT).￿The￿following￿table￿shows￿which￿systems￿are￿included￿in￿the￿different￿optional￿equipment packages: System Driving￿Assistant Driving￿Assistant Standard (SA 5AS) Plus￿(SA￿5AT) equipment High-beam￿assistant Lane￿departure￿warning Road￿sign￿recognition Collision￿warning￿with￿city braking￿function...

  • Page 6: Kafas

    F48￿Driver￿Assistance￿Systems 2.￿KAFAS The￿recognition￿of￿road￿users￿driving￿ahead￿and￿the￿detection￿of￿pedestrians￿are￿among￿the￿most important￿functions￿to￿be￿satisfied￿by￿assistance￿systems.￿This￿function￿must￿be￿satisfied￿at￿both￿long distance￿and￿close￿range.￿The￿functions￿in￿the￿F48￿have￿been￿implemented￿in￿optionally￿available combinations￿as￿camera-based￿systems￿using￿a￿shared￿camera￿and￿shared￿control￿unit. The￿KAFAS￿camera￿and￿KAFAS￿control￿unit￿therefore￿constitute￿the￿central￿element￿of￿the￿following assistance￿systems: • Collision￿warning￿with￿city￿braking￿function • Pedestrian￿warning￿with￿city￿braking￿function • Road￿sign￿recognition • Lane￿departure￿warning • Camera-based￿cruise￿control 2.1.￿Person￿recognition F48￿Detection￿range￿of￿KAFAS￿camera The￿person￿recognition￿in￿the￿F48￿only￿takes￿place￿with￿the￿help￿of￿the￿camera-based￿driver￿support system.￿A￿radar￿sensor￿is￿not￿offered￿in￿the￿F48,￿unlike￿in￿other￿BMW￿models.
  • Page 7 F48￿Driver￿Assistance￿Systems 2.￿KAFAS F48￿KAFAS￿camera Index Explanation KAFAS￿camera Rain‐light‐solar-condensation￿sensor Photosensor￿for￿electrochromic￿interior￿mirror F48￿KAFAS￿control￿unit...
  • Page 8 F48￿Driver￿Assistance￿Systems 2.￿KAFAS F48￿Image￿transmission￿via￿LVDS￿data￿line Index Explanation KAFAS￿control￿unit KAFAS￿camera The￿KAFAS￿camera￿captures￿the￿scene￿in￿front￿of￿the￿vehicle￿and￿detects￿entire￿rear￿views￿of￿moving and￿stationary￿vehicles￿in￿the￿field￿of￿view￿using￿machine￿vision.￿The￿KAFAS￿camera￿also￿ensures￿that driving￿lane￿information,￿vehicle￿positions￿and￿movements￿are￿determined￿at￿the￿same￿time. With￿the￿aid￿of￿the￿image￿data￿from￿the￿KAFAS￿camera,￿objects￿can￿be￿clearly￿identified￿as￿vehicles and￿corresponding￿transverse￿movements￿as￿lane￿changes.
  • Page 9 F48￿Driver￿Assistance￿Systems 2.￿KAFAS 2.2.￿Functional￿limitations Example￿of￿functional￿limitation￿by￿backlight The￿function￿of￿the￿KAFAS￿camera￿and￿thus￿also￿the￿function￿of￿the￿corresponding￿assistance systems￿may￿be￿impaired￿in￿the￿following￿situations,￿for￿example: • heavy￿fog,￿rain,￿rain￿spray￿or￿snow • strong￿backlight • if￿the￿field￿of￿view￿of￿the￿KAFAS￿camera￿or￿the￿windscreen￿is￿dirty￿or￿covered • at￿sharp￿bends • up￿to￿10￿seconds￿after￿the￿engine￿start￿via￿the￿START-STOP￿button • during￿the￿calibration￿process￿for￿the￿KAFAS￿camera￿immediately￿after vehicle￿delivery￿or￿a￿camera￿change...
  • Page 10 F48￿Driver￿Assistance￿Systems 2.￿KAFAS 2.3.￿System￿wiring￿diagram F48￿system￿wiring￿diagram￿for￿KAFAS...
  • Page 11 F48￿Driver￿Assistance￿Systems 2.￿KAFAS Index Explanation KAFAS￿camera Heating,￿KAFAS￿camera Dynamic￿Stability￿Control￿(DSC) Fuse￿in￿the￿power￿distribution￿box￿in￿the￿passenger￿compartment Body￿Domain￿Controller￿(BDC) Fuse￿in￿the￿Body￿Domain￿Controller Camera-based￿driver￿support￿systems￿(KAFAS) Optional￿equipment￿system￿(SAS) Steering￿column￿switch￿cluster￿(SZL) Instrument￿cluster￿(KOMBI) Intelligent￿Safety￿button...

  • Page 12: Operation

    F48￿Driver￿Assistance￿Systems 3.￿Road￿Sign￿Recognition With￿the￿road￿sign￿recognition￿function,￿current￿top￿speed￿limitations￿can￿be￿displayed￿in￿the instrument￿cluster￿and,￿if￿applicable,￿also￿in￿the￿Head‐Up￿Display,￿in￿order￿to￿avoid￿possible￿excess speed. The￿road￿sign￿recognition￿is￿an￿element￿of￿the￿optional￿equipment￿Driving￿Assistant￿(SA￿5AS). Depending￿on￿the￿equipment,￿the￿function￿of￿the￿road￿sign￿recognition￿may￿vary: • Road￿sign￿recognition￿with￿navigation￿system • Road￿sign￿recognition￿without￿navigation￿system The￿responsibility￿for￿the￿vehicle￿and￿the￿speed￿driven￿lies￿solely￿with￿the￿driver. 3.1.￿Operation The￿road￿sign￿recognition￿can￿be￿switched￿on￿and￿off￿using￿a￿controller.￿For￿this￿purpose,￿select￿the following: Settings Instrument￿cluster Road￿sign￿recognition If￿the￿road￿sign￿recognition￿is￿switched￿on,￿the￿information￿recorded￿is￿shown￿in￿the￿instrument￿cluster. If￿a￿speed￿limitation￿symbol￿with￿three￿horizontal￿lines￿is￿displayed￿in￿the￿instrument￿cluster￿instead￿of the￿max.￿permissible￿speed,￿then￿the￿road￿sign￿recognition￿is￿not￿available￿(e.g.￿in￿non-mapped￿areas such￿as￿underground￿car￿parks￿and￿car￿parks). 3.2.￿Function In￿the￿F48,￿the￿road￿sign￿recognition￿can￿be￿ordered￿from￿BMW￿by￿the￿customer￿for￿the￿first￿time without￿the￿connection￿to￿a￿navigation￿system.￿This￿also￿makes￿it￿possible￿to￿offer￿the￿function￿in countries￿which￿had￿to￿waive￿this￿function￿due￿to￿missing￿navigation￿data.
  • Page 13 F48￿Driver￿Assistance￿Systems 3.￿Road￿Sign￿Recognition 3.2.1.￿Road￿sign￿recognition￿with￿navigation￿system The￿control￿unit￿for￿the￿road￿sign￿recognition￿function￿is￿the￿KAFAS￿control￿unit. In￿addition,￿the￿detected￿top￿speed￿limitation￿is￿compared￿using￿data￿from￿the￿navigation￿system, in￿order￿to￿avoid￿incorrect￿displays￿and￿to￿display￿a￿top￿speed￿limitation￿on￿unmarked￿roads. If￿data￿on￿the￿top￿speed￿limitations￿relating￿to￿the￿current￿road￿is￿stored￿in￿the￿navigation￿system, this￿is￿used￿by￿the￿KAFAS￿control￿unit￿and￿forms￿the￿basis￿of￿a￿possible￿display￿for￿the￿driver. Traffic￿signs￿containing￿supplementary￿information,￿e.g.￿"In￿wet￿conditions",￿or￿symbols￿are￿also detected￿and￿synchronised￿with￿internal￿vehicle￿data,￿e.g.￿the￿rain￿sensor,￿and￿displayed￿depending￿on the￿situation.￿The￿system￿also￿takes￿the￿applicable￿time￿restrictions￿which￿have￿been￿identified,￿e.g. "between￿10:00￿pm￿and￿6:00￿am"￿into￿account.￿Here￿the￿current￿time￿of￿the￿on-board￿clock￿and￿the time￿from￿the￿navigation￿map￿are￿used. At￿the￿same￿time,￿the￿video￿data￿from￿the￿centrally￿arranged￿KAFAS￿camera￿which￿points￿forward￿is also￿evaluated￿in￿the￿KAFAS￿control￿unit. The￿image￿data￿is￿read￿by￿the￿KAFAS￿control￿unit￿and￿evaluated￿for￿traffic￿signs￿relating￿to￿speed limitations￿and￿withdrawal￿of￿speed￿limitations. In￿the￿case￿of￿concealed￿and￿non-recognizable￿signs￿on￿the￿withdrawal￿of￿top￿speed￿limitations, the￿displays￿are￿cancelled￿according￿to￿the￿specified￿time￿and￿distance￿parameters. In￿addition￿to￿image￿data,￿other￿information￿from￿the￿vehicle￿electrical￿system￿is￿also￿used￿in￿the evaluation￿and￿calculation￿for￿the￿display: • Time￿display￿(for￿temporal￿additional￿conditions) • Status￿of￿wiper￿(for￿additional￿sign￿"In￿wet￿conditions") • Turn￿indicator￿signal￿(special￿speed￿limit,￿e.g.￿on￿motorway￿exits) • Status￿of￿outside￿temperature￿sensor￿in￿"Frost/Snow" The￿basis￿of￿this￿diverse￿information￿leads￿to￿relatively￿high￿precision￿of￿this￿function￿in￿the￿evaluation.
  • Page 14 F48￿Driver￿Assistance￿Systems 3.￿Road￿Sign￿Recognition F48￿display￿of￿road￿sign￿recognition￿in￿the￿instrument￿cluster Index Explanation Displays￿of￿road￿sign￿recognition￿during￿an￿active￿navigation￿display Displays￿in￿standard￿view Traffic￿signs￿for￿speed￿limits￿and￿for￿no￿overtaking,￿which￿do￿not￿correspond￿to￿the￿legal￿standard, in￿particular￿those￿without￿a￿circular￿frame,￿are￿not￿always￿recognized.￿The￿same￿also￿applies￿for￿traffic signs￿which￿are￿fully￿or￿partially￿covered￿by￿labels,￿dirt￿or￿vegetation. Long￿distances￿to￿the￿road￿sign,￿high￿driving￿speeds￿and￿poor￿weather￿conditions,￿particularly￿at￿night, make￿it￿more￿difficult￿for￿the￿system￿to￿recognise￿road￿signs￿reliably. The￿data￿from￿the￿navigation￿map￿must￿be￿up-to-date￿for￿the￿correct￿display￿of￿the￿current￿speed￿limit and￿no￿overtaking￿sign.￿If￿the￿current￿location￿for￿the￿navigation￿is￿not￿yet￿taken￿into￿consideration,￿for example￿when￿driving￿in￿development￿areas,￿on￿new￿roads￿or￿on￿roads￿with￿modified￿road￿layout,￿a recognized￿traffic￿sign￿for￿speed￿limits￿or￿for￿no￿overtaking￿can￿only￿be￿displayed￿for￿roughly￿the￿next 500 m.
  • Page 15 F48￿Driver￿Assistance￿Systems 3.￿Road￿Sign￿Recognition 3.3.￿Limits￿of￿the￿system Traffic￿signs￿on￿parallel,￿forking￿or￿emerging￿roads Parallel￿roads￿are￿not￿recognized￿with￿the￿KAFAS￿camera￿or￿using￿the￿navigation￿map.￿Signs￿on￿these roads￿can￿be￿recognized￿and￿displayed￿as￿speed￿limits￿or￿no￿overtaking￿for￿the￿current￿road.￿Speed limits￿and￿no￿passing￿signs￿for￿forking￿or￿emerging￿roads￿are￿generally￿also￿assumed￿and￿displayed￿for the￿current￿road. Traffic￿signs￿at￿exits Speed￿limits￿for￿exits￿off￿highway￿with￿or￿without￿an￿arrow￿as￿an￿additional￿character￿are￿generally evaluated￿correctly￿and￿suppressed￿in￿the￿display￿if￿driven￿past.￿This￿is￿only￿the￿case￿if￿the￿data￿on￿the navigation￿map￿is￿up-to-date. In￿the￿case￿of￿sign￿gantries￿on￿the￿highway￿with￿different,￿lane-dependent￿speed￿limits,￿the￿speed￿limit which￿is￿closest￿to￿the￿lane￿of￿the￿vehicle￿is￿displayed.￿There￿is￿no￿adaptation￿of￿the￿display￿after￿a￿later lane￿change. Information￿signs￿in￿the￿road￿sign￿surroundings Information￿signs￿with￿speed￿limits￿or￿no￿overtaking,￿such￿as￿at￿border￿crossing￿points￿with information￿on￿the￿different￿legal￿speed￿limits￿for￿national￿roads￿and￿highway,￿may￿be￿incorrectly recognized￿as￿currently￿valid￿and￿displayed.￿The￿same￿applies￿to￿information￿signs￿with￿different￿color configurations,￿e.g.￿for￿minimum￿or￿recommended￿speeds. Stickers￿on￿vehicles Labels￿with￿a￿speed￿limit￿on￿vehicles￿ahead￿or￿overtaken,￿such￿as￿trucks,￿buses,￿trailers￿or construction￿machinery,￿etc.,￿may￿be￿incorrectly￿recognized￿as￿a￿currently￿valid￿speed￿limit￿and displayed. Town/city￿limits If￿the￿sign￿for￿the￿entrance￿to￿a￿village/town￿is￿not￿clearly￿recognized￿(detection￿is￿only￿possible￿in Germany)￿and￿the￿data￿from￿the￿navigation￿map￿is￿not￿up-to-date,￿the￿speed￿limit￿at￿the￿entrances to￿and￿exits￿from￿villages/towns￿may￿be￿displayed￿incorrectly. Legal￿changes If￿legally￿prescribed￿maximum￿speeds￿change,￿then￿these￿are￿only￿available￿after￿a￿map￿data￿update. Up￿until￿the￿update￿the￿original,￿but￿no￿longer￿valid￿speed￿limits￿are￿displayed. General￿no￿passing￿signs No￿overtaking￿signs￿are￿only￿displayed￿if￿these￿are￿also￿signs￿posted.￿General￿no￿overtaking, which￿applies￿for￿example￿at￿level￿crossings￿or￿is￿marked￿by￿a￿white￿line￿on￿the￿roadway,￿is￿not displayed￿without￿an￿additional￿sign.
  • Page 16 F48￿Driver￿Assistance￿Systems 4.￿Camera-based￿Collision￿Warning The￿collision￿warning￿warns￿the￿driver￿of￿a￿possible￿risk￿of￿collision￿and￿is￿recognized￿in￿the￿F48￿using the￿KAFAS￿system.￿The￿camera-based￿collision￿warning￿includes￿the￿following￿functions: • Collision￿warning￿with￿city￿braking￿function • Pedestrian￿warning￿with￿city￿braking￿function The￿collision￿warning￿with￿city￿braking￿function￿is￿already￿included￿in￿the￿standard￿equipment￿of￿the F48.￿The￿pedestrian￿warning￿with￿city￿braking￿function￿is￿an￿element￿of￿the￿optional￿equipment￿Driving Assistant￿(SA￿5AS). The￿system￿can￿warn￿the￿driver￿in￿situations￿where￿a￿collision￿is￿imminent.￿The￿early￿warning, a￿visual￿signal,￿is￿issued￿first￿to￿draw￿the￿driver's￿attention￿to￿the￿situation.￿If￿the￿situation￿becomes more￿critical,￿an￿acute￿warning￿in￿the￿form￿of￿a￿visual￿and￿acoustic￿signal￿is￿issued.￿The￿nature￿of the￿warning￿is￿such￿that￿the￿driver￿can￿still￿prevent￿a￿collision￿providing￿he￿acts￿quickly.￿If￿there￿is￿no reaction￿from￿the￿driver￿after￿an￿acute￿warning,￿the￿driver￿is￿supported￿with￿automatic￿braking￿of￿the vehicle￿(5-85￿km/h). 4.1.￿Collision￿warning￿with￿city￿braking￿function 4.1.1.￿Functional￿principle The￿corresponding￿warning￿stages￿"early￿warning"￿and￿"acute￿warning"￿are￿output￿in￿critical￿situations on￿the￿basis￿of￿the￿calculated￿positions,￿distances￿and￿relative￿speeds￿of￿other￿vehicles.￿For￿the￿early warning￿and￿acute￿warning,￿the￿brakes￿of￿the￿vehicle￿are￿prepared￿for￿emergency￿braking,￿depending on￿the￿actual￿speed,￿and￿the￿activation￿thresholds￿of￿the￿brake￿assistant￿are￿reduced. F48￿Detection￿range￿of￿collision￿warning￿by￿KAFAS￿camera...
  • Page 17 F48￿Driver￿Assistance￿Systems 4.￿Camera-based￿Collision￿Warning 4.1.2.￿Early￿warning The￿early￿warning￿works￿from￿a￿speed￿of￿approximately￿15￿km/h. The￿early￿warning￿is￿issued,￿for￿example,￿if￿there￿is￿a￿danger￿of￿collision￿because￿the￿vehicle￿driving ahead￿is￿being￿driven￿at￿a￿much￿slower￿speed￿and/or￿if￿the￿distance￿to￿a￿vehicle￿ahead￿is￿extremely short. The￿early￿warning￿is￿indicated￿by￿a￿vehicle￿symbol￿which￿lights￿up￿red￿in￿the￿instrument￿cluster. The￿early￿warning￿can￿be￿configured￿using￿the￿controller￿("early",￿"middle"￿or￿"late").￿The￿"late" setting￿corresponds￿to￿a￿deactivated￿early￿warning,￿for￿this￿reason,￿only￿the￿acute￿warning￿is￿active for￿an￿immediate￿risk￿of￿collision￿due￿to￿a￿high￿differential￿speed. The￿collision￿warning￿is￿dependent￿on￿the￿vehicle's￿own￿driving￿speed.￿The￿distance￿measured￿for￿the collision￿warning￿is￿significantly￿lower￿than￿the￿legally￿required￿minimum￿distance.￿It￿is￿therefore￿the responsibility￿of￿the￿driver￿to￿adhere￿to￿the￿legal￿minimum￿distance. 4.1.3.￿Acute￿warning The￿acute￿warning￿works￿from￿a￿speed￿of￿approximately￿15￿km/h￿and￿is￿issued￿by￿the￿system￿as￿late as￿possible￿and￿only￿if￿there￿is￿an￿imminent￿danger￿of￿a￿collision￿when￿the￿vehicle￿is￿approaching the￿vehicle￿driving￿ahead￿at￿a￿relatively￿high￿differential￿speed￿or￿if￿there￿is￿an￿imminent￿danger￿of￿a collision￿with￿a￿pedestrian.￿The￿time￿of￿the￿acute￿warning￿is￿measured￿so￿that￿a￿collision￿can￿only￿be avoided￿by￿immediate￿emergency￿braking￿or￿by￿swerving.￿The￿acute￿warning￿can￿therefore￿not￿be introduced￿or￿controlled￿intentionally. If￿the￿vehicle￿is,￿for￿example,￿approaching￿the￿vehicle￿driving￿ahead￿at￿very￿low￿speed,￿or￿is approaching￿a￿person,￿an￿acute￿warning￿is￿not￿issued￿even￿when￿the￿distance￿is￿very￿small. This￿intentional￿driving￿situation￿only￿triggers￿the￿early￿warning.￿This￿way￿there￿are￿fewer￿meaningless and￿annoying￿acute￿warnings￿issued￿by￿the￿system. The￿acute￿warning￿cannot￿be￿deactivated.￿The￿time￿for￿the￿acute￿warning￿also￿cannot￿be￿adjusted. If￿the￿acute￿warning￿is￿not￿to￿be￿issued,￿the￿"collision￿warning"￿front￿protective￿function￿must￿be deactivated. The￿acute￿warning￿issues￿a￿prompt￿for￿intervention￿and￿is￿supported￿if￿there￿is￿a￿danger￿of￿collision by￿a￿two-stage￿intervention.￿Brake￿preconditioning￿is￿only￿effected￿after￿the￿driver￿warning. The￿acute￿warning￿does￿not￿relieve￿the￿driver￿of￿his￿responsibility￿to￿adapt￿the￿speed￿and￿driving￿style to￿the￿traffic￿conditions￿and￿adhere￿to￿the￿prescribed￿safety￿distance.
  • Page 18 F48￿Driver￿Assistance￿Systems 4.￿Camera-based￿Collision￿Warning F48￿Time￿plan￿for￿the￿camera-based￿collision￿warning Index Explanation Collision￿warning￿("early") Collision￿warning￿("medium") Acute￿warning￿(acoustic￿warning￿signal,￿brake￿system￿is prepared￿and￿brake￿assistant￿is￿adapted) Braking￿at￿approximately￿4 m/s²￿is￿introduced￿(city￿braking function￿only￿in￿the￿range￿between￿5￿and￿85 km/h) Detection￿range￿of￿KAFAS￿camera 4.1.4.￿Braking￿function The￿collision￿warning￿with￿city￿braking￿function￿is￿active￿from￿5-85￿km/h.￿This￿way￿the￿severity￿of collisions￿should￿be￿reduced￿through￿automatic￿brake￿intervention￿up￿to￿85 km/h.￿With￿the￿braking function￿an￿accident￿up￿to￿approximately￿20 km/h￿differential￿speed￿can￿be￿prevented.￿In￿the￿case￿of a￿greater￿differential￿speed￿the￿accident￿severity￿can￿be￿reduced. If￿there￿is￿still￿no￿response￿from￿the￿driver￿in￿this￿speed￿range￿(approximately￿5￿–￿85 km/h)￿after￿an acute￿warning,￿the￿vehicle￿is￿decelerated￿at￿approximately￿4 m/s². The￿brake￿intervention￿is￿restricted￿to￿approximately￿1.5 seconds.￿Additional￿dangers￿for￿the￿traffic behind￿are￿therefore￿avoided. The￿brake￿intervention￿is￿only￿effected￿when￿the￿Dynamic￿Stability￿Control￿is￿switched￿on.
  • Page 19 F48￿Driver￿Assistance￿Systems 4.￿Camera-based￿Collision￿Warning Example￿of￿vehicle￿identification￿by￿KAFAS￿camera Index Explanation Vehicle￿in￿same￿lane Vehicle￿in￿different￿lane 4.2.￿Pedestrian￿warning￿with￿city￿braking￿function The￿system￿warns￿the￿driver￿of￿possible￿collisions￿with￿pedestrians￿in￿the￿10￿and￿60 km/h￿range￿and can￿thus￿reduce￿the￿results￿of￿an￿accident￿or￿prevent￿accidents.￿In￿addition,￿braking￿is￿automatically introduced. The￿pedestrian￿warning￿with￿city￿braking￿function￿is￿based￿on￿the￿collision￿warning￿with￿braking function.￿It￿detects￿critical￿situations￿in￿which￿pedestrians￿cross￿the￿path￿of￿the￿vehicle.￿In￿the￿warning stage￿(acute￿warning),￿a￿pedestrian￿symbol￿is￿displayed￿in￿the￿instrument￿cluster￿and￿an￿acoustic warning￿is￿also￿issued.￿The￿warning￿stage￿can￿be￿switched￿on￿or￿off￿using￿the￿Intelligent￿Safety￿button. The￿function￿is￿always￿available￿upon￿an￿engine￿start. The￿KAFAS￿camera￿captures￿the￿scene￿in￿front￿of￿the￿vehicle￿and￿detects￿pedestrians￿in￿the￿field￿of view￿using￿machine￿vision.￿Based￿on￿the￿calculated￿positions,￿distances￿and￿the￿movement￿of￿the detected￿pedestrians,￿an￿acute￿warning￿is￿issued￿in￿critical￿situations￿and￿the￿vehicle￿is￿decelerated at￿approximately￿4￿m/s². The￿brake￿intervention￿is￿restricted￿to￿approximately￿1.5 seconds.￿Additional￿dangers￿for￿the￿traffic behind￿are￿therefore￿avoided. An￿early￿warning￿is￿not￿available￿for￿the￿pedestrian￿warning￿with￿city￿braking￿function. The￿brake￿intervention￿is￿only￿performed￿when￿the￿Dynamic￿Stability￿Control￿is￿switched￿on.
  • Page 20 F48￿Driver￿Assistance￿Systems 4.￿Camera-based￿Collision￿Warning Example￿of￿person￿recognition￿by￿KAFAS￿camera The￿warning￿zone￿for￿person￿recognition￿in￿front￿of￿the￿vehicle￿is￿subdivided￿into￿two￿areas. The￿central￿area￿(ahead￿of￿the￿vehicle)￿and￿the￿additional￿area￿(to￿the￿left￿and￿right￿in￿front of￿the￿vehicle). F48￿Warning￿zone,￿person￿recognition Index Explanation Central￿area Extended￿area A￿collision￿is￿imminent￿if￿people￿are￿located￿in￿the￿central￿area.￿A￿warning￿is￿only￿issued￿for￿people located￿in￿the￿extended￿area￿if￿they￿are￿moving￿in￿the￿direction￿of￿the￿central￿area.

  • Page 21: Operation

    F48￿Driver￿Assistance￿Systems 4.￿Camera-based￿Collision￿Warning 4.3.￿Warnings￿in￿the￿instrument￿cluster The￿warning￿function￿is￿divided￿into￿two￿stages.￿If￿there￿is￿a￿danger￿of￿collision,￿a￿warning￿symbol￿is displayed￿in￿the￿instrument￿cluster. System Speed￿range Early￿warning Acute￿warning Active￿brake intervention Collision￿warning >￿85 km/h No.￿The￿brake with￿city￿braking system￿is function prefilled￿and the￿activation thresholds￿of￿the brake￿assistant Early are￿reduced. warning￿from approximately 15 km/h Collision￿warning 5-85￿km/h 4 m/s²￿for with￿city￿braking maximum￿1.5 function seconds — Pedestrian 10-60 km/h 4 m/s²￿for warning￿with￿city maximum￿1.5 braking￿function seconds —...
  • Page 22 F48￿Driver￿Assistance￿Systems 4.￿Camera-based￿Collision￿Warning F48￿Intelligent￿Safety￿button Index Explanation Intelligent￿Safety￿button Press￿button: • A￿board￿on￿the￿Central￿Information￿Display￿(CID)￿is￿displayed￿on￿which￿the￿settings￿can￿be performed.￿The￿individual￿settings￿are￿stored￿for￿the￿ID￿transmitter￿currently￿used. Press￿button￿briefly: • Intelligent￿Safety￿systems￿are￿switched￿off￿individually￿depending￿on￿the￿Personal￿Profile. • The￿LED￿in￿the￿Intelligent￿Safety￿button￿lights￿up￿orange￿or￿goes￿out,￿depending￿on￿the Personal￿Profile. Press￿button￿again: • All￿Intelligent￿Safety￿systems￿are￿switched￿on. • The￿LED￿in￿the￿Intelligent￿Safety￿button￿lights￿up￿green. Press￿and￿hold￿button: • All￿Intelligent￿Safety￿systems￿are￿switched￿off. • The￿LED￿in￿the￿Intelligent￿Safety￿button￿goes￿out. Adjusting￿the￿warning￿time: The￿driver￿can￿set￿the￿time￿for￿the￿warning￿in￿three￿stages￿when￿the￿collision￿warning￿is￿active. The￿"late"￿setting￿corresponds￿to￿the￿point￿of￿the￿acute￿warning.

  • Page 23: Displays

    F48￿Driver￿Assistance￿Systems 4.￿Camera-based￿Collision￿Warning The￿setting￿is￿made￿via￿the￿controller: • "Settings" • "Collision￿warning" • Set￿the￿required￿warning￿time￿using￿the￿controller￿at￿the￿Central￿Information￿Display￿(CID). The￿setting￿for￿the￿time￿of￿the￿early￿warning￿is￿saved￿for￿the￿current￿driver￿profile￿or￿for￿the￿ID transmitter￿currently￿used. 4.5.￿Displays F48￿Intelligent￿Safety￿displays Index Explanation All￿systems￿active Systems￿are￿individually￿adjusted All￿systems￿deactivated...
  • Page 24 F48￿Driver￿Assistance￿Systems 4.￿Camera-based￿Collision￿Warning 4.6.￿Limits￿of￿the￿system The￿collision￿warning￿has￿a￿limited￿capacity￿for￿detection.￿As￿a￿result,￿incorrect￿or￿delayed￿warnings may￿occur. It￿is￿possible￿the￿following￿vehicles￿are￿not￿detected: • a￿slower￿vehicle￿when￿driving￿off￿at￿high￿speed • sudden￿swerving￿or￿heavy￿decelerating￿vehicles • vehicles￿with￿an￿unusual￿rear￿view￿or￿with￿insufficiently￿visible￿rear￿lights • partially￿covered￿vehicles • bicycles￿ahead.
  • Page 25 F48￿Driver￿Assistance￿Systems 4.￿Camera-based￿Collision￿Warning 4.7.￿System￿wiring￿diagram F48￿system￿wiring￿diagram￿for￿camera-based￿collision￿warning...
  • Page 26 F48￿Driver￿Assistance￿Systems 4.￿Camera-based￿Collision￿Warning Index Explanation Digital￿Motor￿Electronics￿(DME) KAFAS￿camera Heating,￿KAFAS￿camera Dynamic￿Stability￿Control￿(DSC) Fuses￿in￿the￿power￿distribution￿box￿in￿the￿passenger￿compartment Body￿Domain￿Controller￿(BDC) Fuse￿in￿the￿Body￿Domain￿Controller Camera-based￿driver￿support￿systems￿(KAFAS) Optional￿equipment￿system￿(SAS) K-CAN￿terminator Headunit Central￿information￿display￿(CID) Steering￿column￿switch￿cluster￿(SZL) Instrument￿cluster￿(KOMBI) Intelligent￿Safety￿button...
  • Page 27 F48￿Driver￿Assistance￿Systems 5.￿Park￿Distance￿Control The￿optional￿equipment￿Park￿Distance￿Control￿is￿available￿in￿two￿versions.￿In￿the￿following￿table￿you see￿where￿and￿how￿many￿ultrasonic￿sensors￿are￿installed￿with￿the￿respective￿optional￿equipment: Optional￿equipment sensors Park￿Distance￿Control￿(SA￿507) 4￿sensors￿in￿the￿rear￿bumper Park￿Distance￿Control￿(SA￿508) 4￿sensors￿in￿the￿rear￿bumper￿and 4￿sensors￿in￿the￿front￿bumper Vehicles￿not￿equipped￿with￿a￿Parking￿Maneuver￿Assistant￿have￿their￿own￿PDC￿control￿unit.￿The￿control unit￿is￿used￿instead￿of￿the￿PDC￿control￿unit￿in￿vehicles￿with￿the￿optional￿equipment￿Parking￿Maneuver Assistant.￿The￿PMA￿control￿unit￿then￿assumes￿the￿function￿of￿the￿PDC. During￿the￿vehicle￿diagnosis￿the￿PDC￿control￿unit￿is￿always￿displayed￿as￿a￿PMA￿control￿unit.
  • Page 28 F48￿Driver￿Assistance￿Systems 5.￿Park￿Distance￿Control 5.1.￿System￿wiring￿diagram F48￿system￿wiring￿diagram￿for￿Park￿Distance￿Control...

  • Page 29: Operation

    F48￿Driver￿Assistance￿Systems 5.￿Park￿Distance￿Control Index Explanation Electronic￿transmission￿control￿(EGS) Fuse￿in￿the￿power￿distribution￿box￿in￿the￿passenger￿compartment Body￿Domain￿Controller￿(BDC) K-CAN￿terminator Park￿Distance￿Control￿(PDC) Ultrasonic￿sensors￿for￿Park￿Distance￿Control,￿rear K-CAN￿terminator Speaker Headunit Park￿Distance￿Control￿button Central￿information￿display￿(CID) 5.2.￿Operation PDC￿is￿automatically￿switched￿on￿in￿the￿following￿situations: • If￿when￿the￿engine￿is￿running￿the￿selector￿lever￿position￿R￿is￿engaged. • If￿with￿corresponding￿equipment￿obstacles￿are￿detected￿at￿the￿rear￿or￿front￿of￿the￿vehicles by￿the￿ultrasonic￿sensors￿and￿the￿speed￿is￿less￿than￿4 km/h￿(Auto￿PDC￿must￿be￿active). The￿volume￿of￿the￿PDC￿signal￿can￿be￿adjusted￿via￿the￿central￿information￿display. F48￿Park￿Distance￿Control￿volume￿balancing...
  • Page 30 F48￿Driver￿Assistance￿Systems 5.￿Park￿Distance￿Control 5.2.1.￿Deactivation￿criteria The￿deactivation￿criteria￿are￿dependent￿on￿which￿optional￿equipment￿the￿F48￿has.￿The￿following￿table points￿out￿the￿deactivation￿criteria￿of￿the￿individual￿systems: System Distance￿travelled Speed Park￿Distance￿Control approximately￿50￿m approximately￿15￿km/h Parking￿Maneuver￿Assistant — approximately￿35￿km/h Rear￿view￿camera approximately￿10￿m approximately￿15￿km/h To￿ensure￿the￿ultrasonic￿sensors￿remain￿fully￿operational,￿they￿must￿be￿kept￿clean￿and￿free￿of￿ice. When￿cleaning￿the￿sensors￿using￿a￿high￿pressure￿cleaner,￿avoid￿direct￿and￿sustained￿contact￿with￿a high-pressure￿water￿jet.￿Furthermore,￿when￿using￿high￿pressure￿cleaners,￿a￿distance￿of￿at￿least￿30 cm from￿the￿sensors￿must￿be￿maintained. 5.3.￿Auto￿PDC PDC￿is￿automatically￿activated￿with￿the￿Auto￿PDC￿function: • if￿there￿is￿an￿object￿closer￿than￿60￿cm￿to￿the￿front￿of￿the￿vehicle￿when￿driving￿forwards. • if￿there￿is￿an￿object￿closer￿than￿1.5￿m￿to￿the￿rear￿of￿the￿vehicle￿when￿reversing. • if￿the￿speed￿driven￿does￿not￿exceed￿4￿km/h. The￿automatic￿switching-on￿upon￿the￿identification￿of￿obstructions￿can￿be￿switched￿on￿and￿off￿in￿the "Settings"￿menu￿using￿a￿controller.￿The￿settings￿are￿stored￿for￿the￿ID￿transmitter￿currently￿used. F48￿Auto￿PDC A￿sound￿is￿only￿output￿if￿the￿detected￿object￿(in￿front￿of￿or￿behind￿the￿vehicle)￿is￿directly￿in￿the￿lane (risk￿of￿collision).￿If￿the￿detected￿object￿is￿not￿directly￿in￿the￿lane,￿the￿acknowledgement￿is￿only￿done visually￿in￿the￿CID.
  • Page 31 F48￿Driver￿Assistance￿Systems 5.￿Park￿Distance￿Control F48￿Person￿recognition Index Explanation Lane￿without￿object￿contact￿(visual￿acknowledgement￿in￿the￿CID) Lane￿with￿object￿contact￿(visual￿and￿acoustic￿acknowledgement) Turning￿vehicle Detected￿object Detection￿of￿obstacle￿by￿the￿PDC￿sensors...

  • Page 32: Introduction

    F48￿Driver￿Assistance￿Systems 6.￿Parking￿Maneuver￿Assistant 6.1.￿Introduction F48￿Principle￿of￿Parking￿maneuver￿Assistant The￿optional￿equipment￿Parking￿Assistance￿Package￿comprises￿the￿following￿elements: • Park￿Distance￿Control,￿rear￿(4￿sensors)￿(SA￿507) • Park￿Distance￿Control,￿front￿(4￿sensors)￿(SA￿508) • Parking￿Maneuver￿Assistant￿with￿2￿additional￿sensors￿in￿the￿wheel￿arch￿panel The￿Parking￿Maneuver￿Assistant￿only￿facilitates￿parking￿in￿gaps￿between￿cars￿parallel￿to￿the￿roadway.
  • Page 33 F48￿Driver￿Assistance￿Systems 6.￿Parking￿Maneuver￿Assistant 6.2.￿System￿components Vehicles￿with￿the￿optional￿equipment￿Parking￿Assistant￿Package￿(SA￿5DU)￿also￿obtain￿four￿additional ultrasonic￿sensors￿in￿the￿front￿bumper,￿as￿well￿as￿the￿rear￿ultrasonic￿sensors￿known￿from￿the￿PDC.￿For the￿detection￿of￿the￿parking￿space,￿the￿Parking￿Maneuver￿Assistant￿requires￿two￿additional￿ultrasonic sensors￿at￿the￿side,￿which￿can￿detect￿the￿parking￿space￿on￿the￿left￿or￿right￿of￿the￿vehicle￿when￿driving by.￿The￿ultrasonic￿sensors￿of￿the￿Parking￿Maneuver￿Assistant￿are￿installed￿in￿the￿wheel￿arch￿panels￿at the￿front￿left￿and￿right. F48￿System￿components￿of￿Parking￿maneuver￿Assistant Index Explanation Ultrasonic￿sensors￿at￿the￿side￿(for￿Parking￿maneuver￿Assistant) Ultrasonic￿sensors,￿front Headunit Central￿information￿display￿(CID) Body￿Domain￿Controller￿(BDC) Controller￿(CON) Optional￿equipment￿system￿(SAS) Parking￿maneuver￿Assistant￿(PMA) Ultrasonic￿sensors,￿rear Park￿Distance￿Control￿button...
  • Page 34 F48￿Driver￿Assistance￿Systems 6.￿Parking￿Maneuver￿Assistant 6.3.￿System￿wiring￿diagram F48￿system￿wiring￿diagram￿for￿Parking￿maneuver￿Assistant...
  • Page 35 F48￿Driver￿Assistance￿Systems 6.￿Parking￿Maneuver￿Assistant Index Explanation Ultrasonic￿sensors,￿front Ultrasonic￿sensor,￿right￿(for￿Parking￿Maneuver￿Assistant) Dynamic￿Stability￿Control￿(DSC) Body￿Domain￿Controller￿(BDC) Fuse￿in￿the￿power￿distribution￿box￿in￿the￿passenger￿compartment Parking￿Maneuver￿Assistant￿(PMA) Ultrasonic￿sensors,￿rear K-CAN￿terminator K-CAN￿terminator Speaker Headunit Park￿Distance￿Control￿button￿(Parking￿Maneuver￿Assistant) Central￿information￿display￿(CID) Steering￿column￿switch￿cluster￿(SZL) Instrument￿cluster￿(KOMBI) Electronic￿Power￿Steering￿(EPS) Electronic￿transmission￿control￿(EGS) Digital￿Motor￿Electronics￿(DME) Ultrasonic￿sensor,￿left￿(for￿Parking￿maneuver￿Assistant)
  • Page 36 F48￿Driver￿Assistance￿Systems 6.￿Parking￿Maneuver￿Assistant 6.4.￿Control￿unit F48￿Parking￿maneuver￿Assistant￿control￿unit The￿Parking￿Maneuver￿Assistant￿control￿unit￿evaluates￿the￿signals￿of￿the￿ultrasonic￿sensors￿and calculates￿the￿length￿of￿a￿parking￿space￿based￿on￿the￿distance￿information￿from￿the￿DSC.￿It￿also calculates￿the￿optimum￿path￿into￿a￿parking￿space￿and￿monitors￿the￿parking￿procedure.
  • Page 37 F48￿Driver￿Assistance￿Systems 7.￿Rear￿View￿Camera The￿main￿function￿of￿the￿rear￿view￿camera￿system￿is￿the￿optical￿detection￿of￿a￿wide-angled￿view￿of￿the rear￿area￿of￿the￿vehicle￿in￿order￿to￿offer￿the￿driver￿additional￿support￿during￿the￿parking￿process or￿maneuver.￿The￿image￿is￿forwarded￿from￿the￿rear￿view￿camera￿via￿a￿CVBS￿line￿to￿the￿headunit. The￿image￿from￿the￿rear￿view￿camera￿is￿displayed￿with￿additional￿auxiliary￿lines￿in￿the￿CID. 7.1.￿System￿components F48￿Control￿unit￿for￿the￿rear￿view￿camera The￿lens￿of￿the￿rear￿view￿camera￿is￿located￿in￿the￿handle￿strip￿of￿the￿tailgate. The￿top￿rear￿side￿view￿camera￿control￿unit￿is￿integrated￿in￿the￿housing￿of￿the￿rear￿view￿camera. The￿new￿camera￿must￿be￿taught￿in￿after￿the￿rear￿view￿camera￿is￿replaced.￿The￿rear￿view￿camera￿of￿the F48￿does￿not￿need￿to￿be￿calibrated￿after￿teaching-in,￿as￿it￿is￿self-calibrating.￿The￿calibration￿is￿effected during￿the￿journey￿by￿the￿TRSVC￿control￿unit￿by￿means￿of￿a￿steering￿angle￿sensor￿and￿known￿road markings.￿Calibration￿compensates￿for￿installation￿tolerances￿by￿shifting￿and￿rotating￿the￿image. The￿maximum￿time￿required￿for￿a￿full￿calibration￿is￿five￿hours.￿A￿Check￿Control￿message￿is￿displayed￿in the￿CID￿if￿the￿rear￿view￿camera￿could￿not￿be￿successfully￿calibrated.￿Reasons￿for￿failed￿calibration￿may be￿incorrect￿installation,￿dirt￿contamination￿or￿a￿defect￿with￿the￿rear￿view￿camera.￿The￿rear￿view￿camera is￿also￿constantly￿readjusted￿after￿a￿full￿calibration￿in￿order￿to￿ensure￿an￿optimum￿image.
  • Page 38 F48￿Driver￿Assistance￿Systems 7.￿Rear￿View￿Camera 7.2.￿System￿wiring￿diagram F48￿System￿wiring￿diagram￿for￿rear￿view￿camera...
  • Page 39 F48￿Driver￿Assistance￿Systems 7.￿Rear￿View￿Camera Index Explanation Electronic￿transmission￿control￿(EGS)￿(for￿vehicles￿with automatic￿transmission) Fuse￿in￿the￿power￿distribution￿box￿in￿the￿passenger￿compartment Body￿Domain￿Controller￿(BDC) Central￿information￿display￿(CID) Headunit Park￿Distance￿Control￿button Rear￿view￿camera￿(RFK) K-CAN￿terminator K-CAN￿terminator Controller￿(CON)

  • Page 40: Introduction

    F48￿Driver￿Assistance￿Systems 8.￿Cruise￿Control 8.1.￿Introduction Two￿cruise￿controls￿are￿offered￿for￿the￿F48.￿The￿customer￿can￿choose￿between￿the￿optional equipment￿DCC￿cruise￿control￿with￿braking￿function￿and￿the￿optional￿equipment￿ACC￿active￿cruise control. The￿DCC￿is￿an￿element￿of￿the￿optional￿equipment￿Driving￿Assistant￿Plus￿(SA￿5AT),￿or￿can￿be￿ordered as￿separate￿optional￿equipment￿(SA￿544). The￿ACC￿Stop￿&￿Go￿function￿was￿extended￿with￿the￿traffic￿jam￿assistant￿function.￿The￿traffic￿jam assistant￿is￿described￿in￿more￿detail￿in￿chapter￿9￿"Traffic￿jam￿assistant". The￿speed￿control￿systems￿support￿the￿driver￿with￿adapting￿his￿speed,￿distance￿and￿driving￿style to￿the￿traffic￿conditions￿but￿do￿not￿relieve￿him￿of￿this￿responsibility.￿The￿driver￿may￿need￿to￿actively intervene,￿e.g.￿by￿braking,￿steering￿or￿taking￿evasive￿action,￿as￿otherwise￿there￿is￿a￿risk￿of￿an￿accident. 8.2.￿Cruise￿control￿with￿braking￿function The￿cruise￿control￿with￿braking￿function￿(SA￿544)￿is￿used￿in￿the￿F48￿as￿optional￿equipment. The￿system￿is￿also￿referred￿to￿as￿"Dynamic￿Cruise￿Control".￿Dynamic￿Cruise￿Control￿supports￿the driver￿on￿roads￿with￿less￿traffic￿by￿keeping￿the￿speed￿constant￿irrespective￿of￿the￿rolling￿resistances (incline,￿vehicle￿load).￿In￿spite￿of￿the￿support,￿the￿driver￿remains￿responsible￿for￿control￿of￿the￿vehicle. It￿is￿possible￿to￿override￿the￿DCC￿function￿at￿any￿time￿by￿braking￿or￿accelerating￿the￿vehicle. When￿ECO￿PRO￿mode￿is￿activated,￿the￿cruise￿control￿is￿also￿adjusted￿to￿a￿consumption-friendly driving￿style. Depending￿on￿equipment,￿the￿calculation￿is￿effected￿in￿different￿control￿units: • The￿calculations￿are￿performed￿by￿the￿DSC￿control￿unit. • In￿vehicles￿that￿are￿equipped￿with￿an￿optional￿equipment￿system￿(SAS)￿due￿to￿other￿optional equipment￿packages,￿the￿calculations￿are￿performed￿in￿the￿SAS￿control￿unit.
  • Page 41 F48￿Driver￿Assistance￿Systems 8.￿Cruise￿Control F48￿Installation￿location￿of￿optional￿equipment￿system 8.3.￿Camera-based￿cruise￿control￿with￿Stop&Go￿function The￿active￿cruise￿control￿(ACC)￿Stop&Go￿function￿is￿an￿element￿of￿the￿optional￿equipment￿Driving Assistant￿Plus￿(SA￿5AT). With￿the￿ACC￿Stop&Go￿function￿in￿the￿F48,￿there￿are￿no￿radar￿sensors￿installed￿for￿the￿detection of￿vehicles￿ahead.￿The￿detection￿is￿effected￿solely￿via￿the￿KAFAS￿system. F48￿Active￿Cruise￿Control￿detection￿by￿KAFAS￿camera ACC￿Stop&Go￿adjusts￿a￿driver-specified￿desired￿speed￿and,￿if￿required￿by￿the￿traffic￿situation,￿also the￿preselected￿trailing￿distance￿automatically￿to￿the￿vehicle￿driving￿ahead.￿Passenger￿cars,￿trucks and￿motorbikes￿are￿detected￿as￿vehicles.￿The￿application￿range￿of￿ACC￿Stop&Go￿ranges￿from￿higher speeds￿down￿to￿a￿standstill.￿The￿distance￿and￿the￿speed￿are￿automatically￿adjusted￿in￿this￿range. Depending￿on￿the￿stationary￿time,￿driving￿off￿from￿a￿standstill￿is￿performed￿automatically￿or￿in response￿to￿a￿prompt￿by￿the￿driver.
  • Page 42 F48￿Driver￿Assistance￿Systems 8.￿Cruise￿Control ACC￿Stop&Go￿detects￿not￿only￿slowly￿stopping,￿but￿also￿stationary￿vehicles,￿and￿can￿react￿to￿these. The￿response￿to￿transverse￿movements￿has￿been￿improved￿and￿the￿system￿can￿now￿respond￿more quickly￿to￿vehicles￿swerving￿in￿and￿out￿and￿turning￿off. The￿application￿range￿is￿extended￿by￿incorporating￿the￿KAFAS￿camera￿and￿the￿image￿data￿is￿evaluated by￿the￿KAFAS￿control￿unit.￿The￿KAFAS￿control￿unit￿detects￿vehicles￿clearly￿when￿their￿rear￿is￿identified by￿the￿video￿camera.￿In￿addition,￿the￿KAFAS￿control￿unit￿ensures￿that￿the￿driving￿lane￿information, vehicle￿positions￿and￿movements￿are￿determined. As￿the￿ACC￿Stop&Go￿in￿the￿F48￿is￿a￿pure￿camera￿system￿without￿radar￿sensors,￿the￿adjustment￿range for￿the￿set￿speed￿was￿restricted￿to￿140￿km/h. The￿acceleration￿behavior￿of￿ACC￿Stop&Go￿is￿adapted￿for￿ECO￿PRO￿mode.￿In￿ECO￿PRO￿mode, ACC￿Stop&Go￿accelerates￿the￿vehicle￿in￿a￿fuel-efficient￿manner. If￿the￿vehicle￿ahead￿drives￿off￿again￿after￿a￿standstill,￿the￿driver￿is￿informed￿thereof￿with￿a￿note. To￿drive￿off￿again,￿the￿driver￿must￿acknowledge￿this￿information.￿The￿acknowledgement￿is￿effected by￿operating￿the￿RES￿button￿or￿by￿briefly￿touching￿the￿accelerator￿pedal.￿Only￿if￿the￿duration￿of￿the standstill￿is￿very￿short￿(approximately￿3￿seconds),￿is￿the￿starting￿process￿effected￿automatically. 8.3.1.￿KAFAS￿camera F48￿KAFAS￿camera Index Explanation KAFAS￿camera Rain‐light‐solar-condensation￿sensor Photosensor￿for￿electrochromic￿interior￿mirror...
  • Page 43 F48￿Driver￿Assistance￿Systems 8.￿Cruise￿Control Connection￿for￿KAFAS￿camera F48￿ACC￿Stop&Go￿detection,￿KAFAS￿camera Index Explanation KAFAS￿camera Camera-based￿driver￿support￿systems￿(KAFAS) Optional￿equipment￿system￿(SAS) Body￿Domain￿Controller￿(BDC) The￿front￿camera￿can￿detect￿vehicles￿ahead￿at￿a￿distance￿of￿up￿to￿90 m.￿Stationary￿vehicles￿and vehicles￿weaving￿in￿and￿out￿of￿traffic￿are￿also￿detected￿early. As￿with￿the￿front￿camera￿it￿is￿an￿optical￿sensor,￿the￿quality￿of￿the￿person￿recognition￿and￿signal accuracy￿are￿dependent￿on￿the￿existing￿weather￿conditions. 8.3.2.￿Control￿function Vehicles￿with￿ACC￿Stop&Go;￿element￿of￿optional￿equipment￿Driving￿Assistant￿Plus￿(SA￿5AT): • The￿calculations￿are￿performed￿in￿the￿optional￿equipment￿system￿(SAS). Cruise￿control In￿principle,￿the￿cruise￿control￿in￿the￿ACC￿Stop&Go￿system￿works￿in￿exactly￿the￿same￿way￿as￿the Dynamic￿Cruise￿Control￿(DCC)￿system. Distance￿control￿(ranging) The￿distance￿control￿is￿the￿core￿function￿of￿the￿ACC￿Stop&Go￿system.￿The￿driver￿can￿select￿a￿desired distance￿in￿four￿stages￿using￿a￿button￿on￿the￿multifunction￿steering￿wheel.￿The￿optional￿equipment system￿calculates￿the￿set￿point￿distance￿of￿the￿control￿from￿this￿preselection.

  • Page 44: Display

    F48￿Driver￿Assistance￿Systems 8.￿Cruise￿Control The￿set￿point￿distance￿during￿the￿journey￿is￿proportional￿to￿the￿driving￿speed.￿At￿a￿lower￿driving￿speed the￿proportional￿distance￿to￿the￿driving￿speed￿is￿no￿longer￿used￿for￿the￿ACC￿Stop&Go,￿but￿instead￿a fixed￿value￿in￿metres.￿The￿distance￿control￿uses￿the￿prepared￿object￿data￿with￿the￿highest￿diagnostic statistic￿as￿input￿variables. Acceleration￿and￿deceleration Depending￿on￿the￿situation,￿the￿ACC￿Stop&Go￿accelerates￿the￿vehicle￿by￿a￿maximum￿of￿approximately 2 m/s²￿and￿decelerates￿the￿vehicle￿by￿a￿maximum￿of￿approximately￿4 m/s². Cruise￿control￿on￿bends The￿cruise￿control￿of￿the￿ACC￿Stop&Go￿on￿bends￿is￿based￿on￿the￿control￿characteristics￿of￿the Dynamic￿Cruise￿Control￿(DCC).￿If￿an￿object￿is￿lost￿on￿bends,￿the￿system￿waits￿to￿see￿whether￿the object￿reappears￿(transition￿curve).￿The￿vehicle￿only￿accelerates￿if￿it￿does￿not￿reappear￿or￿the￿KAFAS camera￿no￿longer￿detects￿an￿object.￿Depending￿on￿the￿actual￿lateral￿acceleration,￿the￿speed￿is￿reduced in￿a￿longitudinal￿direction￿during￿controlled￿cornering￿as￿necessary.￿When￿coming￿out￿of￿the￿bend￿the speed￿is￿adjusted￿until￿it￿once￿again￿reaches￿the￿desired￿level. 8.3.3.￿Display The￿set￿speed￿is￿shown￿in￿the￿instrument￿cluster￿with￿digital￿speed￿reading.￿During￿active￿control￿this display￿is￿illuminated￿in￿green.￿If￿the￿active￿cruise￿control￿is￿in￿a￿"Deactivated"￿state￿this￿display is￿illuminated￿in￿orange.￿The￿resume￿speed￿is￿displayed. Vehicles￿driving￿ahead￿to￿which￿a￿safe￿trailing￿distance￿is￿observed￿are￿displayed￿in￿orange￿in￿the￿round instrument￿as￿soon￿as￿they￿have￿been￿detected￿and￿are￿at￿a￿distance￿relevant￿for￿the￿control.￿If￿the system￿can￿no￿longer￿adjust￿a￿safe￿distance,￿for￿example￿due￿to￿very￿high￿differential￿speeds,￿then the￿driver￿is￿requested￿to￿assume￿the￿guidance￿of￿the￿vehicle￿entirely￿by￿a￿flashing￿red￿vehicle￿symbol and￿an￿acoustic￿signal.￿With￿active￿control￿the￿messages￿are￿also￿displayed￿in￿the￿optional￿equipment Head‐Up￿Display￿HUD￿(SA￿610). 8.3.4.￿Operation ACC￿Stop&Go￿cannot￿only￿be￿activated￿by￿the￿driver￿during￿the￿journey,￿but￿also￿when￿the￿vehicle￿is￿at a￿standstill,￿if￿the￿system￿detected￿another￿vehicle￿before￿its￿own￿vehicle.￿To￿activate￿ACC￿Stop&Go￿at standstill,￿the￿driver￿must￿press￿the￿brake￿pedal￿and￿at￿the￿same￿time￿press￿the￿SET￿or￿RES￿button. When￿the￿system￿is￿active￿the￿set￿speed￿can￿be￿adjusted￿in￿1￿or￿10 km/h￿increments. The￿driver￿has￿the￿option￿at￿any￿time￿to￿override￿the￿ACC￿system￿request￿and￿thus￿accelerate￿stronger by￿pressing￿the￿accelerator￿pedal.￿The￿system￿is￿not￿activated￿as￿a￿result.￿The￿overriding is￿shown￿in￿the￿instrument￿cluster￿by￿the￿suppression￿of￿the￿distance￿bar.
  • Page 45 F48￿Driver￿Assistance￿Systems 8.￿Cruise￿Control The￿following￿conditions￿must￿also￿be￿satisfied￿for￿activation: • Seat￿belt￿fastened￿and￿door￿closed • Drive￿position￿D￿is￿engaged • Engine￿running • Parking￿brake￿not￿activated • No￿system￿faults￿detected The￿system￿does￿not￿decelerate￿for: • pedestrians,￿cyclists￿or￿similar￿slow￿road￿users • red￿lights • cross￿traffic • oncoming￿traffic • unlit￿vehicles￿or￿vehicles￿with￿defective￿lighting￿at￿night Detection Many￿vehicles￿are￿not￿detected￿or￿are￿detected￿at￿a￿late￿stage.￿The￿reason￿for￿this￿may￿be: • Vehicles￿swinging￿out A￿vehicle￿ahead￿is￿only￿detected￿when￿it￿is￿completely￿in￿its￿own￿lane. • Cornering In￿narrow￿bends￿there￿may￿be￿situations￿where￿a￿vehicle￿ahead￿is￿no￿longer￿detected￿or detected￿at￿a￿significantly￿later￿stage￿due￿to￿the￿restricted￿detection￿range￿of￿the￿system. Malfunction If￿the￿system￿has￿a￿malfunction,￿the￿driver￿is￿made￿aware￿of￿such￿with￿a￿Check￿Control￿message. The￿reasons￿for￿malfunctions￿may￿be: • heavy￿fog,￿rain,￿rain￿spray￿or￿snow • if￿the￿camera￿field￿of￿view￿or￿the￿windscreen￿is￿dirty￿or￿concealed •...
  • Page 46 F48￿Driver￿Assistance￿Systems 8.￿Cruise￿Control 8.3.5.￿System￿wiring￿diagram F48￿system￿wiring￿diagram￿for￿active￿cruise￿control￿(ACC)￿Stop&Go...
  • Page 47 F48￿Driver￿Assistance￿Systems 8.￿Cruise￿Control Index Explanation Digital￿Motor￿Electronics￿(DME) KAFAS￿camera Heating,￿KAFAS￿camera Dynamic￿Stability￿Control￿(DSC) Fuses￿in￿the￿power￿distribution￿box￿in￿the￿passenger￿compartment Body￿Domain￿Controller￿(BDC) Fuse￿in￿the￿Body￿Domain￿Controller Camera-based￿driver￿support￿systems￿(KAFAS) Optional￿equipment￿system￿(SAS) K-CAN￿terminator Headunit Central￿information￿display￿(CID) Steering￿column￿switch￿cluster￿(SZL) Instrument￿cluster￿(KOMBI) Intelligent￿Safety￿button...
  • Page 48 Bayerische￿Motorenwerke￿Aktiengesellschaft Qualifizierung￿und￿Training Röntgenstraße￿7 85716￿Unterschleißheim,￿Germany...
