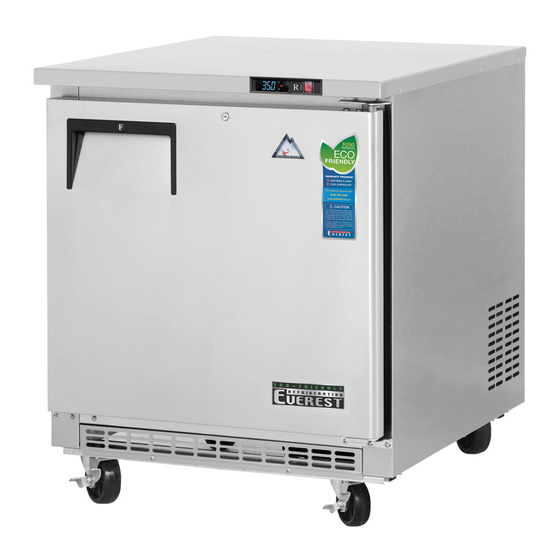

Owner's Manual for models:
Back Mount Undercounters
ETBR1, ETBSR2, ETBR2, ETBWR2, ETBR3,
ETBF1, ETBSF2, ETBF2, ETBWF2, ETBF3
Drawered Undercounters
ETBR1-D2, ETBSR2-D2, ETBR2-D4, ETBWR2-D4, ETBR3-D2
Side Mount Undercounters
ETR1, ETR2, ETWR2, ETR3
ETF1, ETF2, ETWF2, ETF3, ETRF2, ETRF3
Side Mount Glass Door Undercounters
ETGSR2, ETGR2, ETGWR2
A Step Above the Standard
Thank you for choosing EVEREST
R
C
US
ISO-9001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETBR1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EVEREST REFRIGERATION ETBR1

Summary of Contents for EVEREST REFRIGERATION ETBR1

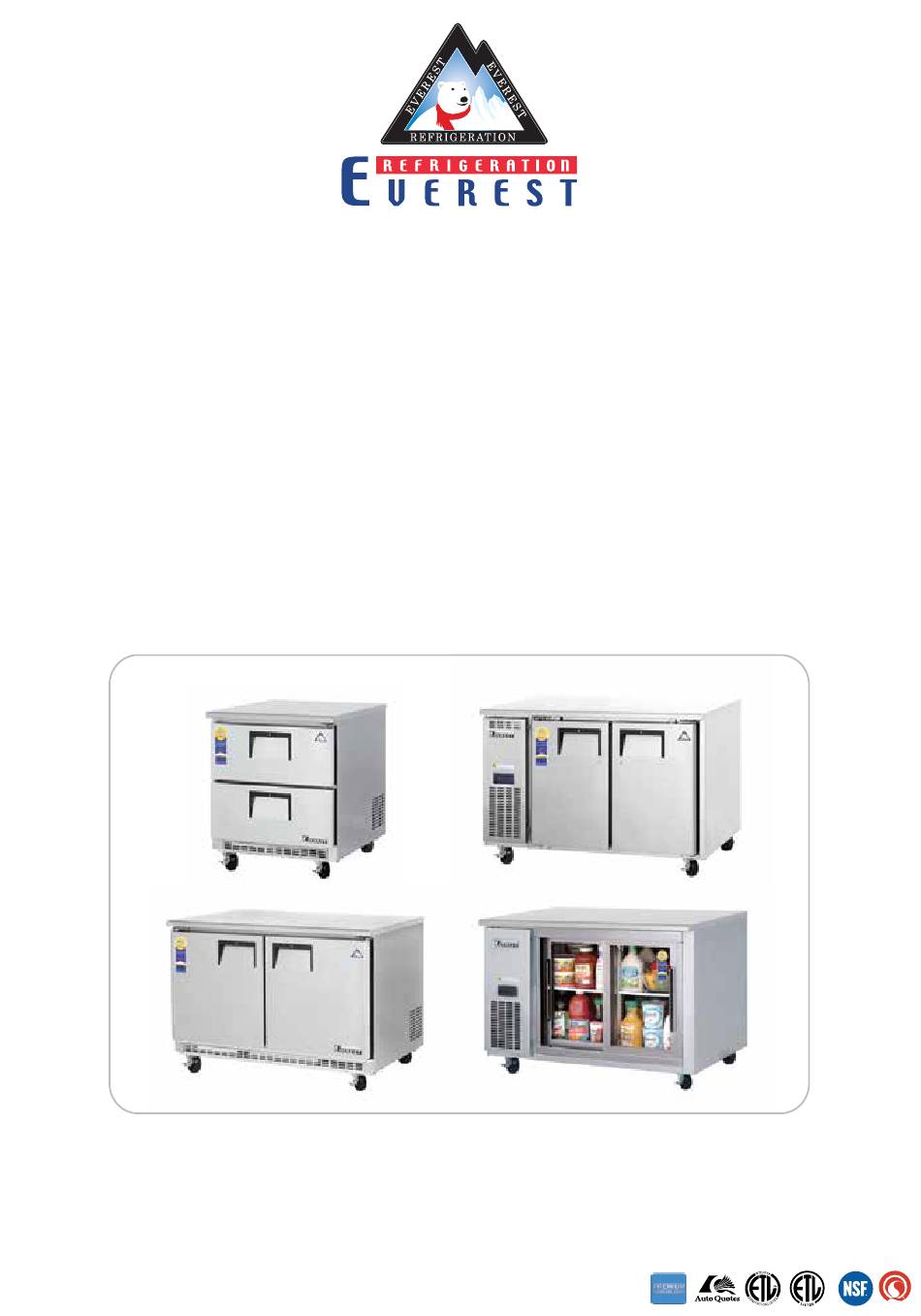

  • Page 1 Owner’s Manual for models: Back Mount Undercounters ETBR1, ETBSR2, ETBR2, ETBWR2, ETBR3, ETBF1, ETBSF2, ETBF2, ETBWF2, ETBF3 Drawered Undercounters ETBR1-D2, ETBSR2-D2, ETBR2-D4, ETBWR2-D4, ETBR3-D2 Side Mount Undercounters ETR1, ETR2, ETWR2, ETR3 ETF1, ETF2, ETWF2, ETF3, ETRF2, ETRF3...
  • Page 2 REFRIGERATION When installing the unit, be careful that the electrical cord is not under the unit or pressed against the wall. This could cause a damage to the cord.

  • Page 3: Safety Notices

    Safety Notices Safety Notices REFRIGERATION WARNING - Read and follow all safety notices in this installation guide. These notices provide helpful safety and e cient operation information. Failure to do so may lead to serious injury and / or damage to the unit. To prevent damage to the electrical To minimize shock and re hazards, be sure components, have the unit plugged in directly...
  • Page 4 Caution! Caution! REFRIGERATION To prevent electrical shock and damage to Do not use the the electrical cord, please hold electrical cord the plug head when plugging or plug if they and unplugging the unit. are damaged in any way. To avoid personal injuries Avoid installing the from broken glass, unit where it could...
  • Page 5 Installation Guide Installation Guide REFRIGERATION Install the unit on a hard and level surface The unit should be at least 2” away from the or the unit could produce undesired noises. wall and the casters must be installed for ventilation and proper operation of the condensate evaporative system.
  • Page 6 PRODUCT LOAD LEVEL & SHELF PLACEMENT Product Load Level for ETB Series (Solid Door Models) 9” 9” 2” Front View Solid Door 9” Shelf Airflow Guard 9” Air Vent Airflow Front Rear Side View...
  • Page 7 PRODUCT LOAD LEVEL & SHELF PLACEMENT Product Load Level for ET Series (Solid Door Models) Shelf Load Level 9” Load Level 9” 2” Front View Door Airflow Guard Load Level 9” Load Level 9” Air Vent 2” Airflow Front Rear Side View...
  • Page 8 Maintenance Guide Maintenance Guide REFRIGERATION Shelf Cleaning Door Gasket Cleaning Periodically remove the shelves from the unit To preserve the life span of the door gasket and clean them clean the gasket with mild soap with mild soap and warm water. and water on a regular basis.
  • Page 9 Condenser Coil Maintenance Condenser Coil Maintenance REFRIGERATION Diagram ET-L-001-D1 Diagram ET-L-001-D2 ET Series Applicable Model Prefix: ET Model Shown: ETF2 IMPORTANT: Failure to clean the condenser coil will result in a void of warranty. Follow these simple steps at least once a month to ensure the proper operation of your Everest product. 1.
  • Page 10 Condenser Coil Maintenance Condenser Coil Maintenance REFRIGERATION A type Diagram ET-L-001-D3 B type Diagram ET-L-001-D4...
  • Page 11 Condenser Coil Maintenance Condenser Coil Maintenance REFRIGERATION Diagram ETB-L-001-D1 Diagram ETB-L-001-D2 ETB Series Applicable Model Prefix: ETB, EMGR5 Model Shown: ETBR2 IMPORTANT: Failure to clean the condenser coil will result in a void of warranty. Follow these simple steps at least once a month to ensure the proper operation of your Everest product. 1.
  • Page 12 Condenser Coil Maintenance Condenser Coil Maintenance REFRIGERATION Diagram ETB-L-001-D3 Diagram ETB-L-001-D4...

  • Page 13: Troubleshooting

    Trouble Shooting Trouble Shooting REFRIGERATION Please check the following before requesting service Symptom Possible Solutions Condensing unit a. Ensure the electrical cord has been connected. fails to start b. Ensure the unit is turned on. a. Check the door gaskets for proper seal. Cabinet does not b.
  • Page 14 Shelves Shelves REFRIGERATION Shelves The unit’s shelves are adjustable so that the refrigerated compartment can be configured to suit your needs. Shelf Clip The shelf clip pilasters are spaced and labeled in 1” increments for your convenience. 1” Pilaster To install a shelf, hook the shelf clips into the pilasters by inserting the top part of the clips first and then the bottom.
  • Page 15 Specifications Specification REFRIGERATION Back Mount Undercounter Refrigerators Model ETBR1 ETBSR2 ETBR2 ETBWR2 ETBR3 Capacity (Cu. Ft.) 10.3 18.3 Door(s) Shelves Compressor(Hp) 1/4+ Power (V-Hz-Ph) 115-60-1 115 -60-1 115-60-1 115-60-1 115-60-1 Temp. Range (°F) 32 ~ 42 32~ 42 32 ~ 42...
  • Page 16 Specifications Specification REFRIGERATION Side Mount Undercounters Refrigerators Model ETR1 ETR2 ETWR2 ETR3 Capacity (Cu. Ft.) Door(s) Shelves Compressor(Hp) 1/4+ 1/4+ 1/4+ Power (V-Hz-Ph) 115 -60-1 115-60-1 115-60-1 115-60-1 Temp. Range (°F) 32 ~ 42 32~ 42 32 ~ 42 32 ~ 42 Refrigerant R-134A R-134A...

  • Page 17: Temperature Setting

    Temperature Setting Temperature Setting REFRIGERATION [Analog Temperature Knob Setting] Applicable models: ETBR1, ETBSR2, ETBR2, ETBWR2, ETBR3 ETBF1, ETBSF2, ETBF2, ETBWF2, ETBF3 ETBR1-D2, ETBSR2-D2, ETBR2-D4, ETBWR2-D4, ETBR3-D2 REFRIGERATION ℉ [Temperature Setting Range] Setting Range Comp. REF( FZR( ℉ ℉ 1 ~ 3 3 ~ 5 -6.5...
  • Page 18 Temperature Setting - Continued Temperature Setting - Continued REFRIGERATION [Digital Temperature Setting] Applicable models: ETR1, ETR2, ETWR2, ETR3, ETF1, ETF2, ETWF2, ETF3, ETRF2, ETRF3 ETGSR2,ETGR2, ETGWR2 * LED Display Operation of compressor Current cabinet temperature * Control Buttons Power button Temperature setting button Defrost button * How to set desired temperature...
  • Page 19 Drawered Undercounter Refrigerator Drawer pans are not included in this product as standard, Customers need to purchase them separately. *Custom pan dividers required to t standard full sized pans. Contact manufacturer for details. ETBR1-D2 ETBSR2-D2 [Standard: (1) pan divider per drawer included]...
  • Page 20 REFRIGERATION Optional 4" high backsplash 2" 31 1/2" 27 3/4" 35 5/8" 26 1/2" 17" 17" ETBR1 / ETBF1 ETBSR2 / ETBSF2 47 1/2" 59 1/4" 71 1/8" 22 3/4" 22 3/4" 28 1/2" 28 1/2" 22 3/4" 22 3/4"...
  • Page 21 CAD Drawings - continued CAD Drawings - continued REFRIGERATION Optional 4" high backsplash 2" 31 1/2" 35 5/8" 22 3/4" ETR1 / ETF1 47 1/2" 59 1/4" 71 1/8" 17" 17" 22 3/4" 22 3/4" 18 3/4" 18 3/4" 18 3/4" ETR2 / ETF2 ETWR2 / ETWF2 ETR3 / ETF3...

  • Page 22: Critical Information

    Critical Information Critical Information REFRIGERATION The warranty card below must be submitted to Everest within thirty (30) days of purchase. WARRANTY REGISTRATION CARD Business Name : Telephone : ( Address : City : State : Zip : Place of Purchase : Date Purchased : Date Installed : Model No :...

  • Page 23: Warranty Certificate

    Warranty Certificate Warranty Certificate REFRIGERATION EVEREST LIMITED WARRANTY EVEREST warrants to the original purchaser of every new EVEREST unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by EVEREST and upon proper installation and start-up in accordance with the instruction packet supplied with each unit.
  • Page 24 REFRIGERATION REFRIGERATION A Step Above the Standard 201 W. Artesia Blvd., Compton CA 90220 Tel : 310-323-6586, 800-444-6285 Fax : 310-323-7524, 310-761-1127 Visit our website at www.EVERESTref.com...
