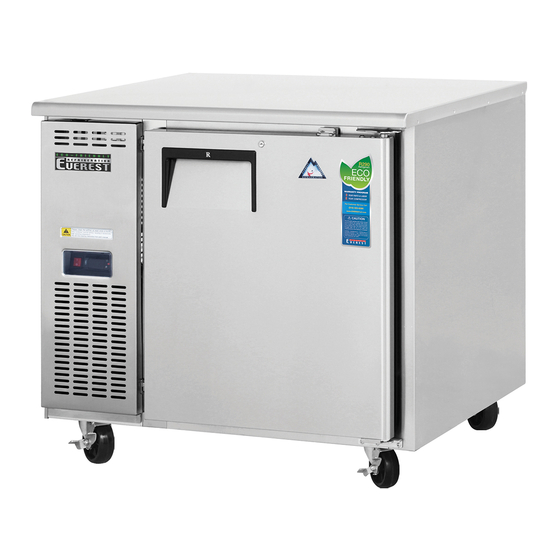

- Page 1 Undercounters Side Mounted Condensing Unit Owner’s Manual ETR1 , ETR1 -24 , ETR2, ETR2-24 , ETWR2, ETR3, ETF1 , ETF1 -24 , ETF2, ETF2-24 , ETWF2, ETF3, ETRF2, ETRF3, ETGSR2, ETGR2, ETGWR2 www.everestref .co m...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 3: Table Of Contents
Undercounters Side Mounted Condensing Unit ETR1 , ETR1 -24 , ETR2, ETR2-24 , ETWR2, ETR3 , ETF1 , ETF1 -24 , ETF2, ETF2-24 , ETWF2, ETF3 , ETRF2, ETRF3 , ETGSR2, ETGR2, ETGWR2 Contents 1. Hydrocarbon Guidelines 2. Installation Instructions 3. -
Page 4: Hydrocarbon Guidelines
1. Hydrocarbon Guidelines This section applies to R290 Hydrocarbon units only. To identify the refrigerant type, see the data plate in the cabinet interior. WARNING - THIS UNIT USES R290, A HYDROCARBON, PROPANE REFRIGERANT THAT IS ENVIRONMENTALLY FRIENDLY BUT IS ALSO HIGHLY FLAMMABLE AND EXPLOSIVE. PLEASE READ THIS MANUAL CAREFULLY AND FOLLOW ALL SAFETY PRECAUTIONS CONTAINED HEREIN TO AVOID THE RISK OF FIRE OR EXPLOSION. - Page 5 • General service and repairs must be performed in well-ventilated areas. • General service and repairs must be performed only by professionals authorized by Everest Refrigeration. • Component shall be replaced with Everest-issued, like components to minimize the risk of possible ignition resulting from incompatible parts or improper repairs.
-
Page 6: Installation Instructions
2. Installation Instructions This section applies to all Everest products. Correct installation ensures proper performance and longevity of your appliance. Professional installation by a trained refrigeration technician and electrician is recommended. Warranty is void if the following guidelines are not met. 1. - Page 7 Shelf Installation 1. Some models come standard with shelves, shelf clips and notched pilasters. Each shelf requires four clips. Attach the shelf clips onto the pilasters by inserting its top hook into a pilaster notch followed by the bottom hook. Do not use pliers or other crimping tools to modify the shape of the shelf clips.
- Page 8 Product Load Level & Shelf Placement ET Series (Solid Door Models) and ETG Series (Glass Door Models) Shelf Load Level 9” Load Level 9” 2” Front Front Rear Door Airflow Guard Load Level 9” Load Level 9” Air Vent 2” Side Airflow Installation Instructions...
-
Page 9: General Safety
• If you suspect a refrigerant leak or a compromised refrigeration system, disconnect the unit, and contact Everest Refrigeration immediately. • When disposing the unit, remove all doors and shelves to avoid any risk of injury or entrapment. Ensure that the refrigerant in the condensing unit is properly disposed of by a qualified refrigeration technician according... -
Page 10: Electrical Safety
4. Electrical Safety This section applies to all Everest products. Basic safety precautions must be observed when using electrical appliances in addition to the following. Warranty is void if these guidelines are not met. Do not use extension cords, adapter plugs or Everest units come as 115 volts, 60 hertz, single other third party electrical connections. -
Page 11: Operation
5. Operation Use your Everest product according to its intended functions. Warranty is void if the following guidelines are not met. Starting your Everest Product The default temperature setting is 35.0°F (2.0°C) for refrigerators and -4.0°F (-20.0°C) for freezers. The After plugging in the unit, the current temperature factory recommended temperature range is between 33.0°F (1.0°C) to 40.0°F (4.0°C) for refrigerators and... - Page 12 Carel ‘Easy’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date. Evaporator Fan Running Compressor Running Alarm in Progress Power / Up Button Temperature Set Button Cabinet Temperature Manual Defrost / Down Button...
- Page 13 Setting the Temperature ( continued ) 2. Toggle through the desired temperature by pressing UP or DOWN The number increases or decreases by a decimal point. 3. The recommended setting is 35.0°F (2.0°C) for refrigerators and -4.0°F (-20.0°C) for freezers. The available temperature setting range is 33.0°F to 54.0°F (1.0°C to 12.0°C) for Refrigerators and -10.0°F to 54.0°F (-23.0°C to 12.0°C) for Freezers.
- Page 14 Carel ‘ir33’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date Evaporator Fan Running Program Button Compressor Running Up Button / Alarm in Progress Auxillary Cabinet in Defrost Down Button /...
- Page 15 Initiating Manual Defrost The controller has an automatic defrost cycle in place so initiating manual defrost is not necessary unless there is an abnormal accumulation of ice around the evaporator coil. 1. Press and hold down the Manual Defrost Button until the Defrost Symbol appears on the LED display.
-
Page 16: Care And Maintenance
6. Care and Maintenance This section applies to all Everest products. Regular care and maintenance of your appliance will significantly extend service life and dependability. In severe cases, lack of upkeep will contribute to the rapid decline in performance and component health. Care and maintenance is the product owner’s personal responsibility. - Page 17 Condenser Coil Air Filter Cleaning Instructions R404A freezer models are equipped with a condenser coil air filter. R290 refrigerator models are not equipped with a condenser coil air filter. If your product is an R290 refrigerator model, you may skip this section. The condenser coil air filter requires monthly cleaning to keep the mesh clear of lint, dust and grease build-up.
- Page 18 Condenser Coil Cleaning Instructions It is necessary to clean the condenser coil of R290 refrigerator models that are not equipped with a condenser coil air filter or R404 freezer models equipped with a condenser coil air filter if the space that the unit is installed in has a higher than normal amount of dust and grease content.
-
Page 19: Troubleshooting Guide
7. Troubleshooting Guide In most cases, your Everest product may be exhibiting behavior that is typical of standard operation. Observe the following when troubleshooting symptoms. ‘cht’ or ‘CHt’ appears on the LED alternating The compressor operates continuously or for with the current temperature and accompanied prolonged periods. - Page 20 The cabinet temperature is too warm. Condensation in the interior cabinet. The condenser coil may be clogged with dust, The door / drawer or gaskets may not be sealing grime or debris. Clean it following the instructions in properly. If the gasket is loose, reattach. Check product Chapter 6.
-
Page 21: Warranty Information
Warranty Registration Registering your new appliance is important. In the unlikely event a safety notification or warranty service is required, we will have the means to contact you. Your completed appliance registration also verifies your ownership in the event of an insurance loss or theft. You may register online at www.EVERESTref.com or use your smart phone to scan the QR code below: 8. - Page 22 Warranty Certificate EVEREST warrants to the first purchaser of every new EVEREST unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by EVEREST and upon proper installation and start-up in accordance with the instruction packet supplied with each unit.
- Page 23 A Step Above The Standard 201 W. Artesia Blvd., Compton, CA 90220 Tel: 800-444-6285 / 310-323-6586 Fax: 310-323-7524 / 310-761-1127 www.EVERESTref.com...
