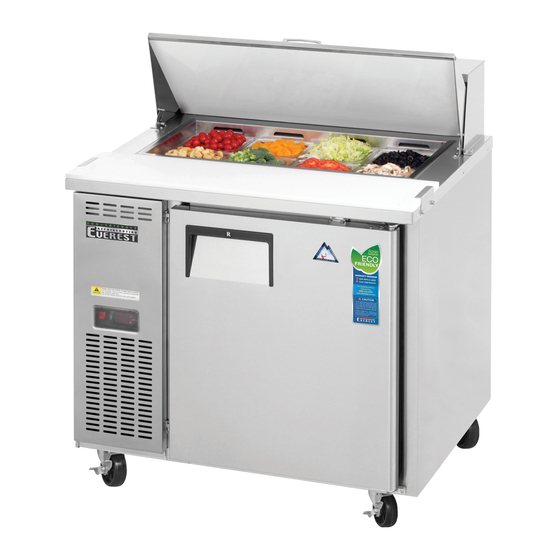

EVEREST REFRIGERATION EPR1-24 Owner's Manual

Hide thumbs

Table Of Contents

Quick Links

Food Prep Table Refrigerators

Side Mounted Condensing Unit

Owner's Manual

EPR1, EPR1-24, EPR2, EPR2-24, EPWR2, EPR3,

EPPR1, EPPSR2, EPPR2, EPPR3, EPPR1-D2,

EPPR2-D2, EPPR2-D4, EPPR3-D2, EPPR3-D4

www.everestref.com

Table of Contents

Need help?

Do you have a question about the EPR1-24 and is the answer not in the manual?

Questions and answers

Summary of Contents for EVEREST REFRIGERATION EPR1-24

Page 1 Food Prep Table Refrigerators Side Mounted Condensing Unit Owner’s Manual EPR1, EPR1-24, EPR2, EPR2-24, EPWR2, EPR3, EPPR1, EPPSR2, EPPR2, EPPR3, EPPR1-D2, EPPR2-D2, EPPR2-D4, EPPR3-D2, EPPR3-D4 www.everestref.com...
Page 2 this page intentionally left blank...
Page 3: Table Of Contents
Food Prep Table Refrigerators EPR1, EPR1-24, EPR2, EPR2-24, EPWR2, EPR3, EPPR1, EPPSR2, EPPR2, EPPR3, EPPR1-D2, EPPR2-D2, EPPR2-D4, EPPR3-D2, EPPR3-D4 Contents 1, 2 Hydrocarbon Guidelines �� 3, 4 Installation Instructions �� General Safety �� Electrical Safety �� 11–15 Operation �� 16,17 Care and Maintenance ��...
Page 4: Hydrocarbon Guidelines
Hydrocarbon Guidelines This section applies to R290 Hydrocarbon units only. To identify the refrigerant type, see the data plate in the cabinet interior. WARNING - THIS UNIT USES R290, A HYDROCARBON, PROPANE REFRIGERANT THAT IS ENVIRONMENTALLY FRIENDLY BUT IS ALSO HIGHLY FLAMMABLE AND EXPLOSIVE. PLEASE READ THIS MANUAL CAREFULLY AND FOLLOW ALL SAFETY PRECAUTIONS CONTAINED HEREIN TO AVOID THE RISK OF FIRE OR EXPLOSION.
Page 5 PROPANE (R290) IS HIGHLY APPROVED FOR USE AS A REFRIGERANT IN COMMERCIAL, SELF-CONTAINED UNITS IN THE US UNDER LIMITED USE CONDITIONS. IT CAN ONLY BE USED IN NEW EQUIPMENT. BACKFITTING OR MODIFICATIONS OF OLD EQUIPMENT ARE NOT ALLOWED. IT MUST BE CHARGED IN A STRICTLY LIMITED VOLUME OF UP TO 150 GRAMS (5.3 OZ) PER REFRIGERATION CIRCUIT.
Page 6: Installation Instructions
Installation Instructions This section applies to all Everest products. Correct installation ensures proper performance and longevity of your appliance. Professional installation by a trained refrigeration technician and electrician is recommended. Warranty is void if the following guidelines are not met. 1.
Page 7 Shelf Installation Some models come standard with shelves, shelf clips and notched pilasters. Each shelf requires four clips. 1. Attach the shelf clips onto the pilasters by inserting its top hook into a pilaster notch followed by the bottom hook. Do not use pliers or other crimping tools to modify the shape of the shelf clips.
Page 8 Product Load Levels EP Series Shelf Load Level 9” Load Level 9” 2” Front View Door Airflow Guard Load Level 9” Load Level 9” Air V ent 2” Airflow Side View Rear Front Installation Instructions...
Page 9 EPPR3 Top Pan Configurations All food prep. table models come standard with top pans and pan dividers. Follow the top pan Standard: configuration shown in the illustration. Always keep pans in their slots even when empty. (12) 1/3 size pans (6" deep) w/ (9) pan dividers This ensures that refrigerated air does not escape.
Page 10 Top Pan Configurations (Continued) EPWR2 † Standard: (16) 1/6 size pans (6" deep) w/ (7) pan dividers EPR3 † 1/ 6 Standard: (18) 1/6 size pans (6" deep) w/ (8) pan dividers Side Mount Pizza Prep. Tables Side Mount Pizza Prep. Tables Side Mount Pizza Prep.
Page 11 Standard: (9) 1/3 size pans (6" deep) Standard: w/ (7) pan dividers (4) 1/3 size pans (6" deep) w/ (3) pan dividers Drawered Pan Configurations EPPR3 EPPSR2 Some food prep. models are equipped with drawers. Drawer pans are not included with the 1/4 1/6 product as standard and must be purchased separately.
Page 12: General Safety
• If you suspect a refrigerant leak or a compromised refrigeration system, disconnect the unit, and contact Everest Refrigeration immediately. • When disposing the unit, remove all doors and trays to avoid any risk of injury or entrapment.
Page 13: Electrical Safety
Electrical Safety This section applies to all Everest products. Basic safety precautions must be observed when using electrical appliances in addition to the following. Warranty is void if these guidelines are not met. Everest units come as 115 volts, 60 hertz, Do not use extension cords, adapter plugs or single phase.
Page 14: Operation
Operation Use your Everest product according to its intended functions. Warranty is void if the following guidelines are not met. Starting your Everest Product After plugging in the unit, the current temperature and compressor symbol will appear on the digital temperature control’s LED display. will flash at short intervals for 1 minute after which the compressor(s) and condenser fan motor(s) will initiate.
Page 15 Carel ‘Easy’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date. Evaporator Fan Running Compressor Running Alarm in Progress Power / Up Button Temperature Set Button Cabinet Temperature Manual Defrost / Down Button...
Page 16 Setting the Temperature ( continued ) 2. Toggle through the desired temperature by pressing UP or DOWN The number increases or decreases by a decimal point. 3. The recommended setting is 35.0°F (2.0°C) for refrigerators and -4.0°F (-20.0°C) for freezers. The available temperature setting range is 33.0°F to 54.0°F (1.0°C to 12.0°C) for Refrigerators and -10.0°F to 54.0°F (-23.0°C to 12.0°C) for Freezers.
Page 17 Carel ‘ir33’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date Evaporator Fan Running Program Button Compressor Running Up Button / Alarm in Progress Auxillary Cabinet in Defrost Down Button /...
Page 18 Initiating Manual Defrost The controller has an automatic defrost cycle in place so initiating manual defrost is not necessary unless there is an abnormal accumulation of ice around the evaporator coil. 1. Press and hold down the Manual Defrost Button until the Defrost Symbol appears on the LED display.
Page 19: Care And Maintenance
Care and Maintenance This section applies to all Everest products. Regular care and maintenance of your appliance will significantly extend service life and dependability. In severe cases, lack of upkeep will contribute to the rapid decline in performance and component health. Care and maintenance is the product owner’s personal responsibility.
Page 20 Condenser Coil Air Filter Cleaning Instructions It is necessary to clean the condenser coil monthly to ensure that it is free of lint, dust and grease build-up. Warranty is void if the following guidelines are not met. 1. Ensure that the unit is disconnect from the outlet before performing maintenance.
Page 21: Troubleshooting Guide
Troubleshooting Guide In most cases, your Everest product may be exhibiting behavior that is typical of standard operation. Observe the following when troubleshooting symptoms. ‘Cht’ or ‘cHt’ appears on the LED alternating The power cord may not be connected. Check with the current temperature and accompanied for proper connection.
Page 22 The unit may be installed without clearance or The unit may be installed without clearance or proper ventilation. This forces the compressor to proper ventilation. Provide additional exhaust vents operate constantly in order to maintain cabinet and observe the allowance specified on page (3). temperature.
Page 23 Highly humid environments will contribute to the condensation build up on exterior panels. Providing ample ventilation and air movement to a space will reduce the humidity level. The door, drawer or gaskets may not be sealing properly. If the gasket is loose, reattach. Check product placement in the cabinet as it may prevent the drawer from fully closing.
Page 24: Warranty Information
Warranty Registration Registering your new appliance is important. In the unlikely event a safety notification or warranty service is required, we will have the means to contact you. Your completed appliance registration also verifies your ownership in the event of an insurance loss or theft. You may register online at www.EVERESTref.com or use your smart phone to scan the QR code below: 8.
Page 25 Warranty Certificate EVEREST warrants to the first purchaser of every new EVEREST unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by EVEREST and upon proper installation and start-up in accordance with the instruction packet supplied with each unit.
Page 26 A Step Above The Standard 201 W. Artesia Blvd., Compton, CA 90220 Tel: 800-444-6285 / 310-323-6586 Fax: 310-323-7524 / 310-761-1127 www.EVERESTref.com v10419...
