ATTACH YOUR RECEIPT HERE AND REGISTER YOUR FAN AT FANIMATION.COM
READ AND SAVE THESE INSTRUCTIONS
Date Code
For best and quickest service please provide date code. You can find the date code on the carton
or top of fan housing.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-567-2055, 8 a.m.-5 p.m., EST, Monday-Friday.
Purchase Date

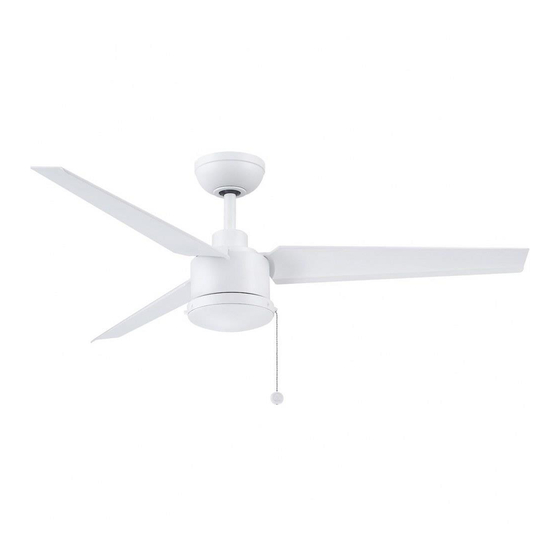

PC/DC NL CEILING FAN
™
Net Weight 13.23 lbs (6.00 kgs)
MODEL #FPD7617**
Español p. 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPD7617 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fanimation FPD7617 Series

Summary of Contents for Fanimation FPD7617 Series

  • Page 1 PC/DC NL CEILING FAN ™ MODEL #FPD7617** Español p. 21 ATTACH YOUR RECEIPT HERE AND REGISTER YOUR FAN AT FANIMATION.COM READ AND SAVE THESE INSTRUCTIONS Date Code Purchase Date Net Weight 13.23 lbs (6.00 kgs) For best and quickest service please provide date code. You can find the date code on the carton or top of fan housing.
  • Page 2 Important Safety Instructions WARNING: To avoid fire, shock and serious personal injury, follow these instructions. 1. Read your owner’s manual and safety information before installing your new fan. Review the accompanying assembly diagrams. 2. Before servicing or cleaning unit, switch power off at service panel and lock service panel disconnecting means to prevent power from being switched on accidentally.

  • Page 3: Table Of Contents

    1. LIMITED LIFETIME MOTOR WARRANTY - If any part of your fan motor fails, due to a defect in materials or workmanship during the lifetime of the original purchaser, Fanimation will provide the replacement part free of charge, when the defective fan is returned to our national service center.

  • Page 4: Unpacking Instructions

    Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Contact your retail store for missing or damaged parts.

  • Page 5: Energy Efficient Use Of Ceiling Fans

    8 - 9 feet from floor to the blade for optimal ceiling fan at low speed in the clockwise direction. airflow. Consult your Fanimation Retailer for optional mounting accessories. This produces a gentle updraft, which forces warm air near the ceiling down into the occupied space.
  • Page 6 Electrical and Structural Requirements (Continued) Deep box with brace (Figure 3) Paired with a deep box, this hanger is meant to span CEILING JOIST between two joists and takes the place of wooden blocking. WARNING To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked acceptable for fan support of 15.9 kg (35 lbs) or less and use mounting screws provided with the outlet box.

  • Page 7: How To Assemble Your Ceiling Fan

    How to Assemble Your Ceiling Fan Remove the hanger ball portion from the downrod/ hanger ball assembly by loosening the set screw in the hanger ball until the ball falls freely down the downrod. Hanger Remove the pin from the downrod, then remove the Ball hanger ball.
  • Page 8 How to Assemble Your Ceiling Fan (Continued) 5. Route wires and safety cable through motor coupling cover, canopy screw cover and ceiling canopy. (Figure 5) Ceiling Canopy Canopy Screw Cover Motor Coupling Cover Figure 5 Reinstall the hanger ball on the downrod as follows. Route the black, white wires and safety cable through the hanger ball.

  • Page 9: How To Hang Your Ceiling Fan

    How to Hang Your Ceiling Fan WARNING To avoid possible fire or shock, be sure electricity is turned off at the main fuse box before hanging. Main Fuse Box (Figure 1) NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be Figure 1 grounded for safe operation.

  • Page 10: How To Wire Your Ceiling Fan

    How to Hang Your Ceiling Fan (Continued) WARNING To avoid possible shock, do not pinch wires between the hanger ball assembly and the hanger bracket. WARNING Failure to seat tab in groove could cause damage to electrical wires and possible shock or fire hazard. Attach Safety Carefully lift the fan and seat the downrod/hanger Cable To Ceiling...
  • Page 11 How to Wire Your Ceiling Fan (Continued) After connections have been made, taking care not Green Wire to pinch the wires and put the white and green leads from Supply White Wire (Ground) to one side and the black leads towards the other side, Listed from Supply Outlet Box...

  • Page 12: How To Install Your Canopy Housing

    How to Install Your Canopy Housing NOTE: This step is applicable after the neccessary wiring is completed. Assemble canopy by rotating key slot in canopy over shoulder screw in hanger bracket, taking care not to pinch the wires. Tighten shoulder screw. Fully Ceiling assemble and tighten second shoulder screw that was Canopy...

  • Page 13: How To Install Your Switch Cover Assembly

    How to Install Your Switch Cover Assembly Remove one of the three screws in the support bracket of motor. Slightly loosen the remaining two screws. Assemble the switch housing to the support bracket using the two key slots in the switch housing. Replace the third screw and securely tighten all three screws.

  • Page 14: How To Operate Your Ceiling Fan

    How to Operate Your Ceiling Fan 1. Restore electrical power to the outlet box by turning the electricity on at the main fuse box. (Figure 1) Main Fuse Box Figure 1 2. Install the fan fob and pull chain coupler. (Figure 2) HARDWARE USED: Fan Fob Pull Chain Coupler...

  • Page 15: Maintenance

    Maintenance Periodic cleaning of your new ceiling fan is the only CAUTION maintenance necessary. When cleaning, use only a soft brush or lint free cloth to Do not use solvents when cleaning your ceiling fan. It avoid scratching the finish. could damage the motor or the blades and create the possibility of electrical shock.

  • Page 16: Parts List

    Before discarding packaging materials, be certain all parts have been removed. How To Order Parts When ordering repair parts, always give the following information: • Fan Model Number • Part Number • Part Description • Date Code Contact techsupport@fanimation.com or call 1.888.567.2055 for repair parts.

  • Page 17: Exploded-View Illustration

    PC/DC NL ™ Model FPD7617** Exploded-View Illustration NOTE: The illustration shown is not to scale or its actual configuration may vary. Product/parts are subject to change without notice.

  • Page 18: Troubleshooting

    4. Hanger bracket and/or ceiling outlet box is not 4. Tighten the hanger bracket screws to the outlet box, securely fastened. and secure outlet box. 1. If possible, consider using a longerdownrod (not 4. NOT ENOUGH AIR included, you can buythe longer downrod from MOVEMENT. fanimation.com).
  • Page 20 10983 Bennett Parkway Zionsville, IN 46077 Phone: 888-567-2055 Outside U.S.: 317-733-4113 FAX: 866-482-5215 2022/02 V.01 FANIMATION.COM Copyright 2022 Fanimation...
