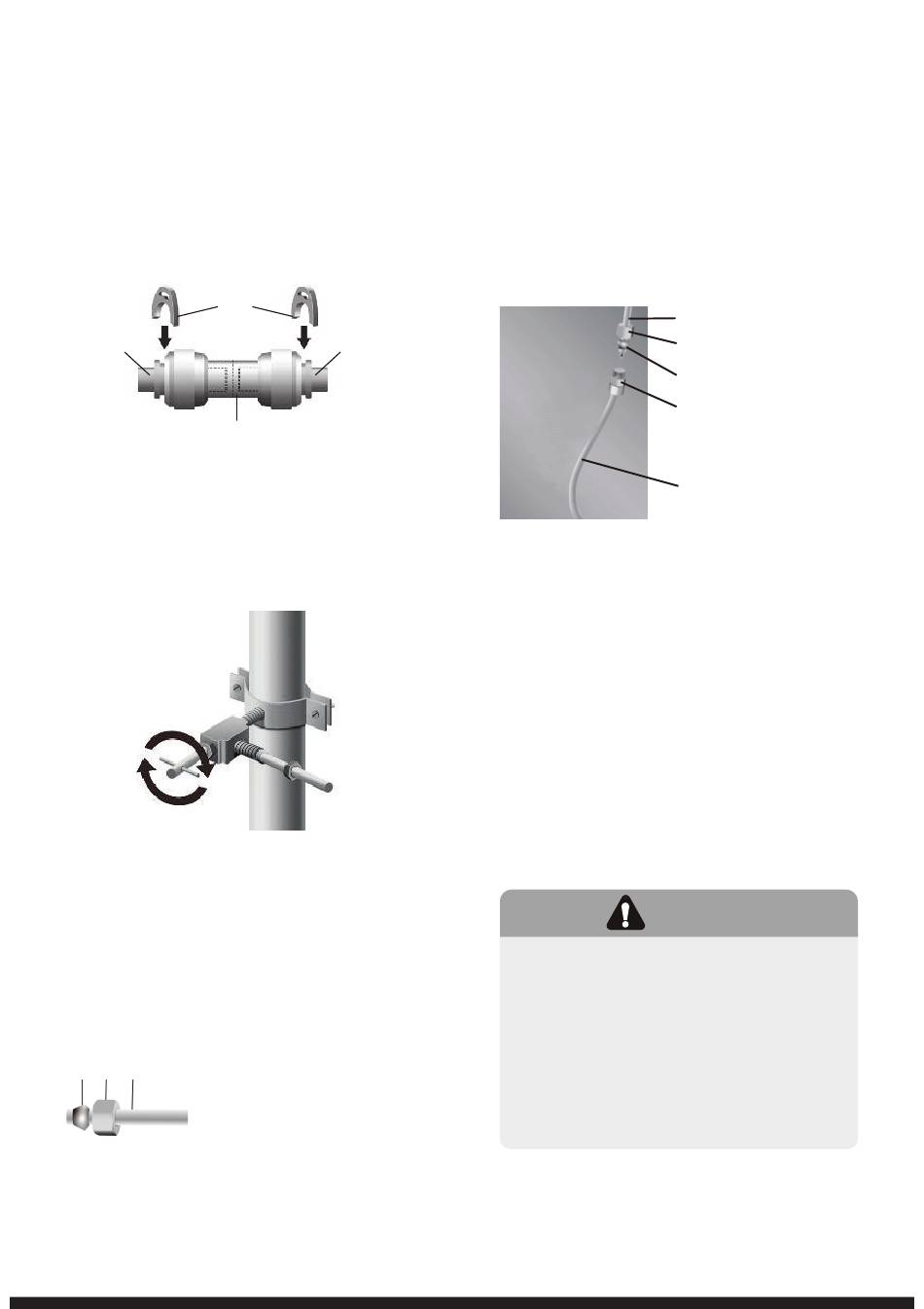

5.Connect the extension tubing line with
the line on the back of the fridge via
the coupler. Fully insert the extension
tubing into the coupler, and then insert
the clip onto the coupler to lock in the
tubing. Do the same with the other
end. After both clips are inserted,
check the line to make sure it is held
firmly by the clips.
Clip
Water line
Coupler
Note:
Ensure that the water line does not get
pinched or bent when installing.
This can result in improper water flow
through the line and will affect the
functionality of the fridge.
6. Turn the water on and check for
leakage.
Connect Water Line to Refrigerator
IMPROTANT: If you turn the refrigerator on
before the water is connected,turn off the
ice maker.
1. You may need to purchase below items
to complete this connection. And you
may find these items sold as a kit at a
local hardware store.
a b c
a
Ferrule (Sleeve) -1 pcs
b
1/4"
c
1/4"
2. Unplug refrigerator or disconnect power.
3. Close shutoff value.
Water line
Compression Nut - 1 pcs
Water Line -1 pcs
4.
Thread a 1/4 " compression nut and ferrule
(sleeve) onto the free end and of 1/4"
water line.
Insert the free and of the 1/4" water line
5.
into the brass fitting attached to the water
inlet on the back of the refrigerator.
6. Slide the 1/4" compression nut over the
ferrule (sleeve) and screw the 1/4"
compression nut onto the brass ftting.
7. Comfirm 1/4" water line is secure by gently
pulling on it.
8. Turn on water supply and check for leaks.
Correct any leaks
Note:
Use only the new tubing supplied with the
refrigerator. Old tubing should not be used.
After connected to the water supply line,
please open the water valve to flush the
filter for 5 minutes before use.
The initial dark discoloration of water is
normal.
WARNING!
The water line must be connected
to the cold water pipe. If it is
connected to the hot water pipe,
it may cause the purifier to
malfunction.
Avoid contamination of pipes
during installation.
Connect to potable water supply
only.
c
b
a
c
1/4" Water Line
d
b
1/4" Compression
Nut
a
Ferrule(Sleeve)
d
e
Brass Fitting
e
Water Inlet
