Control 4 T4 Series Installation Manual page 4

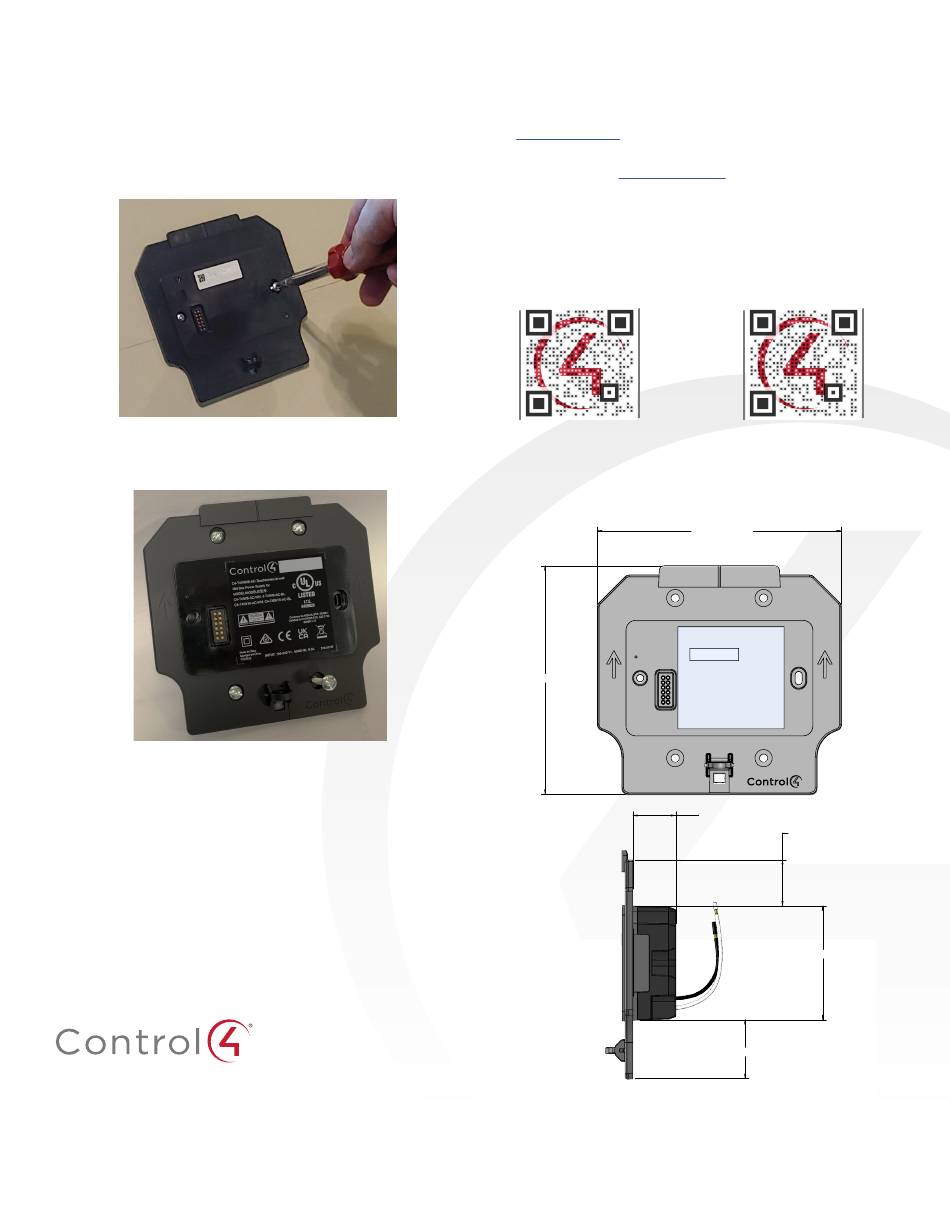

Attach the power box and touchscreen
To install the power box into the wall box:
1 Align and bend the wires to fit them inside the wall box.
2 Slide the power box into the wall box, then secure the power box
to the wall box using the two screws provided (Figure 6).
Figure 6: Secure power box to wall box
OR, if using a standard double-gang wall box, use the four screws
provided (Figure 7).
Figure 7: Secure power box to wall box
Caution: Do not use an electric driver to tighten the screws.
Overtightening can result in the power box becoming slightly
warped, resulting in a poor electrical docking connection. Use only
a hand screwdriver to tighten the screws.
Tip: If overtightened screws result in the power box warping,
loosen the screws until the power box is flush to the wall.
Note: The power box must be installed straight, level, and flush to
the wall. The mounting holes of the power box may be drilled out
using a 5 mm (7/32" ) drill bit to align with the holes in the wall
box. This may be needed if the wall box is not installed squarely or
is misaligned during installation of drywall
3 See your touchscreen installation guide for information on
touchscreen setup:
• T4 POE installation guide:
• T4 AC installation guide:
