Page 1: Speed Dome Camera Accessories

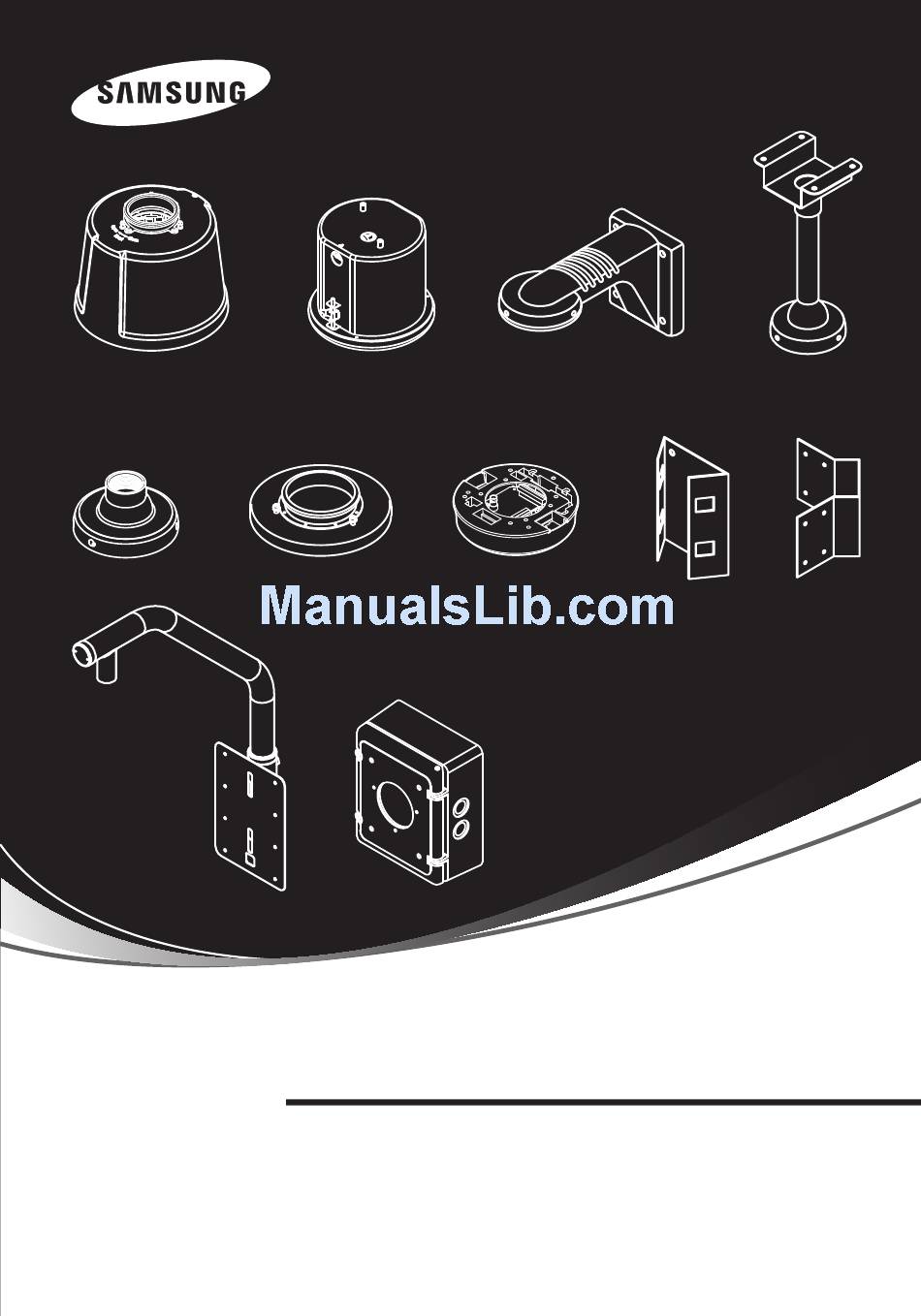

Before attempting to operate this product, please read the instructions carefully. SPD-3750T/3750/3700T/3700/3350/3310/2510 Speed Dome Camera Accessories Installation Manual STH-380PO/STH-370PO/STH-360PO STH-370PI/STH-370PE STB-370PC/STH-270PWV/STB-496PPV STB-25PF/STB-30PF/STB-350PPM STB-330PPM/STB-340PCM/STB-270B... -
Page 2: Table Of Contents
- The power and cable connections should be made by a product installation specialist. - Do not connect and use these accessories to products other than the Samsung Speed Dome Camera Series. - The locations for installing the accessory housing should be strong enough to fully secure the accessories. -
Page 3: Product Category
: This “Ceiling Type Mount” is used for the installation of STH-380PO,STH-370PO,STH-360PO,STH-370PI and STB-25PF of the Samsung Speed Dome Camera. STB-25PF : This “Indoor Flange” for the Samsung Speed Dome Camera is useful to install the camera without a housing. SPEED DOME CAMERA ACCESSORIES... -
Page 4: Speed Dome Camera Installation Category
Product Category STB-30PF : “Ceiling Type Flange” for the Samsung Speed Dome Camera. STB-350PPM : Parapet Mount” for the installation of indoor or outdoor housing of Samsung Speed Dome Camera STB-330PPM : “Pole Mount” for the Samsung Speed Dome Camera. -
Page 5: Pendant Type Installation
Pendant Type Installation ■ 3. Pendant Type Installation ■ 3.1 Wall Mount Type Installation SPEED DOME CAMERA ACCESSORIES 1. Securing Wall Bracket and Wiring As shown in the picture, secure the wall bracket to the wall, and then pull the wires out of the bracket. - Page 6 • N eglectingthiscautionmayexposeyoutoinjurycausedbyafallenhousing. 4. Assembling Housing and Bracket After hooking the safety cable, fit the housing into the fixture grooves on the bracket as shown in the picture. When attaching, locate the "Samsung" logo on the housing facing the center front. Logo SPEED DOME CAMERA ACCESSORIES 5.
-
Page 7: Camera Wiring Diagram
Pendant Type Installation ✽ Camera Wiring Diagram This wiring diagram indicates the connection between the interface board and external equipment. For wiring Samsung Techwin’s Speed Dome Camera and the accessories, please refer to the Speed Dome Camera user’s manual. Video Output... -
Page 8: Ceiling Mount Type Installation
INTERNAL Stabilizer ③ Image Adj Freeze Dome Cover Outer SPEED DOME CAMERA ACCESSORIES ■ 3.2 Ceiling Mount Type Installation This guideline is based on the installation of the ceiling flange STB-30PF. UNLOCK Pendant Type Installation STH-380PO STH-370PO... -
Page 9: Indoor Flange Mount Type Installation
✽ For the next installation procedures, refer to the “Wall Type Housing” installation from step 2. SPEED DOME CAMERA ACCESSORIES Pendant Type Installation ■ 3.3 Indoor Flange Mount Type Installation... - Page 10 First hook the safety cable on the mount, and then fit the housing into the fixture groove on the bracket as shown in the picture. Once the housing is safely attached to the bracket, secure the housing with the enclosed screws. CLOSE SPEED DOME CAMERA ACCESSORIES Pendant Type Installation Notes • D onotconnectthecameratoapoweroutletuntiltheinstallationiscomplete.Supplying power in the middle of the installation may cause fire or damage the product.
-
Page 11: On-Ceiling Mount Type Installation
Unlock Button To attach the camera To detach the camera SPEED DOME CAMERA ACCESSORIES On-Ceiling Mount Type Installation ■ 4. On-Ceiling Mount Type Installation This guideline is based on the installation of the indoor flange STB-370PC. - Page 12 Notes • D onotconnectthecameratoapoweroutletuntiltheinstallationiscomplete.Supplying power in the middle of the installation may cause fire or damage the product. SPEED DOME CAMERA ACCESSORIES On-Ceiling Mount Type Installation 3. Setting Up Camera DIP Switches DIP switches for communication and ID protocols are located on the bottom of the camera.
-
Page 13: Indoor Flush Mount Type Installation
Unlock Button To attach the To detach the camera camera SPEED DOME CAMERA ACCESSORIES Indoor Flush Mount Type Installation ■ 5. Indoor Flush Mount Type Installation This guideline is based on the installation of the flush mount STH-370PE. UNLOCK STH-370PE... - Page 14 Notes • D onotconnectthecameratoapoweroutletuntiltheinstallationiscomplete.Supplying power in the middle of the installation may cause fire or damage the product. SPEED DOME CAMERA ACCESSORIES Indoor Flush Mount Type Installation 4. Preparing Housing Open the hinged door at the bottom of the housing.
- Page 15 Cable Alignment Direction Guides ✽ To attach the camera to the mount, refer to the alignment guide marks as shown in the picture. SPEED DOME CAMERA ACCESSORIES Indoor Flush Mount Type Installation Notes • M akesuretofirsthookthecamera'ssafetycabletothemountbeforeproceeding.Otherwise youmaybeexposedtoseriousinjurycausedbyafallencamera.
-
Page 16: Mounting Accessory Installation
Mounting Accessory Installation ■ 6. Mounting Accessory Installation This guideline is to be used for the installation of mounting accessories for the Samsung Speed Dome Camera series. STB-350PPM STB-340PCM SPEED DOME CAMERA ACCESSORIES Mounting Accessory Installation ■ STB-270B(Setup Box) 1. Using self drilling screws, secure the install bracket. - Page 17 3. Use 1/4" screws to secure the STH-270PWV to the corner. Wall type mount 1/4" SCREW : 4EA SPEED DOME CAMERA ACCESSORIES Mounting Accessory Installation ■ STB-350PPM (Parapet Mount) Compatible Models : STB-30PF+STH-380PO/370PO/360PO/370PI 1. Drill 8 anchor bolt holes on the wall according to the holes in the parapet mount.
-
Page 18: Product External Dimensions
Product External Dimensions Product External Dimensions Unit : mm Unit : mm ■ Wall Mounting ■ Ceiling Mounting ■ Ceiling Exposed Mounting ■ Indoor Flush Mounting SPEED DOME CAMERA ACCESSORIES SPEED DOME CAMERA ACCESSORIES... -
Page 19: Sth-370Po
IP 67 roof Weight (Net) 3.2kg 3.2kg 3.2kg Weight 4.2kg 4.2kg 4.1kg (Gross) Dimensions Φ242x284.5 Φ242x284.5 Φ242x284.5 (mm) SPEED DOME CAMERA ACCESSORIES Model STH-370PE STH-360PO Item Operating Temperature -10℃~50℃ -20℃~50℃ Range 1 to 90%RH Humidity 0 to 90%RH (non-condensing) Embedded Housing E.G.I (1.2t) - Page 20 MEMO MEMO...
