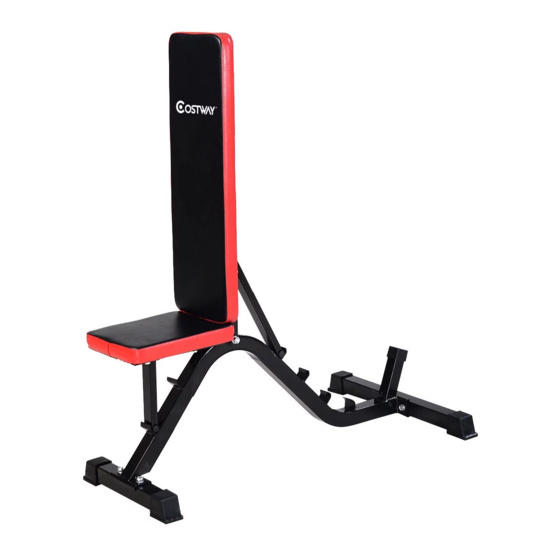

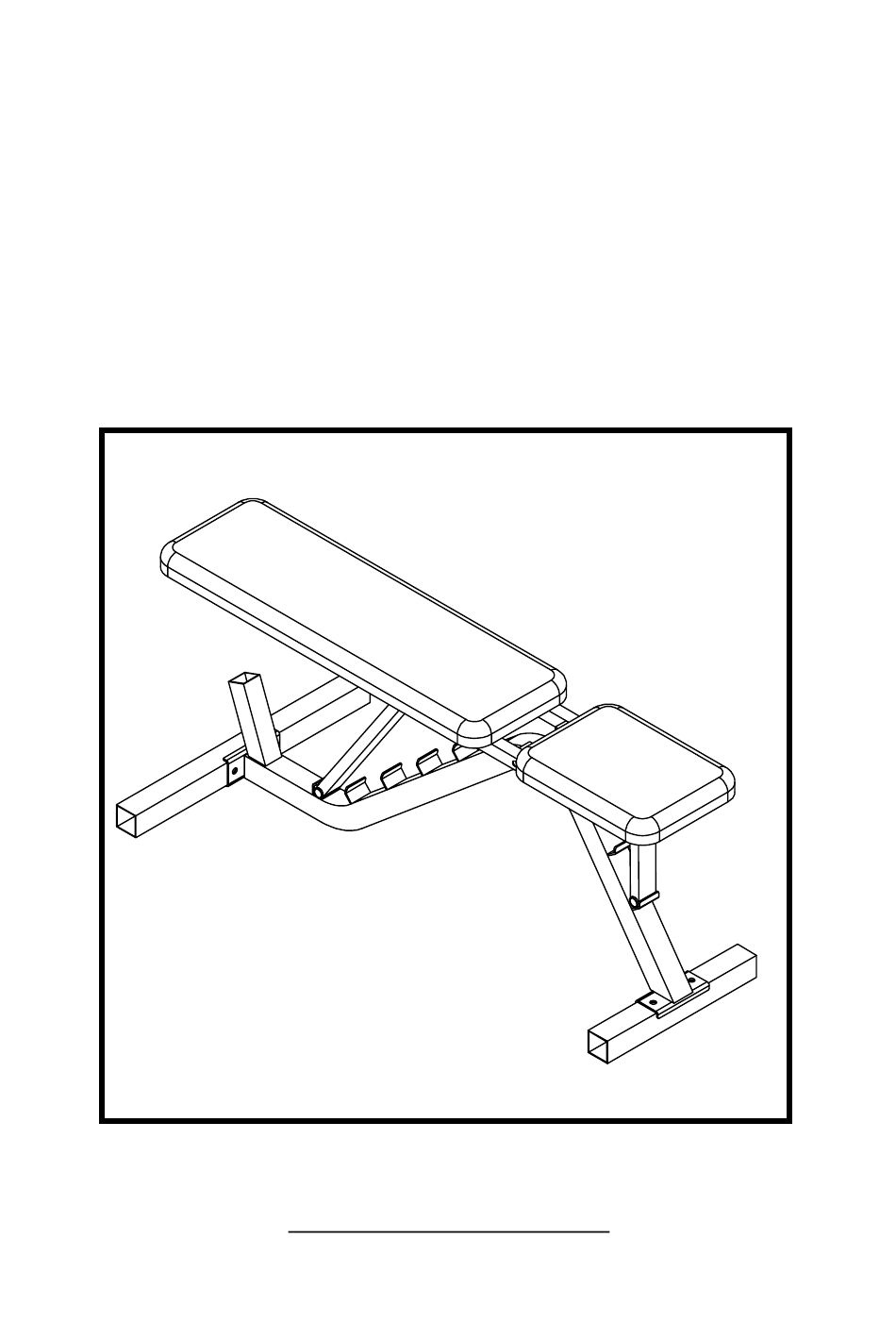

- Page 1 FID BENCH SP34824 Assembly Instruction Version 150831...
- Page 2 EXPLODED-VIEW ASSEMBLY DRAWING Part List Item Description Q’ty Main Frame Backrest Tube Backrest Support Tube Seat Tube Seat Support Tube Back Base Tube Front Base Tube Backrest Seat M10X175 Hex Bolt M10X125 Hex Bolt M10X60 Hex Bolt M10 Washer M10 Nylon Nut M8X40 Hex Bolt M8 Washer...
- Page 3 ASSEMBLY DRAWING Step 1 Assembly of the stand frame 1) Screw together the front base tube (7) with main frame (1), secured with hex bolt (12-2pcs), washer (13-4pcs) and nylon nut (14-2pcs). 2) Screw together the back base tube (6) with main frame (1), secured with hex bolt (12-2pcs), washer (13-4pcs) and nylon nut (14-2pcs).
- Page 4 Assembly of the backrest tube 1) Attach the backrest tube (2) and seat tube (4) to the main frame (1), secured with hex bolt (10-1pc), washer (13-2pcs) and nylon nut (14-1pc). 2) Attach the backrest support tube (3) and backrest tube (2), secured with hex bolt (10-1pc), washer (13-2pcs) and nylon nut (14-1pc).
