Holybro Kopis X8 Cinelifter 5" Assembly Manual

Kopis X8 Cinelifter 5" ( Caged Version ) Assembly Guide

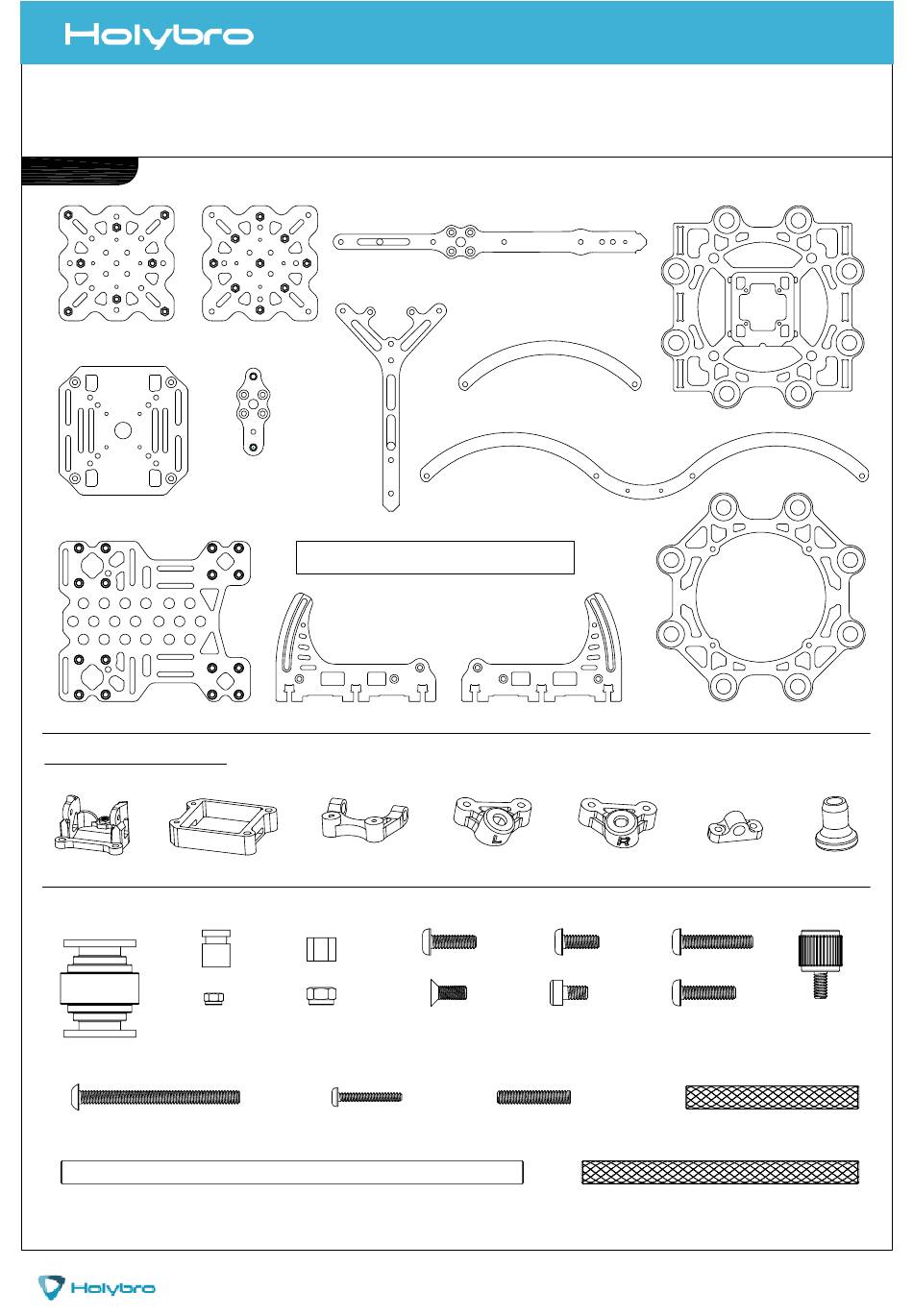

PART LIST
（ With 9 Pressure riveting nut ）
#510204 Upper Plate
#510207 Bottom Plate #510215 Motor Holder 8pcs
#510155 Camera Mounting Plate
#31117 TPU 3D print set 17pcs
FPV Camera Mount
Gummie M8
Gummie M3
9pcs 8pcs
Locknut M2
4pcs
Screw M3*35 4pcs
Aluminum Standoffs M3*100 4pcs
#510205 Lower Plate
#510213 Arm
#510214 Reinforcement Arm 4pcs
#510217 Carbon fiber tube （ 7mm×60mm ）
#510212 Side Support Plate （ R ）
GPS Holder Antenna Holder
Nylon Standoff
M3*5 4pcs
Locknut M3
17pcs
Screw M2*14
4pcs
#510223 Carbon fiber Cage-Short 4pcs
4pcs
（ 1 ∶ 1 ）
#510211 Side Support Plate （ L ）
SMA Antenna Mount （ L ）
Screw M3*10 Screw M3*8
10pcs 50pcs
Flat Head Screw Socket Cap Screw
M3*8 4pcs M3*5 34pcs
4pcs Metal Stud M3*16
（ 1 ∶ 1 ）
P a g e | 1
#510210 Bottom Support Plate
#510222 Carbon fiber Cage-Long 4pcs
#510209 Top Plate
SMA Antenna Mount （ R ） Positioning Sleeve
8pcs
Screw M3*16
4pcs
Screw M3*12
26pcs
22pcs Aluminum Standoffs
Aluminum Standoffs
Landing Gear 4pcs
Hand Screw
M3*8 2pcs
M3*37.5 34pcs
M3*60 4pcs
www.holybro.com
