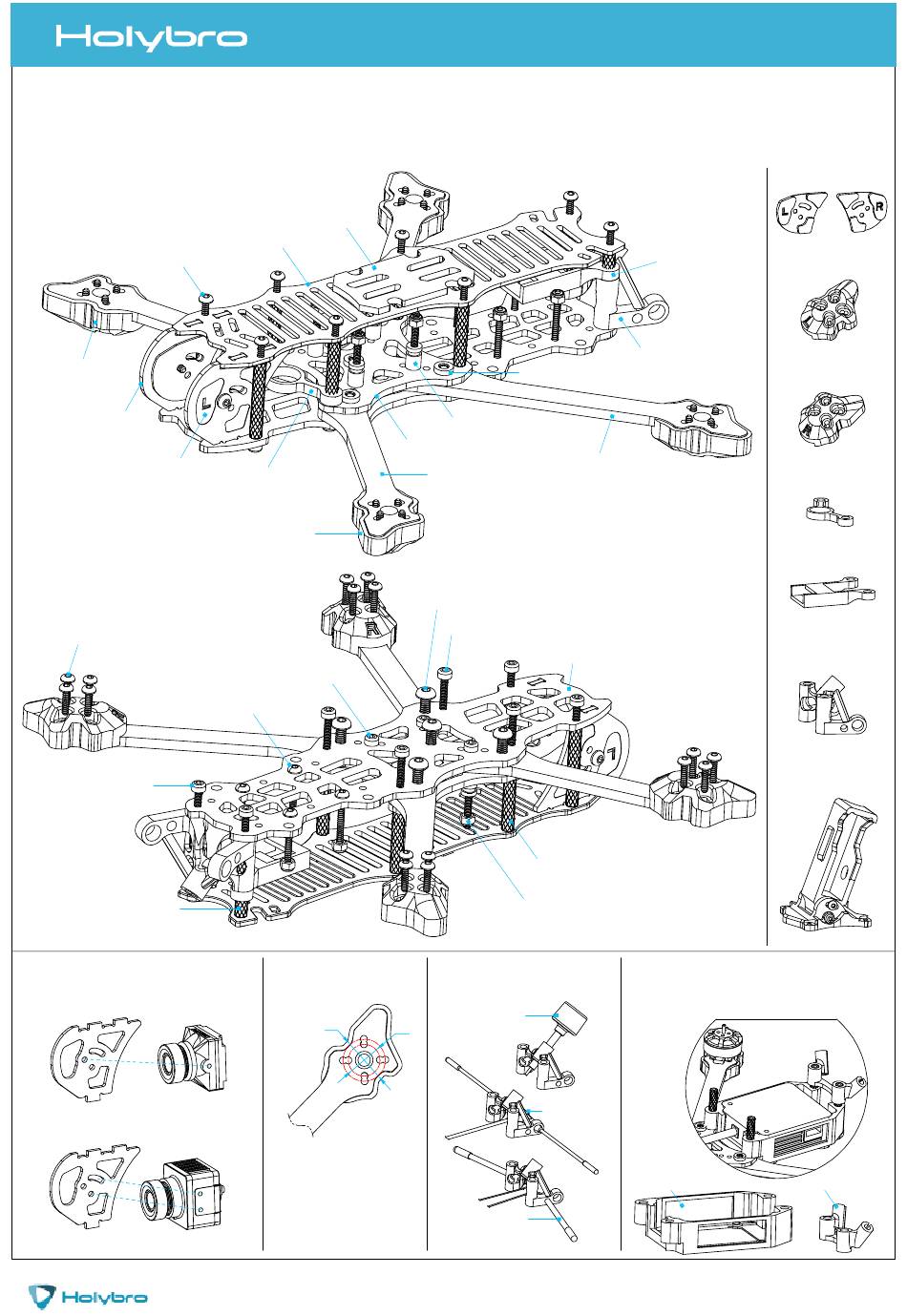

Holybro Kopis freestyle 4inch Assembly Manual

Kopis freestyle 4inch Assembly Guide
6. Screw M2*8 8pcs
5. Landing gear ( R )
4. Camera side panel
3. Camera cushion
6. Screw M2*8 16pcs
16. Socket cap screw M2*25 4pcs
15. Screw M2*18 4pcs
23. Socket cap screw
M2*6 4pcs
22. Aluminum standoffs
M2*25 4pcs
※ Two ways for you to mount your camera
onto the side panel ：
CASE 1
CASE 2
（ HD Version ）
8. Battery pad
7. Top plate
2. Buzzer holder
1. Landing gear ( L )
※ Arm adapting to 2 kinds
of motors ：
D1
① D1=12mm ， for a motor
with 12mm mounting hole ；
② D2=9mm ， for a motor with
9mm mounting hole 。
（ M3 Pressure riveting nut ）
12. Gummie 8pcs
13. clamp plate
11. Long arm
14. Short arm
17. Screw M3*8 5pcs
18. Socket cap screw M2*12 4pcs
19. Bottom plate
20. Aluminum standoffs
M2*20 4pcs
21. Locknut M2
※ Antenna holder adapting to 3
kinds of antenna ：
CADDX Antenna
D2
TBS Immortal-T
V2 Antenna
Antenna sleeve
P a g e | 1
9. Receiver holder
10. Antenna holder
8pcs
※ Figures for your reference, for installing a DJI
FPV kit. Please download the corresponding STL
file from HolyBro website for printing the part you
need by yourself ：
DJI FPV holder
www.holybro.com
Camera cushion
Landing gear ( L )
Landing gear ( R )
Buzzer holder
Receiver holder
Antenna holder
（ HD Version ）
Mount-naked Gopro
DJI Antenna holder
