Kohler Stargaze K-24019-GHW Quick Start Manual

Features

•
Bask heated surface creates spa-like relaxation with
®
soothing warmth on your back, shoulders, and neck.
•
Three heat settings allow you to customize the surface
temperature.
•
118 to 122 airjets release thousands of heated bubbles that
surround and support the body in a warm massage.
•
Automatic and manual purge cycles remove residual water
from air channels after use.
•
Variable-speed blower lets you adjust massage intensity to
18 levels.
•
16" (406 mm) depth offers a deep soaking experience.
•
Integral lumbar support on both ends.
•
Textured bottom surface.
•
Wide ledge on one side is ideal for deck-mount faucet and/or
handshower.
•
Fluted shroud.
•
Built-in 600W BubbleMassage
before it enters the bath.
•
Automatic and manual purge cycles remove residual water
from air channels after use.
•
Built-in 60W electric heater included to keep bath surface
warm.

Material

•
Acrylic.

Technology

•
Auto-shutoff timer on blower allows users to enjoy Heated
BubbleMassage experience for 60 minutes before turning
™
off.
•
User interface: two separate electronic keypad controls for
Heated BubbleMassage

Installation

•
Freestanding design creates a striking focal point in your
bathing area.
•
PureFlo drains are not recommended for a deck-mount
faucet installation.
•
Remote blower motor installation required (relocation kit is
included).

Recommended Products/Accessories

K-7265 Brass toe tap bath drain
K-37383 Rough-in cable bath drain, PVC, 30" cable with
tubing
K-37386 rough-in cable drain, PVC, 30" cable
K-24916 Wireless Music Kit
K-23726 Drain treatment
K-23732 Tub & shower cleaner
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-20-2021 04:57 - US/CA
60" x 34" Heated BubbleMassage
heater warms humidified air
™
and Bask .
™ ®
™

Codes/Standards

ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER Hydrotherapy
®
Components Five-Year Limited

Warranty

See website for detailed warranty information.

Available Colors/Finishes

Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit

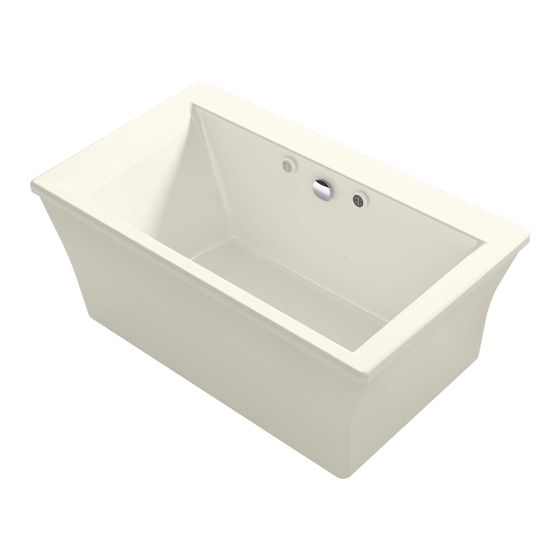

Stargaze
®
air bath w/Bask
®
K-24019-GHW
