Installation Guide
Rising Wall Bath
K-1913
M product numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de M corresponden a México
(Ej. K-12345M)
Français, page "Français-1"
Español, página "Español-1"
1128532-2-J

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-1913-L-0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kohler K-1913-L-0

Summary of Contents for Kohler K-1913-L-0

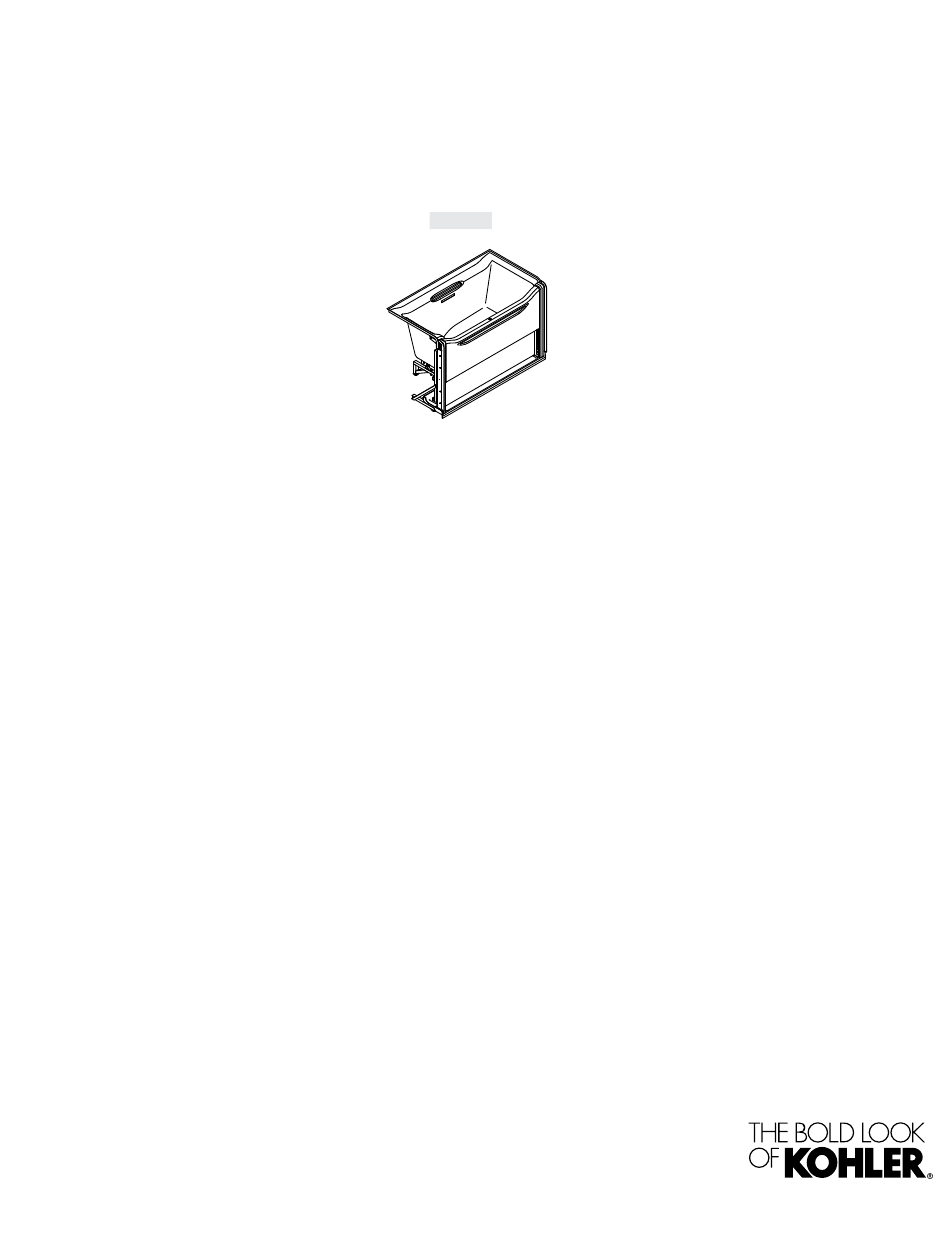

  • Page 1 Installation Guide Rising Wall Bath K-1913 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page ″Français-1″ Español, página ″Español-1″ 1128532-2-J...

  • Page 2: Important Information

    Do not relocate the components, or make other modifications to the system other than those specified in this document, as this could adversely affect performance and safe operation. Kohler Co. shall not be liable under its warranty or otherwise for personal injury or damage caused by any such unauthorized modification.

  • Page 3: Table Of Contents

    • Crowbar or small pry bar • Metal Shims • Masking Tape • Pencil • Drop cloth or Hex Wrenches protective material • Standard wood working tools and materials Removable 7/16", 9/16" and 7/8" Silicone Bolt Adhesive Open-end wrenches Sealant Kohler Co. 1128532-2-J...

  • Page 4: Before You Begin

    IMPORTANT! If the installation site is in an area where frequent or prolonged power outages occur, Kohler Co. recommends that a minimum 350 VA Uninterruptible Power Supply (UPS) be installed as a backup power source to the bath controller. The UPS will ensure that door functionality is not compromised in the event of a power outage.

  • Page 5: Parts Identification

    Counterweight Mounting Cover (RH) Bracket Trim Cap Trim Cap Cover (LH) Wall (LH) Controller (Power Supply) Counterweight Guide Product ID Label Drain Valve for Secondary Drain Receptor Tray Receptor Tray Drain Support Frame Access Panel Parts Identification Kohler Co. 1128532-2-J...

  • Page 6: Construct The Framing

    NOTICE: Follow all local plumbing and electrical codes. If the installation site is in an area where frequent or prolonged power outages occur, Kohler Co. recommends that a minimum 350 VA Uninteruptable Power Source (UPS) be installed as a backup power source for the bath controller.
  • Page 7 30″ (762 mm) to 31″ (787 mm) Full disassembly is likely. Follow all steps in this manual. Less than 30″ (762 mm) The door opening needs to be enlarged to a minimum of 31″ (787 mm). Kohler Co. 1128532-2-J...

  • Page 8: Confirm The Correct Cutout

    If the cutout is too small, the receptor tray will be too high. The counterweights will strike the receptor tray when the door is raised and the door seals will not inflate. 1128532-2-J Kohler Co.

  • Page 9: Install The Drain Lines And Rough Plumbing

    If desired, the two bathing vessel drains (#1 and #2) may be combined downstream from the P-traps into a single 3″ or larger drain line. Install the plumbing lines following the valve and trim manufacturer’s instructions. Recommended supply fittings and locations are shown above. Kohler Co. 1128532-2-J...
  • Page 10 Install the receptor tray drain line and P-trap. Install the sidewall drain line and P-trap. Install the slotted overflow drain line and P-trap. Install the water supply line which will connect to the accumulator. Do not connect at this time. 1128532-2-J Kohler Co.

  • Page 11: Remove The Shipping Brackets

    NOTE: Refer to the diagram in the ″Product Identification″ section to identify major components when needed. Remove and discard the shipping brackets. Take care not to strip the screw heads. If the bath can be moved into place without disassembling it, go directly to the ″Position the Bath″ section. Kohler Co. 1128532-2-J...

  • Page 12: Remove The Door

    The bath can sometimes be moved into place fully assembled. If the bath can be moved into place without performing these steps, go directly to ″Position the Bath.″ Remove the Door CAUTION: The door will be heavy and difficult to lift until the counterweights are installed. 1128532-2-J Kohler Co.
  • Page 13 NOTE: The roller assembly on the drain side of the door will remain attached. Squeeze the door handle and pivot the door out of the track on the side opposite the drain. Remove the door and carefully set it aside. Kohler Co. 1128532-2-J...

  • Page 14: Remove The Pulley Assemblies And Mounting Brackets

    Remove the pulley assembly from the other side of the bath. Remove the Mounting Bracket Remove the four blue screws from the drain side of the bath. Take care not to strip the screw heads. Remove the mounting bracket from the drain side of the bath. 1128532-2-J Kohler Co.
  • Page 15 Remove the Pulley Assemblies and Mounting Brackets (cont.) Remove the four blue screws from the other side of the bath. Take care not to strip the screw heads. Remove the mounting bracket from the other side of the bath. Kohler Co. 1128532-2-J...

  • Page 16: Remove The Receptor Tray

    Remove each of the screws securing the receptor tray to the frame. Take care not to strip the screw heads. Carefully remove the receptor tray by rotating it down and out, away from the counterweight guides. Set the receptor tray aside in a safe place. 1128532-2-J Kohler Co.

  • Page 17: Disconnect The Components

    Disassemble the bath from the support frame at the four brackets by removing the two screws. Carefully lift the bath clear of the frame and set it aside. Temporarily secure any loose wires and protect them from being damaged. Kohler Co. 1128532-2-J...

  • Page 18: Position The Bath

    All Installations IMPORTANT! If the installation site is in an area where frequent or prolonged power outages occur, Kohler Co. recommends that a minimum 350 VA Uninterruptible Power Supply (UPS) be installed as a backup power source for the bath controller.
  • Page 19 Move the Bath Into the Stud Pocket Install the outlet drain in the footwell to the bath following the instructions supplied with the drain. Move the assembled bath into the final installation position in the stud pocket. Kohler Co. 1128532-2-J...

  • Page 20: Level And Secure The Bath

    Repeat until the bath is level. Check each of the leveling feet and confirm they make firm contact with the metal shims and subfloor. Secure the bath to the studs with nails or screws, using the nailing-in flange. 1128532-2-J Kohler Co.

  • Page 21: Attach The Water Supply To The Accumulator

    11. Attach the Water Supply to the Accumulator Attach the water supply line to the water accumulator at the inlet (1/2″ NPT). Move the drain line out of the way if the receptor tray needs to be reinstalled. Kohler Co. 1128532-2-J...

  • Page 22: Install The Receptor Tray, And Connect The Drains

    Make sure the subfloor cutout is large enough to prevent any contact with the backside of the receptor at or near the drain. Reconnect the receptor tray to the frame using the existing holes and the screws that were removed previously. 1128532-2-J Kohler Co.
  • Page 23 2-1/2″ (64 mm) air gap (typically required by code) to protect against back siphoning. IMPORTANT! Cover the receptor tray with protective material to avoid damaging it. Kohler Co. 1128532-2-J...

  • Page 24: Install The Mounting Brackets And Pulley Assemblies

    Use the four previously removed blue screws to secure the mounting bracket to the bath. Adjust the mounting bracket so it is centered in the slots or out as far as the slots allow. Tighten the screws. Repeat with the second mounting bracket. 1128532-2-J Kohler Co.
  • Page 25 Secure the pulley assembly to the mounting bracket with the previously removed red screws. Repeat with the second pulley assembly. Reconnect the limit switch wires, making sure they do not interfere with the pulleys or cables as they move. Kohler Co. 1128532-2-J...

  • Page 26: Install The Door

    If necessary loosen the blue mounting bracket screws on one or both sides. Retighten the blue screws when the roller assembly is in place. Reinstall the cover plate on the base of the door and secure with the screw(s) previously removed. 1128532-2-J Kohler Co.

  • Page 27: Attach The Counterweights

    Position each pulley cable over both pulleys. On the drain side of the bath, remove the support shims and carefully lower the counterweights. On the side of the bath opposite the drain, remove the support shims and carefully lower the counterweights. Kohler Co. 1128532-2-J...
  • Page 28 If the counterweights contact the receptor tray, make sure the cable is positioned over both pulleys. Make sure the counterweights function smoothly. They should not make any contact with the bath. If the counterweights make contact with the bath, check to make sure the bath is level. Adjust level as needed. 1128532-2-J Kohler Co.

  • Page 29: Connect The Components

    Connect the drain valve power at controller J2. Do not plug the drain valve power cord into a receptacle other than J2. Connect the level sensing wires at controller J3. Connect the limit switches at controller J4. NOTE: Port J5 should remain unused. Connect the door power at controllers J6 and J7. Kohler Co. 1128532-2-J...

  • Page 30: Adjust The Bath Door

    If the door shimmies more when it is fully raised, adjust the top of each mounting bracket inward using the bottom screw as a pivot point. NOTE: When properly adjusted the door should move up and down using one finger. 1128532-2-J Kohler Co.
  • Page 31 Recheck the door movement, using one finger to move the door up and down. When properly adjusted the door should move up and down using one finger. Adjust the mounting bracket and/or pulley assemblies as needed. Repeat until the door operates smoothly. Kohler Co. 1128532-2-J...

  • Page 32: Seal/Drain System Electrical Connections

    NOTE: The model number is printed on a label near the controller. This label also identifies the electrical rating. NOTE: Refer to the ″Heated Surface Electrical Connections (some models)″ section if your product is equipped with the heated surface feature. 1128532-2-J Kohler Co.
  • Page 33 Press the door switch and confirm that the drain valve opens. Open the footwell drain. When the water level falls below the level sensors in the footwell, confirm the seal has deflated. Squeeze the door handle and lower the door. Kohler Co. 1128532-2-J...

  • Page 34: Heated Surface Electrical Connections (If Equipped)

    Plug the power supply into this outlet. Test the Heated Surface Feature Check all electrical connections and make sure the electrical power to the bath is on. Operate the heated surface user keypad to test the temperature settings. 1128532-2-J Kohler Co.

  • Page 35: Confirm Heated Surface Operation (If Equipped)

    Press the [Down] arrow. Verify that the heat indicator turns orange and the temperature decreases. Press the [Down] arrow a second time. Verify that the heat indicator turns yellow and the temperature decreases. Press the [Power] icon to turn the heater OFF. Kohler Co. 1128532-2-J...

  • Page 36: Install The Trim Caps And Access Panel

    NOTE: The brush seal, located on the bottom of the door, is designed to disperse water released when the seal deflates, eliminating splashing beyond the receptor tray. If the seal is adjusted incorrectly water may splash beyond the receptor tray or it may interfere with the access panel. 1128532-2-J Kohler Co.
  • Page 37 Retighten the screws. Adjust the bottom slotted access panel bracket toward the back as needed to eliminate any contact between the brush seal and access panel as the door is raised and lowered. Kohler Co. 1128532-2-J...

  • Page 38: Install The Finished Wall

    Install the faucet trim according to the instructions packed with the trim. Troubleshooting This section is for general aid only. A Kohler Co. Authorized Service Representative or qualified electrician should correct any electrical problems. For warranty service, call 1-800-4KOHLER from within the USA and Canada, or 001-800-456-4537 from within Mexico.
  • Page 39 Includes″ portion of the ″Troubleshooting.″ receptor. B. Water supply connection is B. Reseal the water inlet connections loose or damaged. and/or reconnect them. C. Accumulator fitting(s) are loose C. Replace the accumulator connection or disconnected. fitting(s). Kohler Co. 1128532-2-J...
  • Page 40 Customer Care Center using the information provided on the back page of this manual. E. Drain valve is not plugged into E. Plug the drain valve directly into the controller (no power). the controller located under the bath. 1128532-2-J Kohler Co.
  • Page 41 Center using the information provided on the back page of this manual. O. The controller is not working. O. Replace the controller or call the Customer Care Center using the information provided on the back page of this manual. Kohler Co. 1128532-2-J...
  • Page 42 A2. If the error code is still activated or reoccurs another problem exists. Unplug the power and call the Customer Care Center using the information provided on the back page of this manual. 1128532-2-J Kohler Co.
  • Page 43 The pressure switch or solenoid Call the Customer Care Center vent valves inside the door are using the information provided on not working. the back page of this manual. Kohler Co. 1128532-2-J...
  • Page 44 E. The drain valve is not working. E. Replace the drain valve or call the Customer Care Center using the information provided on the back page of this manual. 1128532-2-J Kohler Co.
  • Page 45 A. Close and/or clean the toe tap prematurely. not close or is leaking. assembly. Reseal and reattach the drain. Replace if needed. B. Level sensor wires are too close B. Separate the level sensor wires at together, resulting in both ends. interference. Kohler Co. 1128532-2-J...
  • Page 46 G. The drain valve is not working. G. Replace the drain valve or call the Customer Care Center using the information provided on the back page of this manual. 1128532-2-J Kohler Co.
  • Page 47 (for the access panel mount) back and, if needed, adjust the brush seal under the door until it barely makes contact with the access panel. B2. Adjust the door outward using the slots in the pulley assembly. Kohler Co. 1128532-2-J...
  • Page 48 16. The seal will not inflate. A. There is no power to the A1. Connect the controller to the power controller or bath. supply. A2. Reset the circuit breaker. A3. Connect the bath power cord to the J1 port on the controller. 1128532-2-J Kohler Co.
  • Page 49 E1. Adjust the limit switch(es) until switches are not making contact contact is made. or are damaged. E2. The limit switch(es) need to be replaced. Call the Customer Care Center using the information provided on the back page of this manual. Kohler Co. 1128532-2-J...
  • Page 50 C. Adjust the pulley assembly inward. the pulley assembly is not properly adjusted. D. Water is splashing over the top D. Lower the water level when filling of the seal. the bath. Reduce sudden movements when bathing. 1128532-2-J Kohler Co.
  • Page 51 fill and drain sequences, and note any symptoms. C. Primary seal is leaking. C. Call the Customer Care Center using the information provided on the back page of this manual. Kohler Co. 1128532-2-J...
  • Page 52 Heat indicator is blinking A. Heating system needs to be A. Press the [Power] icon to turn the yellow. reset. power OFF. Wait 10 seconds, then turn the power ON. B. Temperature sensor does not B. Replace the heater. work. 1128532-2-J Kohler Co.
