Summary of Contents for Pride Victory XL

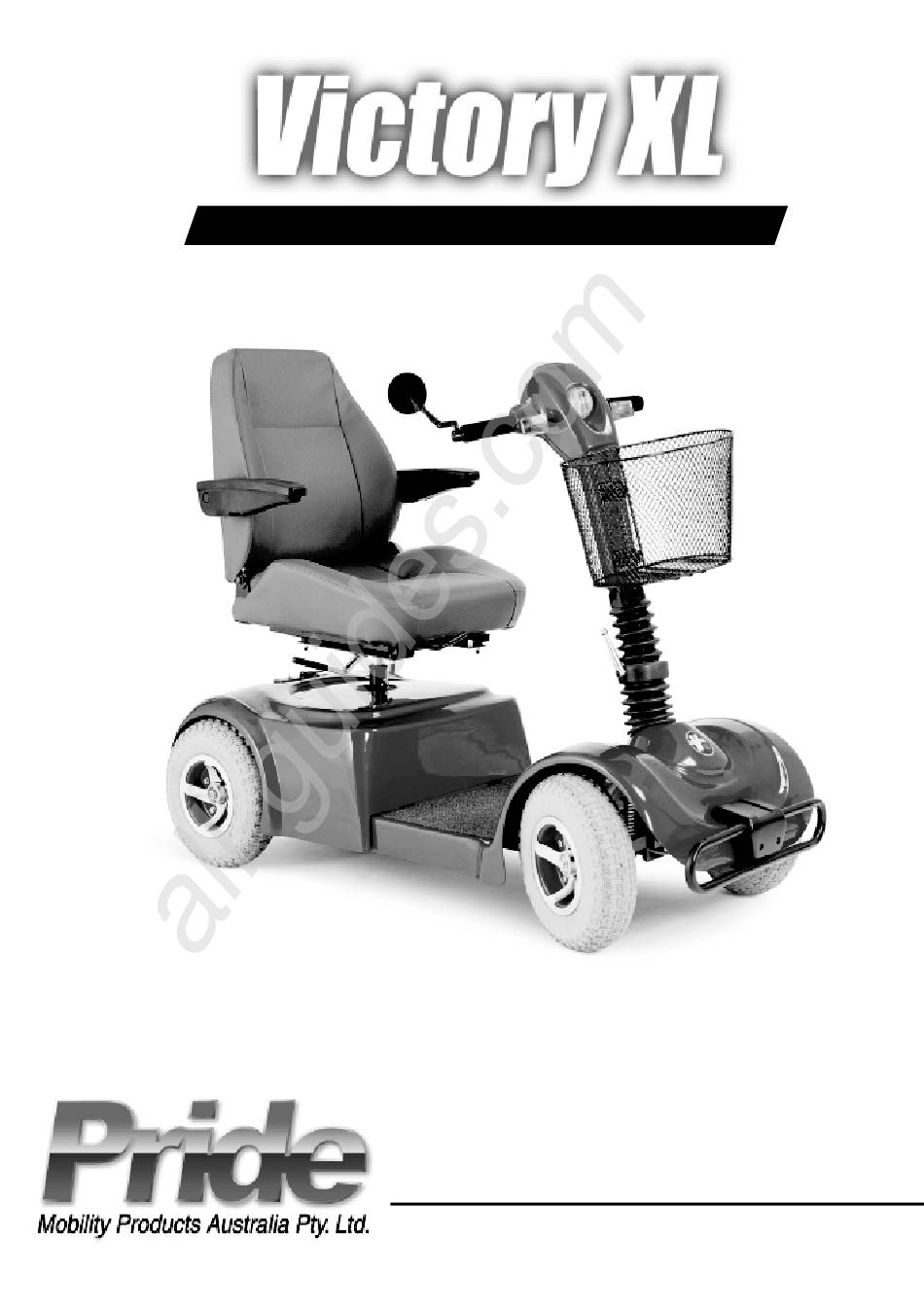

- Page 1 All manuals and user guides at all-guides.com Owner’s Manual The Ultimate In Style & Performance ® 21 Healey Road Dandenong, 3175 Victoria, Australia ACN # 088 609 661 www.pridemobility.com...
- Page 2 Using your Pride product safely depends upon your diligence in following the warnings, cautions, and instructions in this owner’s manual. Using your Pride product safely also depends upon your own good judgement and/or common sense, as well as that of your provider, caregiver, and/or healthcare professional.
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION......................... 4 SAFETY ............................6 III. SPECIFICATIONS ........................10 IV. YOUR VICTORY XL ......................... 12 BATTERIES AND CHARGING .................... 18 VI. OPERATION ..........................22 VII. COMFORT ADJUSTMENTS....................24 VIII. DISASSEMBLY AND ASSEMBLY ..................26 IX. -
Page 4: Introduction
Your understanding of these instructions is essential for the safe operation of your new Pride Scooter. Pride is not liable for damage to property or personal injury arising out of unsafe use of a Pride Scooter. Pride is also not liable for any property damage or personal injury arising out of the failure of any person and or/user to following the instructions and recommendations set forth in this manual or any other instructions or recommendations contained in other Scooter related literature issued by Pride or contained on the Pride Scooter itself. - Page 5 Pride Owners Club As an owner of a Pride product, you are invited to register your product’s warranty and enroll in the Pride Owners Club. You may do so by filling out and returning your enclosed registration card or by visiting Pride’s web site at www.pridemobility.com.
-
Page 6: Safety
Also, make sure to secure the batteries before loading your Scooter into a motor vehicle for transport. Weight Limitations Your Victory XL is rated for a maximum weight limit of 135 kg (300 lbs.). WARNING! Do not carry passengers on your Scooter under any circumstances. Exceeding the weight limit voids your warranty and may result in personal injury and/or damage to your Scooter. - Page 7 WARNING! Do not operate your Scooter in icy or slippery conditions or on salted surfaces (i.e., footpaths or roads). Such use may result in an accident, personal injury, or adversely affect the performance and/or safety of your Scooter. Victory XL...
- Page 8 If you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or allow the rubber door edge to contact your Scooter to reopen the door. n Use care that pocketbooks, packages, or Victory XL accessories do not become caught in the elevator doors. Victory XL...
- Page 9 When driving down a ramp, keep the speed adjustment dial (see IV. “Your Victory XL”) set to the tortoise (slowest speed setting) to ensure a safely controlled descent.
-
Page 10: Specifications
All manuals and user guides at all-guides.com I I I . S P E C I F I C A T I O N S Figure 4. Victory XL Specifications Victory XL... - Page 11 F ront- to- rear Lockup: Lock pin and dual camlock lever system Ground C learance: 13 cm Bracket mount cane/crutch holder; walker holder; wishbone crutch holder; forearm crutch O ptional Accessories: holder; rear basket; safety flag; oxygen holder Victory XL...
-
Page 12: Your Victory Xl

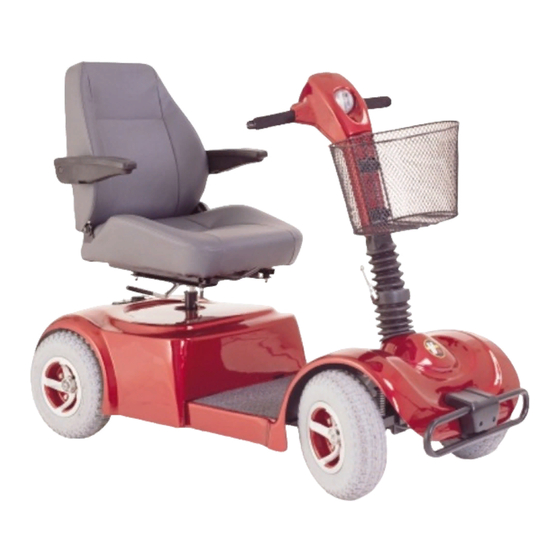

Y O U R V I C T O R Y Your Victory XL is an indoor/outdoor, motorized electric Scooter designed to enhance your personal mobility. For easy transportation or storage, you can disassemble your Victory XL into seven components. See figure 5. - Page 13 Ensure the key is fully inserted into the key switch and push the horn button to sound the horn. REAR SHROUD The rear shroud protects the rear section and its subcomponents. Refer to VIII. “Disassembly and Assembly” for instructions on removing the rear shroud. Victory XL...
- Page 14 Scooter. See figure 7. Refer to VIII. “Disassembly and Assembly” for instructions on removing the rear shroud. Batteries The batteries store the electrical energy that powers your Victory XL. For directions on charging your batteries, see V. “Batteries and Charging.” Electronic Controller Module This module is located behind the batteries and at the forward left corner of the rear section.
- Page 15 Allow a minute or so for the electronics to “rest.” n Push in the reset button to reset the breaker. n If the breaker trips frequently, you may need to charge the batteries more often or have your authorized Pride provider perform a load test on the batteries.
- Page 16 The anti-tip wheels are an integral and important safety feature designed to help prevent your Scooter from tipping backwards on an incline. They are located at the rearmost part of your Scooter. WARNING! Do not remove the anti-tip wheels or modify your Scooter in any way that is not authorized by Pride. Victory XL...
- Page 17 All manuals and user guides at all-guides.com I V . Y O U R V I C T O R Y OPTIONAL ACCESSORIES For information concerning these optional accessories, contact your authorized Pride provider. Flag Bracket Mount Cane/Crutch Holder Rear Basket Walker Holder...
-
Page 18: Batteries And Charging
4. Plug the charger power cord into the charger power cord receptacle at the rear of your Victory XL. 5. Extend the charger power cord and plug it into the wall outlet. We recommend you charge your Victory XL’s batteries for 8 to 14 hours. - Page 19 “full day” of service. We recommend you charge the batteries for 8 to 14 hours after daily use. n If you use your Victory XL once a week or less, charge its batteries at least once a week for 12 to 14 hours at a time.
- Page 20 It may take a few days for the temperature of your Victory XL’s batteries to stabilize and adjust to their new room or ambient temperature. More importantly, it takes a few charging cycles (a partial drain followed by a full recharge) to establish the critical chemical balance that is essential to a deep-cycle battery’s peak performance and long life.
- Page 21 C H A R G I N G 2. Operate your new Victory XL in familiar and safe areas. Drive slowly at first, and do not travel too far from your home or familiar surroundings until you have become accustomed to your Victory XL’s controls and have properly broken in your Scooter’s batteries.
-
Page 22: Operation
Have you fully charged the batteries? See V. “Batteries and Charging.” n Is the manual freewheel lever in the drive (down) position? See IV. “Your Victory XL.” Never leave the manual freewheel lever pulled up unless you are manually pushing your Scooter. - Page 23 AUTO SHUTOFF FEATURE Your Victory XL is equipped with an energy saving auto shutoff feature designed to preserve your Scooter’s battery life. If you mistakenly leave the key in the key switch but do not use your Scooter for approximately 20 minutes, the Scooter automatically shuts down.
-
Page 24: Comfort Adjustments
4. Hold the seat post at that height and match up the locating holes in the seat post with the seat post tower. 5. Fully insert the ball detent pin. 6. Replace the seat. SEAT POST LOCATING HOLES SEAT POST TOWER BALL DETENT PIN SEAT SLIDING LEVER SEAT LOCK LEVER Figure 9. Seat Height Adjustment Figure 10. Seat Adjustment Victory XL... - Page 25 While seated in your Scooter, turn the armrest adjustment dial to the left to lower the armrest angle or to the right to raise the armrest angle. NOTE: The armrests also pivot upward to make getting on and off of your Scooter easier. ARMREST ADJUSTMENT DIAL SEAT RECLINE LEVER Figure 11. Seatback Adjustment Figure 12. Armrest Angle Adjustment Victory XL...
-
Page 26: V I I I . D I S A S S E M B L Y A N D A S S E M B L Y
DISASSEMBLY You can disassemble the Victory XL into seven pieces: the seat, the front section, the front basket, the rear section, the rear shroud, and the two batteries. Place the Scooter in an area where you have sufficient clearance to move the parts around—approximately 1,5 meters in all directions. - Page 27 ASSEMBLY 1. Pull up on the manual freewheel lever. See IV. “Your Victory XL.” Placing your Scooter in manual freewheel mode may make it easier for you to maneuver the rear section because the drive wheels are free to turn.
-
Page 28: Troubleshooting
I press the throttle Fully charge your Scooter’s batteries. control lever. Have your authorized Pride provider load test each battery. Obtain a battery load tester at most any automotive parts store; follow the directions supplied with the load tester. -
Page 29: Care And Maintenance
M A I N T E N A N C E Your Victory XL requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorized Pride provider. - Page 30 CONSOLE, CHARGER, AND ELECTRONIC CONTROLLER MODULE n Keep these areas away from moisture. n Let any of these areas dry thoroughly before operating your Victory XL if they have been exposed to moisture. STORAGE n Refer to “How should I store my Victory XL and its batteries?” in V. “Batteries and Charging.”...
-
Page 31: Warranty
This guarantee does not extend to those items which may need replacement due to normal wear and tear (tyres, belts, bulbs, upholstery, plastic shrouds, motor brushes, fuses, and batteries), or damage to the product caused by misuse or accident for which Pride or its agent cannot be held responsible. This warranty does not include labor or service calls. - Page 32 All manuals and user guides at all-guides.com N O T E S Victory XL...
- Page 33 All manuals and user guides at all-guides.com N O T E S Victory XL...
- Page 34 All manuals and user guides at all-guides.com N O T E S Victory XL...
