Summary of Contents for Blackbird 15251
- Page 1 4K HDMI® 3x1 Switch P/N 15251 User's Manual...
-
Page 2: Safety Warnings And Guidelines

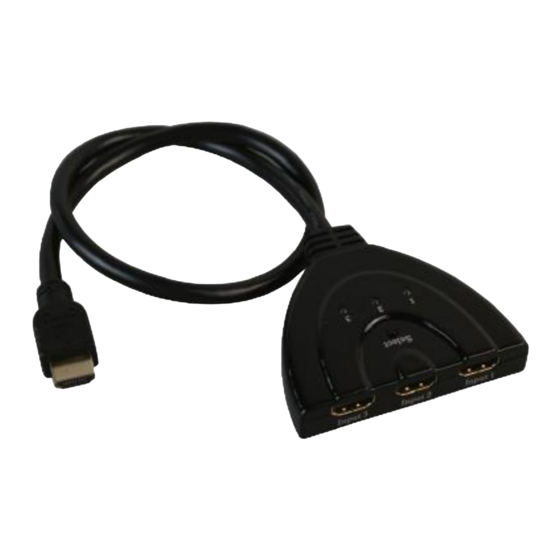

SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 INTRODUCTION This 4K HDMI® 3x1 Switch allows you to connect up to three HDMI video sources to a single HDMI display. It supports video resolutions up to 4K@60Hz and up to 7.1-channel high definition audio. It is fully compliant with the HDMI 2.0 and HDCP™ 2.2 specifications and supports up to 18Gbps bandwidth.
-
Page 4: Customer Service
CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 5: Product Overview
PRODUCT OVERVIEW SAMPLE CONNECTION DIAGRAM CONNECTION Perform the following steps to connect the switch to your system. Ensure that all devices to be connected are powered off and disconnected from their power sources. Plug the switch into an available HDMI® input on your display. -
Page 6: Technical Support
Using a Premium High Speed HDMI® Cable (available separately), plug one end into one of the inputs on the switch, then plug the other end into the HDMI output on one of your source devices. Repeat for up to two additional HDMI source devices. -
Page 7: Specifications
To download the latest drivers, firmware, manuals, etc., go to www.monoprice.com and type the P/N into the search bar. If available, support files are linked at the bottom of the product page. SPECIFICATIONS 15251 Video Inputs 3x HDMI® Video Outputs... -
Page 8: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. - Page 9 and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different •...
- Page 10 Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. HDCP™ is a trademark of Digital Content Protection LLC.
