- Page 1 4K 3x1 HDMI® Switch P/N 15262 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Prior to operation, check the unit and power cord for • physical damage. Do not use if physical damage has occurred. Before plugging the unit into a power outlet, ensure that • the outlet provides the same type and level of power required by the device.
- Page 4 INTRODUCTION This 4K 3x1 HDMI® Switch allows you to distribute any of up to three HDMI video source devices to a single HDMI display. It supports up to 18Gbps video bandwidth and a 4K@60Hz maximum video resolution with YCbCr 4:4:4 color space, as well as all HDMI 3D video modes.
-
Page 5: Customer Service
CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 6: Product Overview

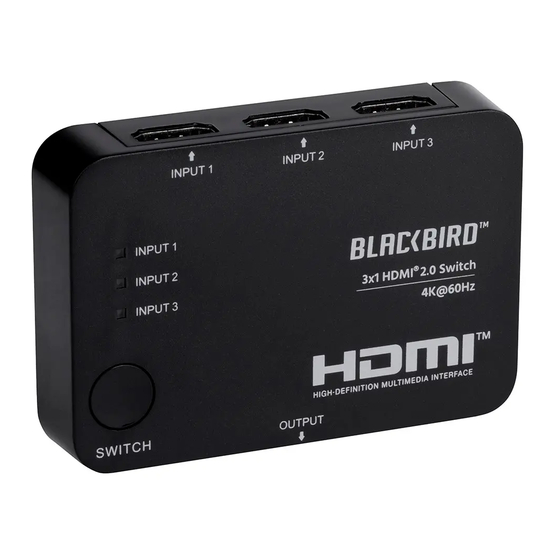

PRODUCT OVERVIEW Switch INPUTS: Three HDMI® input ports for connecting video source devices. 2. INPUT LEDS: Three LEDs, one of which illuminates to indicate which video input is selected. SWITCH: Press the SWITCH button to cycle forward through the available inputs. - Page 7 4. OUTPUT: HDMI port for connecting the video display. 5. DC 5V: DC barrel connector for connecting the included USB power cable. 6. IR: 3.5mm jack for connecting the included IR receiver. Remote Control IN1: Press the IN1 button to directly •...
-
Page 8: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM... -
Page 9: Technical Support
To download the latest drivers, firmware, manuals, etc., go to www.monoprice.com and type the P/N into the search bar. If available, support files are linked at the bottom of the product page. SPECIFICATIONS 15262 Video Inputs 3x HDMI® Video Output 1x HDMI... - Page 10 HDMI® Version HDCP™ Version Color Depth 8 bits/channel Supported Color Spaces RGB, YCbCr 4:4:4/4:2:2 Input Power USB (5 VDC, 1A) Power Consumption 1.5 watts Operating Temperature +32 ~ +104°F (0 ~ +40°C) Storage Temperature -4 ~ +140°F (-20 ~ +60°C) Operating Humidity 20 ~ 90% RH, noncondensing 3.5"...
-
Page 11: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 12 interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
- Page 13 Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. HDCP™ is a trademark of Digital Content Protection LLC.
