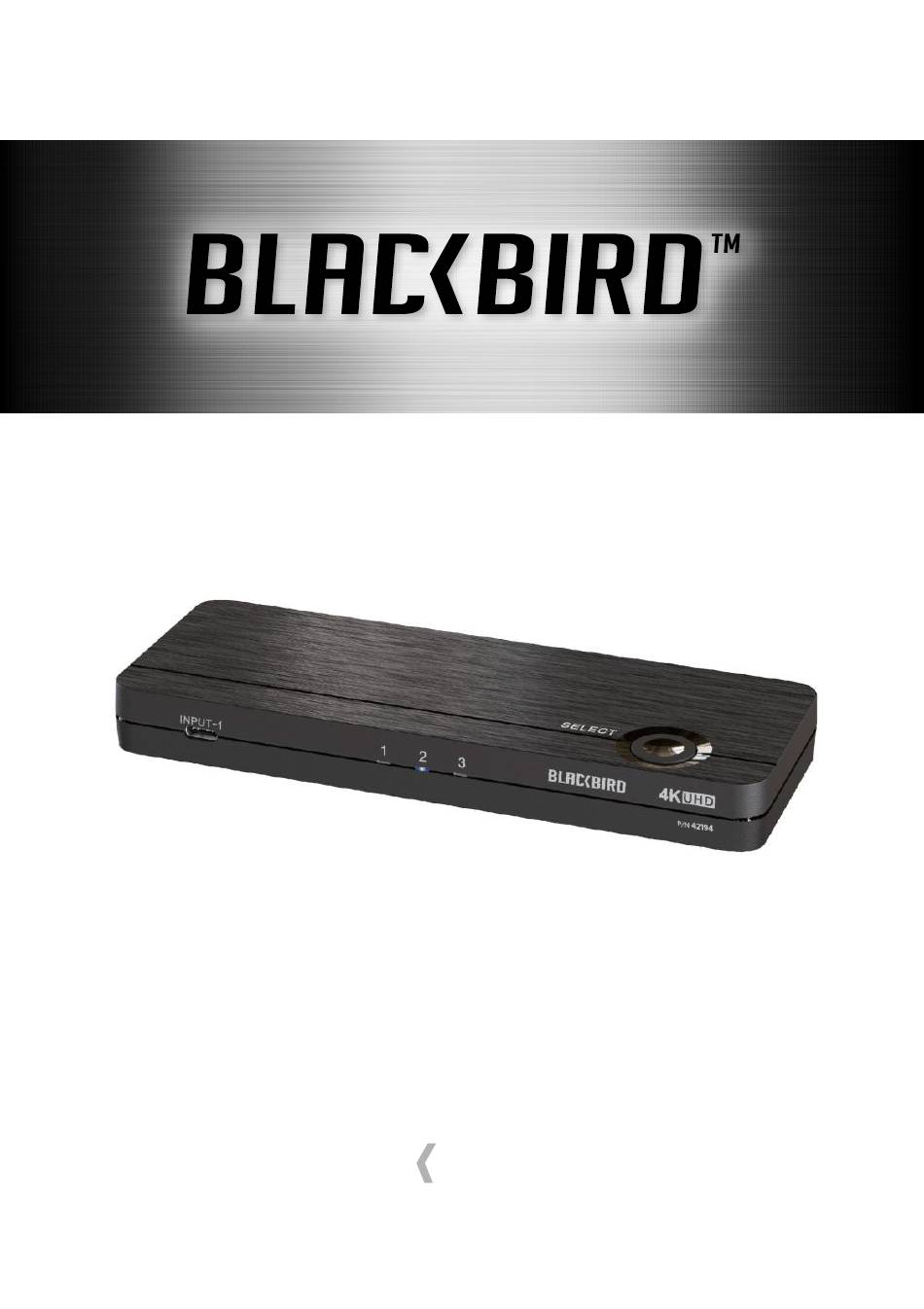

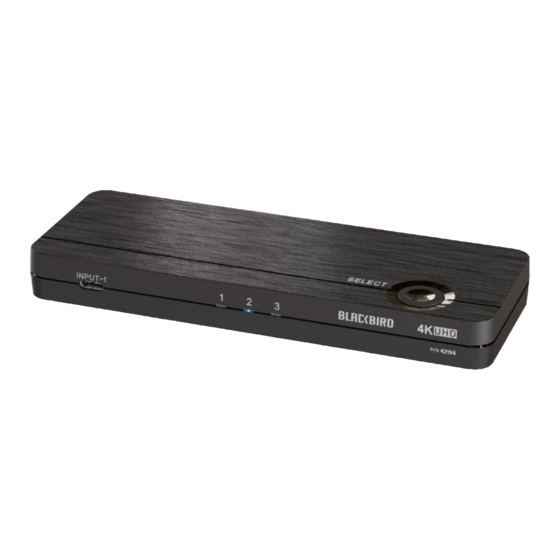

- Page 1 3-Port USB-C and HDMI ® ® KVM Switch 42194 USER'S MANUAL...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Unplug this device from the power source when not in use. • Take care to prevent damage to the power cord. Do not allow it • to become crimped, pinched, walked on, or become tangled with other cords. Ensure that the power cord does not present a tripping hazard.
-
Page 4: Customer Service
CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 5: Top Panel
Top Panel SELECT: Press the SELECT button to cycle through the available inputs. Rear Panel DC 5V: Micro USB power input for connecting the included AC power adapter. IN-3: USB Type-A and HDMI® input ports. IN-2: USB Type-A and HDMI input ports. OUT: Two USB Type-A ports for connecting a USB keyboard and mouse and an HDMI output for connecting an HDMI display. -
Page 6: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM... -
Page 7: Installation
INSTALLATION Perform the following steps to connect this KVM switch to your system. Power off an unplug all equipment to be connected. Place the switch in its intended location. (Optional) Using a USB 3.1 Gen 1 Type-C® to Type-C cable (not included), plug one end into the INPUT-1 port on the front panel, then plug the other end into the USB-C®... -
Page 8: Technical Support
Plug a USB keyboard into one of the OUT USB ports on the rear panel. 10. Plug a USB mouse into one of the OUT USB ports on the rear panel. 11. Plug one end of the included AC power adapter into the DC 5V micro USB port on the rear panel, then plug the adapter into a nearby AC power outlet. -
Page 9: Specifications
SPECIFICATIONS Model 42194 1x USB Type-C®, Inputs 2x USB Type-A and HDMI® Output 2x USB Type-A, 1x HDMI Maximum HDMI® Resolution 4K@60Hz Video Bandwidth 18Gbps HDMI Version HDCP™ Version Deep Color Support 12-bits/channel, 36-bits total Pixel Frequency Range 25 ~ 600 MHz USB-C®... -
Page 10: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 11: Notice For Industry Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum, Inc. - Page 12 Product pictures are for reference only. Specifications described herein are subject to change without prior notification. All trademarks are the sole property of their respective companies. Blackbird™ is a Sub-brand of Monoprice Inc. Copyright © 2020 Monoprice, Inc. All rights reserved. www.monoprice.com...
