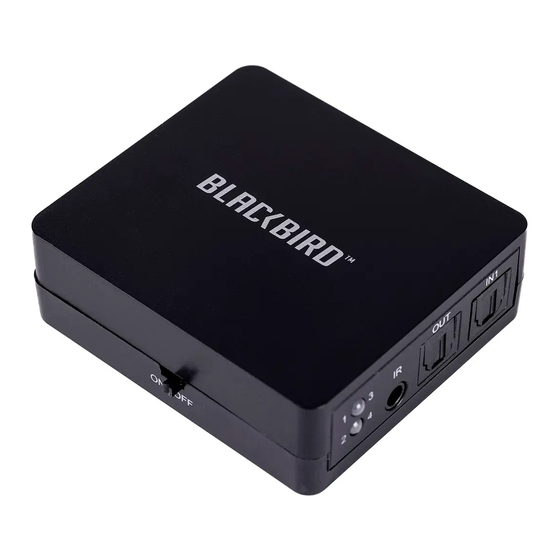

- Page 1 Toslink® S/PDIF 4x1 Switch with Remote P/N 43392 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 INTRODUCTION This Toslink® S/PDIF 4x1 Switch allows you to connect up to four Toslink digital optical S/PDIF audio source devices to a single output device, such as a television or amplifier. It supports 2-channel high definition audio sources, including LPCM, DTS®, and Dolby Digital™. It has a 96kHz sampling rate, supports signal re-timing, and can transmit audio to distances up to 131 feet (40 meters) using an optical cable with a loss of less than 0.2dB/m.
-
Page 4: Customer Service
CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 5: Product Overview
PRODUCT OVERVIEW SAMPLE CONNECTION DIAGRAM... - Page 6 CONNECTION Perform the following steps to connect the splitter to your system. Ensure that all devices to be connected are powered off and disconnected from their power sources. Using a Toslink® digital optical S/PDIF cable (available separately), plug one end into the optical input on your output device (e.g., amplifier, TV, etc.), then plug the other end into the OUT port on the switch.
-
Page 7: Led Indications
Plug in and power on all connected devices. Start audio playback on your source devices. Use the remote control to switch between the sources and verify that you can hear audio from the output device. Alternatively, you can use the SWITCH button on the switch to cycle through the connected inputs. -
Page 8: Specifications
To download the latest drivers, firmware, manuals, etc., go to www.monoprice.com and type the P/N into the search bar. If available, support files are linked at the bottom of the product page. SPECIFICATIONS 43392 Audio Input 4x Toslink® digital optical S/PDIF Audio Outputs 1x Toslink®... -
Page 9: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. - Page 10 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB- 003 du Canada. Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. TOSLINK® is a registered trademark of Toshiba Corporation.
