Installation Guide - Vehicle
TM
HIGH POWER USER EQUIPMENT

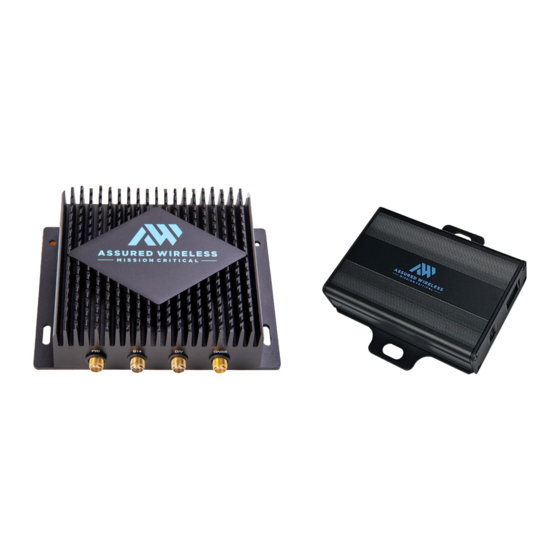

AW12-PC-EI-C BUNDLE
Created for

Advertisement

loading
Need help?

Need help?

Do you have a question about the AW12-PC-EI-C BUNDLE and is the answer not in the manual?

Questions and answers

Related Manuals for Assured Wireless AW12-PC-EI-C BUNDLE

Summary of Contents for Assured Wireless AW12-PC-EI-C BUNDLE

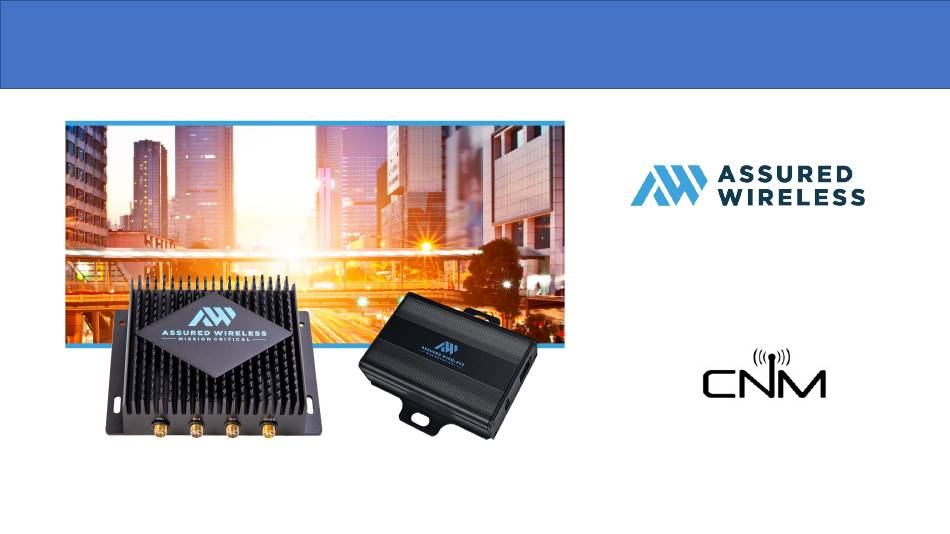

  • Page 1 Installation Guide - Vehicle HIGH POWER USER EQUIPMENT AW12-PC-EI-C BUNDLE Created for...
  • Page 2 Package Contents Page 2 CABLES HARDWARE DC power cable (4 pin Molex - pigtail) Cat5e Ethernet cable AW12-PC-EI-C USB-to-Ethernet AW12-DE-C Converter Modem DC power cable to connect AW12 to PC-EI, 200mm USB cable to connect AW12 to PC-EI, 200mm Insert activated FirstNet SIM into AW12-DE Modem.
  • Page 3 Connect AW12 to AW12-PC-EI Page 3 Mount AW12 and AW12-EI on the mounting bracket with the included hardware. AW12-PCDC-2PM-200mm Connect cables between the AW12 and the AW12-EI. Please note to be careful and do not over tighten the screws on the USB-C connector. AW12-USB-AM2CM-200mm...
