This quick start guide gives the basic steps for installing the AW12 MegaFixed unit in fixed locations.
The following contents are included:
AW12-DE modem
AW12-PC-EI USB to Ethernet converter
Mounting bracket
(2) M6 screws and (2) M6 lock washers
(4) M3 screws and (4) M3 lock washers
SIM extractor tool
You will also need the following (not included in your kit):
GPS active/passive antenna
(3) LTE antennas
The antennas can be purchased as separate units or as a single package. See our recommended
Note.
antennas at assured-wireless.com/products/antennas.
2

Insert SIM card

Your Distributor may have already inserted the SIM. If
Note.
so, please skip to section 3.

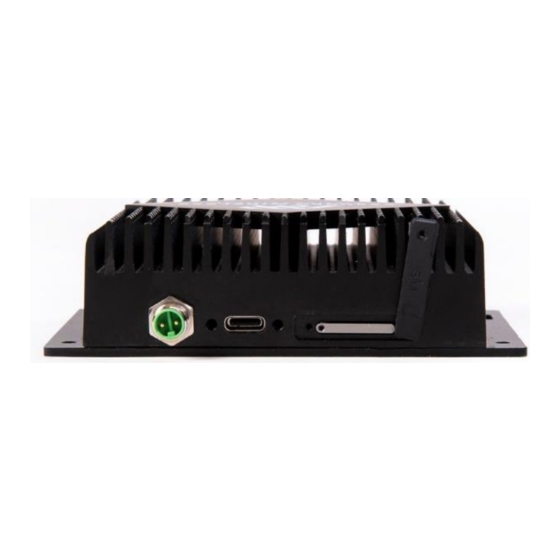

Locate the SIM card slot on the side of the AW12 modem.
1
Remove the screw on the SIM slot door.
2
Use the depression on the upper left corner of the SIM
3
slot door to open the door off. You should now see the
edge of the silver SIM tray.
Insert the included SIM extractor tool into the hole on
4
the SIM tray; the tray should pop partway out.
Remove the SIM tray completely.
5
Insert your activated FirstNet SIM into the tray. Note that
6
the tray is notched, so the card can only be inserted the
correct way.
Re-insert the SIM tray into its slot.
7
Replace the SIM slot door and replace the screw, being
8
careful not to overtighten.
Copyright ©2022 Assured Wireless Corporation. All rights reserved. All information provided here is subject to change
without notice. Assured Wireless and the Assured Wireless logo are property of Assured Wireless Corporation.
Ethernet cable
USB screwtight cable
DC power cable (4-pin Molex)
DC power cable (modem to Ethernet converter)
AC adapter
Activated FirstNet micro SIM card
Small Phillips head screwdriver
QUICK START GUIDE
assured-wireless.com
QSGFIXED2022v1
