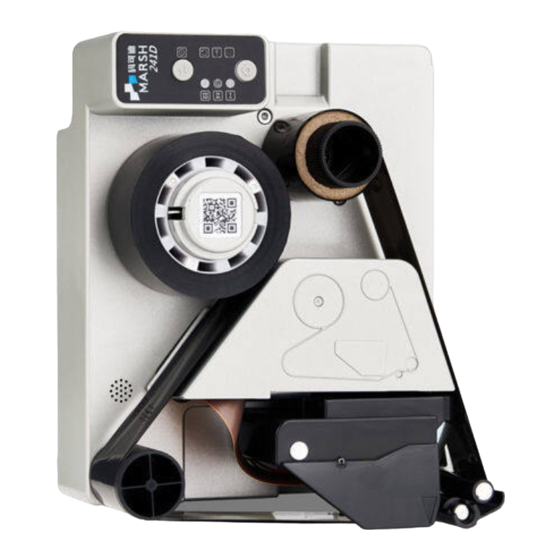

Marsh 241d Quick Manual

User interface quick guide
Press to cycle between Run Mode and the
three User Settings in Settings Mode
Run Mode
Indicators display the status
of the following:
Ribbon status
Off = good
Amber = warning
Red = out of ribbon, ribbon fault
App/phone Bluetooth connection
Off = not connected
Blue flashing = connecting
Solid blue = connected
App status details
Off = good
Amber = warning
Red = fault
© 2020 Marsh
Mode Button
Settings Mode
Indicators display the level
of the active User Settings
User Settings
Print heat
Print force
Print orientation
Setting Level
Green = normal/default
Green = higher
Green = highest
Vary Button
In Run Mode
• Switches between online/offline
• Clears a fault
• Prints a test print
Indicators
In Settings Mode
Displays status or level
• Adjusts the Setting Level
for current mode
User Settings Status Indicator
Active when illuminated
Running
Stopped
