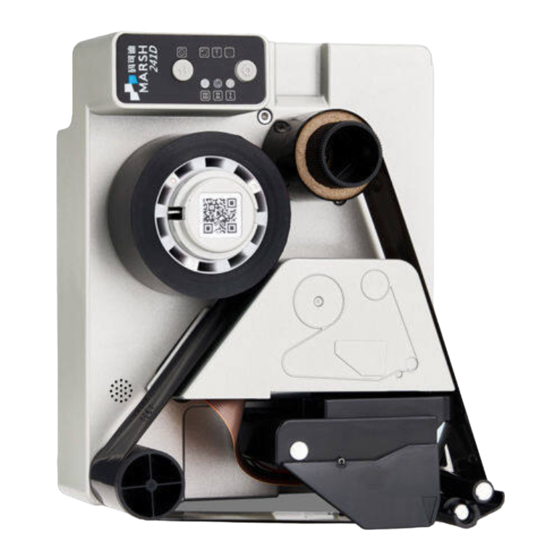

Marsh 241D Installation Guide

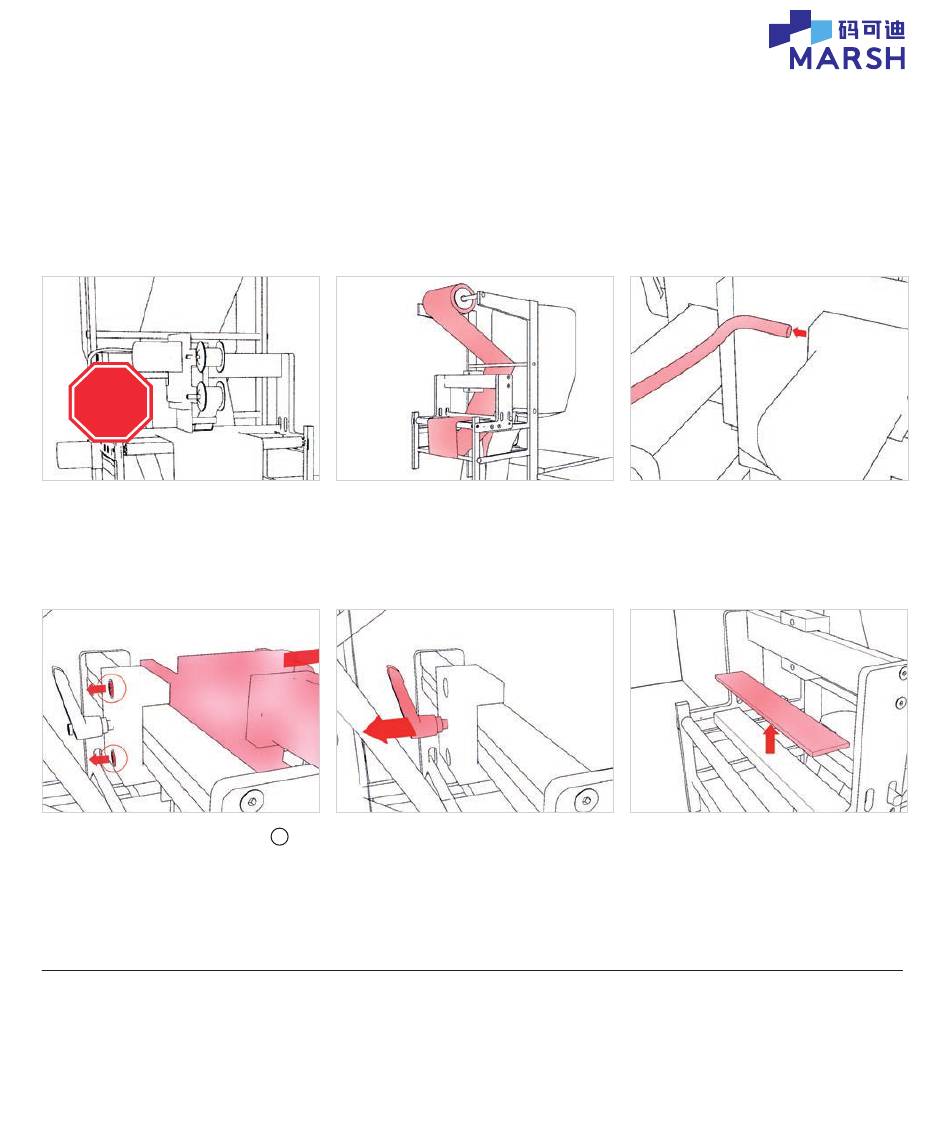

1. Remove current hot date coder
1.1 Stop the line, power off the hot date
coder.
If using air-driven hot date coder, shut
off air supply and disconnect air pipe.
1.4 Using wider end of Allen key
from Marsh 241D box, remove the
2 bracket mounting screws.
© 2020 All rights reserved. We reserve the right to alter design and/or specifications without notice.
1.2 Remove packaging material from
the coder bracket area.
1.5 Remove the bracket locking handle.
a
1.3 Undo connector on hot date coder.
1.6 Remove existing platen rubber
from bracket, along with any platen
rubber clamps.
Advertisement
Table of Contents
Related Manuals for Marsh 241D
Summary of Contents for Marsh 241D
- Page 1 1.6 Remove existing platen rubber 1.4 Using wider end of Allen key from bracket, along with any platen from Marsh 241D box, remove the rubber clamps. 2 bracket mounting screws. © 2020 All rights reserved. We reserve the right to alter design and/or specifications without notice.
- Page 2 Marsh 241D box. Tighten the 2 screws. 3. Fix Marsh 241D to the correct print position 3.1 Undo the 2 screws ½ turn. 3.2 Using smaller end of the supplied 3.3 Push the printer towards the platen...
- Page 3 3.4 Hold the printer firmly to keep in 3.5 Continue to hold the printer firmly 3.6 IMPORTANT: Check the gap setting this position and then tighten the to keep in this position. Tighten both tool has remained in contact with, gap adjustment screw.
- Page 4 Marsh 241D printer. coder control box. 4.7 Using either the existing mains 4.8 The Marsh 241D will power up with The Marsh 241D is IEC cable or the mains IEC cable a flashing light sequence and it will...
