- Page 1 User Manual 10611004/10611005 Aether Series Rotary Vane Vacuum Pump User Manual Version 1.0...
-
Page 2: Table Of Contents
I. Disclaimer & Warranty ......................3 LIMITED WARRANTY & DISCLAIMER ..................3 LIMITATION OF LIABILITY ....................... 6 II. Safety ............................ 7 After Sales Support .....................10 III. Aether Series Rotary Vane Vacuum Pump ...............11 3.1 Introduction ........................11 Gas Ballast .........................12 Accessories ........................12 3.3.1 Exploded View .....................13... -
Page 3: Disclaimer & Warranty
User Manual I. Disclaimer & Warranty • The intellectual property rights for this manual belongs to Holland Green Science Corporation (hereinafter referred to as “the Company”). • Products of the company are under the patent protection of China and other countries and regions (inclusive of obtained patents and patents currently under application). - Page 4 User Manual defective Products so as to cause the same to operate in substantial conformance with said published specifications; provided that Buyer shall (a) promptly notify the Company in writing upon the discovery of any defect, which notice shall include the product model and serial number (if applicable) and details of the warranty claim;...
- Page 5 User Manual SHALL IMMEDIATELY VOID AND CANCEL ALL WARRANTIES WITH RESPECT TO THE PRODUCT. THE OBLIGATIONS CREATED BY THIS WARRANTY STATEMENT TO REPAIR OR REPLACE A DEFECTIVE PRODUCT SHALL BE THE SOLE REMEDY OF BUYER IN THE EVENT OF A DEFECTIVE PRODUCT.
-
Page 6: Limitation Of Liability
User Manual For claims under the warranty please contact your local supplier. You may also send the instrument directly to manufacturer, enclosing the invoice copy and by giving reasons for the claim. LIMITATION OF LIABILITY NOTWITHSTANDING ANYTHING TO THE CONTRARY CONTAINED HEREIN, THE LIABILITY OF THE COMPANY UNDER THESE TERMS AND CONDITIONS (WHETHER BY REASON OF BREACH OF CONTRACT, TORT, INDEMNIFICATION, OR OTHERWISE, BUT EXCLUDING LIABILITY OF THE COMPANY FOR BREACH OF WARRANTY (THE SOLE REMEDY FOR... -
Page 7: Safety
User Manual II. Safety IMPORTANT Safety Items to be Observed. Safety Warnings ! DANGER (may cause serious damage to property and or casualties) • Please carefully read this User Manual prior to operating the instrument and observe the instructions on safe operation. •... - Page 8 User Manual • Ensure handling and disposal of packaging is compliant to local environmental laws and regulations. ! ATTENTION (may affect operational performance or service life) • The instrument is deenergised only when the power cable is disconnected from the power source.
- Page 9 User Manual Version 1.0...
-
Page 10: After Sales Support
User Manual After Sales Support If problems are encountered or technical support is required when installing or using the instrument, please contact serviceusa@hollandgreenscience.com The company may provide technical assistance and information regarding the instrument or equipment or service without charge at its sole discretion. Buyer assumes sole responsibility for any reliance on or use of such assistance and information, and the company makes no warranty thereon. -
Page 11: Aether Series Rotary Vane Vacuum Pump

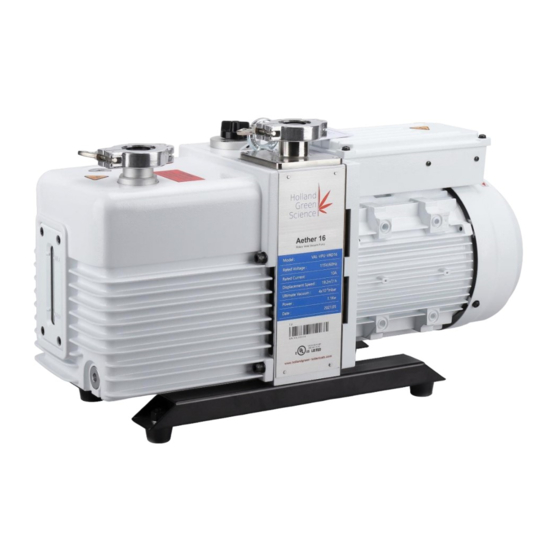

Users are advised to carefully read this manual in full prior to using or operating the Aether series rotary vane vacuum pump, to be aware of all precautions outlined and ensure that operation is in accordance with the instructions detailed within this manual. -
Page 12: Gas Ballast
User Manual Gas Ballast The controllable gas (generally dry air at room temperature) is admitted into the pump chamber. It is mixed with pumped vapor during the gas compression process. This increases the percentage of non-condensable gas such that the partial pressure of the vapor being pumped, is below its saturated vapor pressure when the exhaust valve opens. -
Page 13: Exploded View
User Manual 3.3.1 Exploded View Version 1.0... -
Page 14: Parts List
User Manual 3.3.2 Parts List Item Material Reference Position Washer Cardboard 320220101 Motor Spider Rubber 3-ph:320050101 Coupling Spider Rubber 1-ph:320050102 Oil Pump Cover Seal 300281601 Front Stator O ring 300310072 Front Rotor O ring 300310137 Trestle Spring 320110205 Anti-suck back cover O ring 300310074 Anti-suck back cover... -
Page 15: Technical Specifications
User Manual IV. Technical Specifications Specifications Model 10611004 10611005 Aether 16 Aether 30 Product Name 16 (4.4) 30 (8.3) 50Hz Displacement speed 19.2 (5.2) 36 (9.9) 60Hz m'/h(L/s) Ultimate partial pressure without X 10· X 10· gas ballast (Pa) Ultimate total pressure without 4 x 10·... -
Page 16: Pumping Speed Characteristics
User Manual Pumping Speed Characteristics Version 1.0... -
Page 17: Proper Use
User Manual VI. Proper Use The instrument is designed for non-residential use and to be used in conjunction only with accessories recommended within this manual and by the manufacturer. VII. Inspection Packing List Unpack the equipment carefully and check for any damage which may have arisen during transport. -
Page 18: Installation And Connection
User Manual VIII. Installation and Connection Installation Dimensions Model Aether-16 KF25 Aether-30 KF25/40 Version 1.0... -
Page 19: Connection To The System
User Manual Connection to the System • For the pump’s installation site and positioning, consider convenience of access to the connections for installation, maintenance, disassembly, and electrical connections as well as good ventilation clearance. • Ensure the power supply is disconnected prior to commencing connections, repairs, or maintenance activities. -
Page 20: Operating Instructions
User Manual IX. Operating Instructions Note: High Temperature Hazard - Do NOT touch the pump surface! The surface of the pump becomes very hot during operation. Initial Start-Up Ensure the gas flow at the exhaust port is not blocked or restricted in any way. Do NOT start the pump if the exhaust port is blocked. -
Page 21: Inspection And Maintenance
User Manual Inspection and Maintenance All checks and maintenance must be performed by a qualified trained technician in accordance with local safety rules and regulations. If hazardous substances are present, firstly determine the hazard and then follow all appropriate safety procedures. If the potential hazard still exists, the pump must be decontaminated prior to proceeding with any maintenance. -
Page 22: Pumping Condensable Gases And Vapor
User Manual Pumping Condensable Gases and Vapor. If the vacuum system contains a small amount of condensable gas, open the gas ballast valve, set the gas ballast to position I or II and keep the pump running for at least 30 minutes to pump the condensable gas effectively. -
Page 23: Oil Level Checks
User Manual 9.5 Oil Level Checks 1) The oil level must always be maintained between the MAX and MIN positions. Add oil when the oil level is lower than MIN position MIN and discharge oil by removing the oil drain plug refer FIG.1 when the oil level is above MAX position. 2) Check the oil colour. -
Page 24: Troubleshooting
User Manual X. Troubleshooting Fault Possible Reason Remedy Operation voltage is abnormal Make sure the voltage is within rated voltage tolerance of -/+ 10% Motor malfunction Replace the motor Overload protector is active Check the ambient temperature or pumped Pump Not Starting gases temperature Oil temperature is below 10c Increase the ambient temperature... - Page 25 User Manual Fault Possible Reason Remedy Noise is Abnormal The oil level of the pump is Add the oil to the level as advised too low The pump inner parts are Disassemble and replace parts damaged Poor ventilation Improve ventilation clearance around the pump The fan is damaged Change the fan Pumped gas temperature is...
-
Page 26: Maintenance And Cleaning
User Manual XI. Maintenance and Cleaning Keep the instrument dry and clean in routine operations. Clean the outer surface with a non-abrasive cleanser and only connect the power supply when the entire instrument surface is dry. If liquid or moist solids enters the instrument, please immediately disconnect the power supply and contact supportusa@hollandgreenscience.com •...
